Board-to-Board Solutions

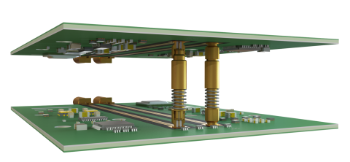

A ‘Board-to-Board’ (or B2B) RF connection is defined as a means for transmitting an RF signal between two parallel RF printed circuit boards (PCB) using RF connectors. SV offers a complete line of SMP and SMPM PCB connectors that are ideal for creating a B2B connection. This configuration consists of two PCB surface mount male connectors and a female-female adapter, or “bullet.” Learn how to create an ideal B2B solution in our Board-to-Board RF Connector Solutions Product Portfolio.

Features / Benefits
Technical Specs
Additional Resources

Features/Benefits:

High-density, high-frequency performance
Superior misalignment tolerance
Pre-tinned options available
Glass seal options available
Available in push-on interfaces: BMB, SMP, SMPM and SMPS
DC – 65 GHz

The specifications below are typical for the connector series, but may not apply to this particular part. Please see the datasheet for full specifications.

SMP

Impedance (Ω)	50
Frequency GHz	40 GHz
Shielding Effectiveness	≥ -80 dB DC - 3 GHz ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage	500 VRMS
Mating Cycles - SB	1000
Mating Cycles - LD	500
Mating Cycles - FD	100
Insertion Force - SB	3.0 lbs
Insertion Force - LD	5.0 lbs
Insertion Force - FD	7.0 lbs
Withdrawal Force - SB	0.5 lbs
Withdrawal Force - LD	7.0 lbs
Withdrawal Force - FD	9.0 lbs
Axial Misalignment	.010” Max
Radial Misalignment	3° Max
Temperature Rating	-65°C to +165°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Thermal Shock	MIL-STD-202, Method 107, Condition B
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.

SMPM

Impedance (Ω)	50
Frequency GHz	65 GHz
Shielding Effectiveness	≥ -80 dB DC - 3 GHz ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage	325 VRMS
Mating Cycles - SB	500
Mating Cycles - FD	100
Insertion Force - SB	2.5 lbs
Insertion Force - FD	4.5 lbs
Withdrawal Force - SB	1.5 lbs
Withdrawal Force - FD	6.5 lbs
Axial Misalignment	.010” Max
Radial Misalignment	3° Max
Temperature Rating	-65°C to +165°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Thermal Shock	MIL-STD-202, Method 107, Condition B
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.

Application Note

Grid List

Filters

per page

Part # 1290-4008

SMP Female to Female Bullet (OAL .255")

Available Inventory: 7595

1290-4008

SMP Adapters 1290-4008

Datasheet

Part # 1112-4186

SMP Female to Female Bullet (OAL .265”)

Available Inventory: 670

1112-4186

SMP Adapters 1112-4186

Datasheet

Part # 1112-4187

SMP Female to Female Bullet (OAL .275”)

Available Inventory: 100

1112-4187

SMP Adapters 1112-4187

Datasheet

Part # 1112-4188

SMP Female to Female Bullet (OAL .285”)

Available Inventory: 157

1112-4188

SMP Adapters 1112-4188

Datasheet

Part # 1112-4189

SMP Female to Female Bullet (OAL .295”)

Available Inventory: 405

1112-4189

SMP Adapters 1112-4189

Datasheet

Part # 1290-4009

SMP Female to Female Bullet (OAL 0.396")

Available Inventory: 2104

1290-4009

SMP Adapters 1290-4009

Datasheet

Part # 1290-4007

SMP Female to Female Bullet (OAL 0.769")

Available Inventory: 465

1290-4007

SMP Adapters 1290-4007

Datasheet

Part # 1112-4144

SMP Female to Female Bullet, Spring Loaded (OAL 0.650")

Available Inventory: 186

1112-4144

SMP Adapters 1112-4144

Datasheet

Part # 1112-4145

SMP Female to Female Bullet, Spring Loaded (OAL 0.725")

Available Inventory: 361

1112-4145

SMP Adapters 1112-4145

Datasheet

Part # 1112-4146

SMP Female to Female Bullet, Spring Loaded (OAL 0.800")

Available Inventory: 0

1112-4146

SMP Adapters 1112-4146

Datasheet

Part # 1112-4147

SMP Female to Female Bullet, Spring Loaded (OAL 0.875")

Available Inventory: 17

1112-4147

SMP Adapters 1112-4147

Datasheet

Part # 1112-4148

SMP Female to Female Bullet, Spring Loaded (OAL 0.950")

Available Inventory: 139

1112-4148

SMP Adapters 1112-4148

Datasheet

Part # 1211-60211

SMP Male PCB Edge Launch Connector (Pre-Tinned), FD

Available Inventory: 272

1211-60211

SMP Connectors 1211-60211

Datasheet

Part # 1211-60209

SMP Male PCB Edge Launch Connector (Pre-Tinned), SB

Available Inventory: 50

1211-60209

SMP Connectors 1211-60209

Datasheet

Part # 1285-6002

SMP Male PCB Edge Launch Connector, .062" PCB Thickness, FD

Available Inventory: 1514

1285-6002

SMP Connectors 1285-6002

Datasheet

Part # 1285-6003

SMP Male PCB Edge Launch Connector, .062" PCB Thickness, LD

Available Inventory: 0

1285-6003

SMP Connectors 1285-6003

Datasheet

Part # 1285-6004

SMP Male PCB Edge Launch Connector, .062" PCB Thickness, SB

Available Inventory: 103

1285-6004

SMP Connectors 1285-6004

Datasheet

Part # 9311-60035

SMP Male PCB Edge Launch Connector, 2 Port, FD

Available Inventory: 0

9311-60035

SMP Connectors 9311-60035

Datasheet

Part # 9311-60034

SMP Male PCB Edge Launch Connector, 2 Port, LD

Available Inventory: 51

9311-60034

SMP Connectors 9311-60034

Datasheet

Part # 9311-60033

SMP Male PCB Edge Launch Connector, 2 Port, SB

Available Inventory: 4

9311-60033

SMP Connectors 9311-60033

Datasheet

Part # 9311-60038

SMP Male PCB Edge Launch Connector, 4 Port, FD

Available Inventory: 176

9311-60038

SMP Connectors 9311-60038

Datasheet

Part # 9311-60037

SMP Male PCB Edge Launch Connector, 4 Port, LD

Available Inventory: 1

9311-60037

SMP Connectors 9311-60037

Datasheet

Part # 9311-60036

SMP Male PCB Edge Launch Connector, 4 Port, SB

Available Inventory: 19

9311-60036

SMP Connectors 9311-60036

Datasheet

Part # 1211-66175

SMP Male PCB Edge Launch Connector, CM

Available Inventory: 737

1211-66175

SMP Connectors 1211-66175

Datasheet

Part # 1211-66137

SMP Male PCB Edge Launch Connector, FD

Available Inventory: 1986

1211-66137

SMP Connectors 1211-66137

Datasheet

Part # 1211-66138

SMP Male PCB Edge Launch Connector, LD

Available Inventory: 602

1211-66138

SMP Connectors 1211-66138

Datasheet

Part # 1211-66459

SMP Male PCB Edge Launch Plus Connector, CM

Available Inventory: 330

1211-66459

SMP Connectors 1211-66459

Datasheet

Part # 1211-66452

SMP Male PCB Edge Launch Plus Connector, FD

Available Inventory: 330

1211-66452

SMP Connectors 1211-66452

Datasheet

Part # 1211-66456

SMP Male PCB Edge Launch Plus Connector, FD, .062" PCB Thickness

Available Inventory: 330

1211-66456

SMP Connectors 1211-66456

Datasheet

Part # 1211-66454

SMP Male PCB Edge Launch Plus Connector, SB

Available Inventory: 330

1211-66454

SMP Connectors 1211-66454

Datasheet

Part # 1211-66195

SMP Male PCB QB Edge Launch Connector, SB

Available Inventory: 810

1211-66195

SMP Connectors 1211-66195

Datasheet

Part # 1211-66455

SMP Male PCB QB Edge Launch Plus Connector, SB

Available Inventory: 380

1211-66455

SMP Connectors 1211-66455

Datasheet

Part # 1211-40032

SMP Male PCB QB Surface Mount Connector

Available Inventory: 35

1211-40032

SMP Connectors 1211-40032

Datasheet

Part # 1211-20016

SMP Male PCB Surface Mount Connector (Glass Seal), FD

Available Inventory: 190

1211-20016

SMP Connectors 1211-20016

Datasheet

Part # 1211-20015

SMP Male PCB Surface Mount Connector (Glass Seal), SB

Available Inventory: 99

1211-20015

SMP Connectors 1211-20015

Datasheet

Part # 1211-20021

SMP Male PCB Surface Mount Connector (Glass Seal, Pre-Tinned), FD

Available Inventory: 461

1211-20021

SMP Connectors 1211-20021

Datasheet

Part # 1211-20019

SMP Male PCB Surface Mount Connector (Glass Seal, Pre-Tinned), SB

Available Inventory: 88

1211-20019

SMP Connectors 1211-20019

Datasheet

Part # 1211-40089

SMP Male PCB Surface Mount Connector (Pre-Tinned), R/A, FD

Available Inventory: 208

1211-40089

SMP Connectors 1211-40089

Datasheet

Part # 1211-40087

SMP Male PCB Surface Mount Connector (Pre-Tinned), R/A, SB

Available Inventory: 281

1211-40087

SMP Connectors 1211-40087

Datasheet

Part # 1211-40162

SMP Male PCB Surface Mount Connector (Reflow Stable), FD

Available Inventory: 578

1211-40162

SMP Connectors 1211-40162

Datasheet

Part # 9311-00035

SMP Male PCB Surface Mount Connector, 2 Port, SB

Available Inventory: 77

9311-00035

SMP Connectors 9311-00035

Datasheet

Part # 9311-00063

SMP Male PCB Surface Mount Connector, 2-Port, FD

Available Inventory: 90

9311-00063

SMP Connectors 9311-00063

Datasheet

Part # 9311-00036

SMP Male PCB Surface Mount Connector, 4 Port, SB

Available Inventory: 35

9311-00036

SMP Connectors 9311-00036

Datasheet

Part # 9311-00064

SMP Male PCB Surface Mount Connector, 4-Port, FD

Available Inventory: 90

9311-00064

SMP Connectors 9311-00064

Datasheet

Part # 9311-00070

SMP Male PCB Surface Mount Connector, 8-Port, FD

Available Inventory: 37

9311-00070

SMP Connectors 9311-00070

Datasheet

Part # 9311-00068

SMP Male PCB Surface Mount Connector, 8-Port, SB

Available Inventory: 35

9311-00068

SMP Connectors 9311-00068

Datasheet

Part # 1211-40003

SMP Male PCB Surface Mount Connector, R/A, FD

Available Inventory: 1322

1211-40003

SMP Connectors 1211-40003

Datasheet

Part # 1211-40004

SMP Male PCB Surface Mount Connector, R/A, LD

Available Inventory: 415

1211-40004

SMP Connectors 1211-40004

Datasheet

Part # 1211-40001

SMP Male PCB Surface Mount Connector, R/A, SB

Available Inventory: 956

1211-40001

SMP Connectors 1211-40001

Datasheet

Part # 9311-20013

SMP Male PCB Surface Mount, 2 Port (Glass Seal), FD

Available Inventory: 90

9311-20013

SMP Connectors 9311-20013

Datasheet

Part # 9311-20018

SMP Male PCB Surface Mount, 2 Port (Glass Seal), SB

Available Inventory: 65

9311-20018

SMP Connectors 9311-20018

Datasheet

Part # 9311-20019

SMP Male PCB Surface Mount, 4 Port (Glass Seal), FD

Available Inventory: 115

9311-20019

SMP Connectors 9311-20019

Datasheet

Part # 9311-20020

SMP Male PCB Surface Mount, 4 Port (Glass Seal), SB

Available Inventory: 65

9311-20020

SMP Connectors 9311-20020

Datasheet

Part # 1211-40172

SMP Male PCB Thru-Hole Connector (Pre-Tinned), FD

Available Inventory: 191

1211-40172

SMP Connectors 1211-40172

Datasheet

Part # 1211-40082

SMP Male PCB Thru-Hole Connector (Pre-Tinned), R/A, FD

Available Inventory: 380

1211-40082

SMP Connectors 1211-40082

Datasheet

Part # 1211-40080

SMP Male PCB Thru-Hole Connector (Pre-Tinned), R/A, SB

Available Inventory: 245

1211-40080

SMP Connectors 1211-40080

Datasheet

Part # 1211-40170

SMP Male PCB Thru-Hole Connector (Pre-Tinned), SB

Available Inventory: 20

1211-40170

SMP Connectors 1211-40170

Datasheet

Part # 1211-40169

SMP Male PCB Thru-Hole Connector, FD

Available Inventory: 442

1211-40169

SMP Connectors 1211-40169

Datasheet

Part # 1211-40110

SMP Male PCB Thru-Hole Connector, R/A, FD

Available Inventory: 0

1211-40110

SMP Connectors 1211-40110

Datasheet

Part # 1212-60062

SMP Male PCB Thru-Hole Connector, R/A, FD

Available Inventory: 227

1212-60062

SMP Connectors 1212-60062

Datasheet

Part # 1211-40108

SMP Male PCB Thru-Hole Connector, R/A, SB

Available Inventory: 0

1211-40108

SMP Connectors 1211-40108

Datasheet

Part # 1212-60060

SMP Male PCB Thru-Hole Connector, R/A, SB

Available Inventory: 122

1212-60060

SMP Connectors 1212-60060

Datasheet

Part # SF1212-6002

SMP Male PCB Thru-Hole Connector, R/A, SB

Available Inventory: 148

SF1212-6002

SMP Connectors SF1212-6002

Datasheet

Part # 1211-40167

SMP Male PCB Thru-Hole Connector, SB

Available Inventory: 324

1211-40167

SMP Connectors 1211-40167

Datasheet

Part # 1211-66449

SMP Male Reverse Mount Thru-Hole PCB Connector, R/A, FD

Available Inventory: 75

1211-66449

SMP Connectors 1211-66449

Datasheet

Part # 1211-66450

SMP Male Reverse Mount Thru-Hole PCB Connector, R/A, SB

Available Inventory: 100

1211-66450

SMP Connectors 1211-66450

Datasheet

Part # 1132-4010

SMPM Female to Female Bullet (OAL 0.166")

Available Inventory: 3057

1132-4010

SMPM Adapters 1132-4010

Datasheet

Part # 1132-4021

SMPM Female to Female Bullet (OAL 0.180")

Available Inventory: 624

1132-4021

SMPM Adapters 1132-4021

Datasheet

Part # 1132-4169

SMPM Female to Female Bullet (OAL 0.188")

Available Inventory: 330

1132-4169

SMPM Adapters 1132-4169

Datasheet

Part # 1132-4170

SMPM Female to Female Bullet (OAL 0.197")

Available Inventory: 291

1132-4170

SMPM Adapters 1132-4170

Datasheet

Part # 3290-4002

SMPM Female to Female Bullet (OAL 0.211")

Available Inventory: 6000

3290-4002

SMPM Adapters 3290-4002

Datasheet

Part # 3290-4003

SMPM Female to Female Bullet (OAL 0.327")

Available Inventory: 82

3290-4003

SMPM Adapters 3290-4003

Datasheet

Part # 1132-4006

SMPM Female to Female Bullet, Spring Loaded (OAL 0.412")

Available Inventory: 188

1132-4006

SMPM Adapters 1132-4006

Datasheet

Part # 1132-4113

SMPM Female to Female Bullet, Spring Loaded (OAL 0.600")

Available Inventory: 396

1132-4113

SMPM Adapters 1132-4113

Datasheet

Part # 1132-4114

SMPM Female to Female Bullet, Spring Loaded (OAL 0.690")

Available Inventory: 150

1132-4114

SMPM Adapters 1132-4114

Datasheet

Part # 1132-4115

SMPM Female to Female Bullet, Spring Loaded (OAL 0.780")

Available Inventory: 105

1132-4115

SMPM Adapters 1132-4115

Datasheet

Part # 1132-4116

SMPM Female to Female Bullet, Spring Loaded (OAL 0.870")

Available Inventory: 29

1132-4116

SMPM Adapters 1132-4116

Datasheet

Part # 1132-4117

SMPM Female to Female Bullet, Spring Loaded (OAL 0.960")

Available Inventory: 48

1132-4117

SMPM Adapters 1132-4117

Datasheet

Part # 1132-4139

SMPM Female to Female Non-Magnetic Bullet (OAL 0.180)

Available Inventory: 66

1132-4139

SMPM Adapters 1132-4139

Datasheet

Part # 1132-4140

SMPM Female to Female Non-Magnetic Bullet (OAL 0.327)

Available Inventory: 74

1132-4140

SMPM Adapters 1132-4140

Datasheet

Part # 3211-40119

SMPM Male Non-Magnetic PCB Surface Mount Connector, FD

Available Inventory: 217

3211-40119

SMPM Connectors 3211-40119

Datasheet

Part # 3211-40118

SMPM Male Non-Magnetic PCB Surface Mount Connector, SB

Available Inventory: 156

3211-40118

SMPM Connectors 3211-40118

Datasheet

Part # 3211-60308

SMPM Male PCB Edge Launch Connector (Pre-Tinned), FD

Available Inventory: 742

3211-60308

SMPM Connectors 3211-60308

Datasheet

Part # 3211-60307

SMPM Male PCB Edge Launch Connector (Pre-Tinned), SB

Available Inventory: 71

3211-60307

SMPM Connectors 3211-60307

Datasheet

Part # 3211-60087

SMPM Male PCB Edge Launch Connector, 2 Port, FD

Available Inventory: 516

3211-60087

SMPM Connectors 3211-60087

Datasheet

Part # 3211-60086

SMPM Male PCB Edge Launch Connector, 2 Port, SB

Available Inventory: 131

3211-60086

SMPM Connectors 3211-60086

Datasheet

Part # 9311-60039

SMPM Male PCB Edge Launch Connector, 4 Port, FD

Available Inventory: 947

9311-60039

SMPM Connectors 9311-60039

Datasheet

Part # 9311-60015

SMPM Male PCB Edge Launch Connector, 4 Port, SB

Available Inventory: 346

9311-60015

SMPM Connectors 9311-60015

Datasheet

Part # 3211-60180

SMPM Male PCB Edge Launch Connector, 8 Port, CM

Available Inventory: 44

3211-60180

SMPM Connectors 3211-60180

Datasheet

Part # 3211-60181

SMPM Male PCB Edge Launch Connector, 8 Port, FD

Available Inventory: 26

3211-60181

SMPM Connectors 3211-60181

Datasheet

Part # 3285-6001

SMPM Male PCB Edge Launch Connector, FD

Available Inventory: 7186

3285-6001

SMPM Connectors 3285-6001

Datasheet

Part # 3211-60035

SMPM Male PCB Edge Launch Connector, SB

Available Inventory: 4630

3211-60035

SMPM Connectors 3211-60035

Datasheet

Part # 3211-60494

SMPM Male PCB Edge Launch Plus Connector, FD

Available Inventory: 322

3211-60494

SMPM Connectors 3211-60494

Datasheet

Part # 3211-60493

SMPM Male PCB Edge Launch Plus Connector, SB

Available Inventory: 316

3211-60493

SMPM Connectors 3211-60493

Datasheet

Part # 3211-60118

SMPM Male PCB QB Edge Launch Connector, SB

Available Inventory: 918

3211-60118

SMPM Connectors 3211-60118

Datasheet

Part # 3211-60492

SMPM Male PCB QB Edge Launch Plus Connector, SB

Available Inventory: 340

3211-60492

SMPM Connectors 3211-60492

Datasheet

Part # 3211-60112

SMPM Male PCB QB Surface Mount Connector, R/A

Available Inventory: 100

3211-60112

SMPM Connectors 3211-60112

Datasheet

Part # 3211-20028

SMPM Male PCB Surface Mount Connector (Glass Seal), FD

Available Inventory: 2

3211-20028

SMPM Connectors 3211-20028

Datasheet

Part # 3211-20027

SMPM Male PCB Surface Mount Connector (Glass Seal), SB

Available Inventory: 143

3211-20027

SMPM Connectors 3211-20027

Datasheet

Part # 3211-20034

SMPM Male PCB Surface Mount Connector (Glass Seal, Pre-Tinned), FD

Available Inventory: 1

3211-20034

SMPM Connectors 3211-20034

Datasheet

Part # 3211-20033

SMPM Male PCB Surface Mount Connector (Glass Seal, Pre-Tinned), SB

Available Inventory: 0

3211-20033

SMPM Connectors 3211-20033

Datasheet

Part # 3211-40107

SMPM Male PCB Surface Mount Connector (Pre-Tinned), R/A, FD

Available Inventory: 513

3211-40107

SMPM Connectors 3211-40107

Datasheet

Part # 3211-40106

SMPM Male PCB Surface Mount Connector (Pre-Tinned), R/A, SB

Available Inventory: 507

3211-40106

SMPM Connectors 3211-40106

Datasheet

Part # 3211-40175

SMPM Male PCB Surface Mount Connector (Reflow Stable), FD

Available Inventory: 48

3211-40175

SMPM Connectors 3211-40175

Datasheet

Part # 9311-00037

SMPM Male PCB Surface Mount Connector, 2 Port, SB

Available Inventory: 58

9311-00037

SMPM Connectors 9311-00037

Datasheet

Part # 9311-00065

SMPM Male PCB Surface Mount Connector, 2-Port, FD

Available Inventory: 90

9311-00065

SMPM Connectors 9311-00065

Datasheet

Part # 9311-00038

SMPM Male PCB Surface Mount Connector, 4 Port, SB

Available Inventory: 253

9311-00038

SMPM Connectors 9311-00038

Datasheet

Part # 9311-00066

SMPM Male PCB Surface Mount Connector, 4-Port, FD

Available Inventory: 59

9311-00066

SMP Connectors 9311-00066

Datasheet

Part # 9311-00071

SMPM Male PCB Surface Mount Connector, 8-Port, FD

Available Inventory: 34

9311-00071

SMP Connectors 9311-00071

Datasheet

Part # 9311-00069

SMPM Male PCB Surface Mount Connector, 8-Port, SB

Available Inventory: 35

9311-00069

SMP Connectors 9311-00069

Datasheet

Part # 3287-6100

SMPM Male PCB Surface Mount Connector, R/A, FD

Available Inventory: 2021

3287-6100

SMPM Connectors 3287-6100

Datasheet

Part # 3287-6101

SMPM Male PCB Surface Mount Connector, R/A, SB

Available Inventory: 416

3287-6101

SMPM Connectors 3287-6101

Datasheet

Part # 9311-20021

SMPM Male PCB Surface Mount, 2 Port (Glass Seal), FD

Available Inventory: 78

9311-20021

SMPM Connectors 9311-20021

Datasheet

Part # 9311-20022

SMPM Male PCB Surface Mount, 2 Port (Glass Seal), SB

Available Inventory: 65

9311-20022

SMPM Connectors 9311-20022

Datasheet

Part # 9311-20023

SMPM Male PCB Surface Mount, 4 Port (Glass Seal), FD

Available Inventory: 90

9311-20023

SMPM Connectors 9311-20023

Datasheet

Part # 9311-20024

SMPM Male PCB Surface Mount, 4 Port (Glass Seal), SB

Available Inventory: 65

9311-20024

SMPM Connectors 9311-20024

Datasheet

Part # 3211-40143

SMPM Male PCB Thru-Hole Connector (Pre-Tinned), FD

Available Inventory: 251

3211-40143

SMPM Connectors 3211-40143

Datasheet

Part # 3211-40094

SMPM Male PCB Thru-Hole Connector (Pre-Tinned), R/A, FD

Available Inventory: 3251

3211-40094

SMPM Connectors 3211-40094

Datasheet

Part # 3211-40093

SMPM Male PCB Thru-Hole Connector (Pre-Tinned), R/A, SB

Available Inventory: 406

3211-40093

SMPM Connectors 3211-40093

Datasheet

Part # 3211-40142

SMPM Male PCB Thru-Hole Connector (Pre-Tinned), SB

Available Inventory: 115

3211-40142

SMPM Connectors 3211-40142

Datasheet

Part # 3211-40024

SMPM Male PCB Thru-Hole Connector, 2 Port, R/A, FD

Available Inventory: 42

3211-40024

SMPM Connectors 3211-40024

Datasheet

Part # 3287-4100

SMPM Male PCB Thru-Hole Connector, FD

Available Inventory: 346

3287-4100

SMPM Connectors 3287-4100

Datasheet

Part # 3211-40141

SMPM Male PCB Thru-Hole Connector, FD

Available Inventory: 0

3211-40141

SMPM Connectors 3211-40141

Datasheet

Part # 3211-40139

SMPM Male PCB Thru-Hole Connector, R/A, FD

Available Inventory: 261

3211-40139

SMPM Connectors 3211-40139

Datasheet

Part # 3212-40002

SMPM Male PCB Thru-Hole Connector, R/A, FD

Available Inventory: 1056

3212-40002

SMPM Connectors 3212-40002

Datasheet

Part # SF3211-60033

SMPM Male PCB Thru-Hole Connector, R/A, FD

Available Inventory: 853

SF3211-60033

SMPM Connectors SF3211-60033

Datasheet

Part # SF3211-60034

SMPM Male PCB Thru-Hole Connector, R/A, SB

Available Inventory: 184

SF3211-60034

SMPM Connectors SF3211-60034

Datasheet

Part # 3212-40003

SMPM Male PCB Thru-Hole Connector, R/A, SB

Available Inventory: 50

3212-40003

SMPM Connectors 3212-40003

Datasheet

Part # 3211-40138

SMPM Male PCB Thru-Hole Connector, R/A, SB

Available Inventory: 57

3211-40138

SMPM Connectors 3211-40138

Datasheet

Part # 3211-40140

SMPM Male PCB Thru-Hole Connector, SB

Available Inventory: 129

3211-40140

SMPM Connectors 3211-40140

Datasheet

Part # 3287-4101

SMPM Male PCB Thru-Hole Connector, SB

Available Inventory: 166

3287-4101

SMPM Connectors 3287-4101

Datasheet

Part # 3211-60484

SMPM Male Reverse Mount Thru-Hole PCB Connector R/A, FD

Available Inventory: 97

3211-60484

SMPM Connectors 3211-60484

Datasheet

Part # 3211-60485

SMPM Male Reverse Mount Thru-Hole PCB Connector R/A, SB

Available Inventory: 100

3211-60485

SMPM Connectors 3211-60485

Datasheet

Part # SF3211-60218

SMPM Male Solderless PCB Compression Mount Connector, 2 Hole (CPW / Microstrip)

Available Inventory: 296

SF3211-60218

SMPM Connectors SF3211-60218

Datasheet

Part # SF3211-60193

SMPM Male Solderless PCB Compression Mount Connector, 2 Hole (Stripline)

Available Inventory: 115

SF3211-60193

SMPM Connectors SF3211-60193

Datasheet

Part # SF3211-60218-1S

SMPM Male Solderless PCB Compression Mount Connector, 2 Hole, with 4.76mm Screws (CPW / Microstrip)

Available Inventory: 77

SF3211-60218-1S

SMPM Connectors SF3211-60218-1S

Datasheet

Part # SF3211-60193-1S

SMPM Male Solderless PCB Compression Mount Connector, 2 Hole, with 4.76mm Screws (Stripline)

Available Inventory: 0

SF3211-60193-1S

SMPM Connectors SF3211-60193-1S

Datasheet

Part # SF3211-60218-2S

SMPM Male Solderless PCB Compression Mount Connector, 2 Hole, with 6.35mm Screws (CPW / Microstrip)

Available Inventory: 100

SF3211-60218-2S

SMPM Connectors SF3211-60218-2S

Datasheet

Part # SF3211-60193-2S

SMPM Male Solderless PCB Compression Mount Connector, 2 Hole, with 6.35mm Screws (Stripline)

Available Inventory: 170

SF3211-60193-2S

SMPM Connectors SF3211-60193-2S

Datasheet

Part # 1132-6157

SMPM-XT Female to Female Bullet (OAL 0.330)

Available Inventory: 100

1132-6157

SMPM Adapters 1132-6157

Datasheet

Part # 1132-6158

SMPM-XT Female to Female Bullet (OAL 0.600)

Available Inventory: 100

1132-6158

SMPM Adapters 1132-6158

Datasheet

Part # 1132-6159

SMPM-XT Female to Female Bullet (OAL 0.960)

Available Inventory: 50

1132-6159

SMPM Adapters 1132-6159

Datasheet

Part # 9311-60351

SMPM-XT Male PCB Edge Launch Connector, 2 Port, SB

Available Inventory: 50

9311-60351

SMPM Connectors 9311-60351

Datasheet

Part # 9311-60350

SMPM-XT Male PCB Edge Launch Connector, 4 Port, SB

Available Inventory: 50

9311-60350

SMPM Connectors 9311-60350

Datasheet

Part # 3211-60489

SMPM-XT Male PCB Edge Launch Connector, SB

Available Inventory: 50

3211-60489

SMPM Connectors 3211-60489

Datasheet

Part # 9311-60349

SMPM-XT Male PCB Surface Mount Connector, 2 Port, SB

Available Inventory: 132

9311-60349

SMPM Connectors 9311-60349

Datasheet

Part # 9311-60348

SMPM-XT Male PCB Surface Mount Connector, 4 Port, SB

Available Inventory: 50

9311-60348

SMPM Connectors 9311-60348

Datasheet

Part # 3211-60488

SMPM-XT Male PCB Surface Mount Connector, SB

Available Inventory: 100

3211-60488

SMPM Connectors 3211-60488

Datasheet

Part # 1138-4072

SMPS Female to Female Bullet, Spring Loaded (OAL 0.490")

Available Inventory: 110

1138-4072

SMPS Adapters 1138-4072

Datasheet

Part # 1138-4073

SMPS Female to Female Bullet, Spring Loaded (OAL 0.520")

Available Inventory: 85

1138-4073

SMPS Adapters 1138-4073

Datasheet

Part # 1138-4074

SMPS Female to Female Bullet, Spring Loaded (OAL 0.550")

Available Inventory: 121

1138-4074

SMPS Adapters 1138-4074

Datasheet

Part # 3811-40106

SMPS Male PCB QB Edge Launch Connector, SB

Available Inventory: 198

3811-40106

SMPS Connectors 3811-40106

Datasheet

Part # 3811-40105

SMPS Male PCB QB Thru-Hole Connector, R/A

Available Inventory: 163

3811-40105

SMPS Connectors 3811-40105

Datasheet

Part # 3811-40092

SMPS Male PCB Surface Mount Connector (Reflow Stable) (.009"), FD

Available Inventory: 280

3811-40092

SMPS Connectors 3811-40092

Datasheet

Part # 3211-40170

Threaded SMPM Male PCB Edge Launch Connector (Pre-Tinned), SB

Available Inventory: 88

3211-40170

SMPM Connectors 3211-40170

Datasheet

Part # 3211-40121

Threaded SMPM Male PCB Edge Launch Connector, SB

Available Inventory: 1142

3211-40121

SMPM Connectors 3211-40121

Datasheet

Part # 3212-60037

Threaded SMPM Male PCB Thru-Hole Connector (Pre-Tinned), R/A, SB

Available Inventory: 360

3212-60037

SMPM Connectors 3212-60037

Datasheet

Part # 3211-60298

Threaded SMPM Male PCB Thru-Hole Connector, SB

Available Inventory: 76

3211-60298

SMPM Connectors 3211-60298

Datasheet

Part # 3211-60407-1S

Threaded SMPM Male Solderless PCB Edge Launch Connector, 2 Hole, with 4.76mm Screws, SB

Available Inventory: 142

3211-60407-1S

SMPM Connectors 3211-60407-1S

Datasheet

Part # 3211-60407-2S

Threaded SMPM Male Solderless PCB Edge Launch Connector, 2 Hole, with 6.35mm Screws, SB

Available Inventory: 115

3211-60407-2S

SMPM Connectors 3211-60407-2S

Datasheet

Part # 4911-60028

BMB Male PCB Surface Mount Connector, R/A, SB (CPW / Microstrip)

Available Inventory: 180

4911-60028

BMB Connector 4911-60028

Datasheet

Part # 4911-60027

BMB Male PCB Surface Mount Connector, R/A, FD (CPW / Microstrip)

Available Inventory: 180

4911-60027

BMB Connector 4911-60027

Datasheet

Part # 1149-4012

BMB Female to Female Bullet (OAL .500")

Available Inventory: 175

1149-4012

BMB Connector 1149-4012

Datasheet
