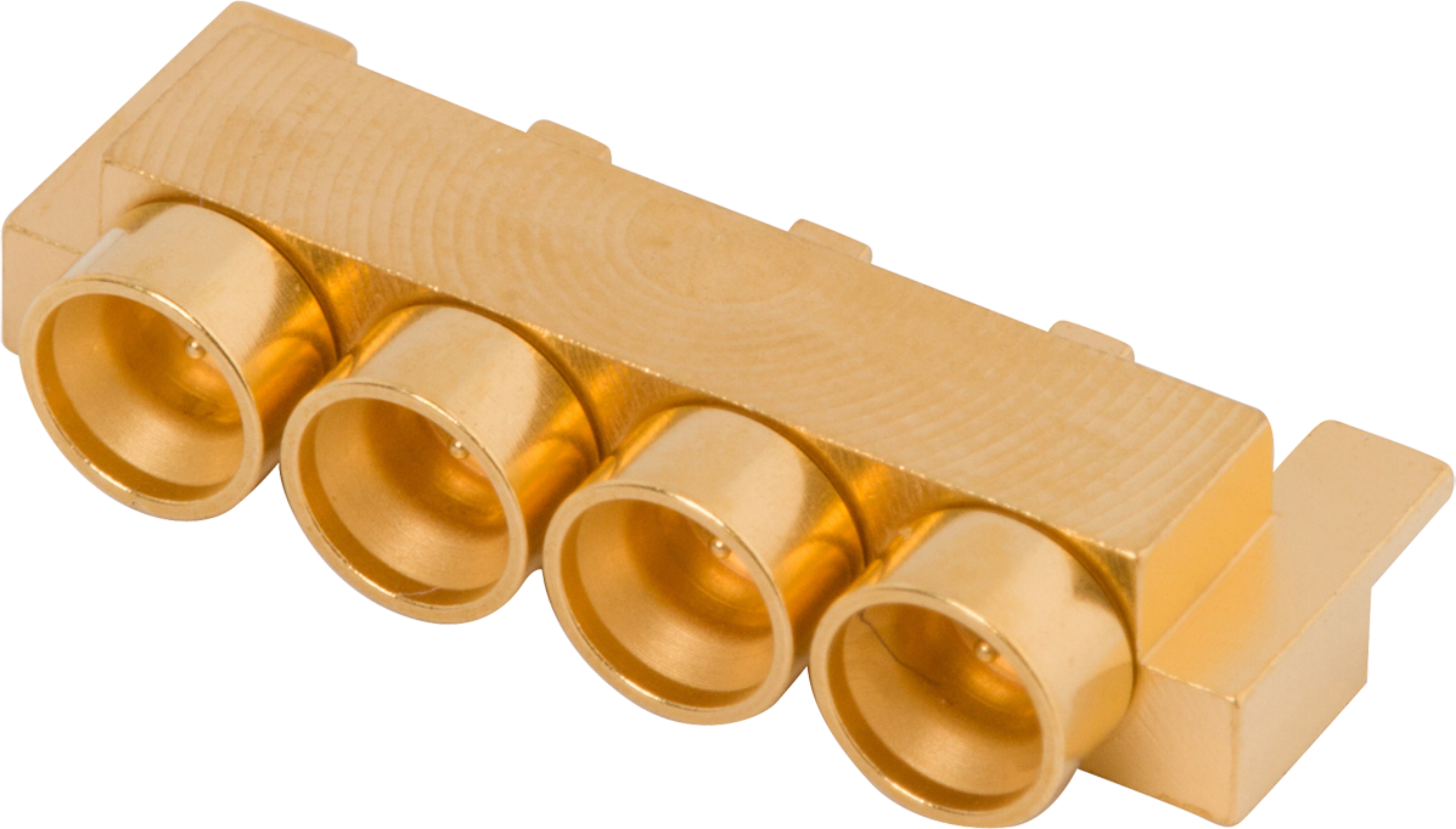

Name: SMPM Male PCB Edge Launch Connector, 4 Port, FD 9311-60039
SKU: 9311-60039
Availability: OutOfStock

Products specifications

Attribute name	Attribute value
RF Series	SMPM
Gender	Plug (Male)
Orientation (Body)	Straight
Detent	Full Detent
Coupling	Push-on
Termination Style	Solder
Mounting Type	PCB Edge Launch
Number of Ports	Multiple
Finish	Gold
Electrical
Frequency	65 GHz
Impedance	50 ohms
Shielding Effectiveness	≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage	325 VRMS
Mechanical
Mating Cycles - FD	100
Mating Cycles - SB	500
Insertion Force - SB	2.5 lbs
Insertion Force - FD	4.5 lbs
Withdrawal Force - FD	6.5 lbs
Withdrawal Force - SB	1.5 lbs
Axial Misalignment	.010” Max
Radial Misalignment	3° Max
Environmental
Temperature Rating	-65°C to +165°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Shock	MIL-STD-202, Method 213, Condition I
Vibration	MIL-STD-202, Method 204, Condition D
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
Thermal Shock	MIL-STD-202, Method 107, Condition B
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B

EU RoHS Directive 2011/65/EU	Yes, w/ Exemption 6C These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.
EU REACH Regulation (EC) No. 1907/2006	SVHC > Threshold These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed. REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000 Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided. Please contact compliance@svmicro.com for any Compliance or Environmental related questions. Last Update: 5/30/2025 1:06:45 AM

SMPM Male PCB Edge Launch Connector, 4 Port, FD
P/N: 9311-60039

SMP Male PCB Edge Launch Connector, 4 Port, FD
