SMPS Male PCB Surface Mount Connector (Reflow Stable) (.009"), FD
P/N: 3811-40092

In stock at Qty Order
Mouser Electronics 60
Arrow Electronics Inc 50
Newark 40
Products specifications
Attribute name Attribute value
RF Series SMPS
Gender Plug (Male)
Orientation (Body) Straight
Coupling Push-on
Detent Full Detent
Mounting Type PCB Vertical Launch
Style Glass Seal, Epoxy Seal
Termination Style Solder
Finish Gold
Number of Ports Single
Electrical
Impedance 50 ohms
Frequency 20 GHz
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 250 VRMS
Mechanical
Mating Cycles - SB 500
Mating Cycles - FD 100
Withdrawal Force - SB 1.0 lbs
Insertion Force - SB 1.2 lbs
Insertion Force - FD 2.5 lbs
Withdrawal Force - FD 4.5 lbs
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMPS
Gender Plug (Male)
Orientation (Body) Straight
Coupling Push-on
Detent Full Detent
Mounting Type PCB Vertical Launch
Style Glass Seal, Epoxy Seal
Termination Style Solder
Finish Gold
Number of Ports Single
Electrical
Impedance 50 ohms
Frequency 20 GHz
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 250 VRMS
Mechanical
Mating Cycles - SB 500
Mating Cycles - FD 100
Withdrawal Force - SB 1.0 lbs
Insertion Force - SB 1.2 lbs
Insertion Force - FD 2.5 lbs
Withdrawal Force - FD 4.5 lbs
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Product tags
Customers Also Viewed
Part #   3811-60005

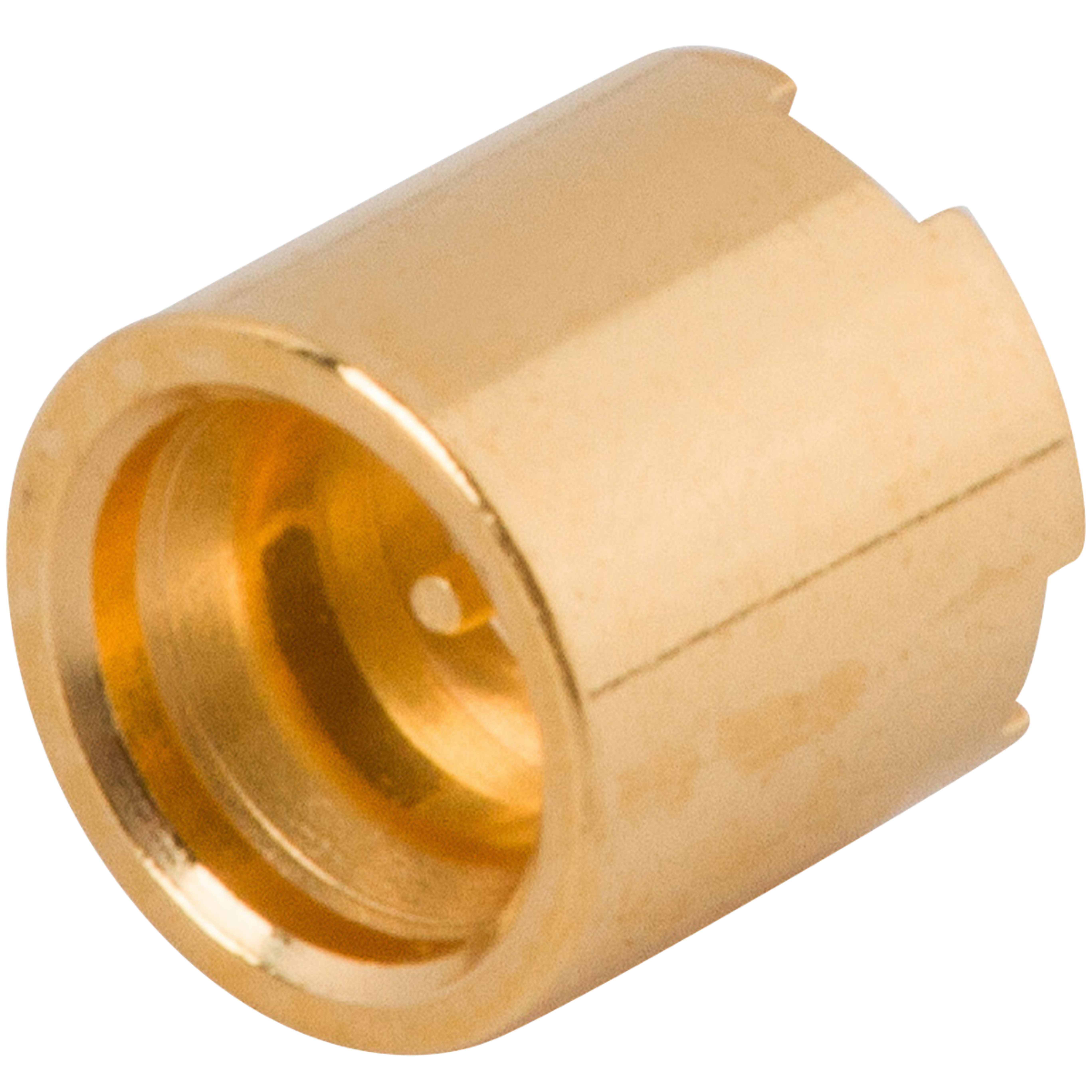

SMPS Male PCB Surface Mount Connector (Glass Seal) (.009"), SB

Available Inventory: 499
3811-60005
SMPS Connectors 3811-60005
Datasheet
3811-60005-TD
SMPS Connectors 3811-60005-TD
Datasheet
Part #   3811-60006-TD

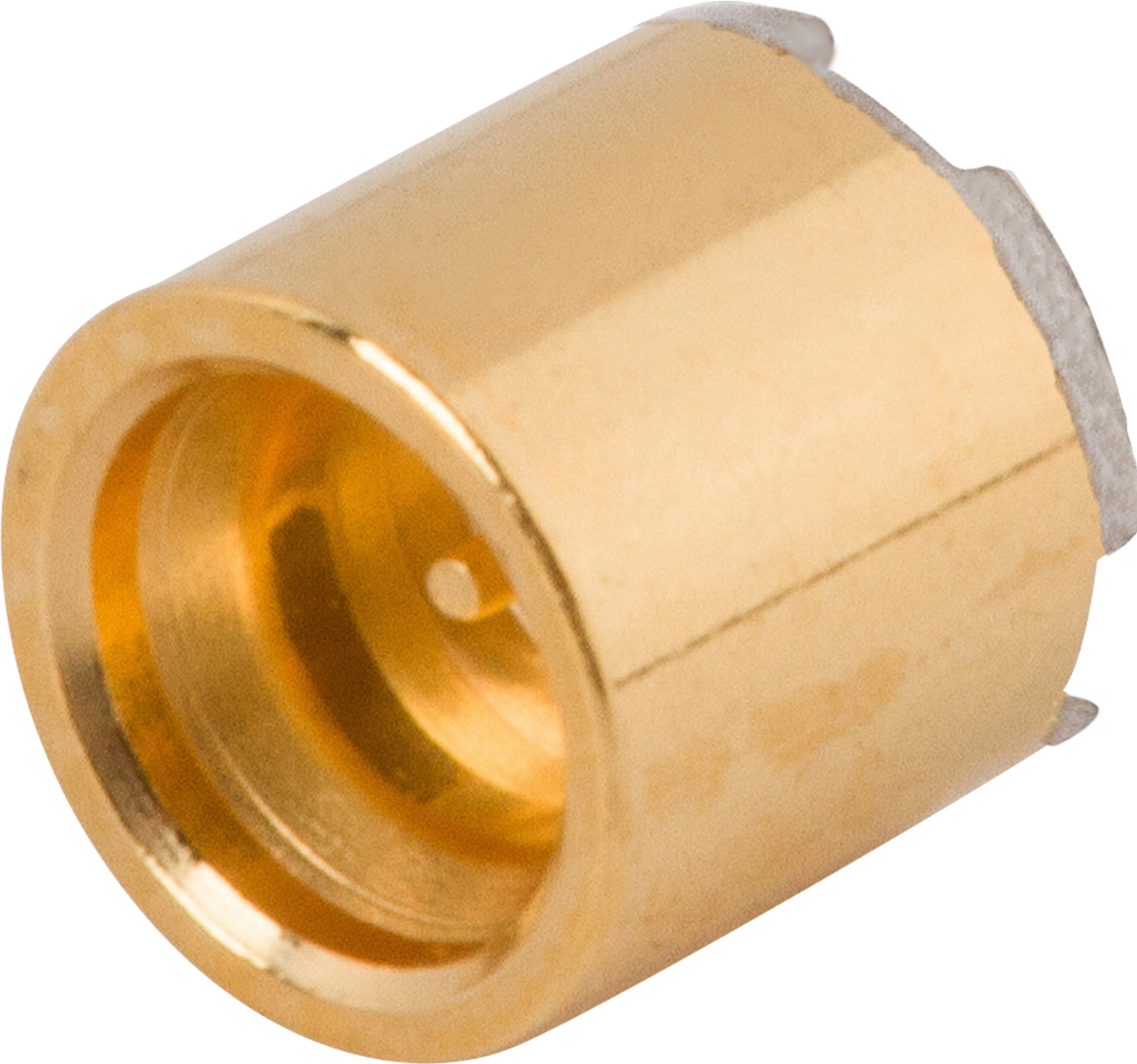

SMPS Male PCB Surface Mount Hermetic (Glass Seal, Tin Dipped) (.009"), FD
