SMPS Female to Female Bullet, Spring Loaded (OAL 0.520")
P/N: 1138-4073

There currently isn't any inventory available in distribution. Please contact us to obtain this product.
Products specifications
Attribute name Attribute value
RF Series SMPS
Gender Jack (Female)
Orientation (Body) Straight
Coupling Push-on
RF Series 2 SMPS
Finish Gold
Gender 2 Jack (Female)
Orientation 2 (Body) Straight
Electrical
Frequency 32 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 500 VRMS
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Mechanical
Mating Cycles - LD 500
Mating Cycles - FD 100
Mating Cycles - SB 1000
Insertion Force - SB 3.0 lbs
Insertion Force - FD 7.0 lbs
Insertion Force - LD 5.0 lbs
Withdrawal Force - SB 0.5 lbs
Withdrawal Force - LD 7.0 lbs
Withdrawal Force - FD 9.0 lbs
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMPS
Gender Jack (Female)
Orientation (Body) Straight
Coupling Push-on
RF Series 2 SMPS
Finish Gold
Gender 2 Jack (Female)
Orientation 2 (Body) Straight
Electrical
Frequency 32 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 500 VRMS
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Mechanical
Mating Cycles - LD 500
Mating Cycles - FD 100
Mating Cycles - SB 1000
Insertion Force - SB 3.0 lbs
Insertion Force - FD 7.0 lbs
Insertion Force - LD 5.0 lbs
Withdrawal Force - SB 0.5 lbs
Withdrawal Force - LD 7.0 lbs
Withdrawal Force - FD 9.0 lbs
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   1112-4144

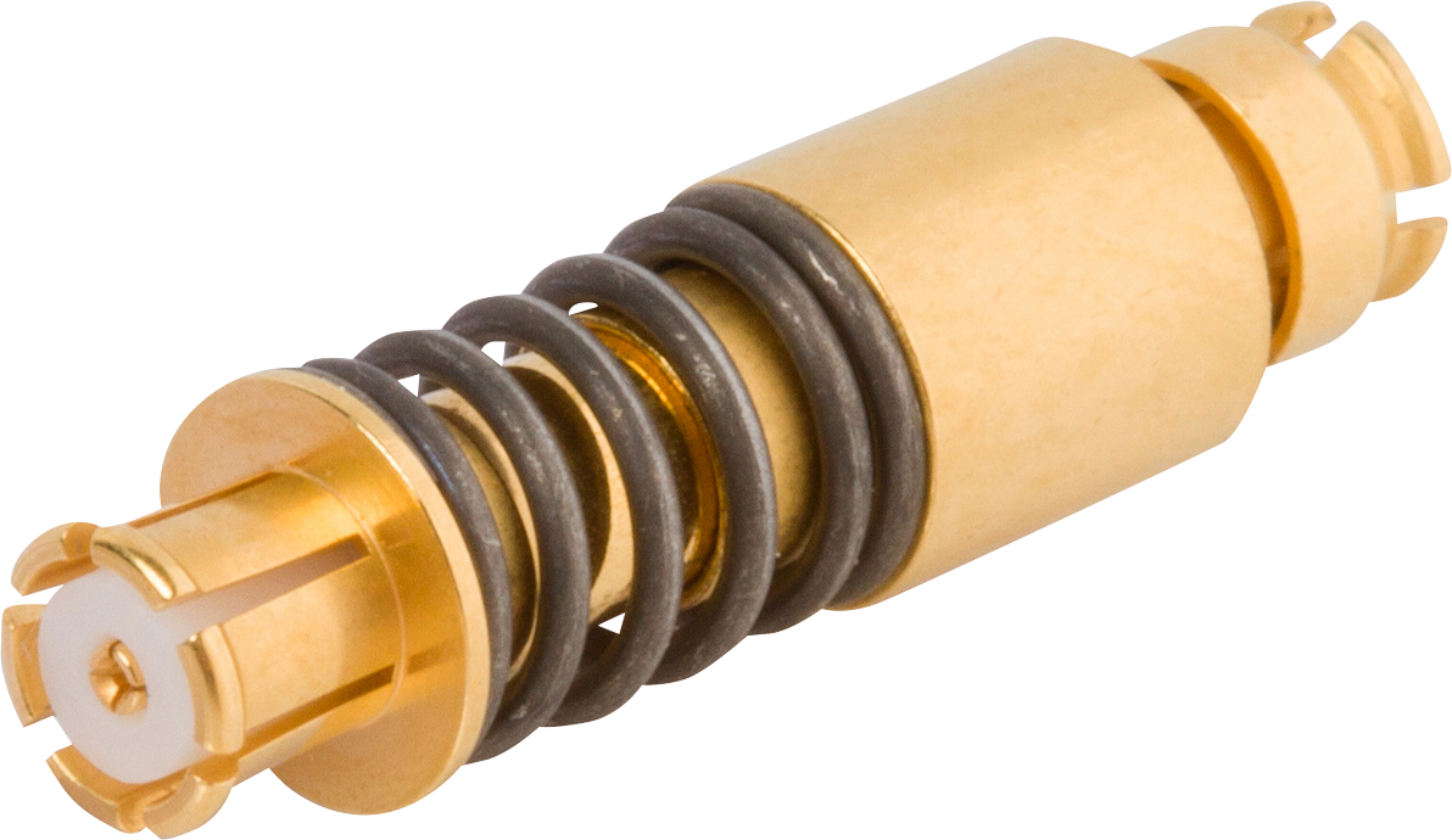

SMP Female to Female Bullet, Spring Loaded (OAL 0.650")

Available Inventory: 1
1112-4144
SMP Adapters 1112-4144
Datasheet
Part #   1112-4146

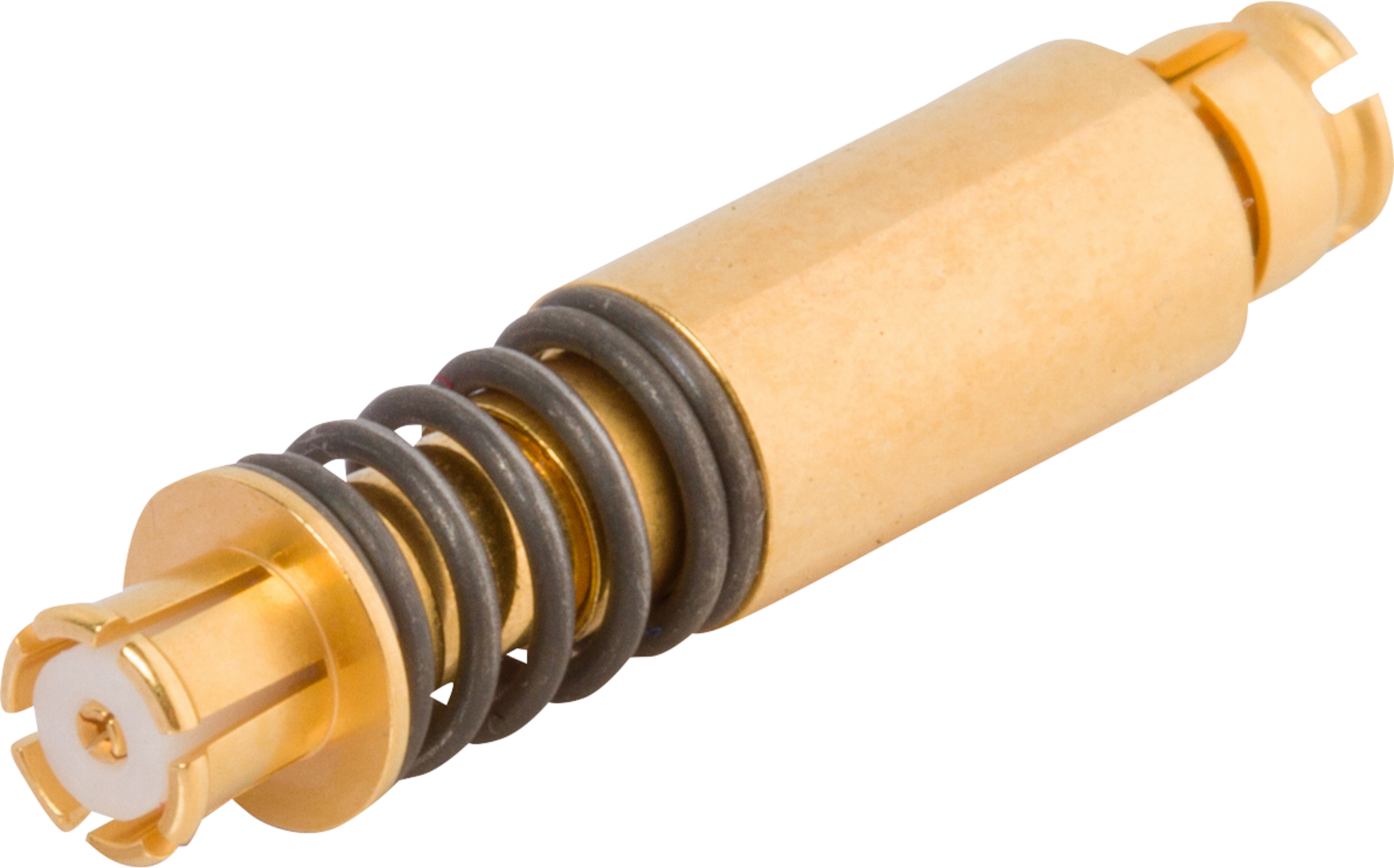

SMP Female to Female Bullet, Spring Loaded (OAL 0.800")
