SMP Male PCB Edge Launch Connector (Pre-Tinned), SB
P/N: 1211-60209

There currently isn't any inventory available in distribution. Please contact us to obtain this product.
Products specifications
Attribute name Attribute value
RF Series SMP
Gender Plug (Male)
Orientation (Body) Straight
Coupling Push-on
Detent Smooth Bore
Mounting Type PCB Edge Launch
Termination Style Solder (Pre-Tinned)
Family Pre-Tinned
Number of Ports Single
Finish Gold
Electrical
Frequency 18 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Cycles - LD 500
Insertion Force - SB 3.0 lbs
Insertion Force - LD 5.0 lbs
Mating Cycles - FD 100
Insertion Force - FD 7.0 lbs
Withdrawal Force - SB 0.5 lbs
Withdrawal Force - LD 7.0 lbs
Mating Cycles - SB 1000
Withdrawal Force - FD 9.0 lbs
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Thermal Shock MIL-STD-202, Method 107, Condition B


EU RoHS Directive 2011/65/EU Not Compliant

These products DO NOT comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). Products indicated as ‘Not Compliant’ contain one or more restricted substances above the prohibition thresholds. Consequently, these products should NOT be used in any application requiring RoHS2 compliance.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 370000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:22:20 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMP
Gender Plug (Male)
Orientation (Body) Straight
Coupling Push-on
Detent Smooth Bore
Mounting Type PCB Edge Launch
Termination Style Solder (Pre-Tinned)
Family Pre-Tinned
Number of Ports Single
Finish Gold
Electrical
Frequency 18 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Cycles - LD 500
Insertion Force - SB 3.0 lbs
Insertion Force - LD 5.0 lbs
Mating Cycles - FD 100
Insertion Force - FD 7.0 lbs
Withdrawal Force - SB 0.5 lbs
Withdrawal Force - LD 7.0 lbs
Mating Cycles - SB 1000
Withdrawal Force - FD 9.0 lbs
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Thermal Shock MIL-STD-202, Method 107, Condition B
Product tags
Customers Also Viewed
Part #   1211-40080

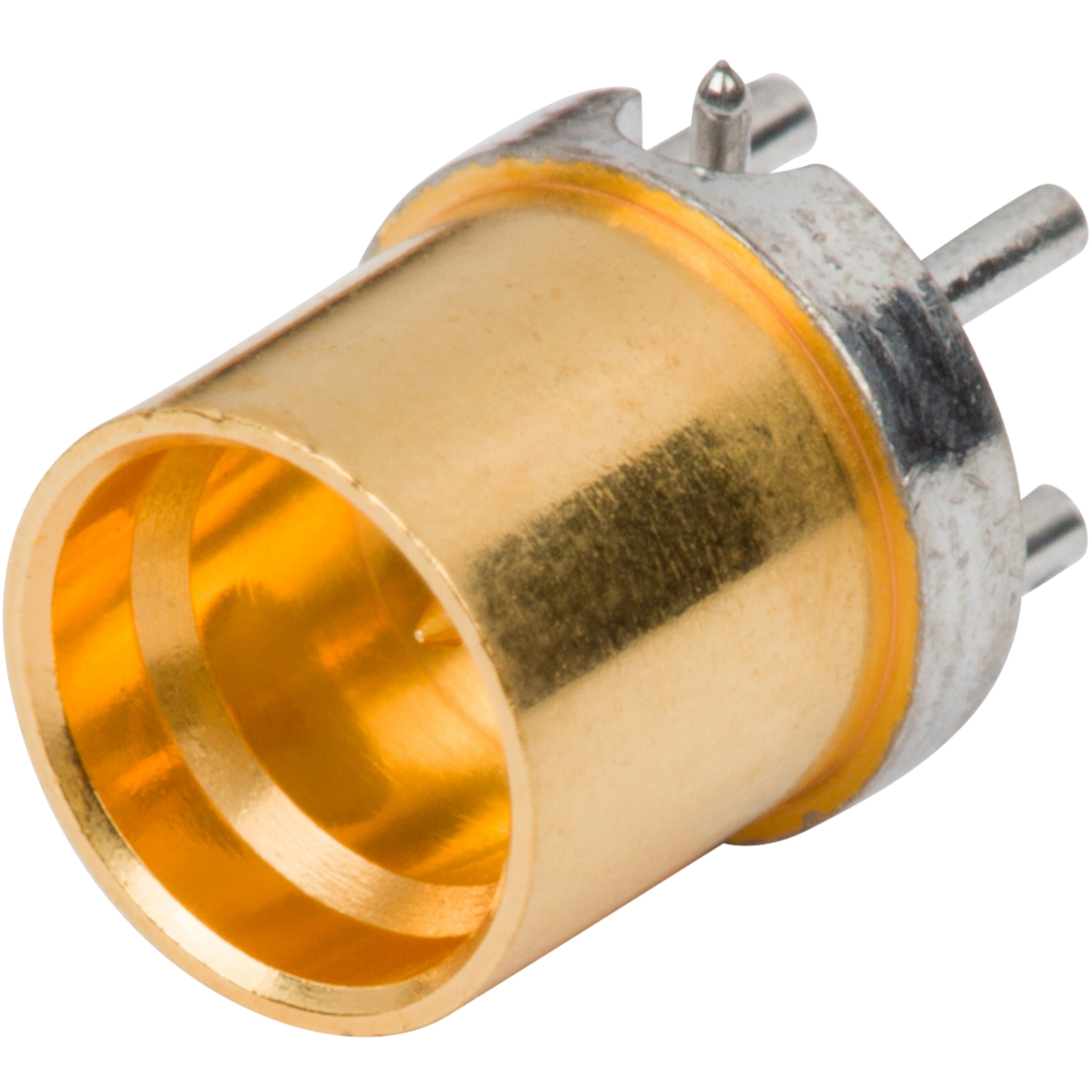

SMP Male PCB Thru-Hole Connector (Pre-Tinned), R/A, SB

Available Inventory: 214
1211-40080
SMP Connectors 1211-40080
Datasheet
Part #   1211-40087

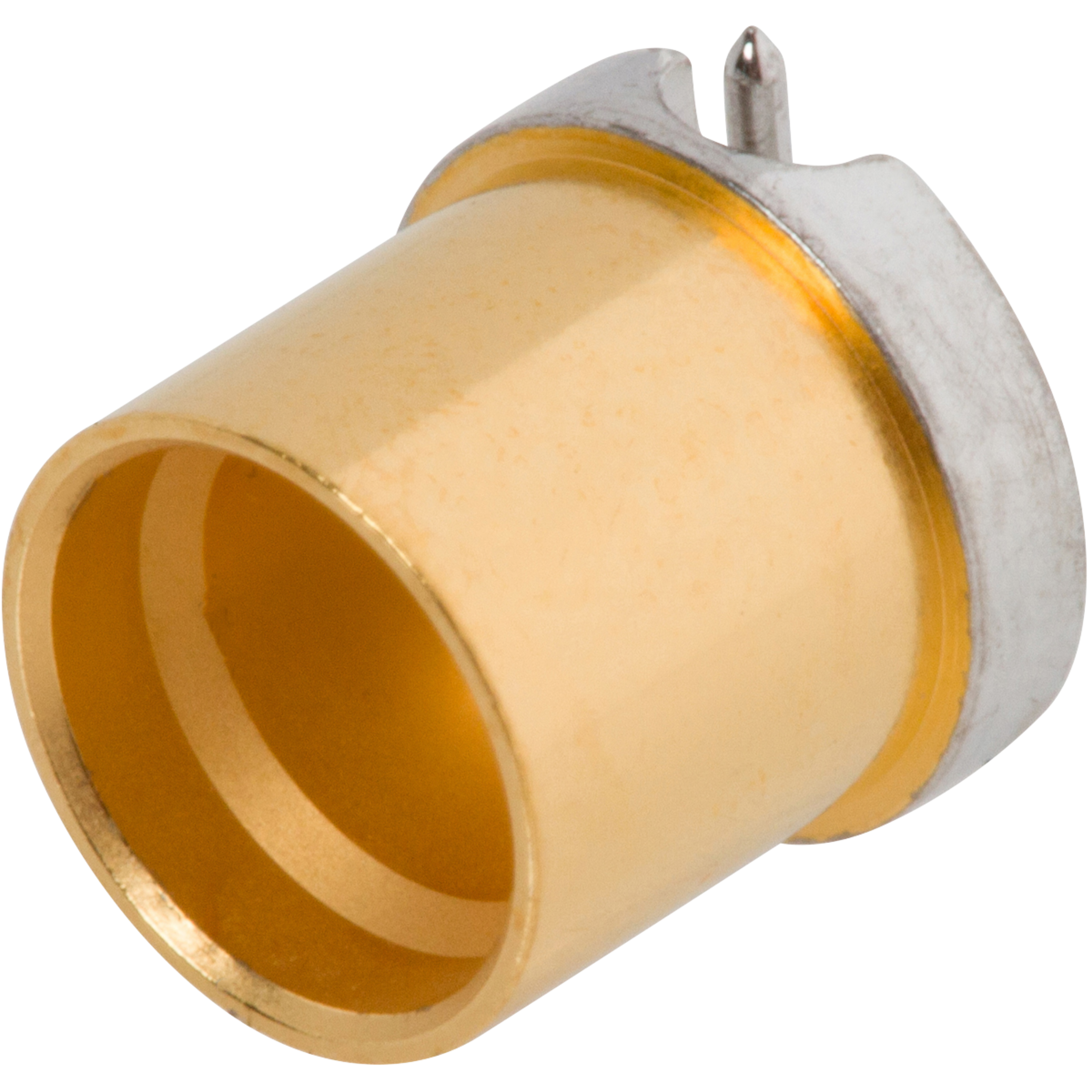

SMP Male PCB Surface Mount Connector (Pre-Tinned), R/A, SB

Available Inventory: 203
1211-40087
SMP Connectors 1211-40087
Datasheet
Part #   1211-60211

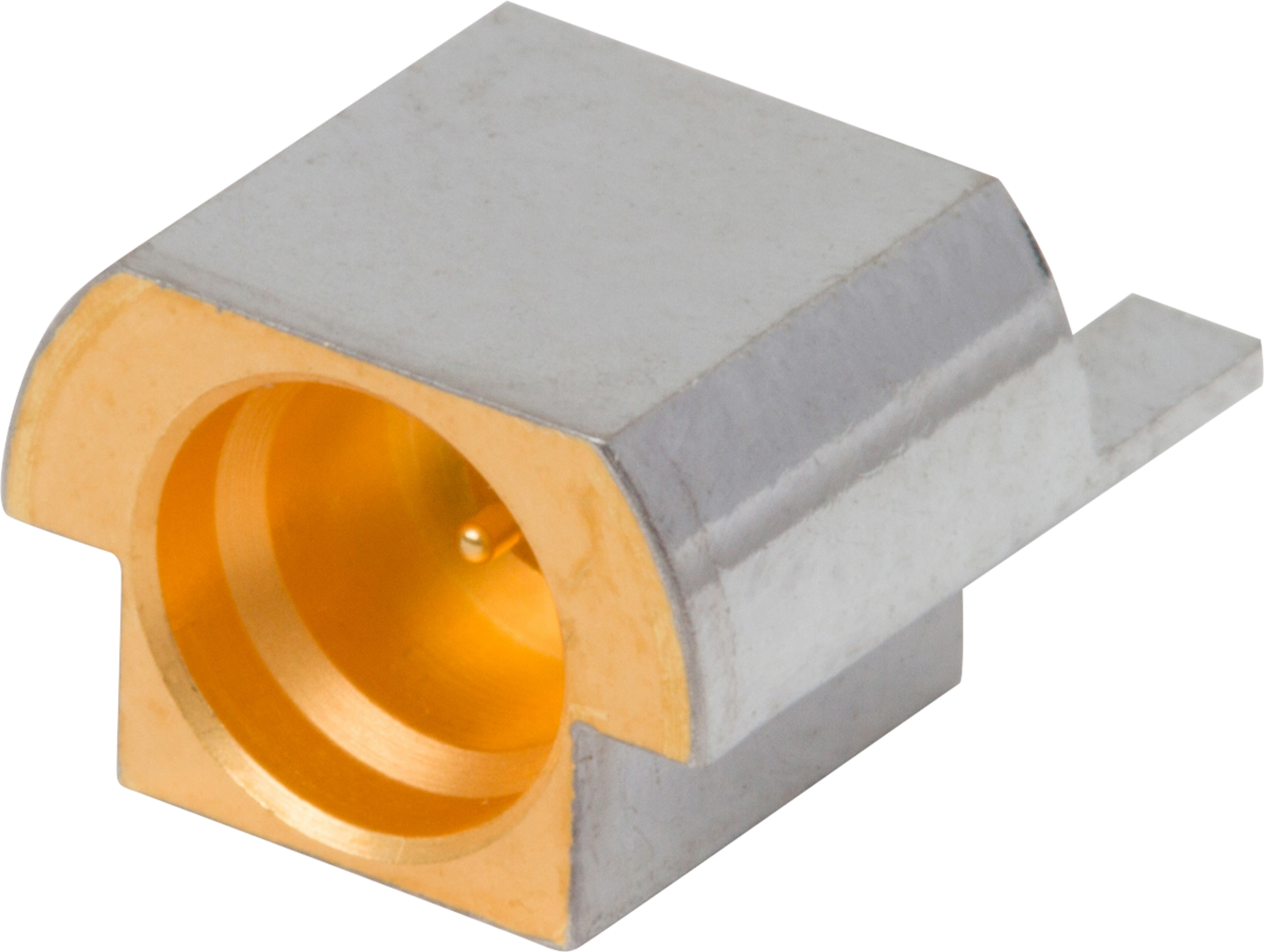

SMP Male PCB Edge Launch Connector (Pre-Tinned), FD
