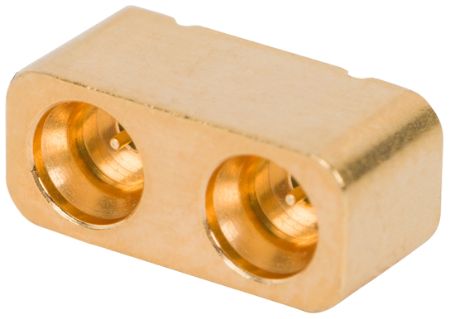

SMP Male PCB Surface Mount, 2 Port (Glass Seal), FD
P/N: 9311-20013

There currently isn't any inventory available in distribution. Please contact us to obtain this product.
Products specifications
Attribute name Attribute value
RF Series SMP
Gender Plug (Male)
Coupling Push-on
Orientation (Body) Straight
Mounting Type PCB Vertical Launch
Detent Full Detent
Number of Ports Multiple
Style Glass Seal
Electrical
Frequency 30 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Cycles - LD 500
Mating Cycles - SB 1000
Insertion Force - SB 3.0 lbs
Mating Cycles - FD 100
Insertion Force - LD 5.0 lbs
Insertion Force - FD 7.0 lbs
Withdrawal Force - FD 9.0 lbs
Axial Misalignment .010” Max
Withdrawal Force - LD 7.0 lbs
Radial Misalignment 3° Max
Withdrawal Force - SB 0.5 lbs
Environmental
Temperature Rating -65°C to +165°C
Thermal Shock MIL-STD-202, Method 107, Condition B
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMP
Gender Plug (Male)
Coupling Push-on
Orientation (Body) Straight
Mounting Type PCB Vertical Launch
Detent Full Detent
Number of Ports Multiple
Style Glass Seal
Electrical
Frequency 30 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Cycles - LD 500
Mating Cycles - SB 1000
Insertion Force - SB 3.0 lbs
Mating Cycles - FD 100
Insertion Force - LD 5.0 lbs
Insertion Force - FD 7.0 lbs
Withdrawal Force - FD 9.0 lbs
Axial Misalignment .010” Max
Withdrawal Force - LD 7.0 lbs
Radial Misalignment 3° Max
Withdrawal Force - SB 0.5 lbs
Environmental
Temperature Rating -65°C to +165°C
Thermal Shock MIL-STD-202, Method 107, Condition B
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Product tags
Customers Also Viewed
Part #   9311-00036

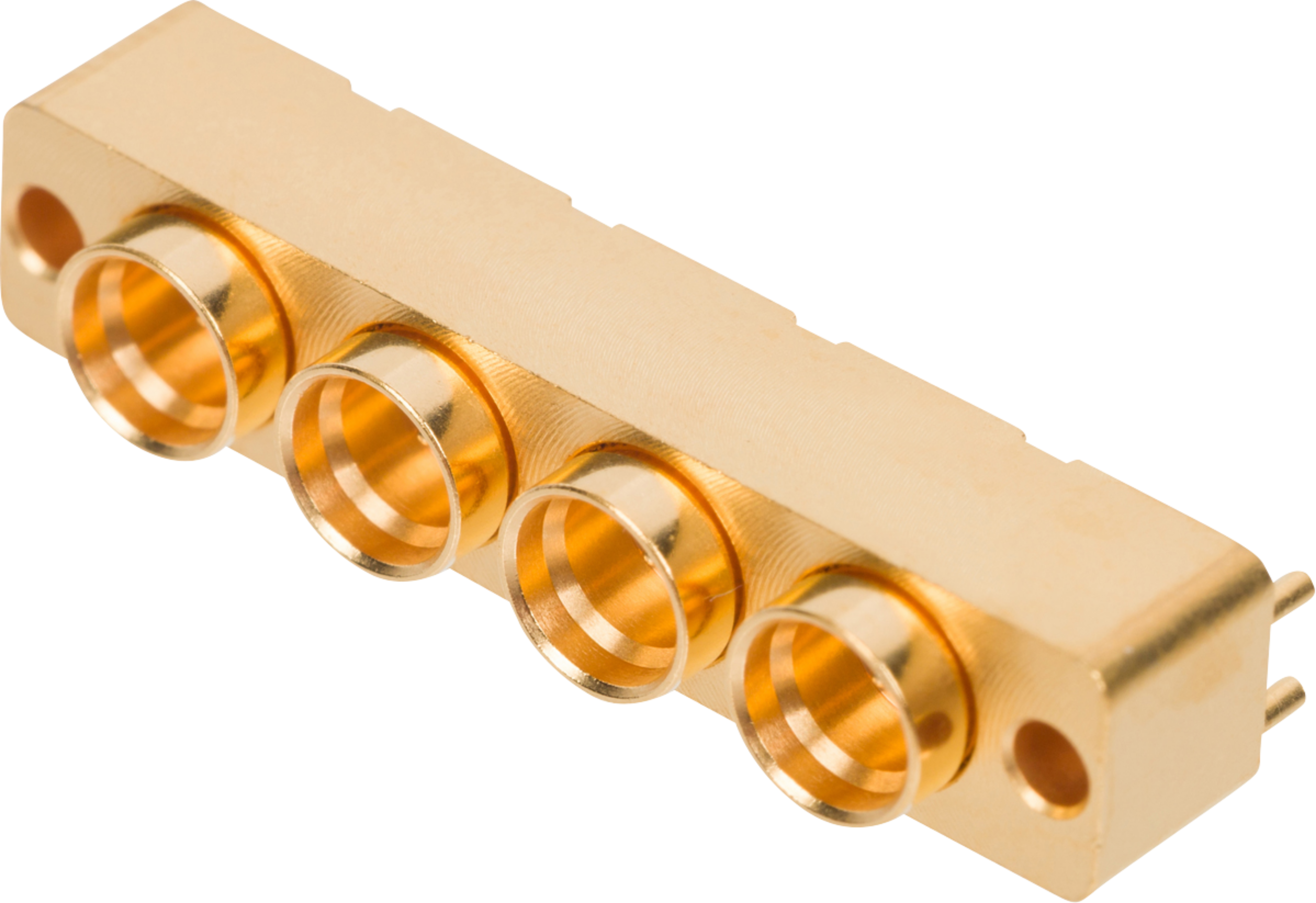

SMP Male PCB Surface Mount Connector, 4 Port, SB

Available Inventory: 39
9311-00036
SMP Connectors 9311-00036
Datasheet
Part #   9311-00037

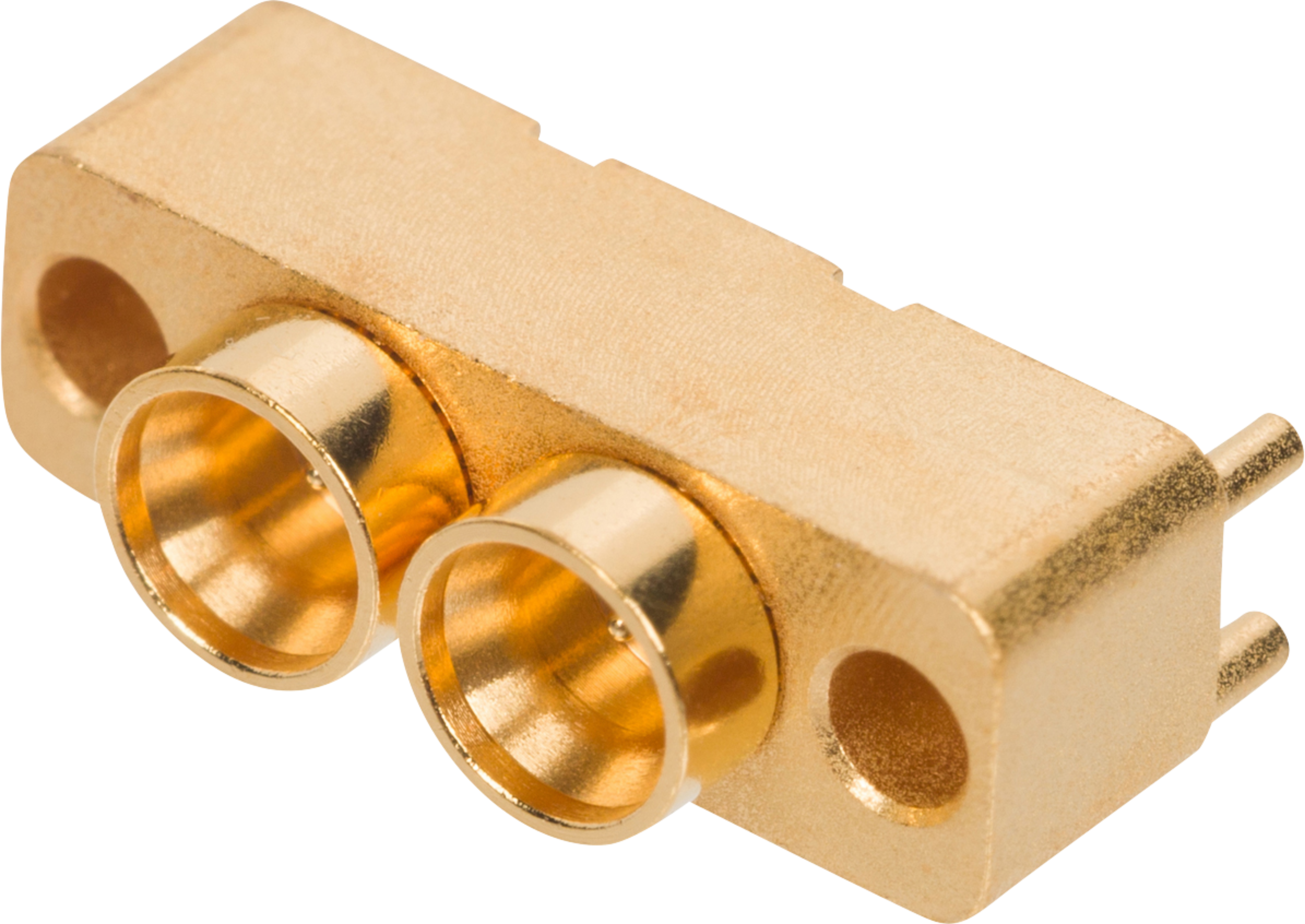

SMPM Male PCB Surface Mount Connector, 2 Port, SB

Available Inventory: 74
9311-00037
SMPM Connectors 9311-00037
Datasheet
Part #   9311-00038

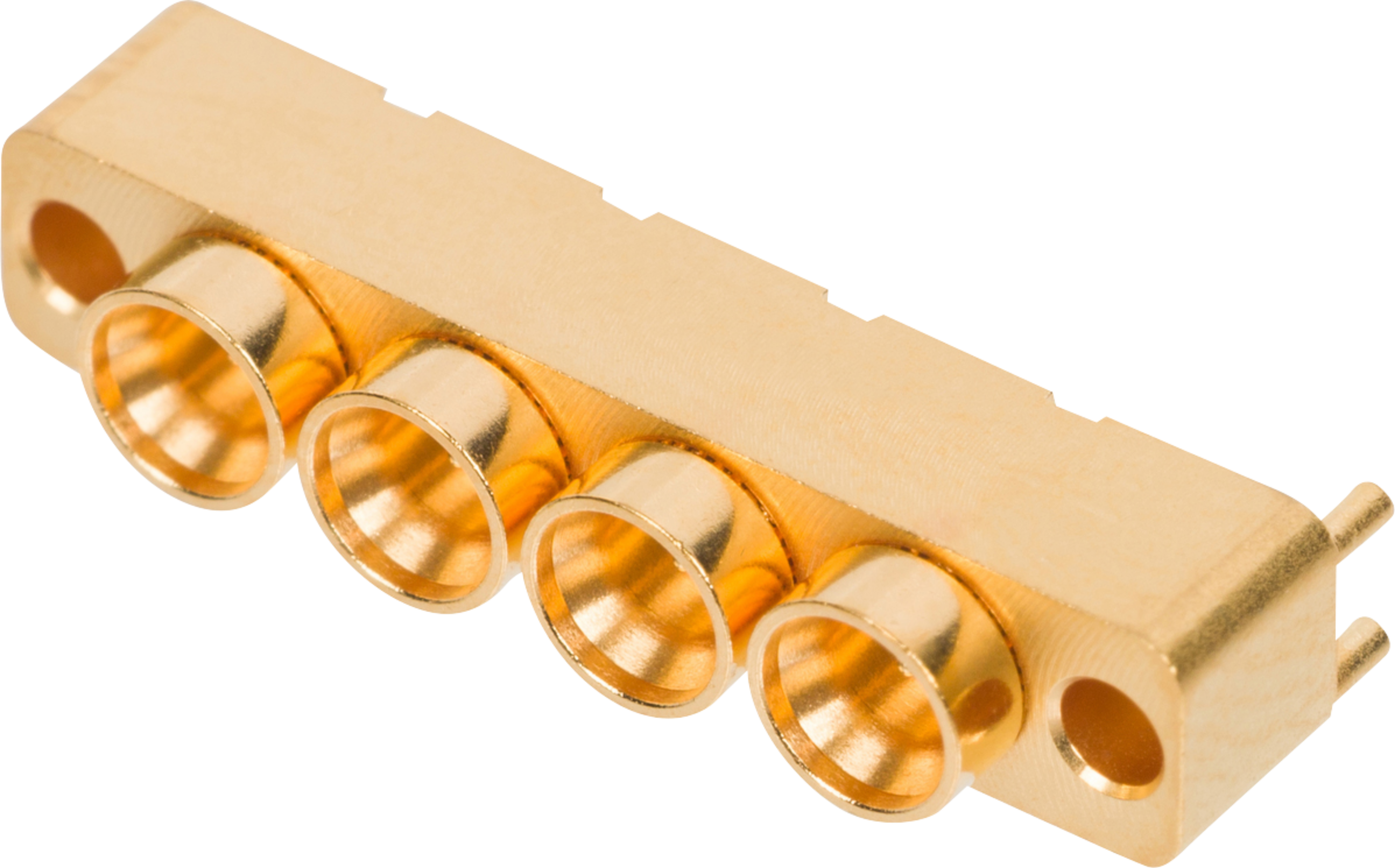

SMPM Male PCB Surface Mount Connector, 4 Port, SB
