SMPM VITA 66.5 14 Port RF and 3 Port MT Fiber Backplane Hybrid Module
P/N: 9321-60109

In stock at Qty Order
Digi-Key Electronics 10
Newark 10
Farnell 10
Interstate Connecting Components 4
Mouser Electronics 3
Heilind Electronics 2
Products specifications
Attribute name Attribute value
RF Series VITA SMPM
Orientation (Body) Straight
Coupling Push-on
Mounting Type Snap-in
Number of Ports Multiple
Finish Passivated
Family SOSA Aligned
Electrical
Frequency 40 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Dielectric withstanding Voltage 325 VRMS
Mechanical
Mating Cycles 500
Withdrawal Force 1.5 lbs
Insertion Force 2.5 lbs (per contact)
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:31:00 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*

Need a Complete RF/Fiber Solution?

3 MT Ferrule with Fiber Cable Assembly

To populate SV Microwave's 3 Port MT Fiber Module with a fiber cable assembly, please contact Amphenol Fiber Systems International.

sales@fibersystems.com
(212) 547-2400

Products specifications
Attribute name Attribute value
RF Series VITA SMPM
Orientation (Body) Straight
Coupling Push-on
Mounting Type Snap-in
Number of Ports Multiple
Finish Passivated
Family SOSA Aligned
Electrical
Frequency 40 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Dielectric withstanding Voltage 325 VRMS
Mechanical
Mating Cycles 500
Withdrawal Force 1.5 lbs
Insertion Force 2.5 lbs (per contact)
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Product tags
Customers Also Viewed
Part #   9321-60108

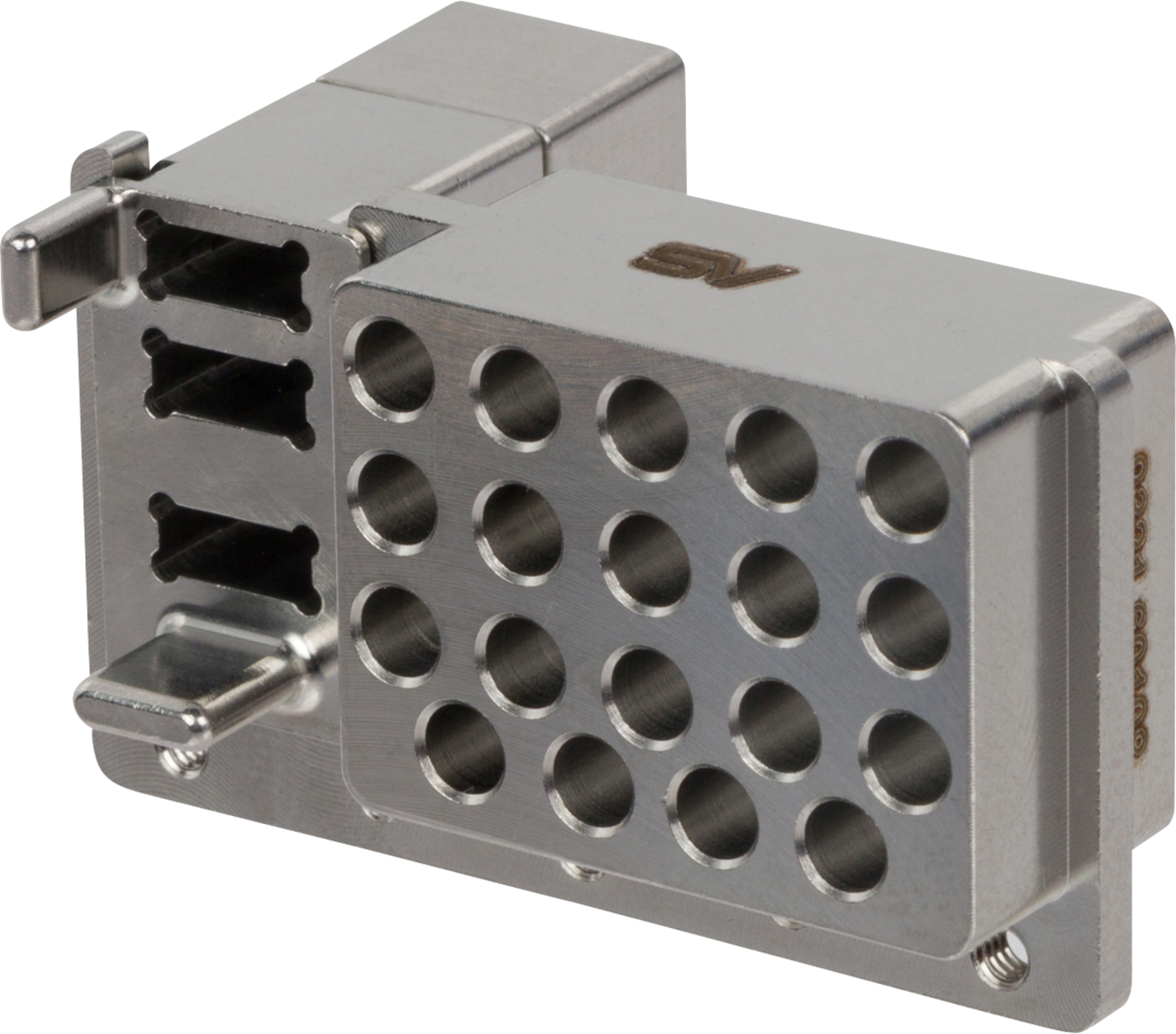

SMPS VITA 66.5 19 Port RF and 3 Port MT Fiber Backplane Hybrid Module

Available Inventory: 36
9321-60108
VITA Connectors 9321-60108
Datasheet
Part #   9311-60214

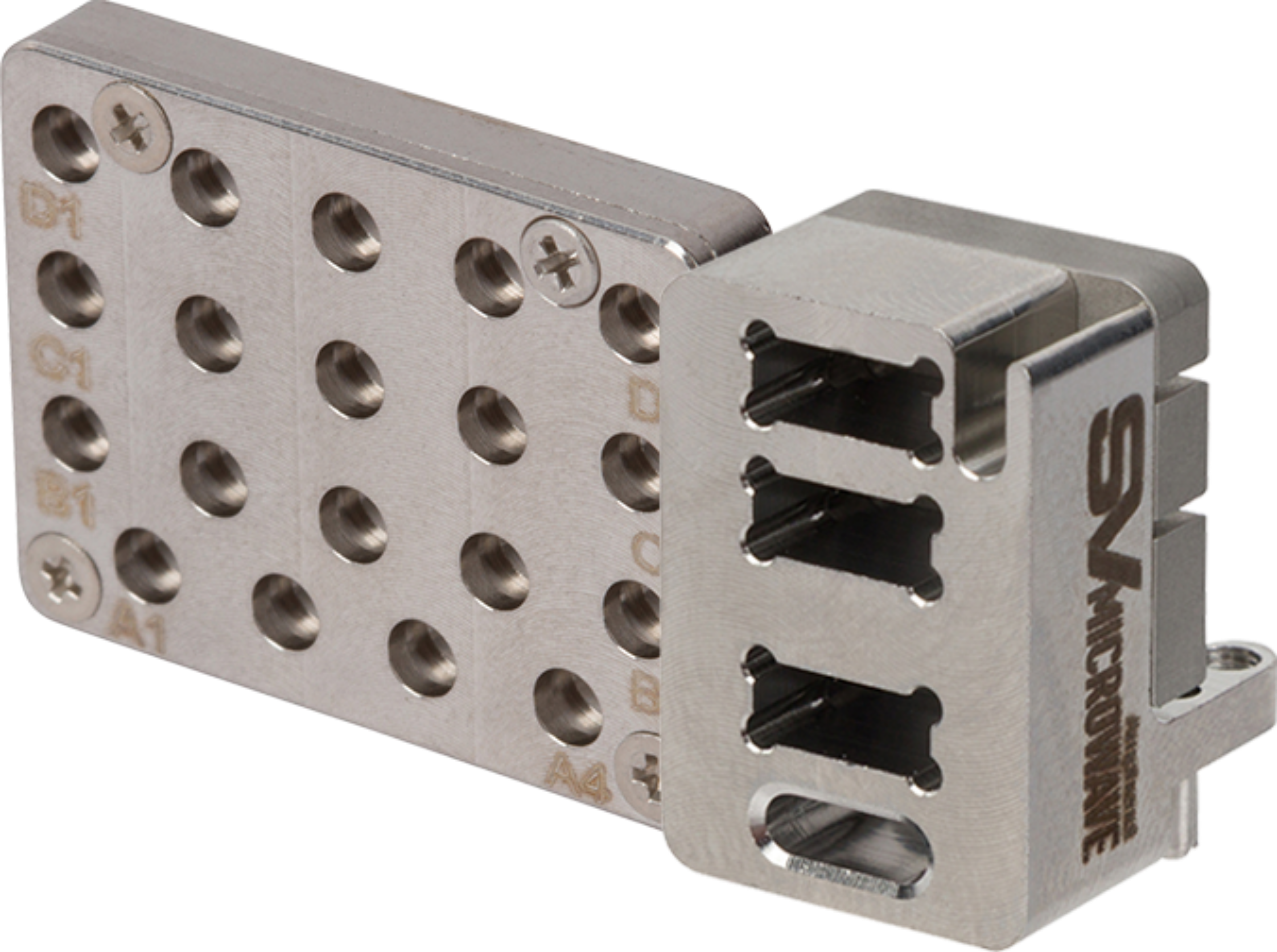

SMPS VITA 66.5 19 Port RF and 3 Port MT Fiber Plug-In Hybrid Module

Available Inventory: 0
9311-60214
VITA Connectors 9311-60214
Datasheet
Part #   9321-80035

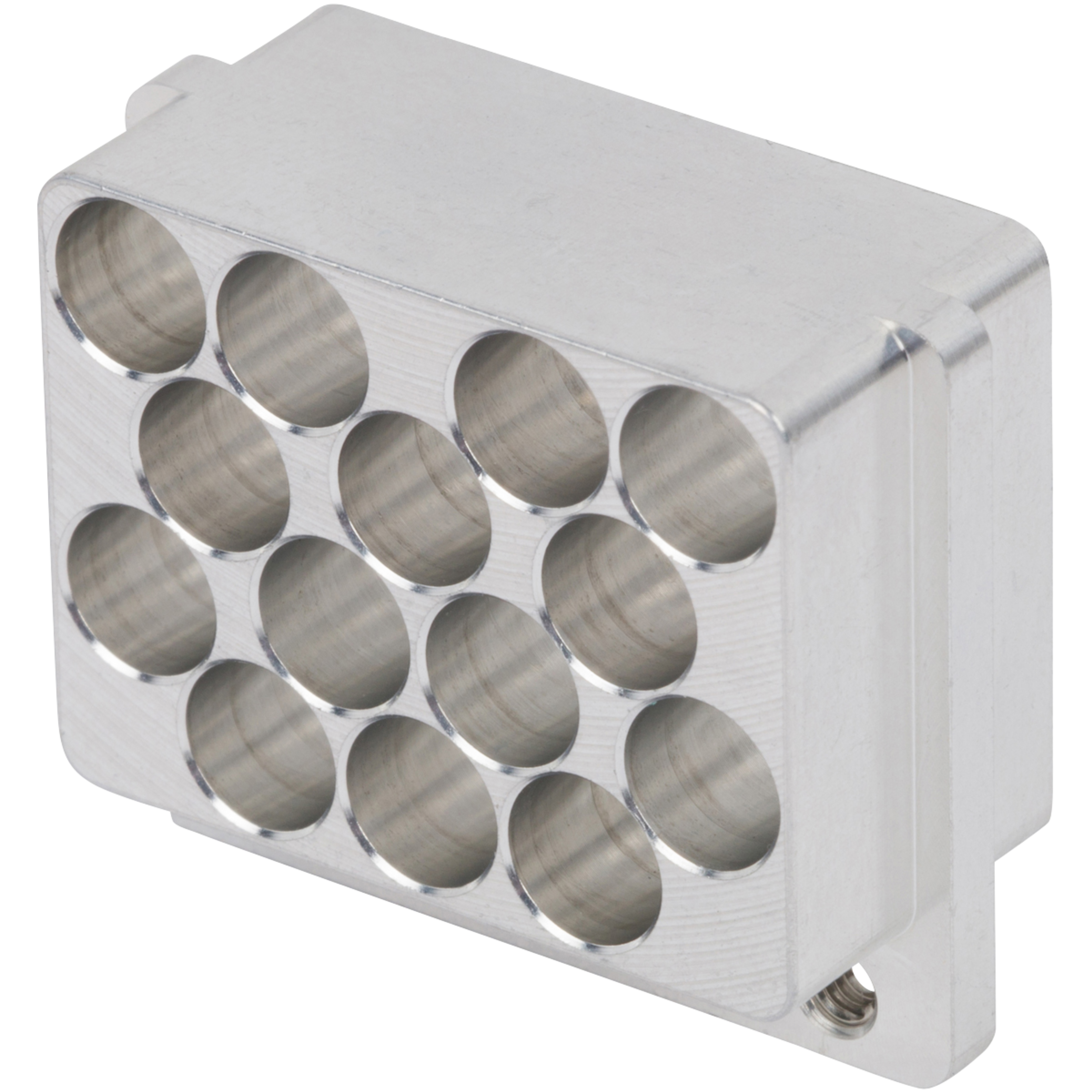

SMPM VITA 67.3 14 Port Aluminum Backplane Module
