SMPM Female VITA 67.3 Backplane Contact (75 Ohm) for 1672A Cable
P/N: 7521-40002

In stock at Qty Order
Mouser Electronics 25
Newark 13
Farnell 13
Products specifications
Attribute name Attribute value
Family VITA 67
RF Series VITA SMPM
Orientation (Body) Straight
Coupling Push-on
Termination Style Solder
Mounting Type Snap-in
Number of Ports Single
Finish Passivated
Cable Type 1672A
Gender Jack (Female)
Electrical
Frequency 18 GHz
Impedance 75 ohms
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Dielectric withstanding Voltage 325 VRMS
Mechanical
Mating Cycles 500
Insertion Force 2.5 lbs (per contact)
Withdrawal Force 1.5 lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Shock MIL-STD-202, Method 213, Condition I
Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Family VITA 67
RF Series VITA SMPM
Orientation (Body) Straight
Coupling Push-on
Termination Style Solder
Mounting Type Snap-in
Number of Ports Single
Finish Passivated
Cable Type 1672A
Gender Jack (Female)
Electrical
Frequency 18 GHz
Impedance 75 ohms
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Dielectric withstanding Voltage 325 VRMS
Mechanical
Mating Cycles 500
Insertion Force 2.5 lbs (per contact)
Withdrawal Force 1.5 lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Shock MIL-STD-202, Method 213, Condition I
Customers Also Viewed

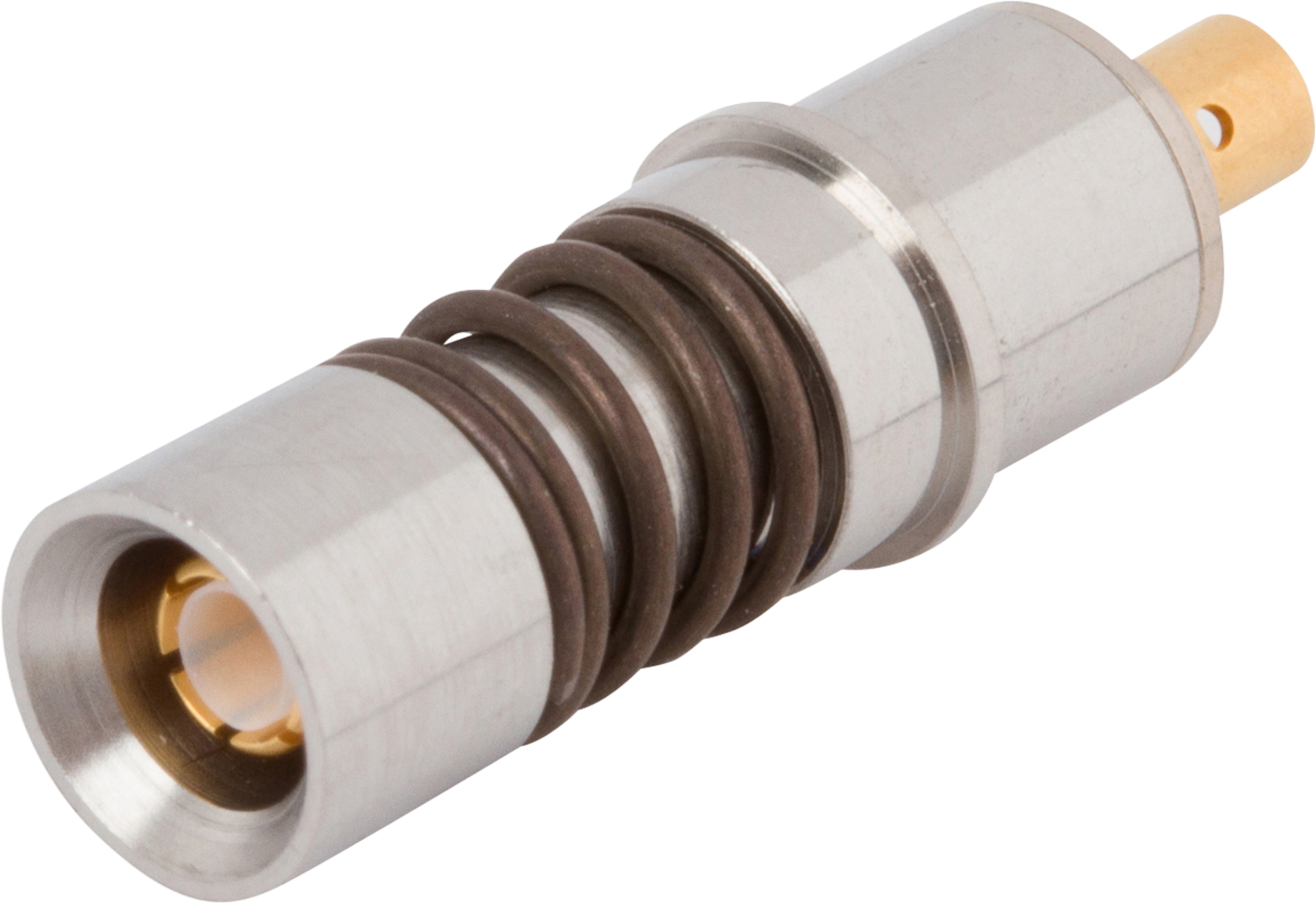

Part #   SF9911-6000

BMZ Socket D38999 Contact (Size 8) for .085 Cable

Available Inventory: 0
SF9911-6000
BMZ Connectors SF9911-6000
Datasheet

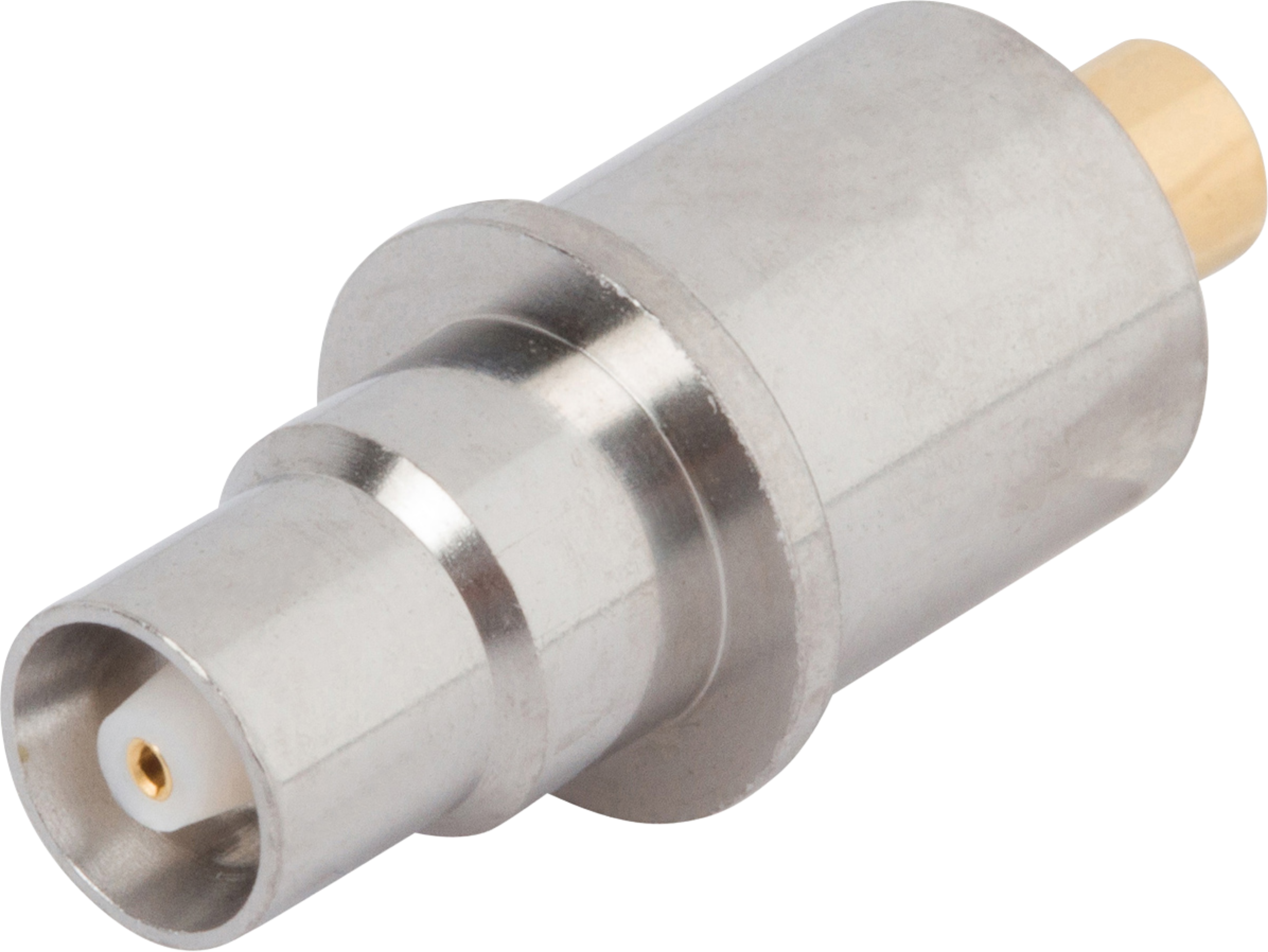

Part #   SF9921-6000

BMZ Pin D38999 Contact (Size 8) for .085 Cable

Available Inventory: 0
SF9921-6000
BMZ Connectors SF9921-6000
Datasheet

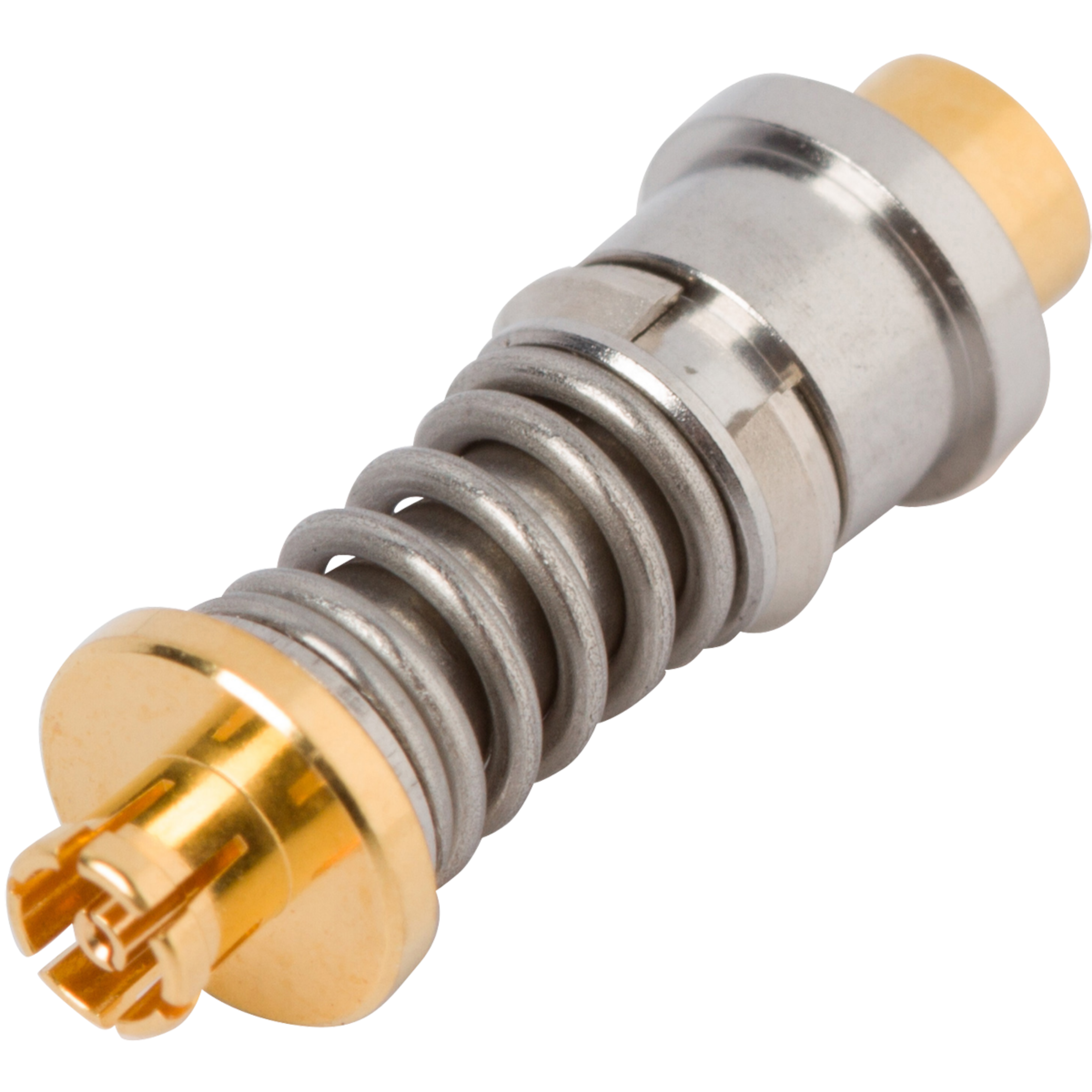

Part #   3221-40066
