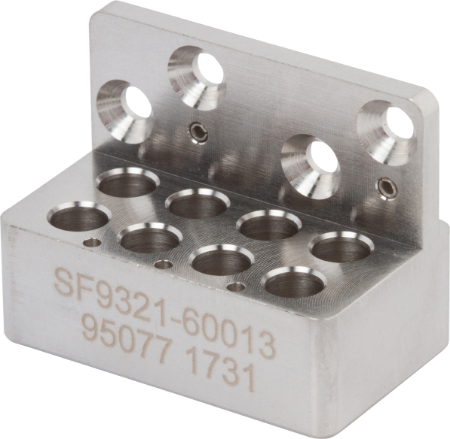

SMPM VITA 67.2 Plug-in Module
P/N: SF9321-60013

Loading...
Products specifications
Attribute name Attribute value
Family VITA 67
RF Series VITA SMPM
Orientation (Body) Straight
Coupling Push-on
Mounting Type Snap-in
Finish Passivated
Electrical
Frequency 40 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 325 VRMS
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Mechanical
Withdrawal Force 1.5 lbs
Insertion Force 2.5 lbs (per contact)
Mating Cycles 500
Environmental
Temperature Rating -65°C to +165°C
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Thermal Shock MIL-STD-202, Method 107, Condition B
Products specifications
Attribute name Attribute value
Family VITA 67
RF Series VITA SMPM
Orientation (Body) Straight
Coupling Push-on
Mounting Type Snap-in
Finish Passivated
Electrical
Frequency 40 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 325 VRMS
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Mechanical
Withdrawal Force 1.5 lbs
Insertion Force 2.5 lbs (per contact)
Mating Cycles 500
Environmental
Temperature Rating -65°C to +165°C
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Thermal Shock MIL-STD-202, Method 107, Condition B
Product tags
Customers Also Viewed
Part #   500-32-022

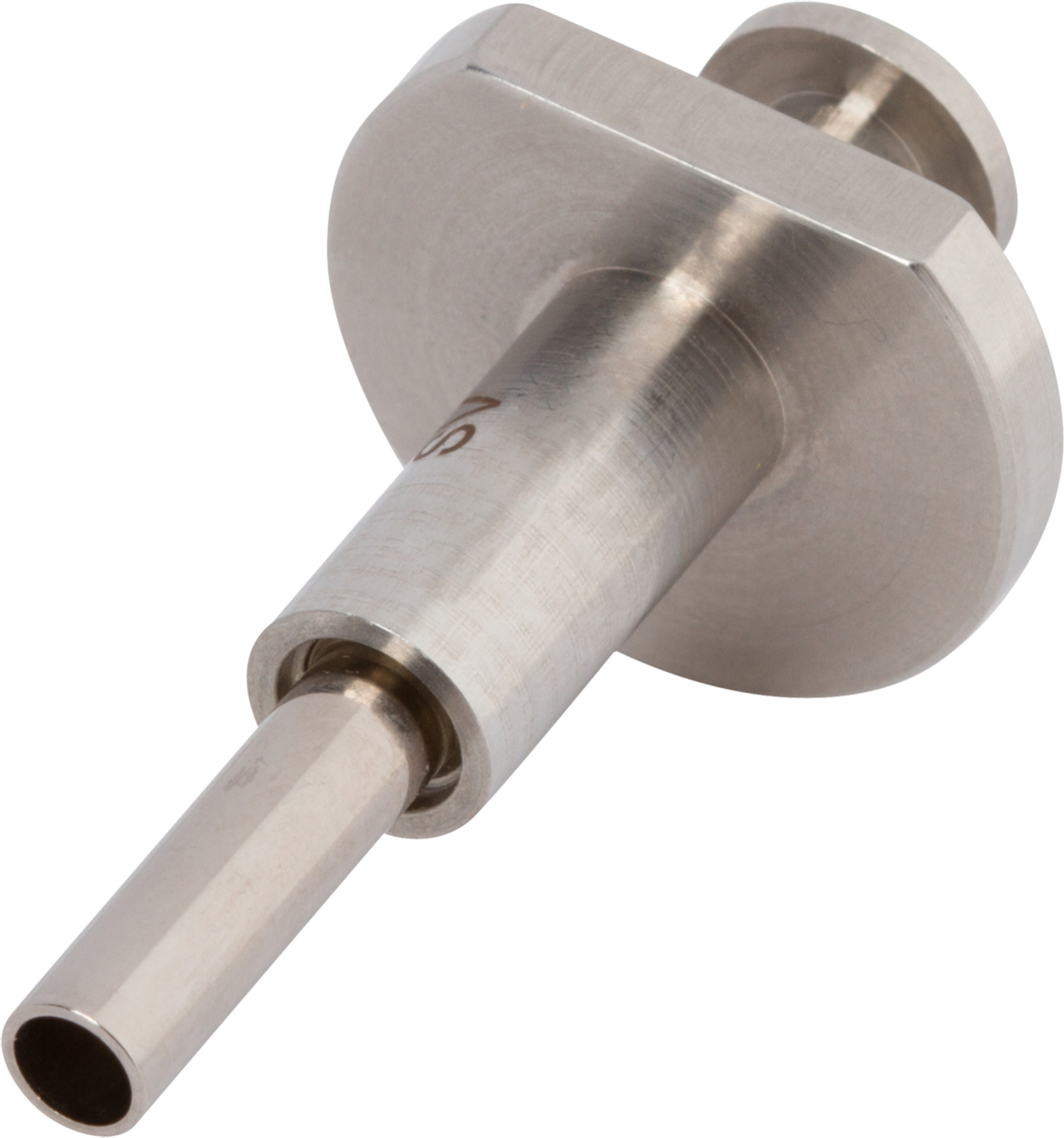

SMPM Female VITA 67.1/2 Contact Removal Tool

Available Inventory: 48
500-32-022
VITA Tool 500-32-022
Datasheet
Part #   7012-1324

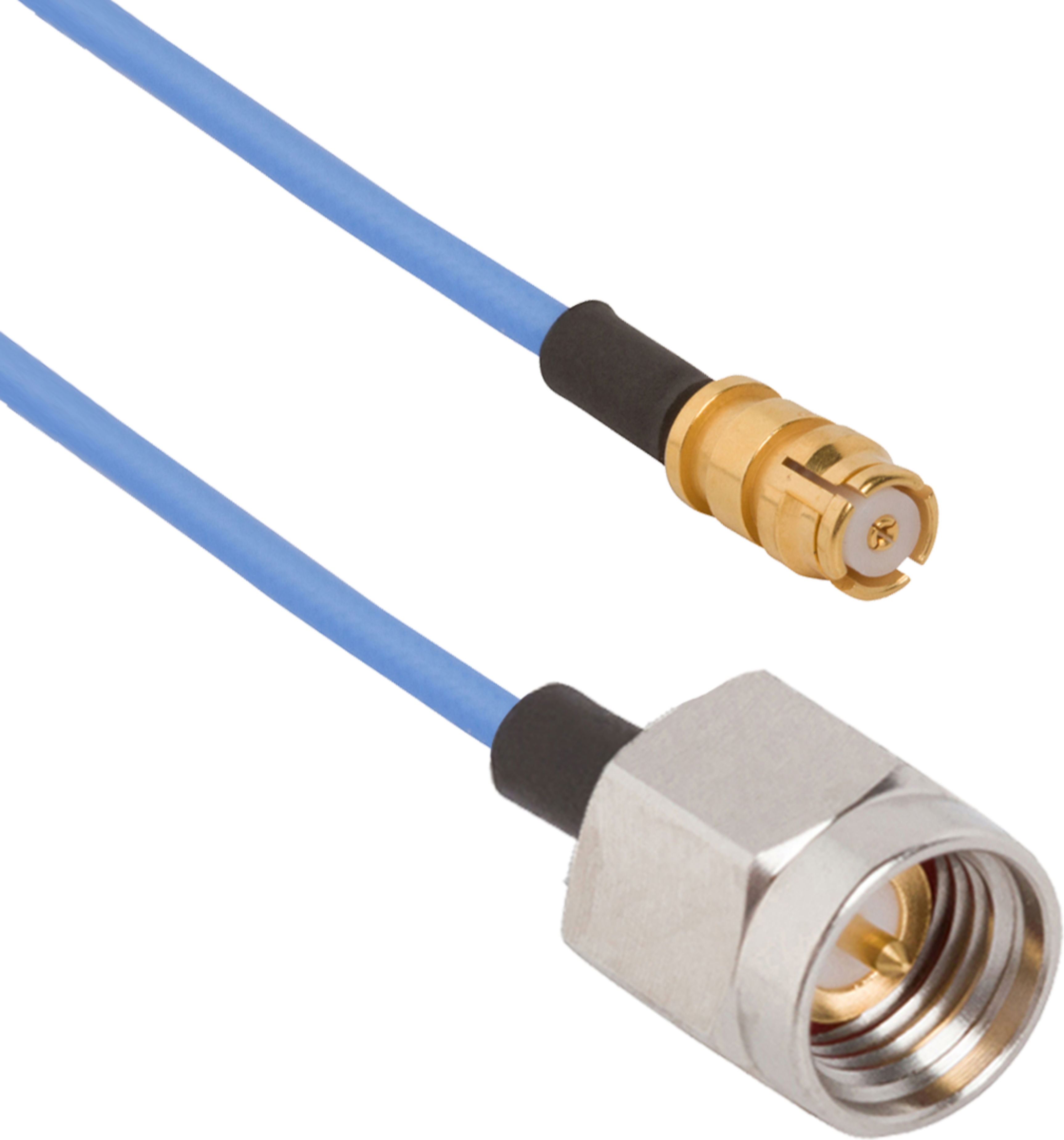

SMP Female to SMA Male 6" Cable Assembly for .047 Cable

Available Inventory: 245
7012-1324
SMP Cable Assemblies 7012-1324
Datasheet
Part #   7012-1331

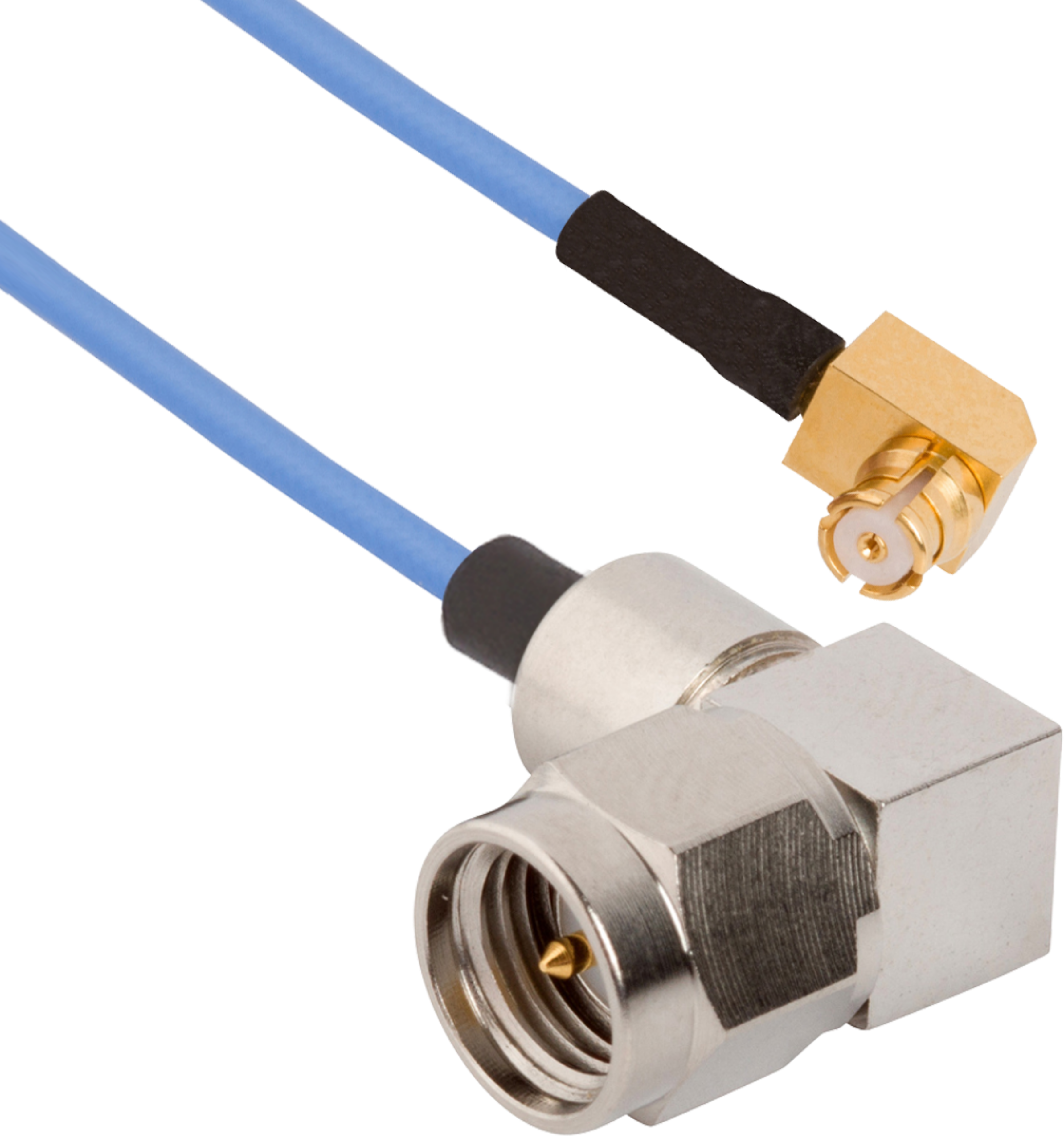

SMP Female R/A to SMA Male R/A 12" Cable Assembly for .047 Cable
