SMPM Female VITA 67.1/2 Contact Removal Tool
P/N: 500-32-022

There currently isn't any inventory available in distribution. Please contact us to obtain this product.
Products specifications
Attribute name Attribute value
Family VITA 67
RF Series VITA SMPM
Electrical
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Dielectric withstanding Voltage 325 VRMS
Mechanical
Mating Cycles 500
Insertion Force 2.5 lbs (per contact)
Withdrawal Force 1.5 lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


EU RoHS Directive 2011/65/EU Compliant

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as 'Compliant' do not contain any of these substances above the prohibition thresholds.

EU REACH Regulation (EC) No. 1907/2006 Does not contain REACH SVHC

These products do not contain Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm).

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:28:14 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Family VITA 67
RF Series VITA SMPM
Electrical
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Dielectric withstanding Voltage 325 VRMS
Mechanical
Mating Cycles 500
Insertion Force 2.5 lbs (per contact)
Withdrawal Force 1.5 lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Product tags
Customers Also Viewed
Part #   3221-40019

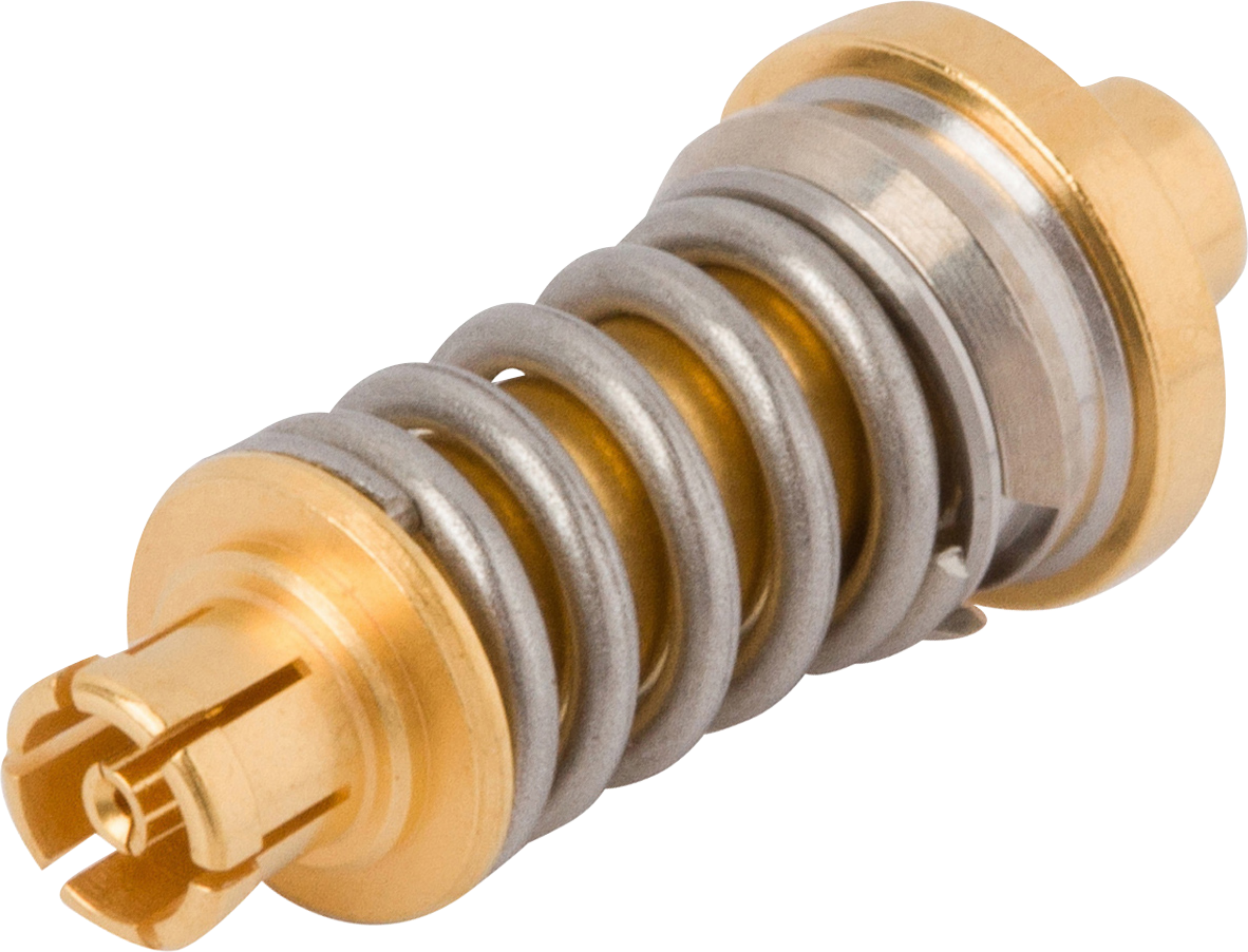

SMPM Female VITA 67.1/2 Plug-in Contact for .047 Cable

Available Inventory: 92
3221-40019
VITA Connectors 3221-40019
Datasheet
Part #   3221-40022

SMPM Female VITA 67.1/2 Plug-in Contact for .086 Cable

Available Inventory: 1009
3221-40022
VITA Connectors 3221-40022
Datasheet
Part #   500-32-015

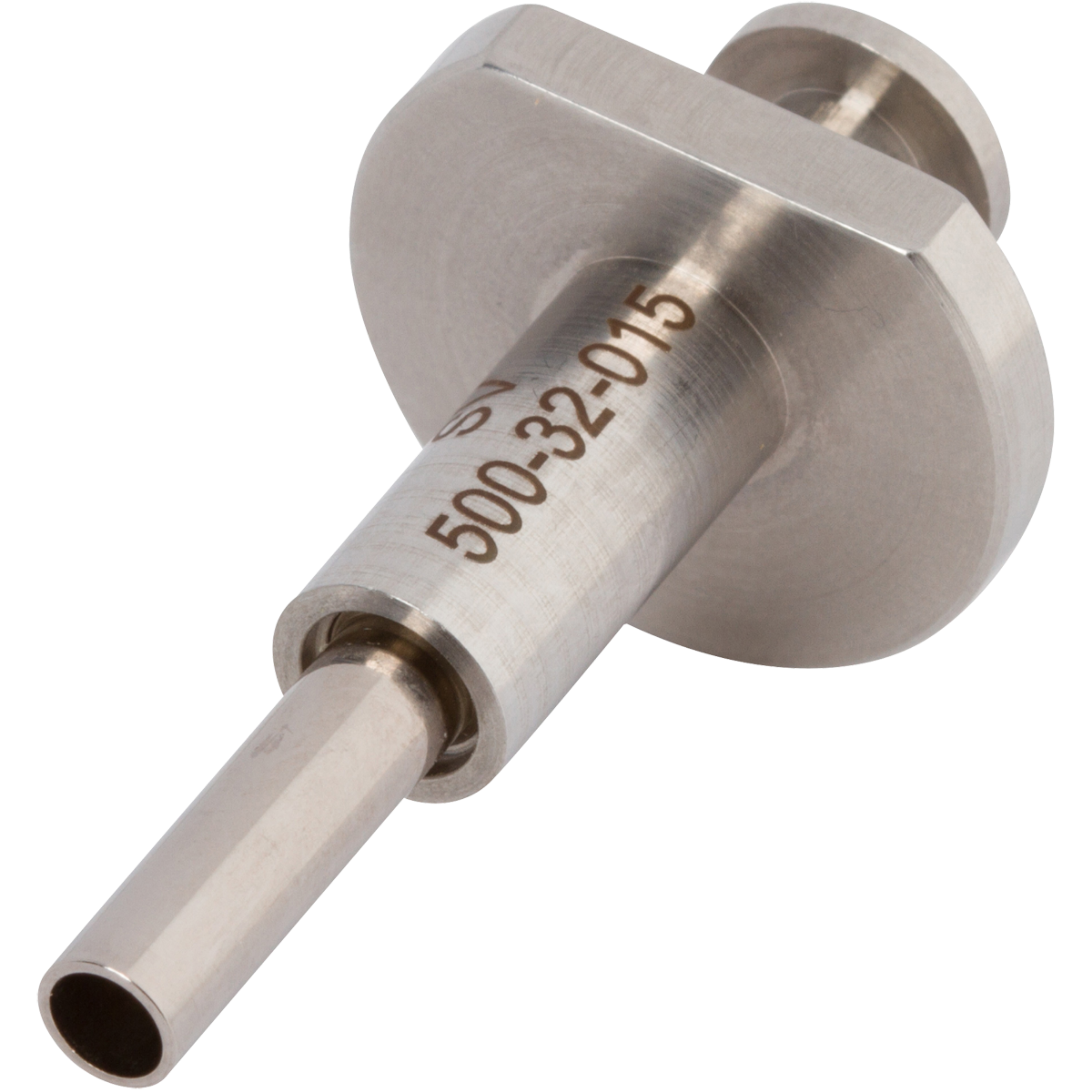

SMPM Female VITA 67.3 Contact Removal Tool
