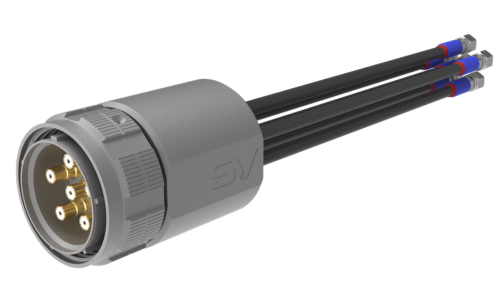

RF and Mixed Signal Harnesses Overview

SV Microwave offers design, assembly and test services to support your harness needs including Mil-Aero, Commercial Space and Hi-Reliability applications.

Our J-STD certified harness technicians have experience manufacturing harnesses for some of the world's most challenging conditions including Low Earth Orbit, Military Aircraft and Industrial Test and Measurement.

SV has over 15 years of complex harness experience ranging from pure-play RF harnesses to complex mixed-signal, multi-leg bundles. Be it build-to-print or design-to-spec, we want to be your harness partner of choice.

SV has a strong heritage in creating both pure RF Microwave Harnesses as well as Mixed Signal Harnesses that combine a variety of inputs like digital, quadrax, power and RF/optical combinations. All of SV's harnesses can support the full spectrum of harness interfaces including:

• MIL-SPEC
• VITA
• D38999
• ARINC
• LRM

All of SV's harnesses can be terminated to a complete line of coaxial interfaces including:

• VITA 67 and VITA 66.5 Contacts
• Size #8, #12, and #16 contacts (both 39029 and high-frequency versions)
• Mini-D RF high-density multiport solution
• 75 Ω versions
• Cable types: .047, .085, .141, and RG-179

We support the full spectrum of equipment necessary to design, assemble and test your harnesses, from basic hand tools to semi-automated equipment, including:

• Automated wire cutting and stripping
• Certified Solder Technicians (IPC/J-STD-001S)
• Wire/cable bundling
• Over-braiding (fiber and wire)
• Over-molding
• Potting
• Form boards
• Break-out legs
• In-process testing (CIRRIS continuity, DWV, S-Parameters)
• Automated RF testing
• Real-time X-ray
• Onsite environmental lab

SV Microwave is part of Amphenol which gives us access to the full complement of standard and custom interconnect and cable products to support your harness needs. Send us your next harness requirement and let us show you what we can do. Contact us.
