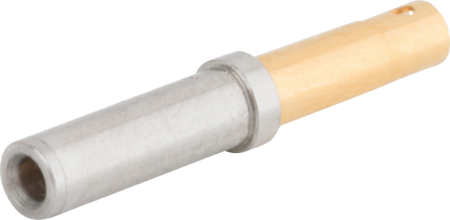

SV20 Socket Micro38999 Contact (Size 20HD) for .047 Cable
P/N: 2051-60002

Loading...
Products specifications
Attribute name Attribute value
Gender Socket
Cable Type 0.047 Flexible Coax
Mounting Type Micro38999 2M, Series 80, MIL-DTL-32689
Style Size 20
Orientation (Body) Straight
Coupling Push-on
Finish Passivated
RF Series SV20
Electrical
Impedance 50 ohms
Frequency 40 GHz
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 150 VRMS
Mechanical
Mating Cycles 500
Environmental
Temperature Rating -55°C to +125°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Products specifications
Attribute name Attribute value
Gender Socket
Cable Type 0.047 Flexible Coax
Mounting Type Micro38999 2M, Series 80, MIL-DTL-32689
Style Size 20
Orientation (Body) Straight
Coupling Push-on
Finish Passivated
RF Series SV20
Electrical
Impedance 50 ohms
Frequency 40 GHz
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 150 VRMS
Mechanical
Mating Cycles 500
Environmental
Temperature Rating -55°C to +125°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Product tags
Customers Also Viewed
Part #   9921-40001

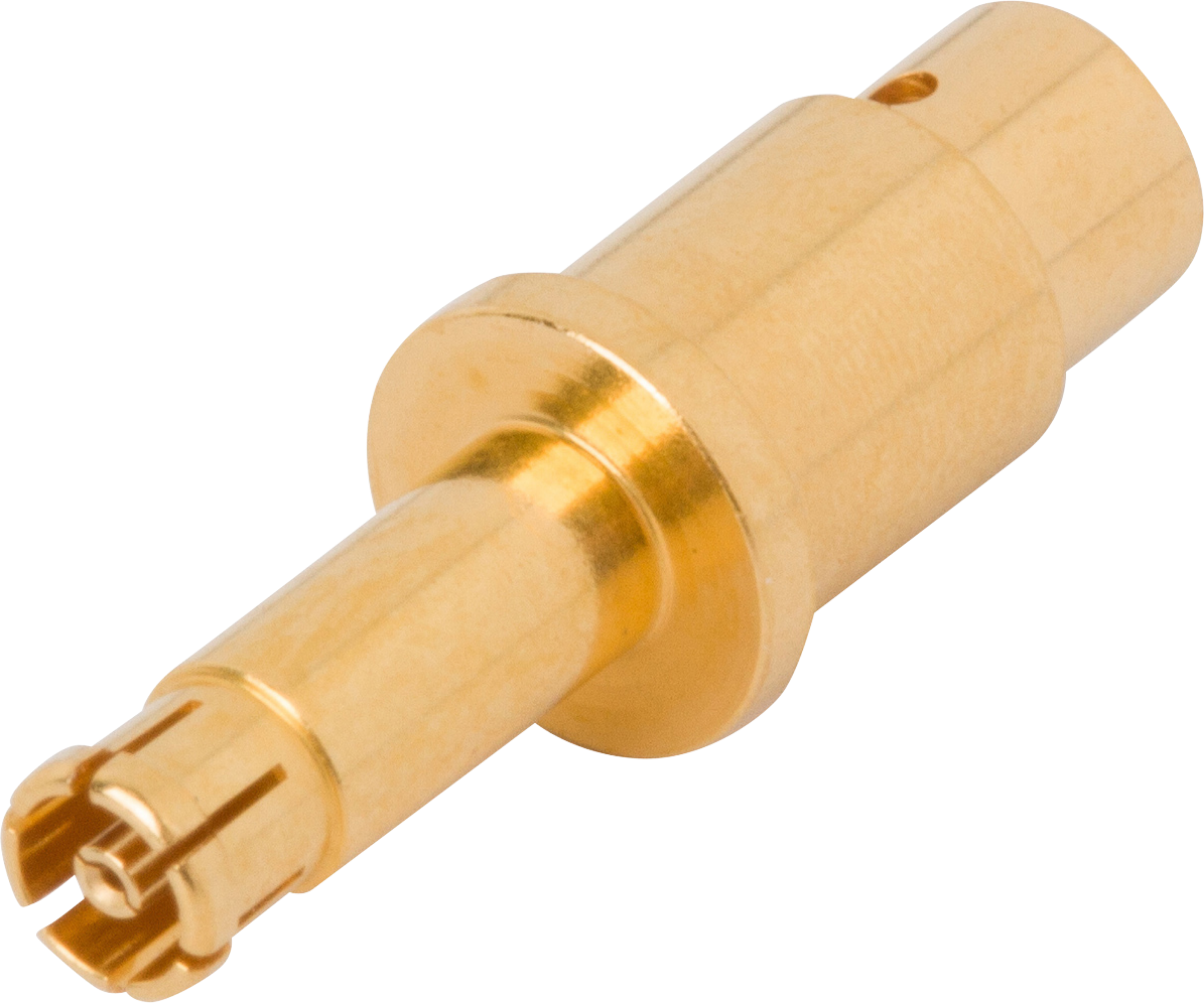

SMPS Pin D38999 Contact (Size 16) for .047 Cable

Available Inventory: 236
9921-40001
SMPS Connectors 9921-40001
Datasheet
Part #   2041-40001

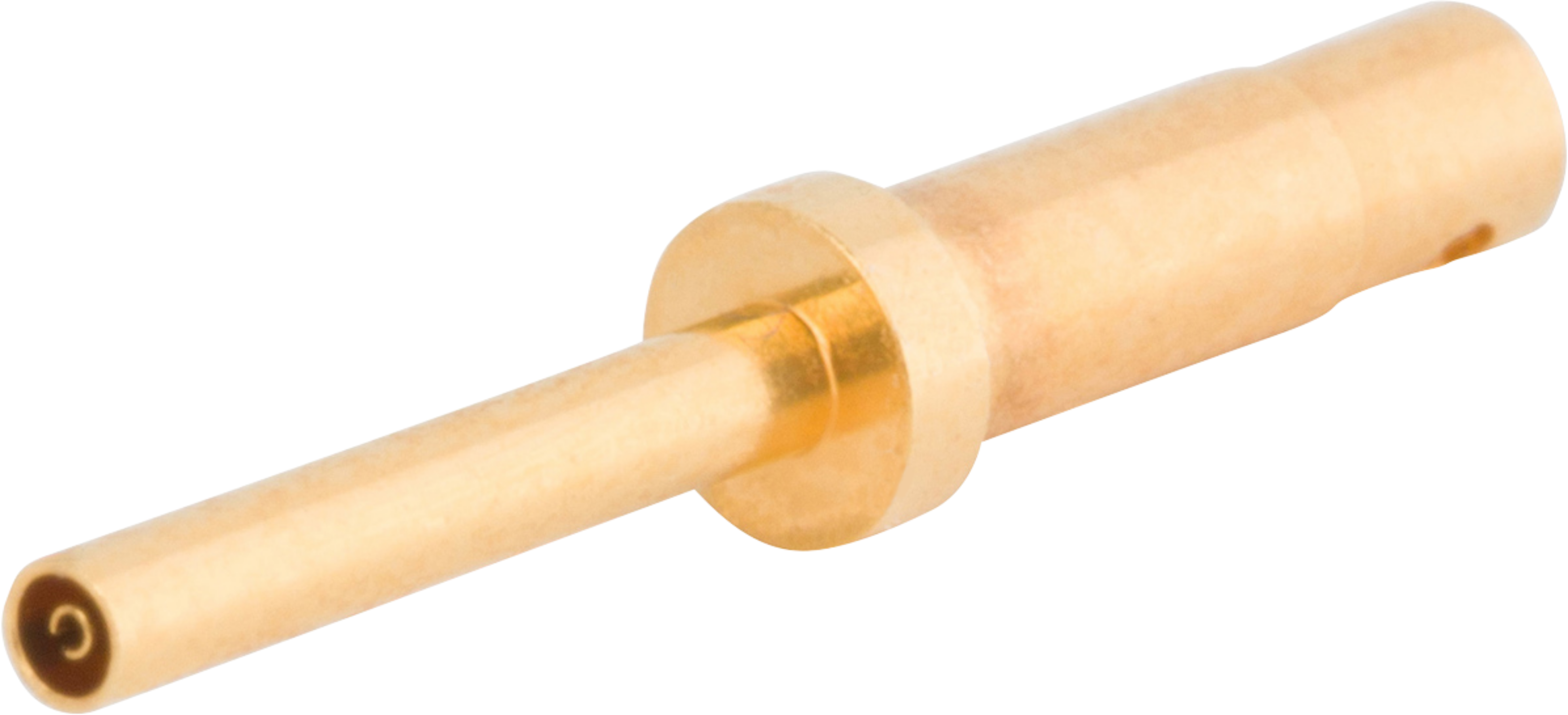

SV20 Pin D38999 Contact (Size 20) for .047 Cable
