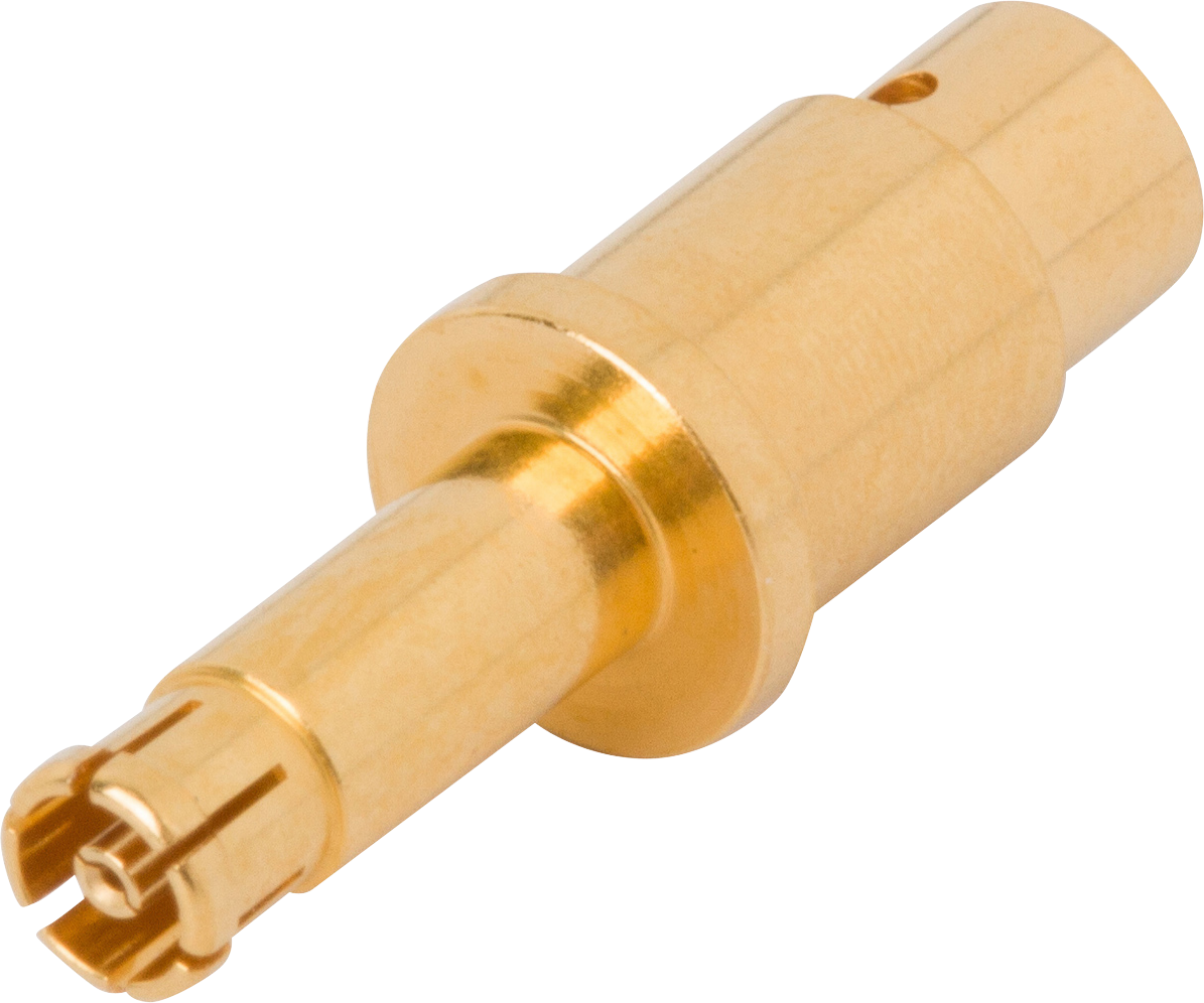

SMPM Pin (Size 12) D38999 Contact for .047 Cable
P/N: 9321-40004

There currently isn't any inventory available in distribution. Please contact us to obtain this product.
Products specifications
Attribute name Attribute value
Gender Pin
Cable Type 0.047 Flexible Coax
Mounting Type D38999 Series I, II, III and IV
Style Size 12
Family SOSA Aligned
Orientation (Body) Straight
Coupling Push-on
Finish Gold
RF Series SMPM
Electrical
Impedance 50 ohms
Frequency 65 GHz
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 325 VRMS
Mechanical
Mating Cycles - SB 500
Mating Cycles - FD 100
Insertion Force - FD 4.5 lbs
Insertion Force - SB 2.5 lbs
Withdrawal Force - FD 6.5 lbs
Withdrawal Force - SB 1.5 lbs
Radial Misalignment 3° Max
Axial Misalignment .010” Max
Environmental
Temperature Rating -55°C to +125°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
