Reverse Mount Thru-Hole RF PCB Connectors

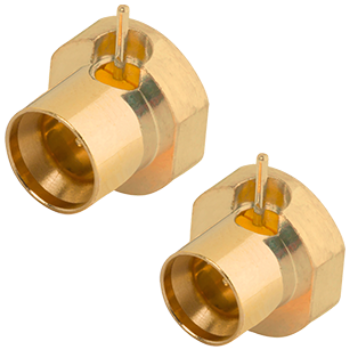

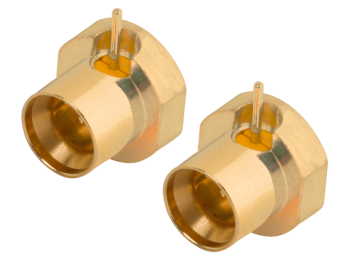

Reverse-mount RF PCB connectors that pass through the board offer superior signal integrity by eliminating via transitions, making them ideal for high-frequency designs. They also reduce parasitics, simplify routing, and reduce PCB stackup, improving mechanical integration for modern RF systems. SV's newly designed line of Reverse-Mount thru-Hole RF PCB Connectors is available in the SMP and SMPM series and is rated to work up to 40 GHz.

Features / Benefits & Applications
Technical Specs

Features / Benefits:

Direct signal path reduces insertion loss and reflections
Space-saving, low-profile mechanical integration
Eliminates cable from the top of the PCB
Clean, predictable impedance transitions
SMP (26.5 GHz), SMPM (40 GHz)

Applications:

RADAR and Satellite Communications
Compact modules
mmWave systems
5G

The specifications below are typical for the connector series, but may not apply to this particular part. Please see the datasheet for full specifications.

SMP

Impedance (Ω)	50
Frequency GHz	40 GHz
Shielding Effectiveness	≥ -80 dB DC - 3 GHz ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage	500 VRMS
Mating Cycles - SB	1000
Mating Cycles - LD	500
Mating Cycles - FD	100
Insertion Force - SB	3.0 lbs
Insertion Force - LD	5.0 lbs
Insertion Force - FD	7.0 lbs
Withdrawal Force - SB	0.5 lbs
Withdrawal Force - LD	7.0 lbs
Withdrawal Force - FD	9.0 lbs
Axial Misalignment	.010” Max
Radial Misalignment	3° Max
Temperature Rating	-65°C to +165°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Thermal Shock	MIL-STD-202, Method 107, Condition B
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.

SMPM

Impedance (Ω)	50
Frequency GHz	65 GHz
Shielding Effectiveness	≥ -80 dB DC - 3 GHz ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage	325 VRMS
Mating Cycles - SB	500
Mating Cycles - FD	100
Insertion Force - SB	2.5 lbs
Insertion Force - FD	4.5 lbs
Withdrawal Force - SB	1.5 lbs
Withdrawal Force - FD	6.5 lbs
Axial Misalignment	.010” Max
Radial Misalignment	3° Max
Temperature Rating	-65°C to +165°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Thermal Shock	MIL-STD-202, Method 107, Condition B
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
