High Density RF Cable Assemblies

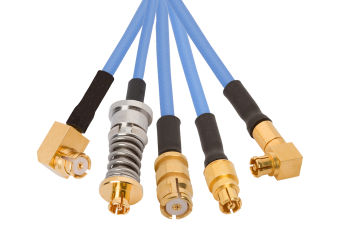

Picture for category High Density RF Cable Assemblies

SV Microwave has expanded its offering of fixed-length, high-performance RF cable assemblies with additional high-density configurations. Featuring female SMP, SMPM / VITA 67.3 SMPM and SMPS connectors, these cable assemblies are ideal for embedded system applications or anywhere where space requirements are at a premium.

Features / Benefits:

  • Fits all standard interfaces including: SMA, 2.92mm, 2.4mm, 1.85mm, SMP, SMPM and SMPS
  • Low solder wicking and high flexibility allows for tight bends behind the cable ferrule
  • High flex-life ensures excellent performance after repeated usage
  • COTS versions available through distribution
  • DC - 40 GHz

Applications:

  • 5G Wireless Infrastructure
  • Project designs where space is at a premium
  • Runs where high flexibility and low loss are required
  • VITA and Embedded Systems applications
  • RF test and measurement

SMP

Impedance (Ω)50
Frequency GHz40 GHz
Shielding Effectiveness≥ -80 dB DC - 3 GHz
 ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage500 VRMS
Mating Cycles - SB1000
Mating Cycles - LD500
Mating Cycles - FD100
Insertion Force - SB3.0 lbs
Insertion Force - LD5.0 lbs
Insertion Force - FD7.0 lbs
Withdrawal Force - SB0.5 lbs
Withdrawal Force - LD7.0 lbs
Withdrawal Force - FD9.0 lbs
Axial Misalignment.010” Max
Radial Misalignment3° Max
Temperature Rating-65°C to +165°C
Corrosion (salt spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D
ShockMIL-STD-202, Method 213, Condition I
Thermal ShockMIL-STD-202, Method 107, Condition B
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.

SMPS

Impedance (Ω)50
Frequency GHz65 GHz
Shielding Effectiveness≥ -80 dB DC - 3 GHz
 ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage250 VRMS
Mating Cycles - SB500
Mating Cycles - FD100
Insertion Force - SB1.2 lbs
Insertion Force - FD2.5 lbs
Withdrawal Force - SB1.0 lbs
Withdrawal Force - FD4.5 lbs
Axial Misalignment.010” Max
Radial Misalignment3° Max
Temperature Rating-65°C to +165°C
Corrosion (salt spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D
ShockMIL-STD-202, Method 213, Condition I
Thermal ShockMIL-STD-202, Method 107, Condition B
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.

SMPM

Impedance (Ω)50
Frequency GHz65 GHz
Shielding Effectiveness≥ -80 dB DC - 3 GHz
 ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage325 VRMS
Mating Cycles - SB500
Mating Cycles - FD100
Insertion Force - SB2.5 lbs
Insertion Force - FD4.5 lbs
Withdrawal Force - SB1.5 lbs
Withdrawal Force - FD6.5 lbs
Axial Misalignment.010” Max
Radial Misalignment3° Max
Temperature Rating-65°C to +165°C
Corrosion (salt spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D
ShockMIL-STD-202, Method 213, Condition I
Thermal ShockMIL-STD-202, Method 107, Condition B
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.
Filters
7012-2097
SMP Cable Assemblies 7012-2097
Datasheet
7012-2098
SMP Cable Assemblies 7012-2098
Datasheet
Part #   7012-2099

SMP Female R/A to SMP Female 6" Cable Assembly for .047 Cable

Available Inventory: 100
7012-2099
SMP Cable Assemblies 7012-2099
Datasheet
Part #   7012-2100

SMP Female R/A to SMP Female 6" Cable Assembly for .085 Cable

Available Inventory: 0
7012-2100
SMP Cable Assemblies 7012-2100
Datasheet
7032-9725
SMPM Cable Assemblies 7032-9725
Datasheet
7032-9731
SMPM Cable Assemblies 7032-9731
Datasheet
7032-9728
VITA Cable Assemblies 7032-9728
Datasheet
Part #   7032-9733

SMPM Female VITA 67.3 to SMA Male 6" Cable Assembly for .047 Cable

Available Inventory: 100
7032-9733
VITA Cable Assemblies 7032-9733
Datasheet
7032-9726
VITA Cable Assemblies 7032-9726
Datasheet
7032-9732
VITA Cable Assemblies 7032-9732
Datasheet
7032-9730
VITA Cable Assemblies 7032-9730
Datasheet
7032-9735
VITA Cable Assemblies 7032-9735
Datasheet
Part #   7038-0600

SMPS Female to 2.92mm Male 12" Cable Assembly for .047 Cable

Available Inventory: 0
7038-0600
SMPS Cable Assemblies 7038-0600
Datasheet
Part #   7038-0601

SMPS Female to 2.92mm Male 6" Cable Assembly for .047 Cable

Available Inventory: 31
7038-0601
SMPS Cable Assemblies 7038-0601
Datasheet
7032-9729
VITA Cable Assemblies 7032-9729
Datasheet
7032-9734
VITA Cable Assemblies 7032-9734
Datasheet
