SMPS Female to 2.92mm Male 6" Cable Assembly for .047 Cable
P/N: 7038-0601

There currently isn't any inventory available in distribution. Please contact us to obtain this product.
Products specifications
Attribute name Attribute value
Gender Plug (Male)
RF Series 2.92 mm
Orientation (Body) Straight
Coupling Threaded
RF Series 2 SMPM
Gender 2 Jack (Female)
Cable Type 0.047 Flexible Coax
Orientation 2 (Body) Straight
Cable Length 6"
Electrical
Frequency 40 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Intermateability SMA
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:32:44 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Gender Plug (Male)
RF Series 2.92 mm
Orientation (Body) Straight
Coupling Threaded
RF Series 2 SMPM
Gender 2 Jack (Female)
Cable Type 0.047 Flexible Coax
Orientation 2 (Body) Straight
Cable Length 6"
Electrical
Frequency 40 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Intermateability SMA
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   7015-1100

2.92mm Male to SMPM Female 6" Cable Assembly for .085 Cable

Available Inventory: 0
7015-1100
2.92mm Cable Assemblies 7015-1100
Datasheet
Part #   7015-1102

2.92mm Male to SMPM Female 24" Cable Assembly for .085 Cable

Available Inventory: 40
7015-1102
2.92mm Cable Assemblies 7015-1102
Datasheet
Part #   7015-0615

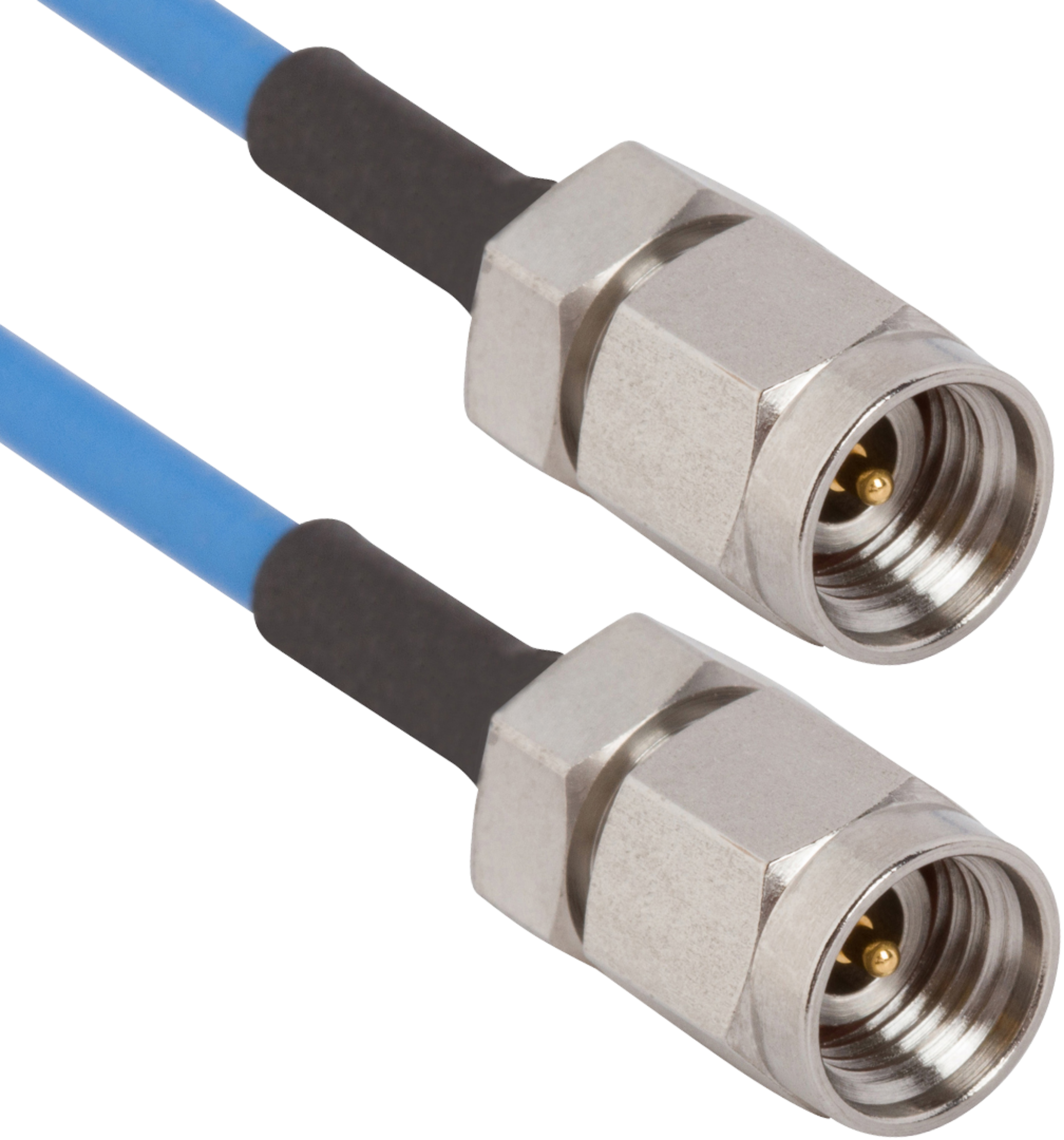

2.92mm Male to 2.92mm Male 12" Cable Assembly for .085 Cable
