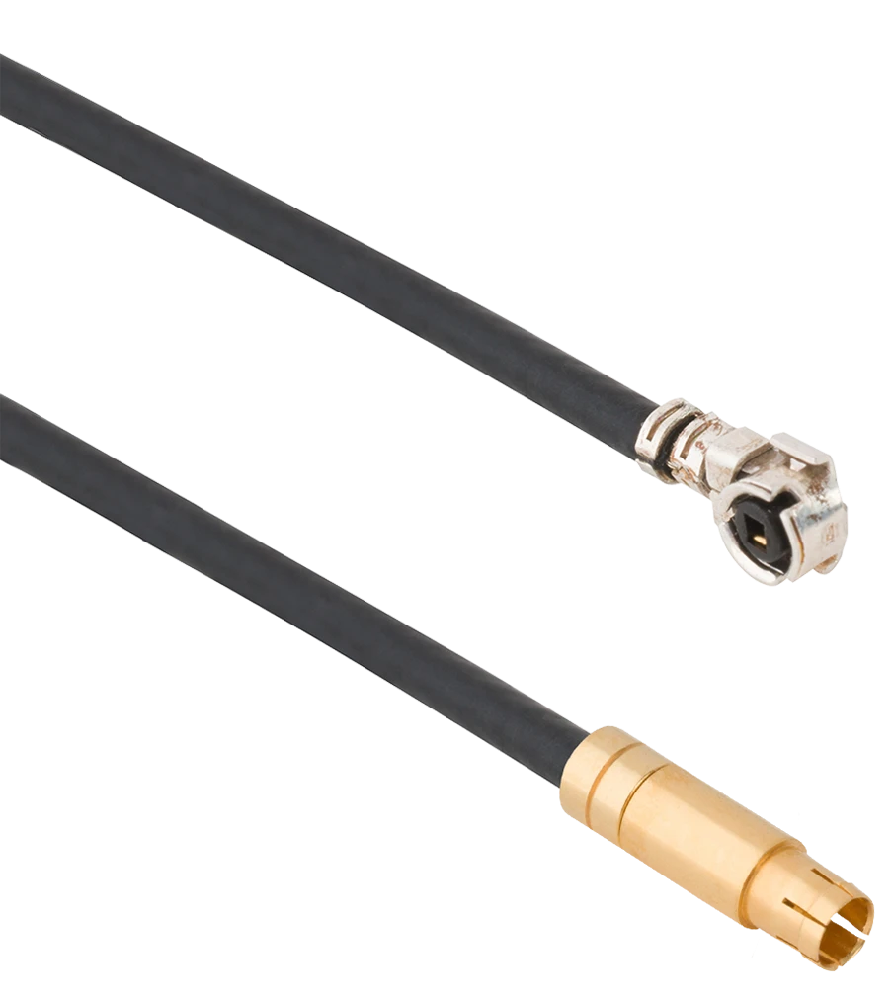

Ultra Low Profile U.FL to VITA Cable Assemblies - Now In Stock!
Designed for dense VPX plug-in card systems and precision test environments, SV's new line of Ultra Low Profile U.FL-to-VITA Cable Assemblies delivers a compact, high-performance RF interconnect solution. This line features 6-inch cable assemblies with a VITA 67.3 NanoRF, SMPM, or SMPS series on one end and an ultra-miniature U.FL connector featuring a 2.5 mm mated height and 0.079" (2.0 mm) width on the other. This creates a streamlined, space-saving connection that enables direct, low-loss routing from the VITA block to the PCB and optimizes signal integrity in high-frequency applications up to 6 GHz.
Features & Benefits
-
Ultra-low 2.5mm mated height (U.FL connector)
-
Narrow 0.079" connector width (U.FL connector)
-
Flexible, compact 6" cable length for tight routing
-
Available with VITA 67.3 connector series
-
DC - 6 GHz
Applications
-
VPX Plug-In Cards for VITA 67.3
-
Embedded Systems
-
High-density RF modules and assemblies
-
Test and Measurement setups
Product's Part Numbers and Descriptions
| Part No. | Description |
|
|
NanoRF Male VITA 67.3 Plug-In Contact to U.FL Female R/A 6" Cable Assembly for .047 Cable |
|
|
SMPM Male VITA 67.3 Plug-In Contact to U.FL Female R/A 6" Cable Assembly for .047 Cable |
|
|

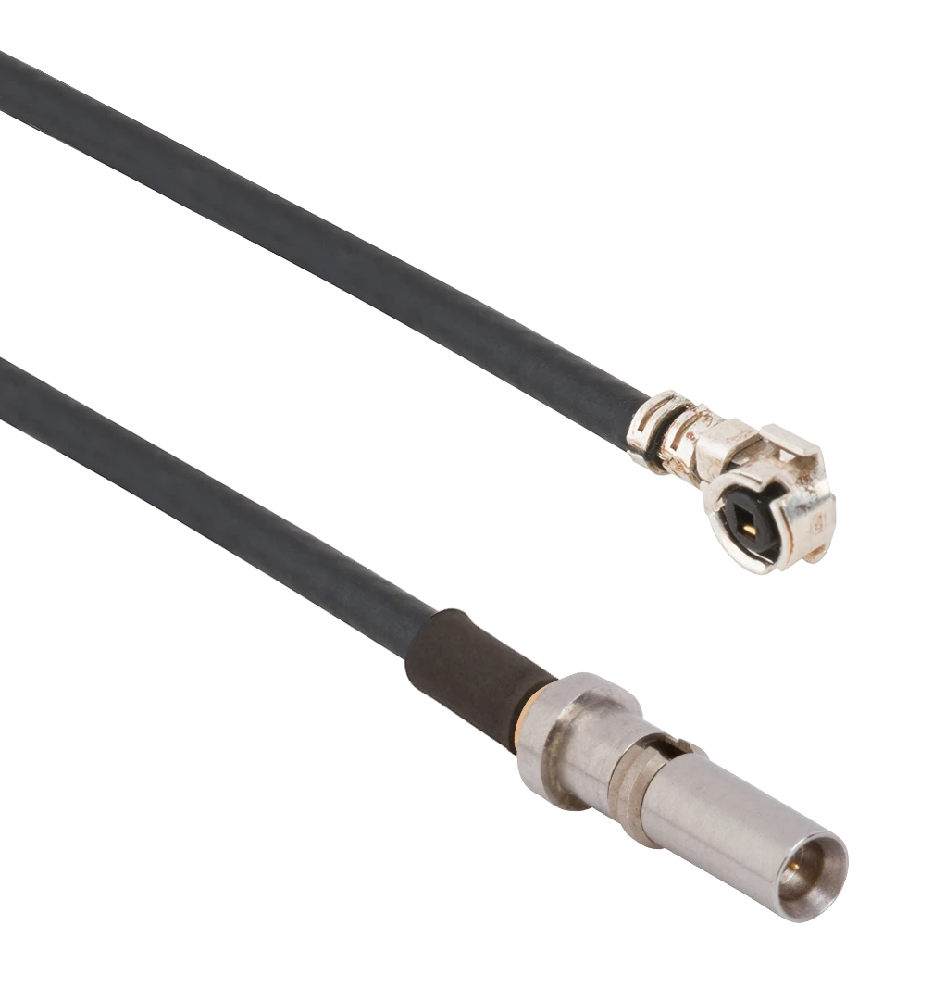

SMPS Male VITA 67.3 Gen2 Plug-In Contact to U.FL Female 6" Cable Assembly for .047 Cable |
