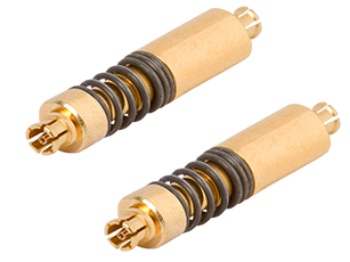

SMPS Spring Bullets

SV Microwave’s newest spring loaded bullet product line employs an SMPS RF interface to maximize density and high frequency in applications up to 32 GHz. These spring loaded bullets have been designed for repeatable RF performance under all states of compression by solving axial and radial misalignment issues when fully mated. Further, with a minimum overall length of just 0.460”, these bullets offer a very tight board-to-board stackup.

Features / Benefits & Applications
Technical Specs
Additional Resources

Features / Benefits:

Eliminates gaps between bullet and shroud for maximum RF performance
Wide range of available sizes
Performance guaranteed under all states of compression
DC - 32 GHz

Applications:

Mil-Aerospace
High density, small form factor
Board to board with multiple simultaneous mates
Large scale blind mate arrays

The specifications below are typical for the connector series, but may not apply to this particular part. Please see the datasheet for full specifications.

SMPS

Impedance (Ω)	50
Frequency GHz	65 GHz
Shielding Effectiveness	≥ -80 dB DC - 3 GHz ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage	250 VRMS
Mating Cycles - SB	500
Mating Cycles - FD	100
Insertion Force - SB	1.2 lbs
Insertion Force - FD	2.5 lbs
Withdrawal Force - SB	1.0 lbs
Withdrawal Force - FD	4.5 lbs
Axial Misalignment	.010” Max
Radial Misalignment	3° Max
Temperature Rating	-65°C to +165°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Thermal Shock	MIL-STD-202, Method 107, Condition B
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
