SMPM Female R/A to 2.92mm Male 6" Cable Assembly for .047 SuperFlex Cable
P/N: 7032-9436

In stock at Qty Order
Digi-Key Electronics 23
Newark 10
Farnell 10
Mouser Electronics 8
Products specifications
Attribute name Attribute value
Family SuperFlex
Gender Jack (Female)
Orientation (Body) Right Angle
Coupling Push-on
Termination Style Solder
RF Series 2 2.92 mm
Gender 2 Plug (Male)
Number of Ports Single
Orientation 2 (Body) Straight
Cable Type 0.047 SuperFlex Coax
RF Series SMPM
Cable Length 6"
Electrical
Frequency 33 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS
Mechanical
Mating Torque 7 - 10 in - lbs
Intermateability SMA
Environmental
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:31:46 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Family SuperFlex
Gender Jack (Female)
Orientation (Body) Right Angle
Coupling Push-on
Termination Style Solder
RF Series 2 2.92 mm
Gender 2 Plug (Male)
Number of Ports Single
Orientation 2 (Body) Straight
Cable Type 0.047 SuperFlex Coax
RF Series SMPM
Cable Length 6"
Electrical
Frequency 33 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS
Mechanical
Mating Torque 7 - 10 in - lbs
Intermateability SMA
Environmental
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   7032-7777

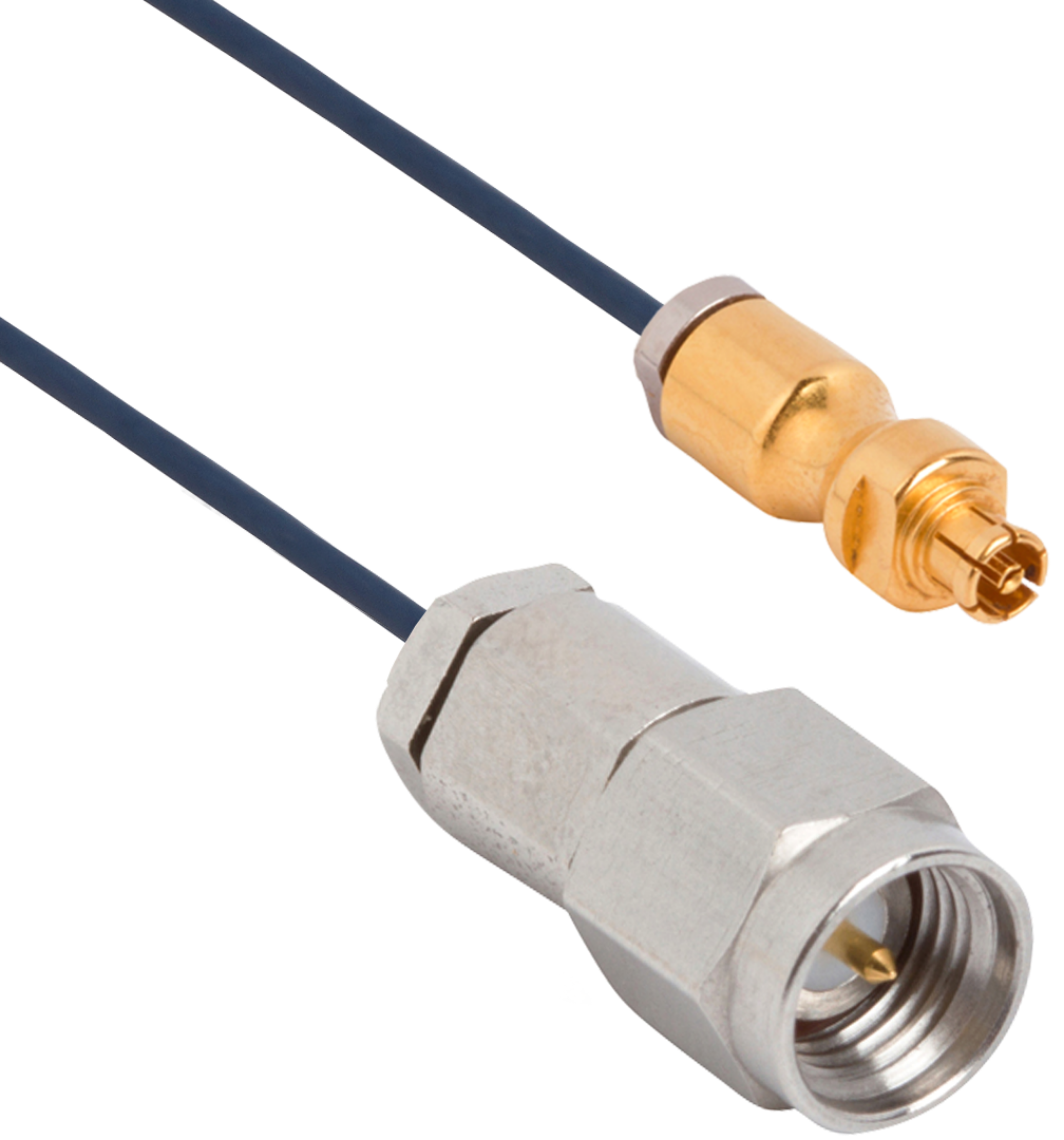

SMPM Female to SMA Male 12" Cable Assembly for .047 SuperFlex Cable"

Available Inventory: 18
7032-7777
SMPM Cable Assemblies 7032-7777
Datasheet
Part #   7029-3437

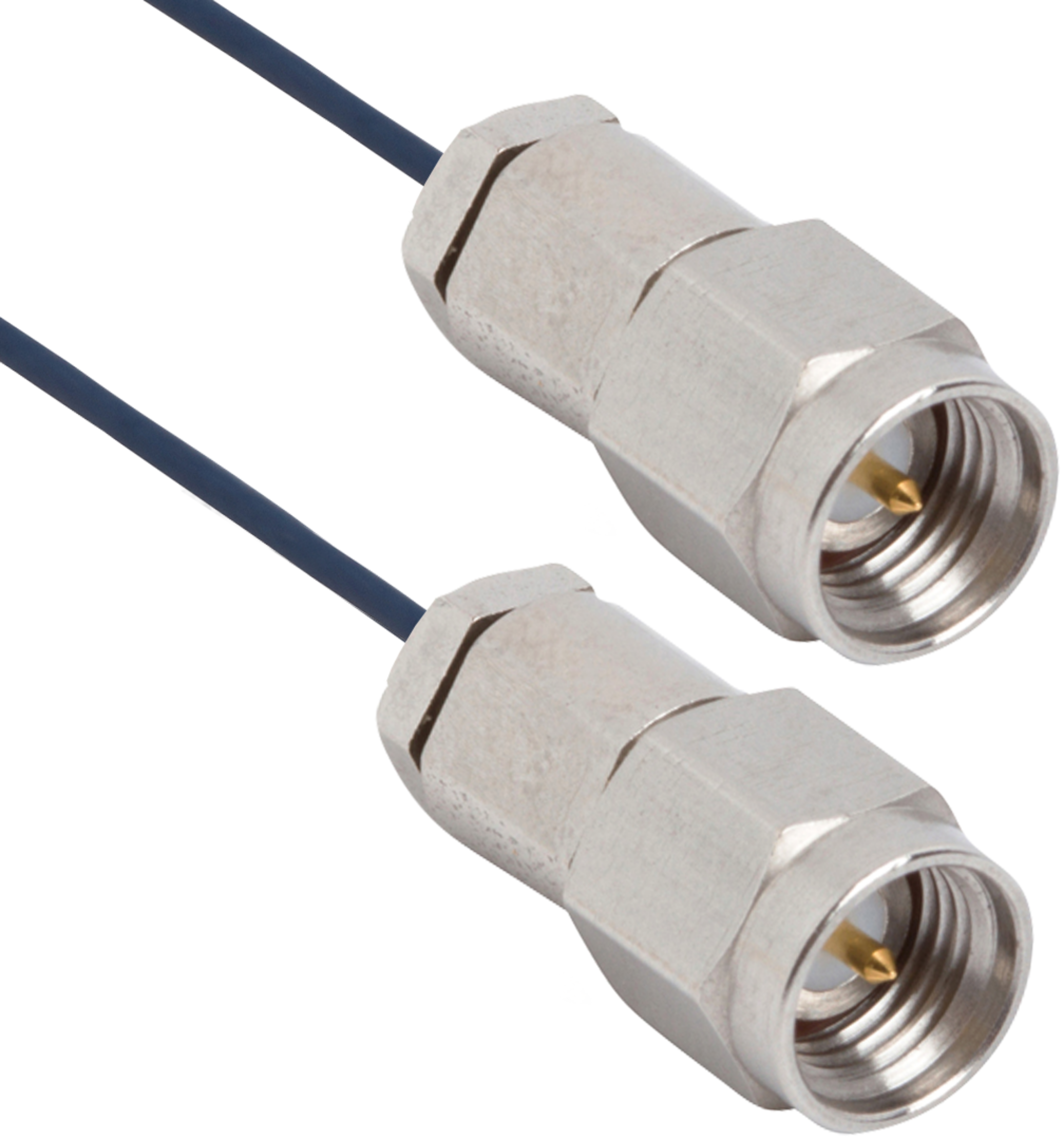

SMA Male to SMA Male 6" Cable Assembly for .047 SuperFlex Cable
