SMA Male to SMA Male 12" Cable Assembly for .047 SuperFlex Cable
P/N: 7029-3436

There currently isn't any inventory available in distribution. Please contact us to obtain this product.
Products specifications
Attribute name Attribute value
Family SuperFlex
RF Series SMA
Orientation (Body) Straight
Coupling Threaded
Gender Plug (Male)
Termination Style Solder
Gender 2 Plug (Male)
RF Series 2 SMA
Cable Type 0.047 SuperFlex Coax
Orientation 2 (Body) Straight
Cable Length 12"
Electrical
Frequency 26.5 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Torque 7 - 10 in - lbs
Mating Cycles 500
Intermateability 2.92mm
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B

EU RoHS Directive 2011/65/EU These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.
EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 30000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

CE / UKCA Compliant

This products meets the requirements for CE and UKCA.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:11:18 AM
Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Family SuperFlex
RF Series SMA
Orientation (Body) Straight
Coupling Threaded
Gender Plug (Male)
Termination Style Solder
Gender 2 Plug (Male)
RF Series 2 SMA
Cable Type 0.047 SuperFlex Coax
Orientation 2 (Body) Straight
Cable Length 12"
Electrical
Frequency 26.5 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Torque 7 - 10 in - lbs
Mating Cycles 500
Intermateability 2.92mm
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B
Customers Also Viewed
Part #   7032-7821

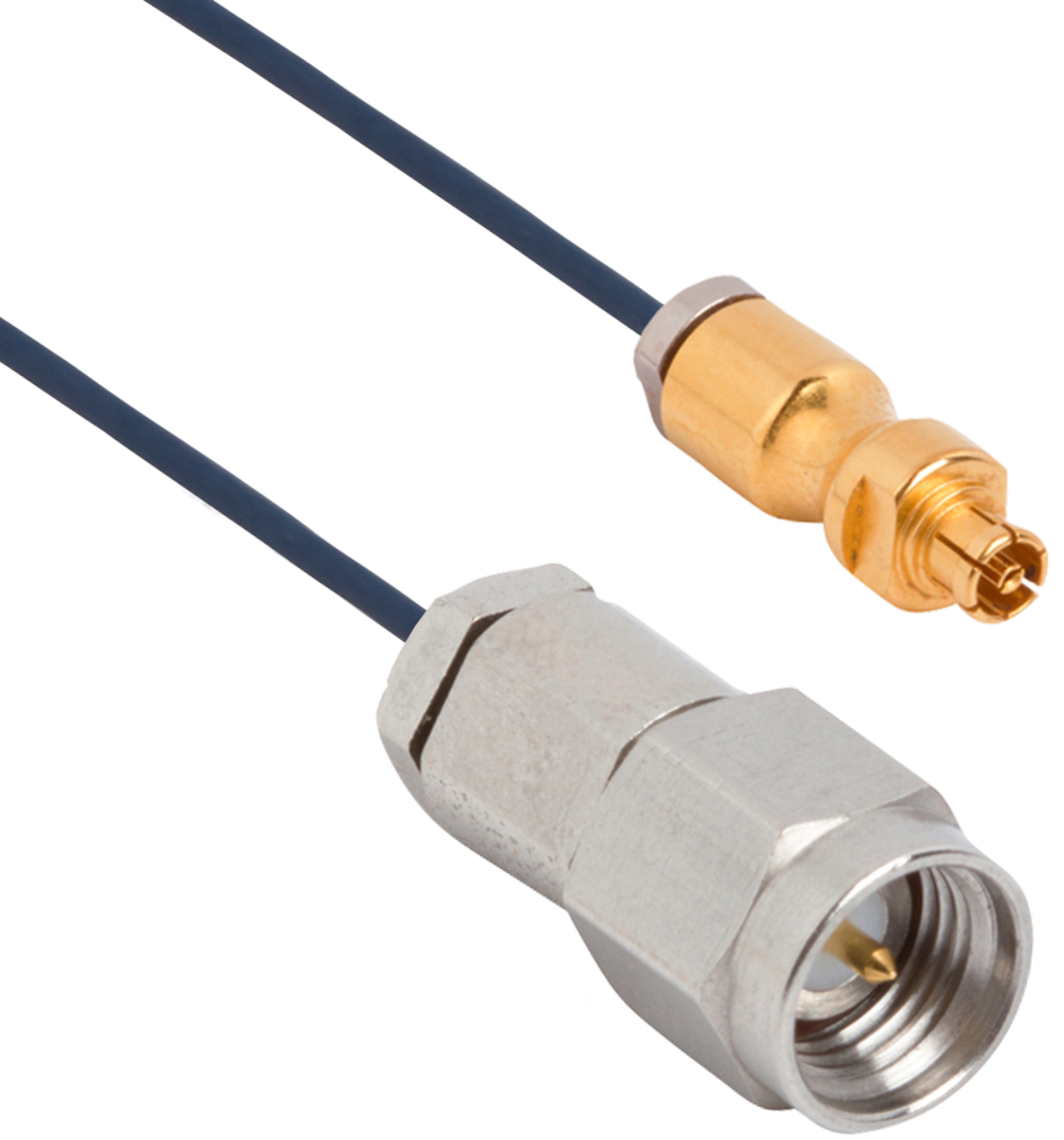

SMPM Female to SMA Male 6" Cable Assembly for .047 SuperFlex Cable

Available Inventory: 17
7032-7821
SMPM Cable Assemblies 7032-7821
Datasheet
Part #   7032-7845

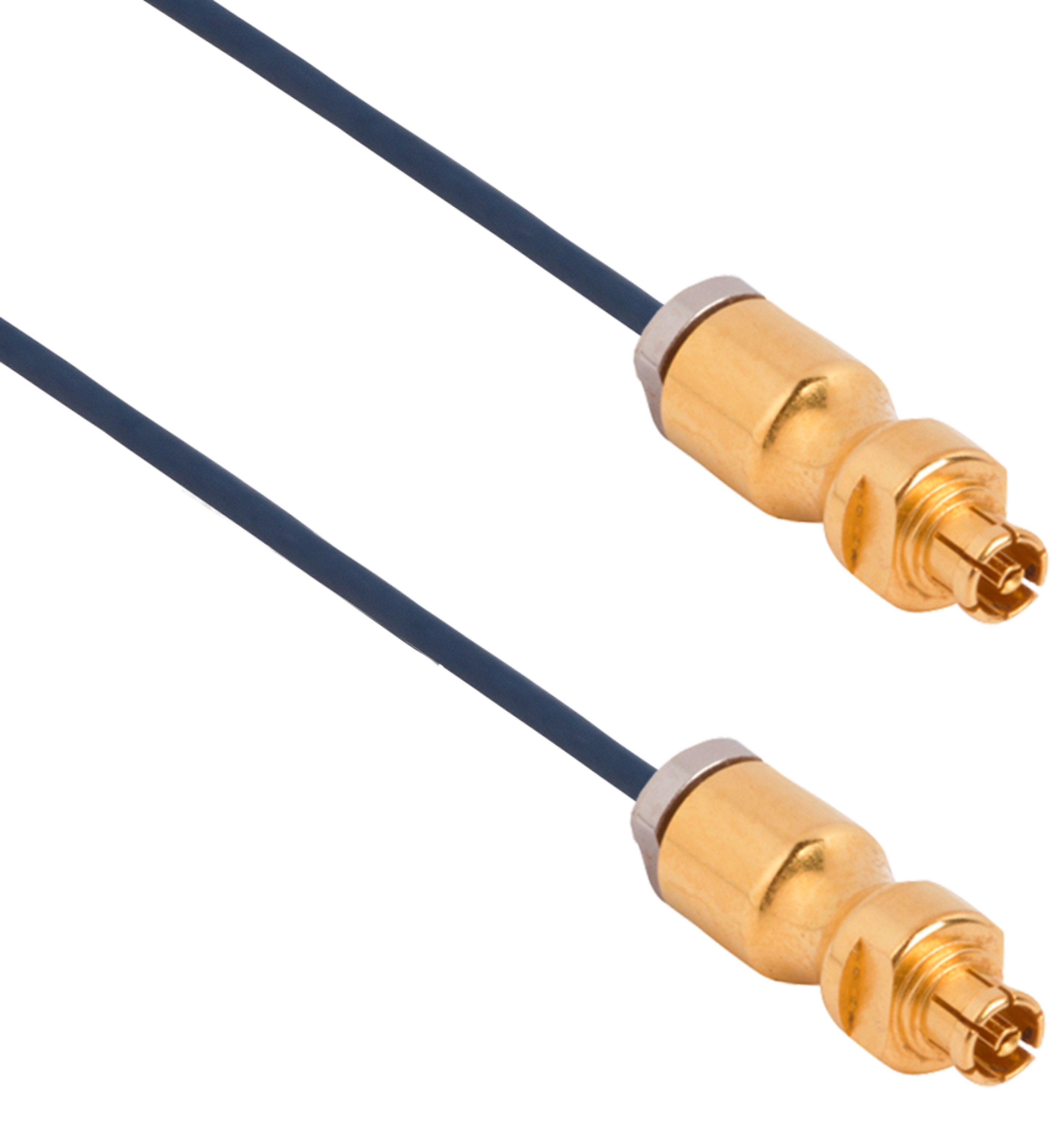

SMPM Female to SMPM Female 6" Cable Assembly for .047 SuperFlex Cable

Available Inventory: 13
7032-7845
SMPM Cable Assemblies 7032-7845
Datasheet
Part #   7029-3437

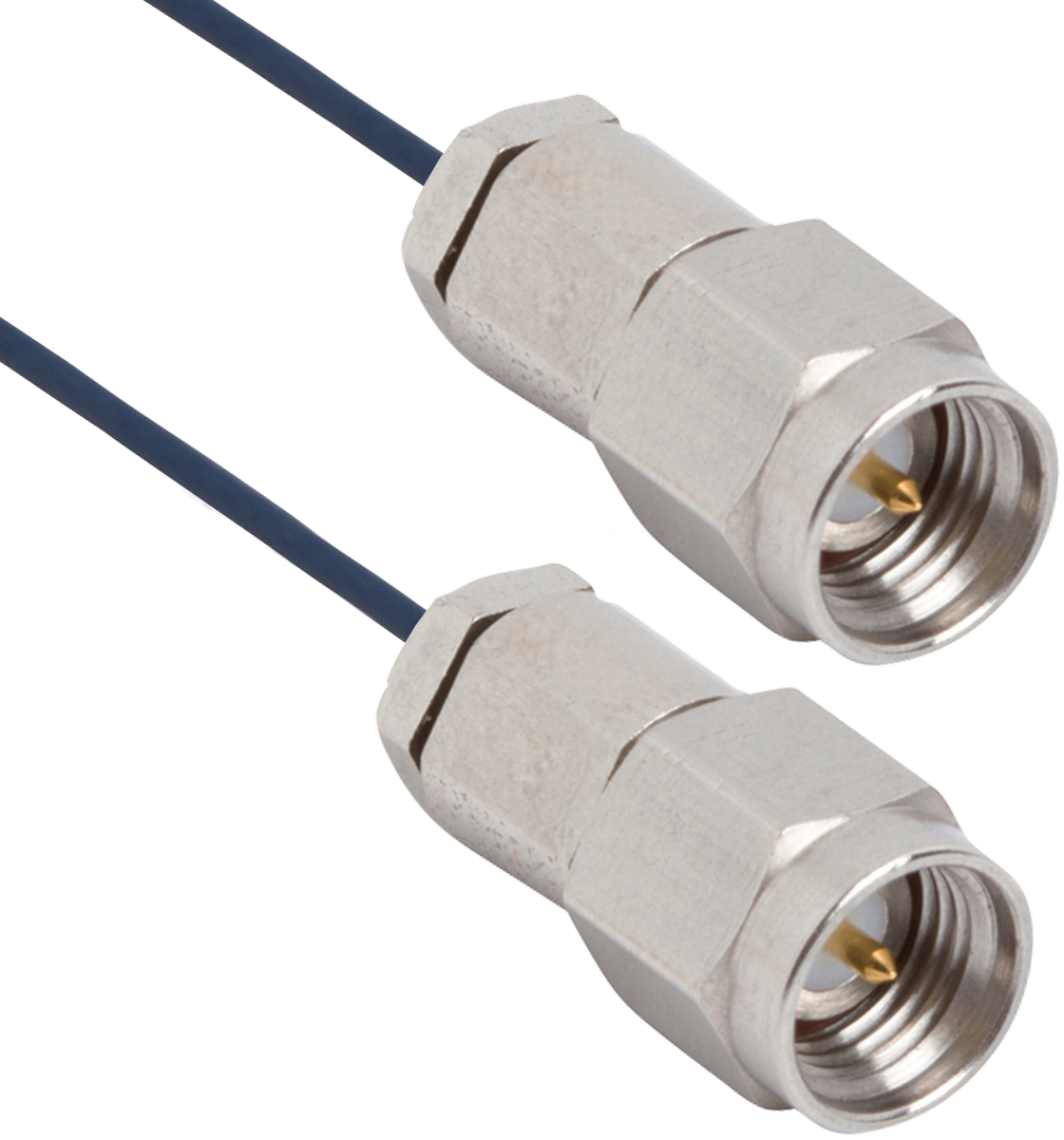

SMA Male to SMA Male 6" Cable Assembly for .047 SuperFlex Cable
