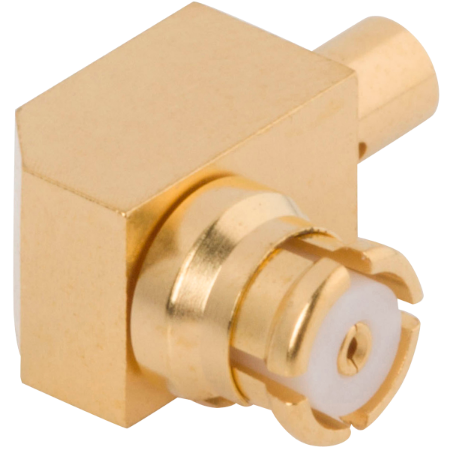

SMP Female Connector, R/A for RG-178 Cable
P/N: 1222-4006

In stock at Qty Order
Digi-Key Electronics 596
TTI Inc Global Headquarters 100
Mouser Electronics 9
Products specifications
Attribute name Attribute value
RF Series SMP
Gender Jack (Female)
Orientation (Body) Right Angle
Coupling Push-on
Termination Style Solder
Number of Ports Single
Cable Type RG-178
Electrical
Frequency 3 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Cycles - SB 1000
Mating Cycles - FD 100
Mating Cycles - LD 500
Insertion Force - SB 3.0 lbs
Insertion Force - LD 5.0 lbs
Insertion Force - FD 7.0 lbs
Withdrawal Force - SB 0.5 lbs
Withdrawal Force - LD 7.0 lbs
Withdrawal Force - FD 9.0 lbs
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:15:50 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMP
Gender Jack (Female)
Orientation (Body) Right Angle
Coupling Push-on
Termination Style Solder
Number of Ports Single
Cable Type RG-178
Electrical
Frequency 3 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Cycles - SB 1000
Mating Cycles - FD 100
Mating Cycles - LD 500
Insertion Force - SB 3.0 lbs
Insertion Force - LD 5.0 lbs
Insertion Force - FD 7.0 lbs
Withdrawal Force - SB 0.5 lbs
Withdrawal Force - LD 7.0 lbs
Withdrawal Force - FD 9.0 lbs
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Customers Also Viewed
Part #   1221-4004

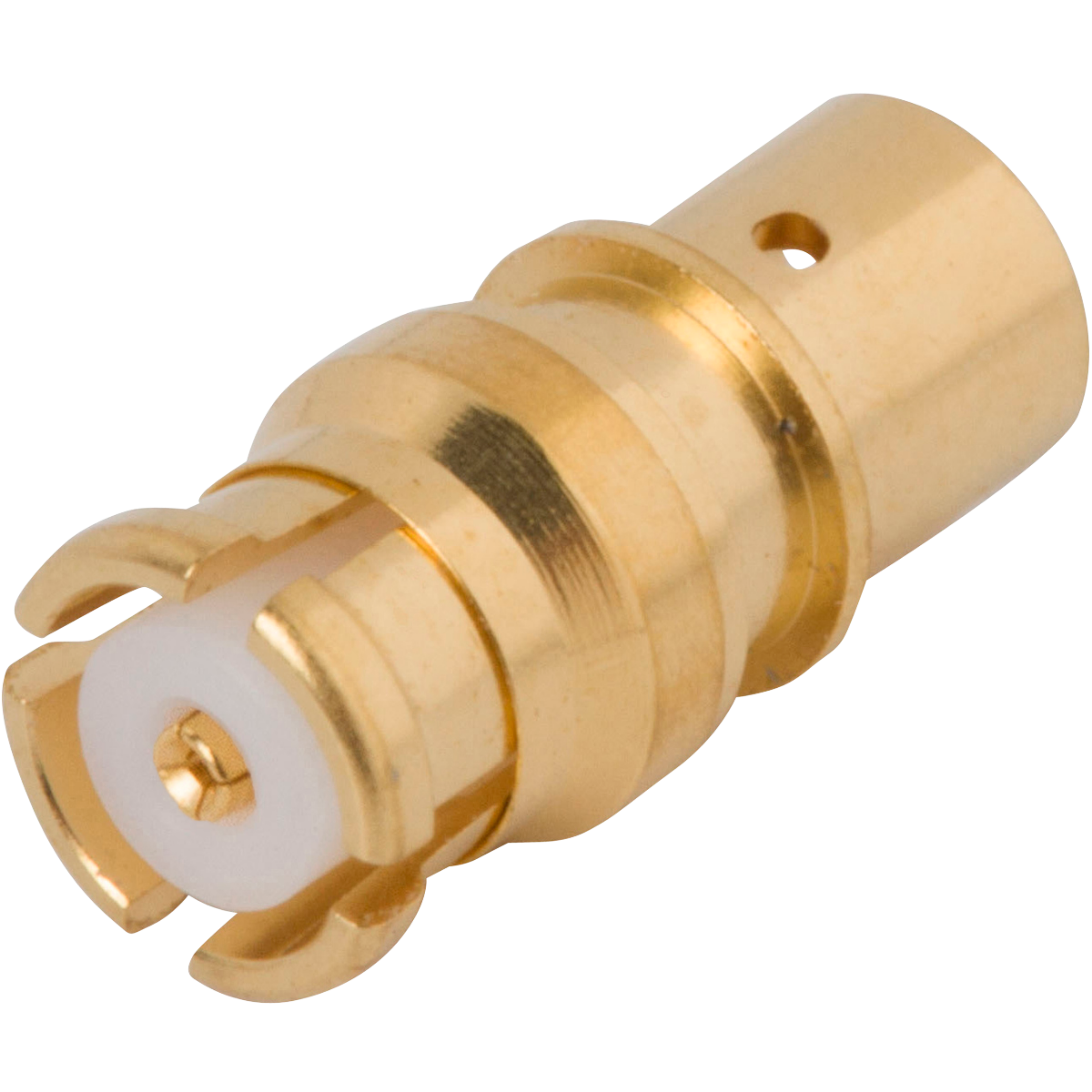

SMP Female Connector for RG-178 Cable

Available Inventory: 314
1221-4004
SMP Connectors 1221-4004
Datasheet
Part #   1222-4004

SMP Female Connector, Swept R/A for .047 Cable

Available Inventory: 361
1222-4004
SMP Connectors 1222-4004
Datasheet
Part #   1222-4005

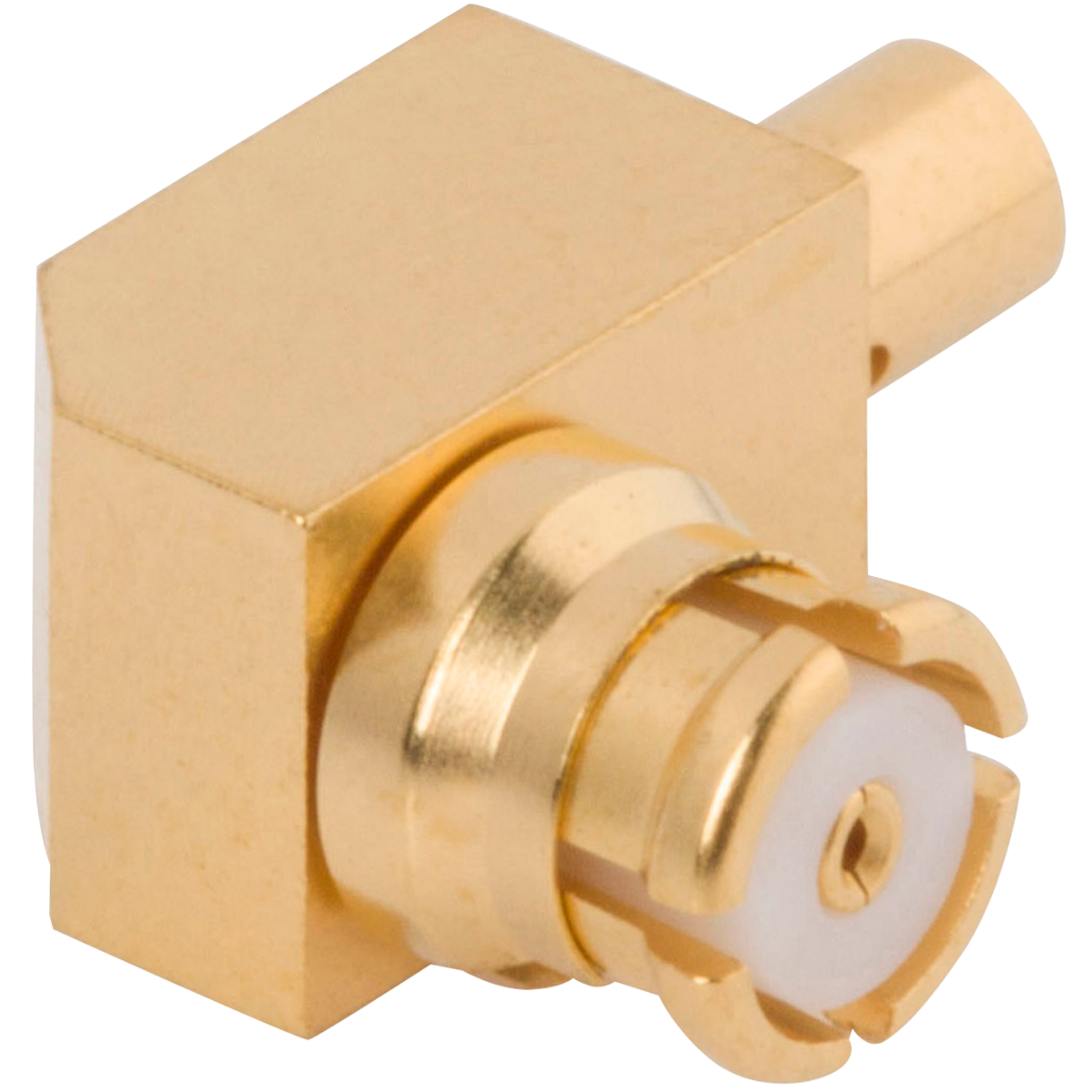

SMP Female Connector, Swept R/A for .085 Cable
