SMA Male to SMPM Female 500mm Cable Assembly for .085 Cable
P/N: 7029-4052

In stock at Qty Order
Mouser Electronics 52
Newark 25
Farnell 25
Digi-Key Electronics 12
Products specifications
Attribute name Attribute value
RF Series SMPM
Gender Jack (Female)
Orientation (Body) Straight
Coupling Push-on
Termination Style Solder
Number of Ports Single
RF Series 2 SMA
Gender 2 Plug (Male)
Cable Type 0.085 Flexible Coax
Orientation 2 (Body) Straight
Cable Length 500mm
Electrical
Frequency 18 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 325 VRMS
Mechanical
Mating Cycles - SB 500
Mating Cycles - FD 100
Insertion Force - SB 2.5 lbs
Insertion Force - FD 4.5 lbs
Axial Misalignment .010” Max
Withdrawal Force - SB 1.5 lbs
Radial Misalignment 3° Max
Withdrawal Force - FD 6.5 lbs
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:32:53 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMPM
Gender Jack (Female)
Orientation (Body) Straight
Coupling Push-on
Termination Style Solder
Number of Ports Single
RF Series 2 SMA
Gender 2 Plug (Male)
Cable Type 0.085 Flexible Coax
Orientation 2 (Body) Straight
Cable Length 500mm
Electrical
Frequency 18 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 325 VRMS
Mechanical
Mating Cycles - SB 500
Mating Cycles - FD 100
Insertion Force - SB 2.5 lbs
Insertion Force - FD 4.5 lbs
Axial Misalignment .010” Max
Withdrawal Force - SB 1.5 lbs
Radial Misalignment 3° Max
Withdrawal Force - FD 6.5 lbs
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Product tags
Customers Also Viewed
Part #   7032-7524

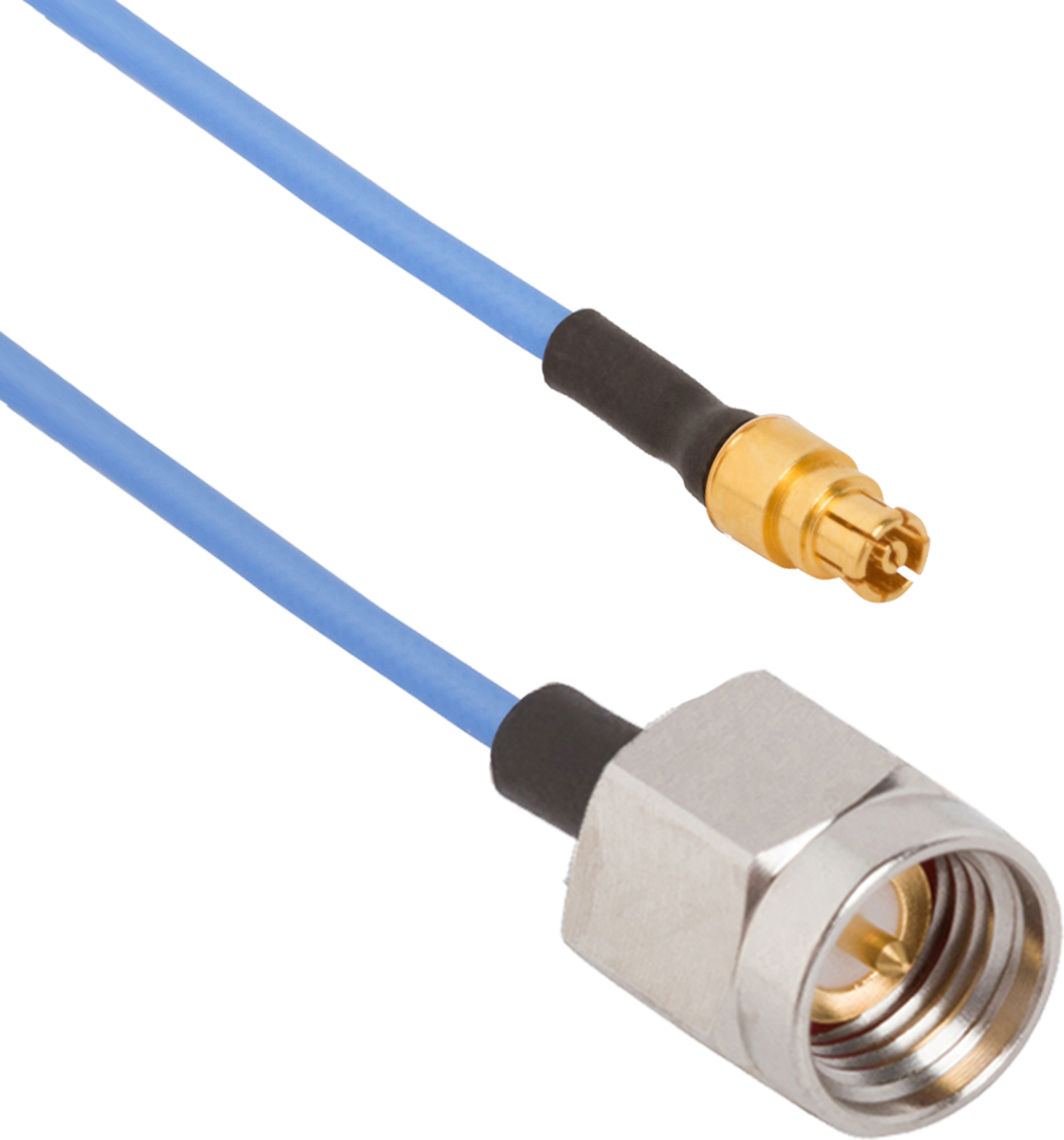

SMPM Female to SMA Male 6" Cable Assembly for .047 Cable"

Available Inventory: 250
7032-7524
SMPM Cable Assemblies 7032-7524
Datasheet
Part #   7032-7525

SMPM Female to SMA Male 12" Cable Assembly for 0.047 Cable"

Available Inventory: 177
7032-7525
SMPM Cable Assemblies 7032-7525
Datasheet
Part #   7032-7526

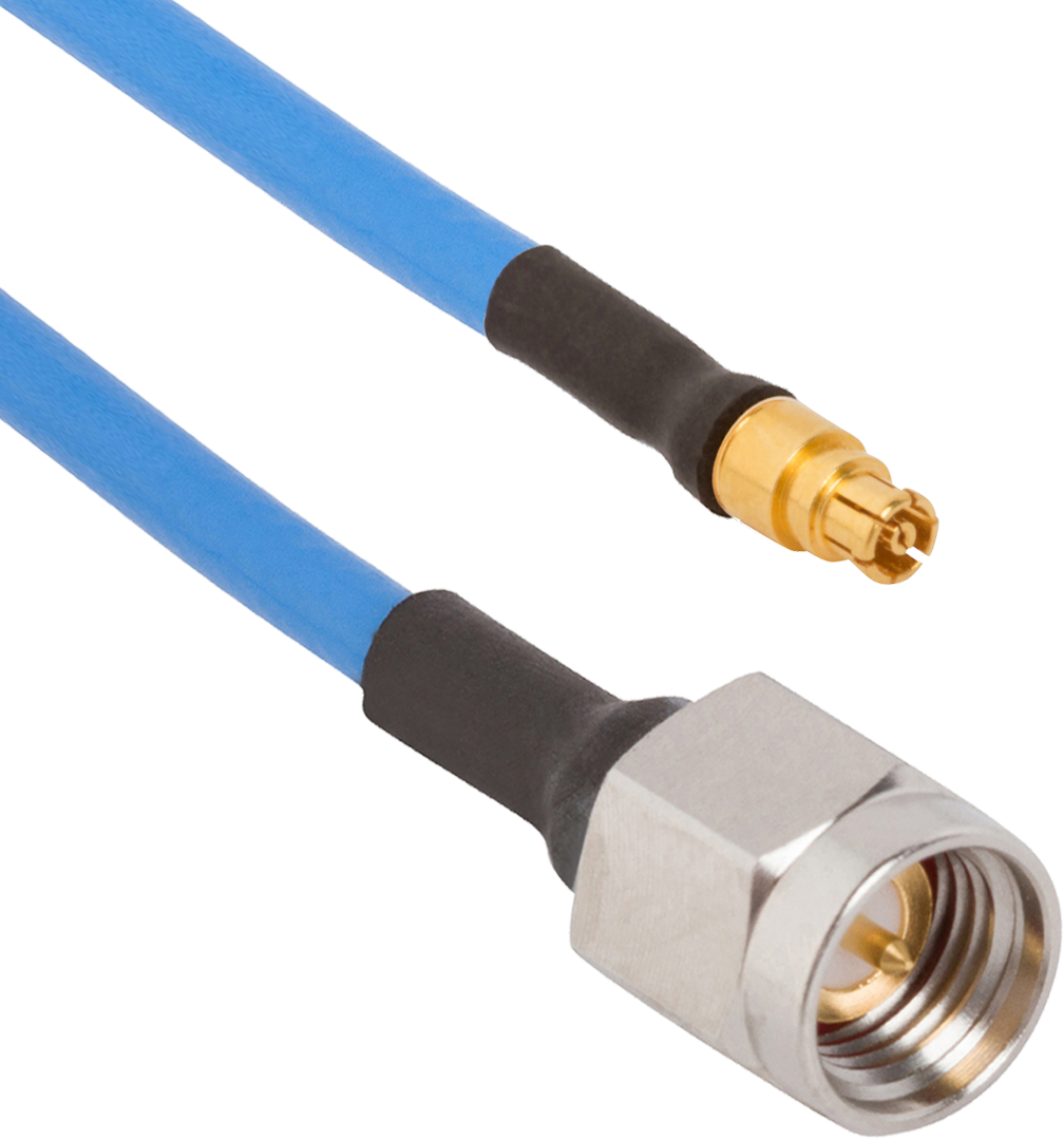

SMPM Female to SMA Male 6" Cable Assembly for .085 Cable"
