SMA Male Non-Magnetic Connector for .085 Cable
P/N: 2911-40024

There currently isn't any inventory available in distribution. Please contact us to obtain this product.
Products specifications
Attribute name Attribute value
Family Non-Magnetic
RF Series SMA
Gender Plug (Male)
Orientation (Body) Straight
Termination Style Solder
Coupling Threaded
Number of Ports Single
Finish Gold
Cable Type 0.085 Flexible Coax
Electrical
Frequency 18 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Intermateability 2.92mm
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Temperature Rating -65°C to +165°C
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:16:19 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Family Non-Magnetic
RF Series SMA
Gender Plug (Male)
Orientation (Body) Straight
Termination Style Solder
Coupling Threaded
Number of Ports Single
Finish Gold
Cable Type 0.085 Flexible Coax
Electrical
Frequency 18 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Intermateability 2.92mm
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Temperature Rating -65°C to +165°C
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   SF2911-60172

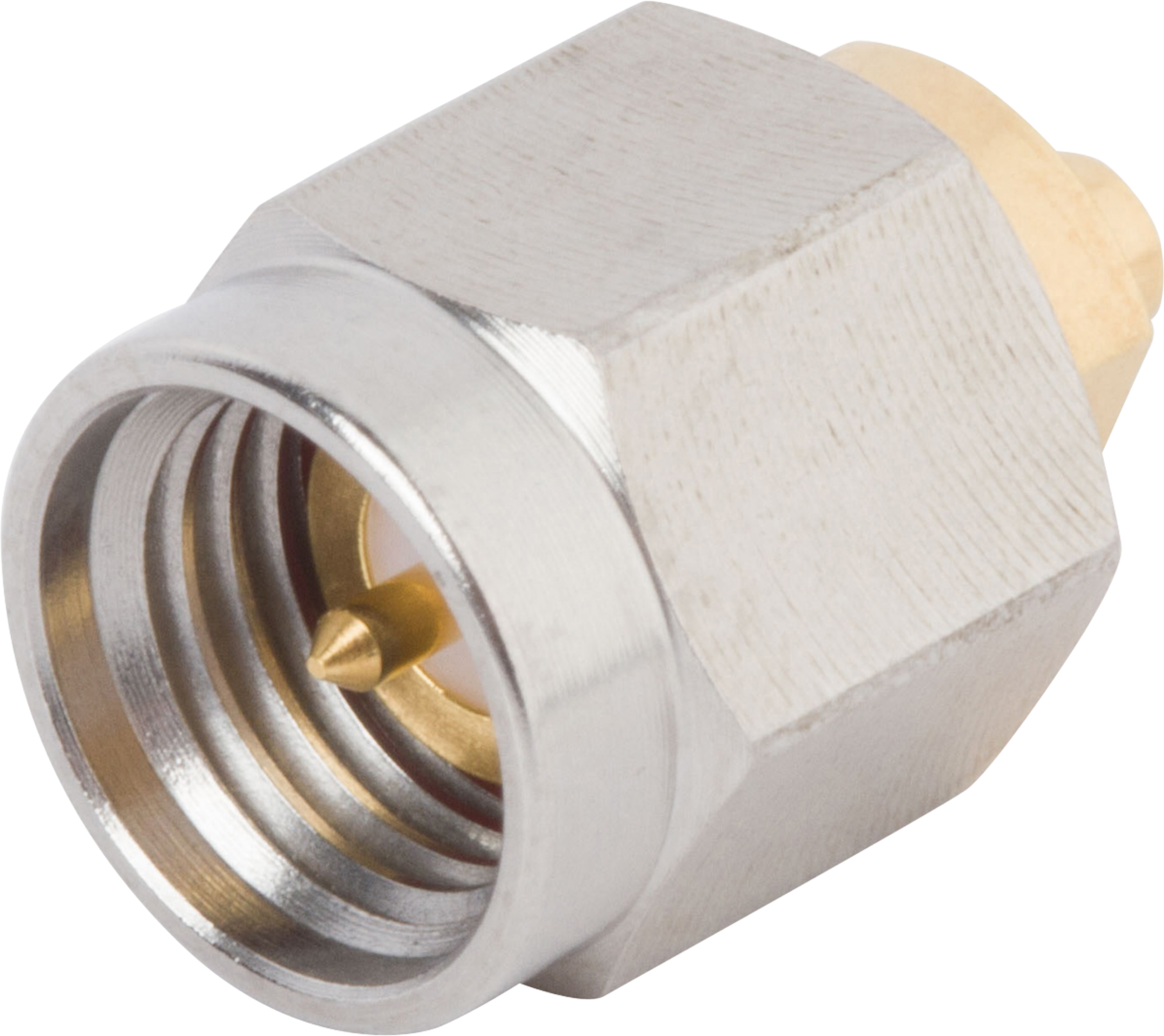

SMA Male Connector for .047 Cable

Available Inventory: 1624
SF2911-60172
SMA Connectors SF2911-60172
Datasheet
Part #   SF2912-60955

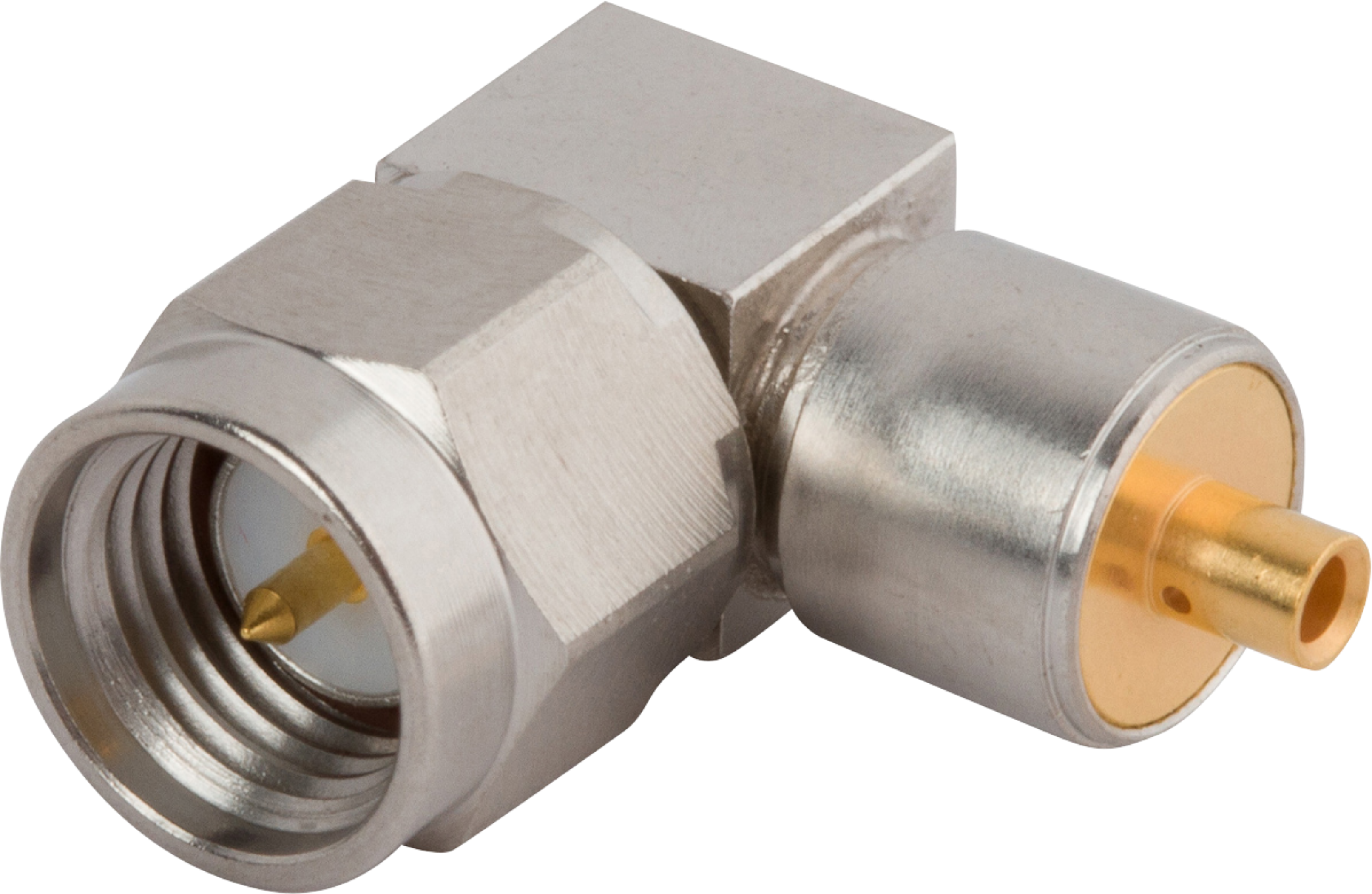

SMA Male Connector, Swept R/A for .047 Cable

Available Inventory: 242
SF2912-60955
SMA Connectors SF2912-60955
Datasheet
Part #   2911-40023

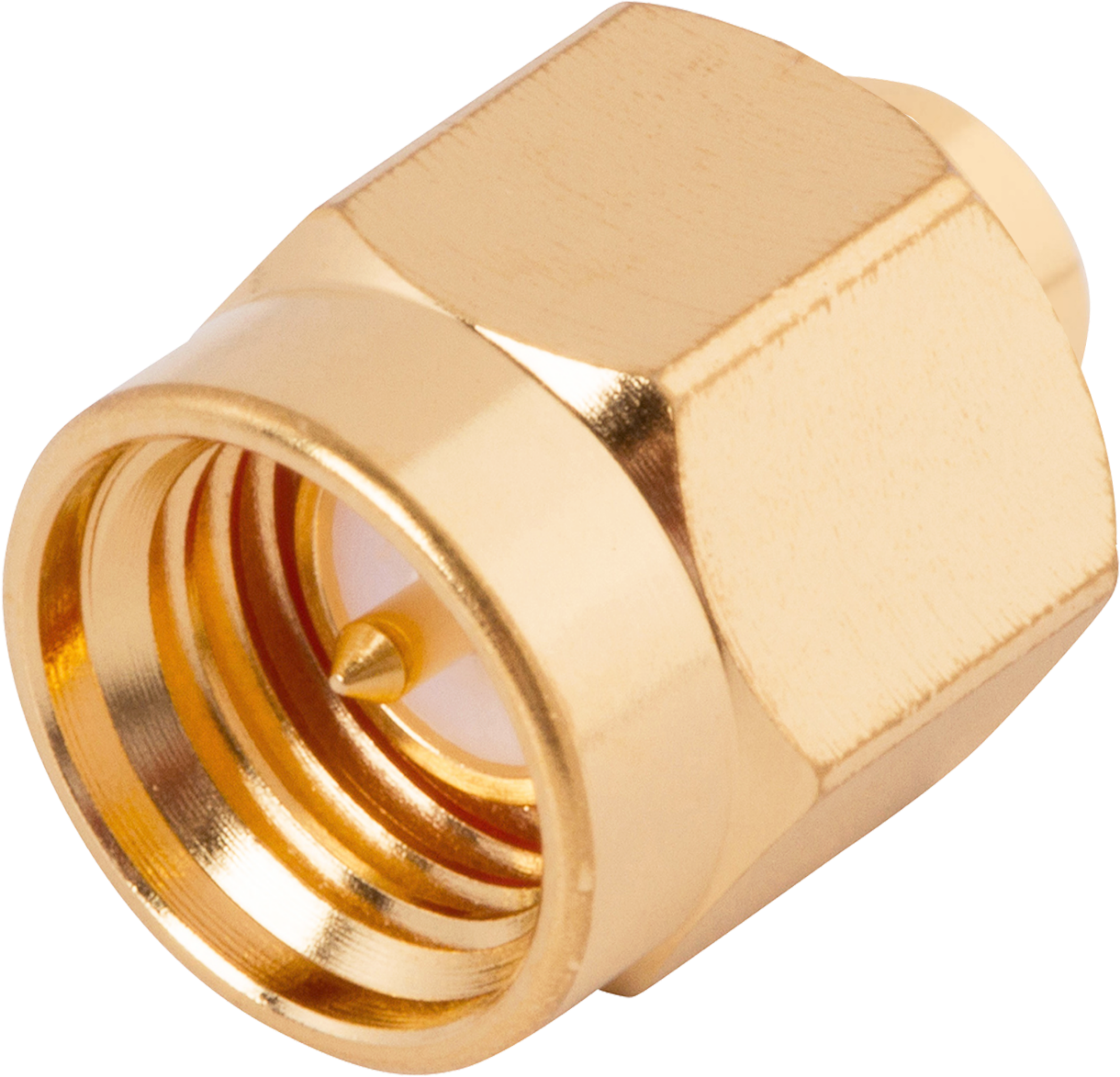

SMA Male Non-Magnetic Connector for .047 Cable
