SMA Female to Female Adapter
P/N: SF2992-6001

There currently isn't any inventory available in distribution. Please contact us to obtain this product.
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Finish Passivated
RF Series 2 SMA
Orientation 2 (Body) Straight
Gender 2 Jack (Female)
Electrical
Impedance 50 ohms
Frequency 18 GHz
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Intermateability 2.92mm
Mating Torque 7 - 10 in - lbs
Mating Cycles 500
Environmental
Thermal Shock MIL-STD-202, Method 107, Condition B
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:05:43 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Finish Passivated
RF Series 2 SMA
Orientation 2 (Body) Straight
Gender 2 Jack (Female)
Electrical
Impedance 50 ohms
Frequency 18 GHz
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Intermateability 2.92mm
Mating Torque 7 - 10 in - lbs
Mating Cycles 500
Environmental
Thermal Shock MIL-STD-202, Method 107, Condition B
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Customers Also Viewed
Part #   SF1115-6009

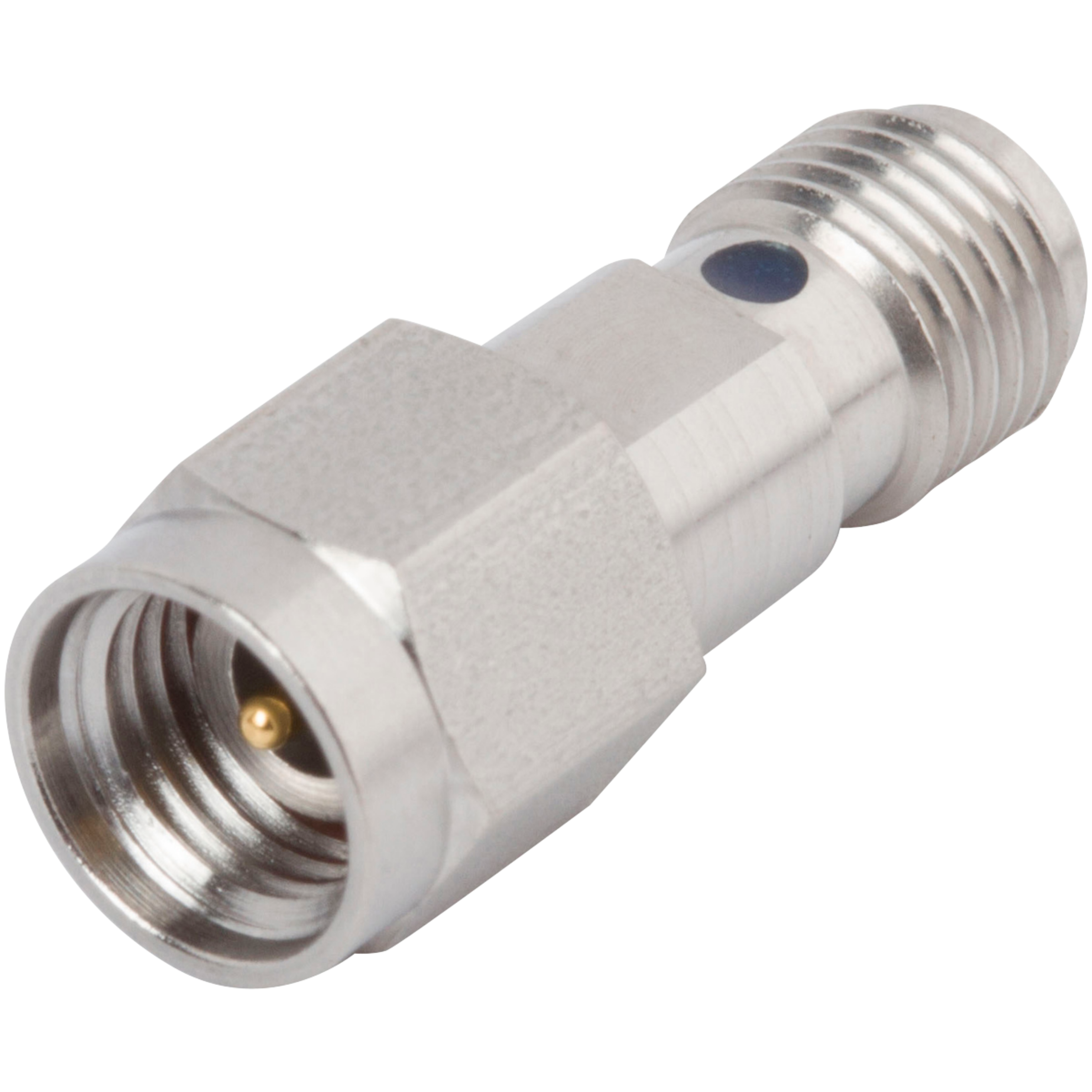

2.92mm Male to SMA Female Adapter

Available Inventory: 432
SF1115-6009
2.92mm Adapters SF1115-6009
Datasheet
Part #   SF2997-6003

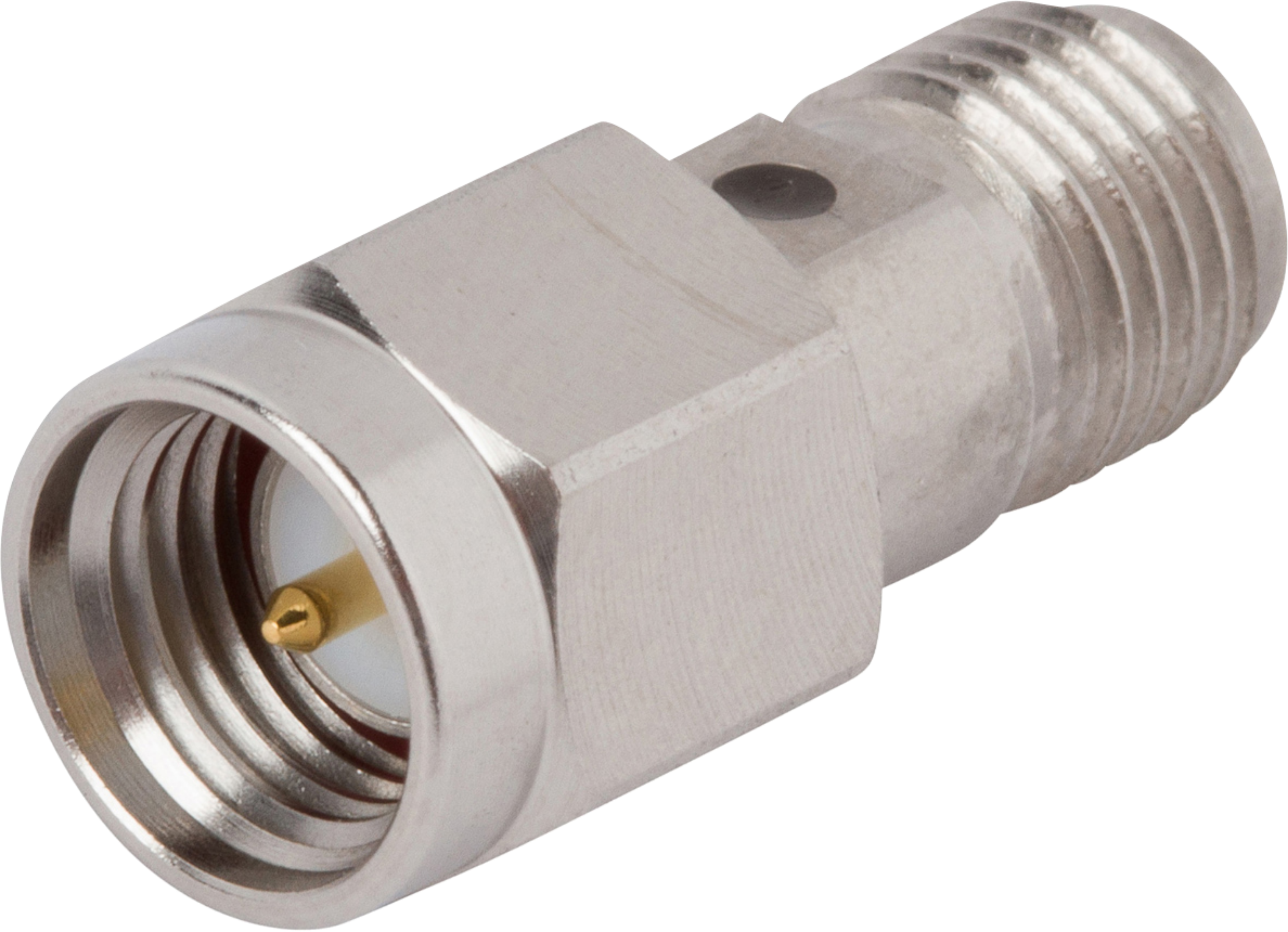

SMA Female to Male Adapter
