SMA Female to Female Adapter
P/N: M55339/31-30001

There currently isn't any inventory available in distribution. Please contact us to obtain this product.
Products specifications
Attribute name Attribute value
RF Series SMA
Orientation (Body) Straight
Gender Jack (Female)
Coupling Threaded
RF Series 2 SMA
Gender 2 Jack (Female)
Finish Passivated
Orientation 2 (Body) Right Angle
Electrical
Frequency 18 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 1000 VRMS
Shielding Effectiveness ≥ -90 dB
Mechanical
Mating Torque 7 - 10 in - lbs
Mating Cycles 500
Intermateability 2.92mm
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:04:44 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMA
Orientation (Body) Straight
Gender Jack (Female)
Coupling Threaded
RF Series 2 SMA
Gender 2 Jack (Female)
Finish Passivated
Orientation 2 (Body) Right Angle
Electrical
Frequency 18 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 1000 VRMS
Shielding Effectiveness ≥ -90 dB
Mechanical
Mating Torque 7 - 10 in - lbs
Mating Cycles 500
Intermateability 2.92mm
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   SF2992-6001

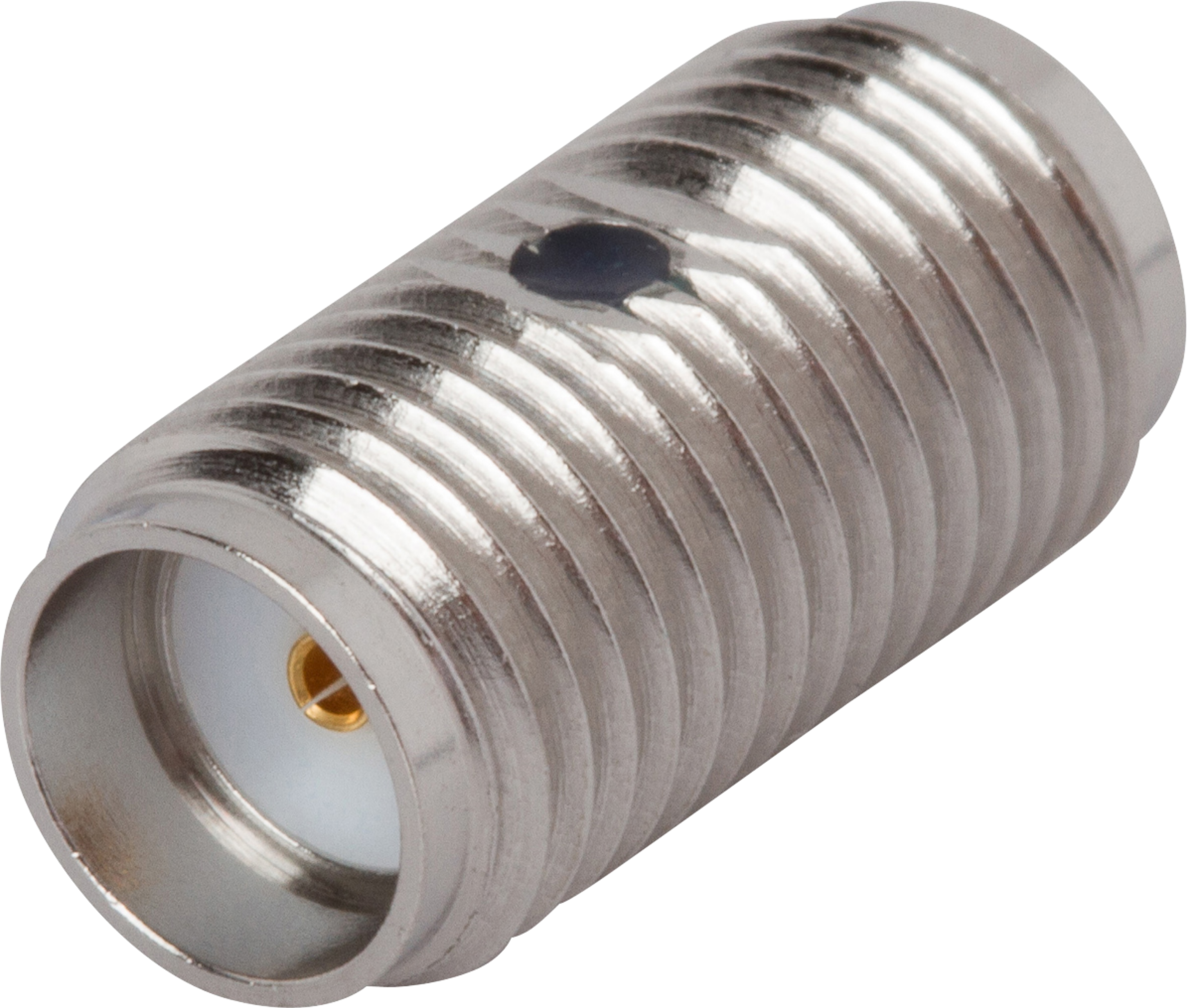

SMA Female to Female Adapter

Available Inventory: 2012
SF2992-6001
SMA Adapters SF2992-6001
Datasheet
Part #   SF2994-6001

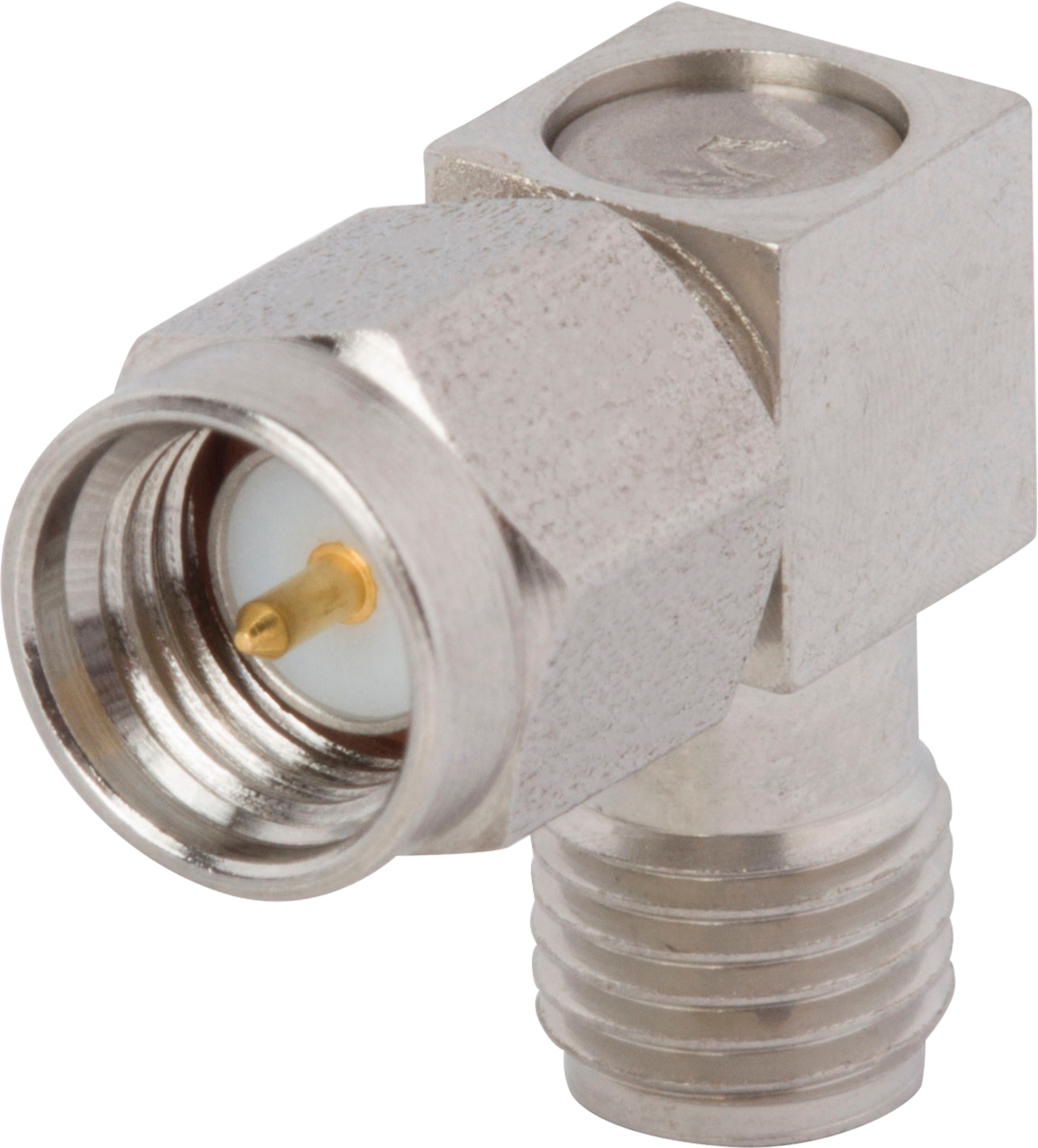

SMA Female to Male Adapter, R/A

Available Inventory: 122
SF2994-6001
SMA Adapters SF2994-6001
Datasheet
Part #   SF2997-6003

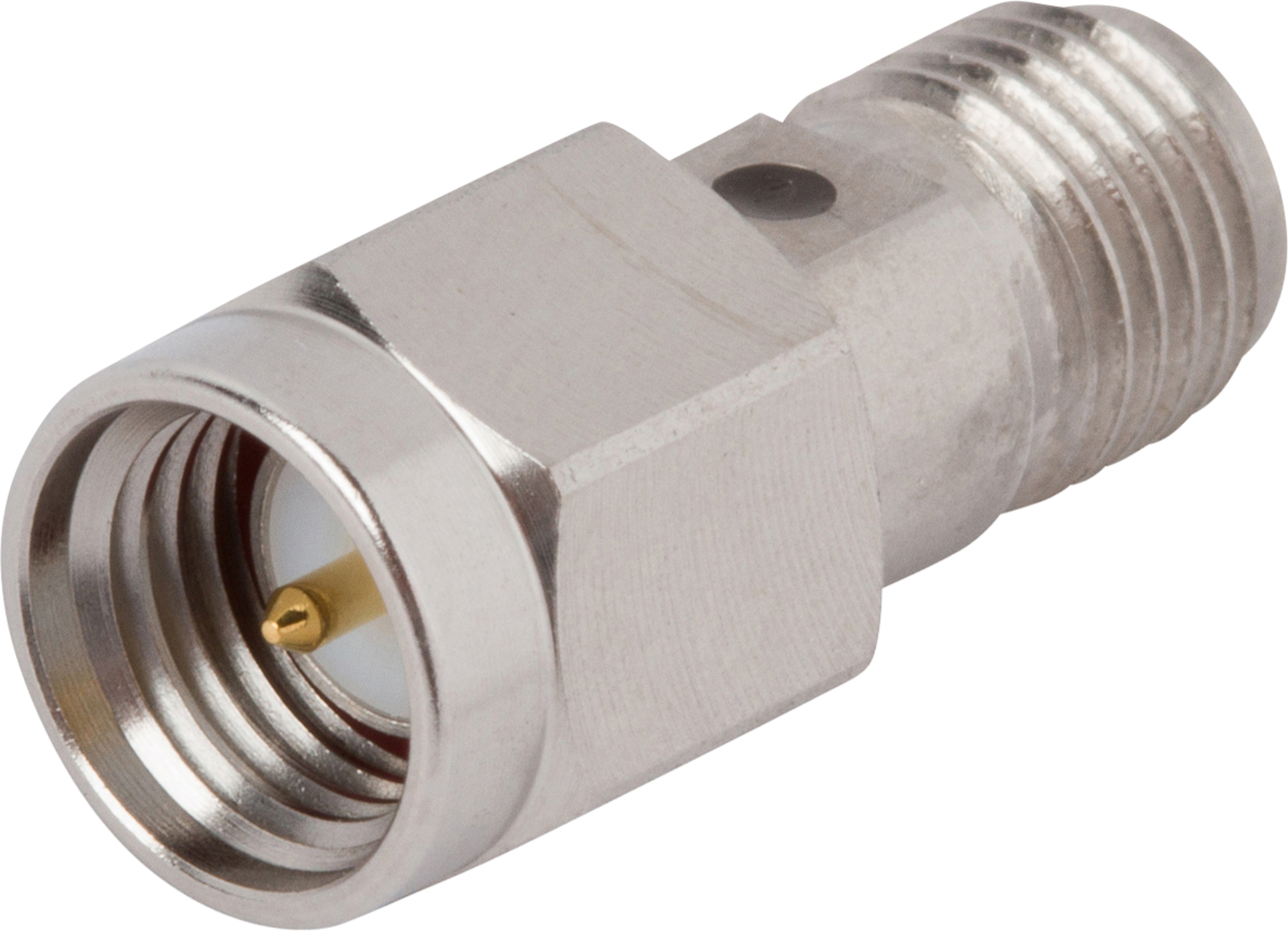

SMA Female to Male Adapter
