Secure Locking SMPS RF Connectors Now In Stock
SV Microwave's popular secure locking QuarterBack® product line features a bayonet-style coupling nut to prevent push-on connectors from coming loose in high-vibration and shock environments. Our newest addition to this line, the Secure Locking SMPS RF Connectors, bring four new high-frequency solutions to the table: a cable assembly and cable connector for Ø.047" cable type as well as edge launch and surface mount PCB connectors. Newly designed in a smaller form factor, these connectors feature our high-frequency SMPS interface and deliver reliable performance up to 65 GHz. Ideal for space-constrained, high-frequency applications, this latest expansion enhances the versatility of the QB family.
Features / Benefits
- Quarter turn bayonet locking feature on standard SMPS interface
- Low insertion/removal forces, compared to standard full detent SMPS connectors, means less torque on board mount connector solder joints during mating and de-mating
- Spring loaded positive mating feature allows excellent electrical performance even in extreme vibration environments
- DC - 65 GHz
Applications
- Bench-top testing
- High vibration environments
- Applications requiring a high number of mating cycles
Product's Part Number and Description
Part No. | Description |

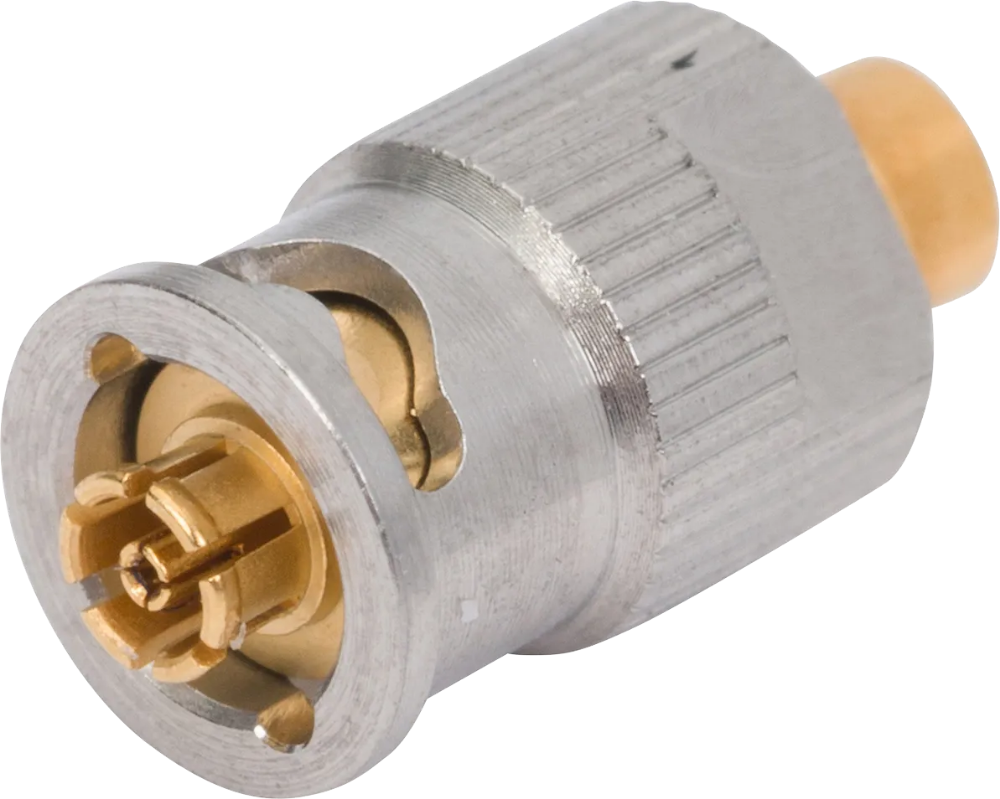

| SMPS Female QB Connector for .047 Cable |

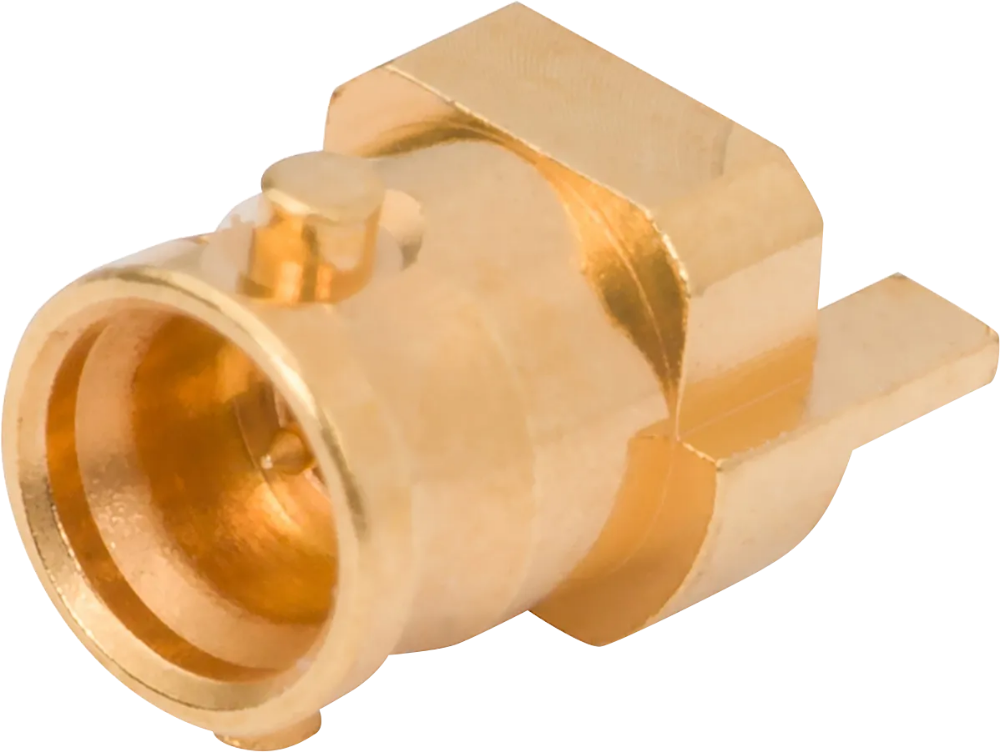

| SMPS Male PCB QB Edge Launch Connector, SB |

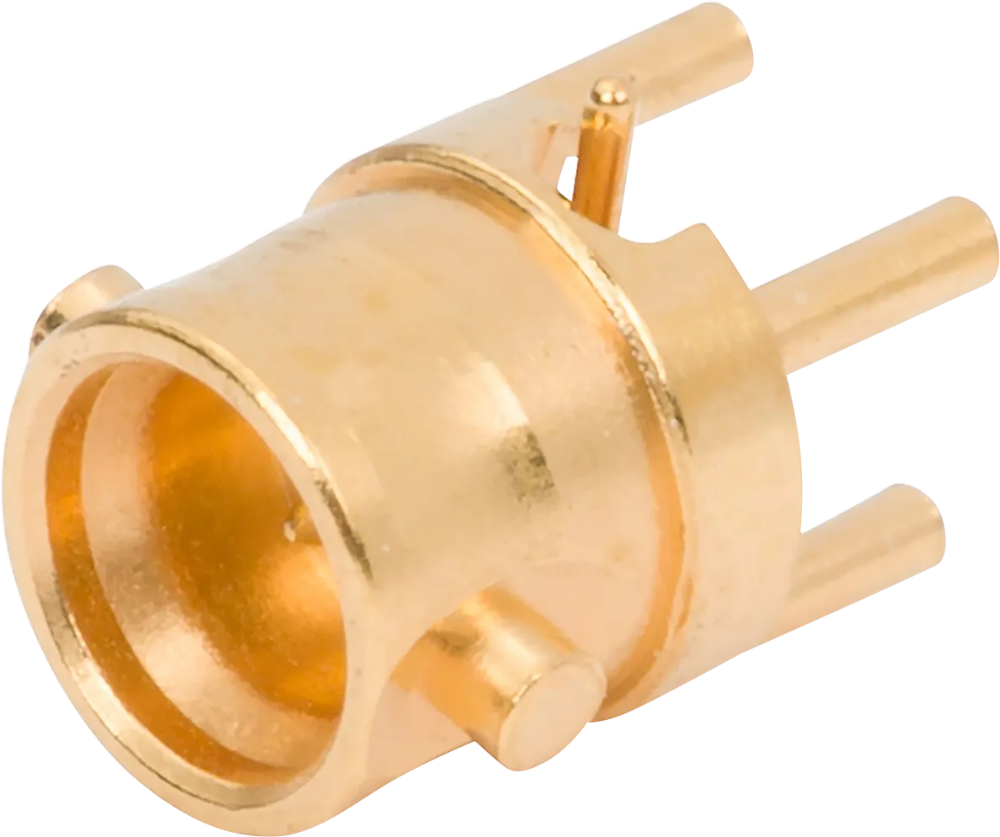

| SMPS Male PCB QB Thru-Hole Connector, R/A |

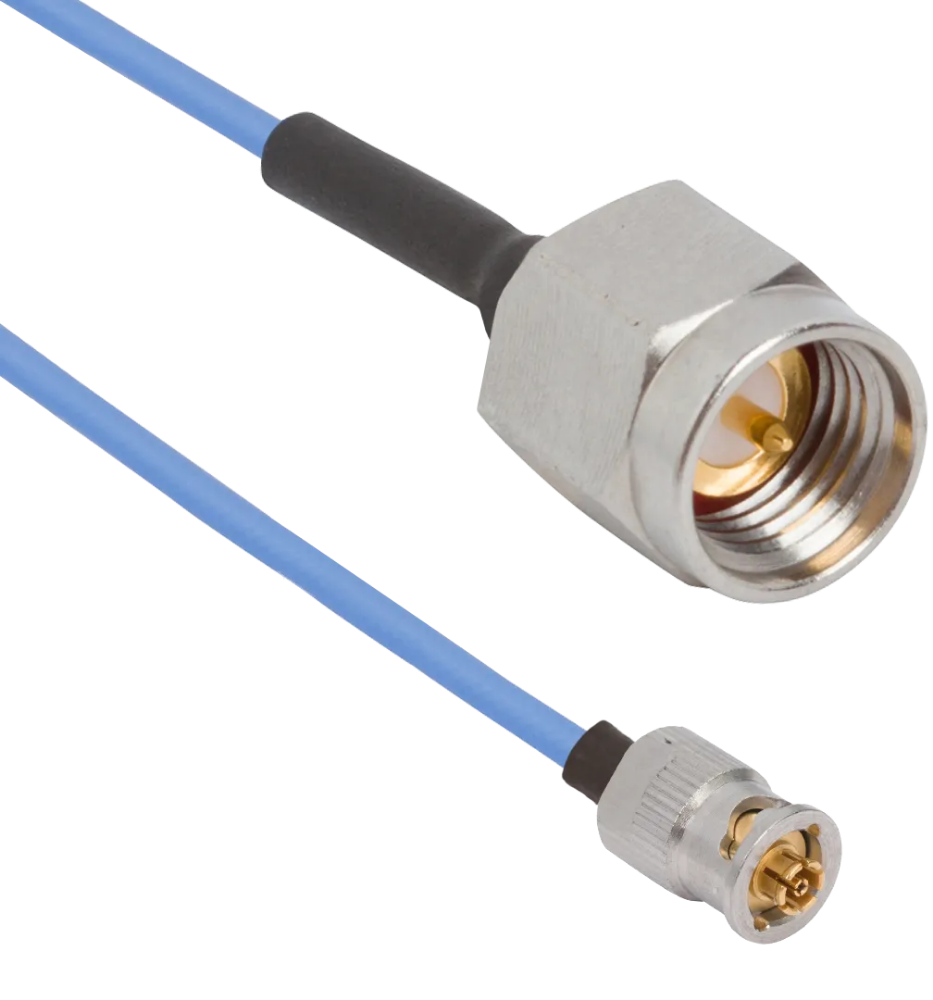

| SMPS Female QB to SMA Male 6" Cable Assembly for .047 Cable |
