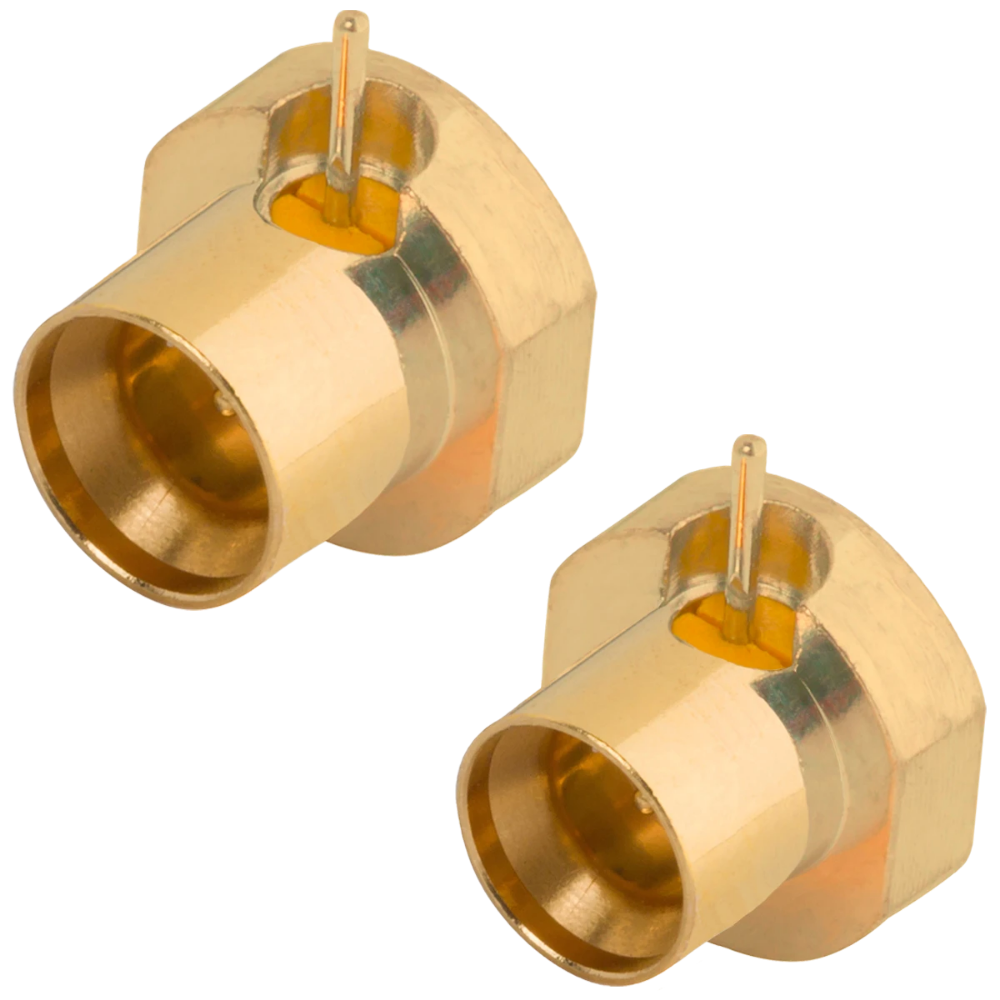

Reverse Mount Thru-Hole RF PCB Connectors Are Now In Stock

SV's newly designed line of Reverse-Mount thru-Hole RF PCB Connectors is available in the SMP and SMPM series and is rated to work up to 40 GHz. Reverse-mount RF PCB connectors that pass through the board eliminate via transitions, offering superior signal integrity and making them ideal for high-frequency designs. Additionally, they simplify routing and reduce parasitics and PCB stack-up, improving mechanical integration for modern RF systems.

Features / Benefits

• Direct signal path reduces insertion loss and reflections
• Space-saving, low-profile mechanical integration
• Eliminates cable from the top of the PCB
• Clean, predictable impedance transitions
• SMP (26.5 GHz), SMPM (40 GHz)

Applications

• RADAR and Satellite Communications
• Compact modules
• mmWave systems
• 5G

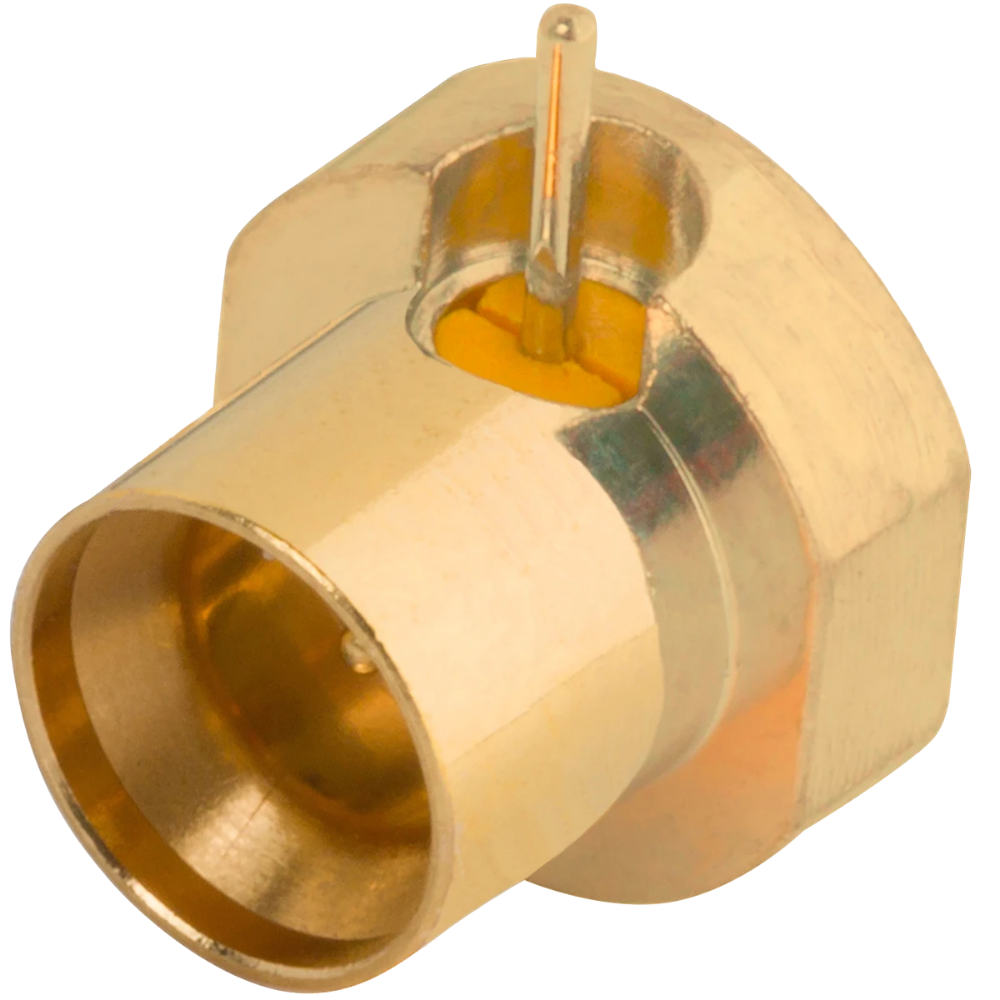

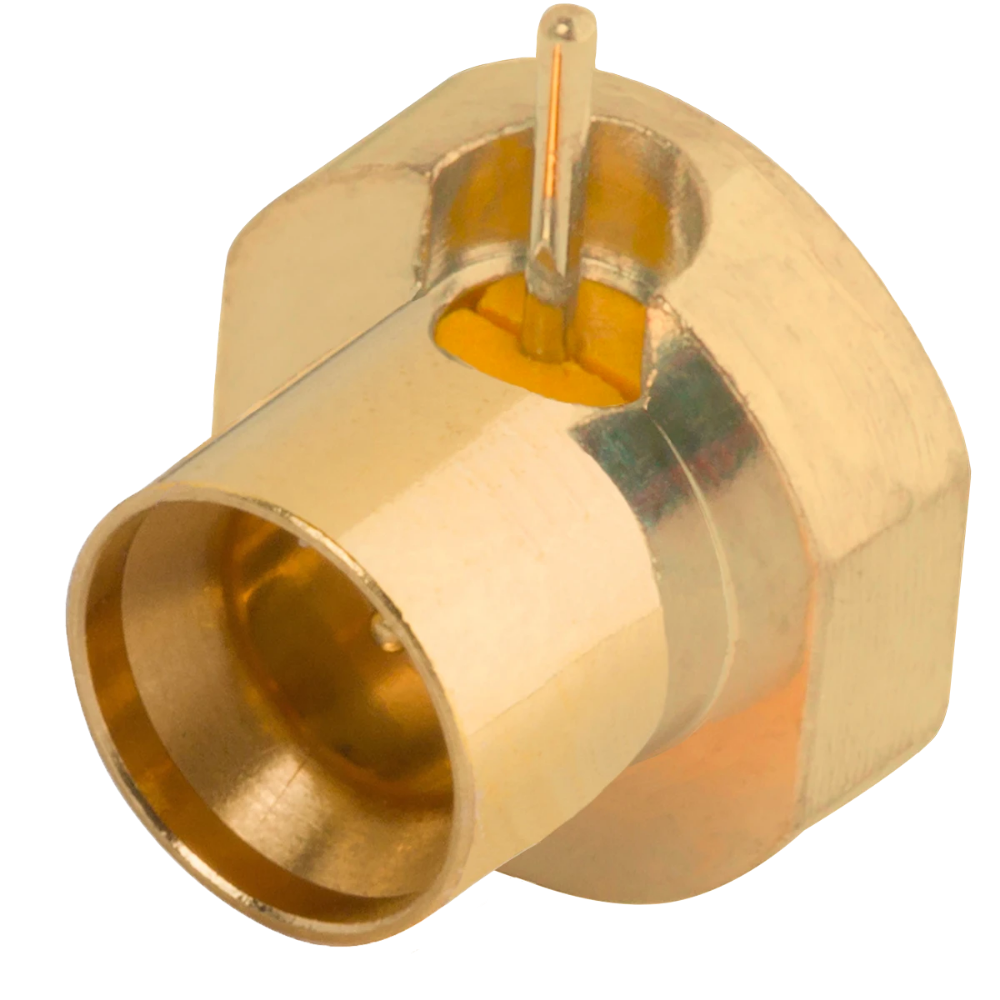

Product's Part Number and Description
