SV Microwave’s Resistive Terminations
RF terminations are passive coaxial components that short the center conductor to ground through a controlled thin-film resistive element. These components terminate an RF port with a 50 Ω load to absorb RF energy and prevent signal reflections in a transmission line. Terminations maintain system integrity, match impedance, and simulate power loads in test setups.
Uses
- Closing test ports
- Protect the system from reflections
- Absorb unwanted power
SV Microwave manufactures a complete line of standard and custom-designed terminations with rigorous qualification testing, including QPL and Hi-Rel versions.
Features & Benefits
- Broad frequency range up to 2 watts
- Rugged construction
- Multiple Interface options
- MIL-Spec M39030 available
Applications
- Test and Instrumentation
- Embedded computing systems featuring SOSA architecture and VITA 67.3 solutions
- Mil-Aero
- Radar
As seen below, our COTS terminations are available in threaded, push-on, and VITA interfaces. If your system requires a custom design, email us at applications@svmicro.com, and one of our Application Engineers will be able to assist you.
View the entire product line, termination.
Part Number | Product Description |
| 2.92mm Male Termination |

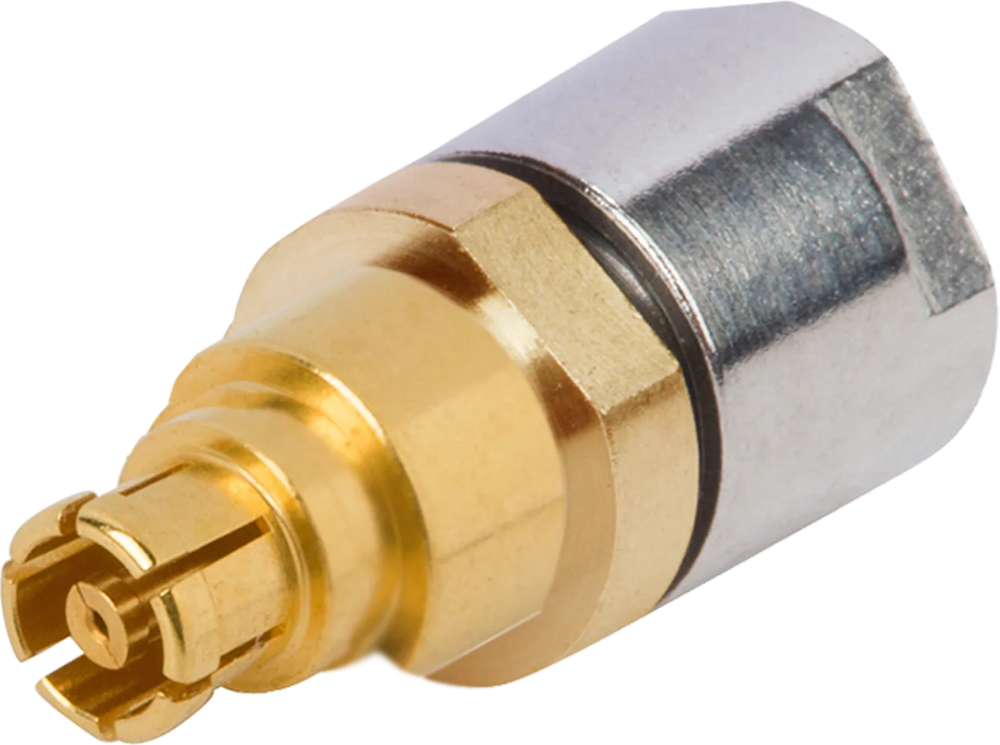

| SMPM Female Termination (1/2 Watt) |

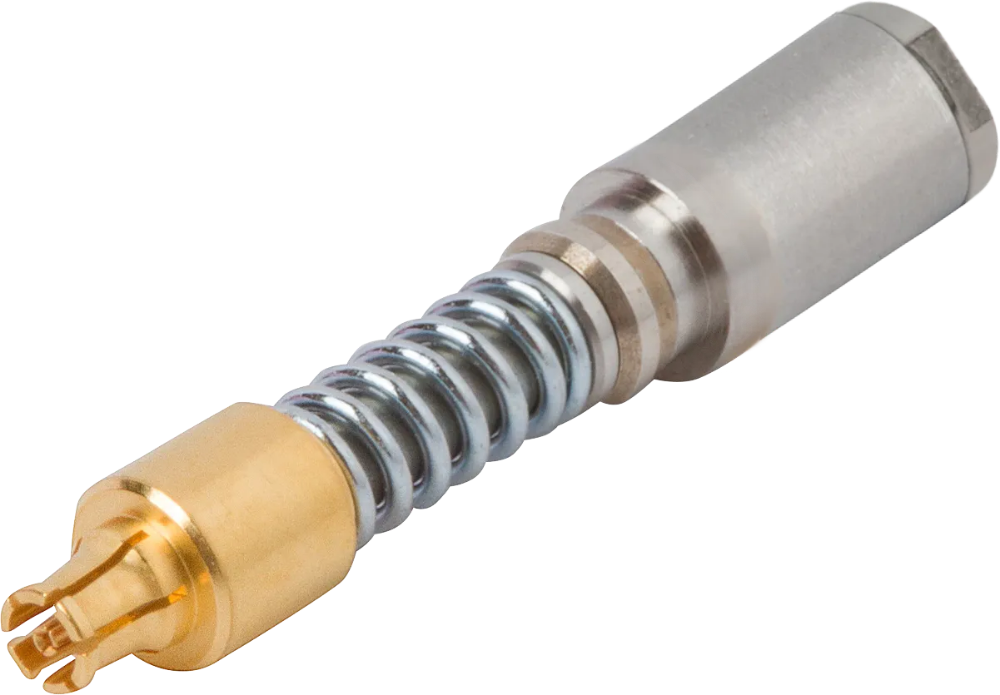

| SMPS VITA 67.3 Female Contact Termination |
| SMPM VITA 67.3 Female Contact Termination |
