SV Microwave has three new NPIs in stock:
- Mini-D RF Cable Assemblies - multiport harnessed cable assemblies that have a rugged, lightweight aluminum housing, designed for high-density applications
Integrated RF Filters - high-frequency, low pass filters with a small form factor - available with DC to 12 or 18 GHz passbands
Edge Launch Plus PCB Connectors - features an extended flange design at the PCB transition point to maintain ground contact in the event of copper pull-back - ensures consistent electrical performance
Learn more about these NPIs below!
Mini-D RF Cable Assemblies
The newest addition to SV Microwave's Mini-D RF product line is three multiport harnessed cable assemblies. These versatile cable assemblies are available in both straight and right-angle configurations, as well as a panel mount option. With .110" port-to-port spacing to optimize space in compact system designs and a rugged, lightweight aluminum housing, these cable assemblies are designed for high-density applications.
Features / Benefits
- High-density design
- SMPS interface recessed from D-Sub housing to protect from damage
- D-sub keying design to avoid mismating
- DC-40 GHz
Applications
- Test and Instrumentation
- Bench-Top Testing
- Automated Test Equipment (ATE)
- Airborne RADAR
- Mil-Aero
Learn more about this product, its resources, and part numbers today!
Integrated RF Filters

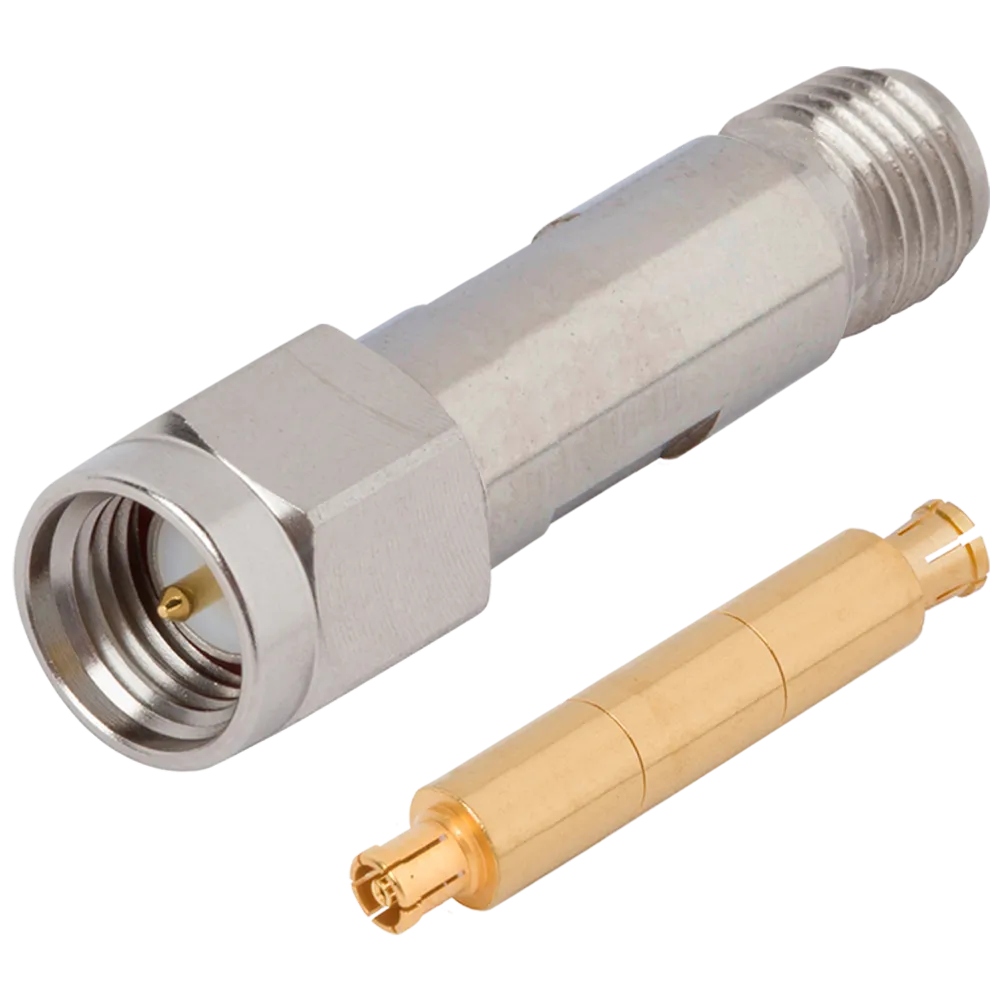

Our new product line of high-frequency, small form factor, low pass filters is available with DC to 12 or 18 passbands. With standard connectorized offerings for the SMA and SMPM series, these filters remove interference from nearby signals. Additionally, the SMPM filter does not compromise on connector density and maintains the same outer diameter as a typical SMPM bullet.
Features / Benefits
- Remove interference from nearby signals
- Low insertion loss in passband
- Push-on Interface
- Small form factor as compared to traditional RF filters
Applications
- RADAR
- Satellites
- SIGINT
- Board-to-Board Solutions
Learn more about this product and its part numbers today!
Edge Launch Plus PCB Connectors
Need precision RF connectors for board-edge applications where reliability and high-frequency performance are essential? Meet SV Microwave's Edge Launch Plus PCB Connectors.
With an extended flange design at the PCB transition point to maintain ground contact in the event of copper pull-back, these connectors ensure consistent electrical performance. This product line also offers variety, with three detent options and Quarterback connectors featuring a spring-loaded keying mechanism for the necessary stability in high-vibration environments.
Features / Benefits
- Extended flange design maintains electrical contact when copper pull back is present
- Multiple detent options (full detent, smooth bore, catcher's mitt)
- QuarterBack versions available
- DC – 65GHz
Applications
- Board-to-Board solutions
- Mil-Aero
Learn more about this product and its part numbers today!
