Enhance Your Applications with SV Microwave's Custom RF Connectors and Cable Assemblies

October 14, 2024

At SV Microwave, we specialize in delivering high-quality, custom RF connectors and cable assemblies designed to meet your exact specifications. Our solutions ensure the performance and reliability your applications demand. Discover how our custom configurations offer unmatched versatility and precision tailored to your needs.



Custom RF Connectors

  • Pre-Tinned PCB Connectors
  • Multiports



Pre-Tinned PCB Connectors

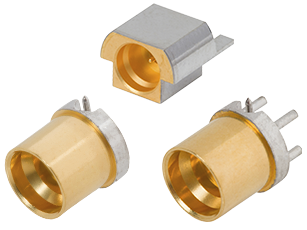

While gold over nickel plating is an excellent choice for signal transmission and is highly reliable in brass, BeCu, and stainless steel bodies used in RF PCB Connectors, undesirable remnants of the gold plating can be found in the solder joint when the connector is soldered to the PCB. An excess amount of gold in the solder joint can create AuSn3, a gold-tin compound, making the solder joint susceptible to breakage under mechanical stress like shock and vibration.



Pre-Tinned PCB Connectors



At SV Microwave, we can customize with a specifically engineered pre-tinned finish that eliminates gold in the solder area, optimizing your connectors for high-shock and high-vibration environments. By designing the connector with precise gold removal in mind, we can ensure that the solderable areas, including those prone to solder-wicking, are free from gold, satisfying the requirements found in J-STD-001.

If gold embrittlement is an issue for you, contact our engineers at applications@svmicro.com to create a custom pre-tinned connector today!



Multiports

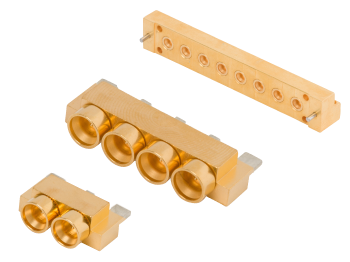

Precision is key for high-frequency PCB applications. SV Microwave offers a range of single-port, two-port, four-port, and eight-port PCB surface mount connectors suitable for Military, Aerospace, RF testing, and prototyping needs. Current interface configurations include the SMP, SMPM, and SMPS series.



Multiport Connectors



If your project demands a more complex design, with tight mechanical tolerances, we can work with you to create custom RF connectors with unique port configurations tailored to your specific requirements. Contact our engineers at applications@svmicro.com to get started on your custom configuration.



Custom Multiport Cable Assembly

  • Humboldt
  • Rapid Response



Humboldt

Humboldt, SV Microwave's online multiport assembly builder, allows you to design your own harnessed cable assembly easily using a drag-and-drop platform.

SV utilizes an injection-molded housing made of glass liquid crystal polymer, allowing us to offer configurations with a variety of ports, all implementing the small form factor SMPS blind-mate interface.

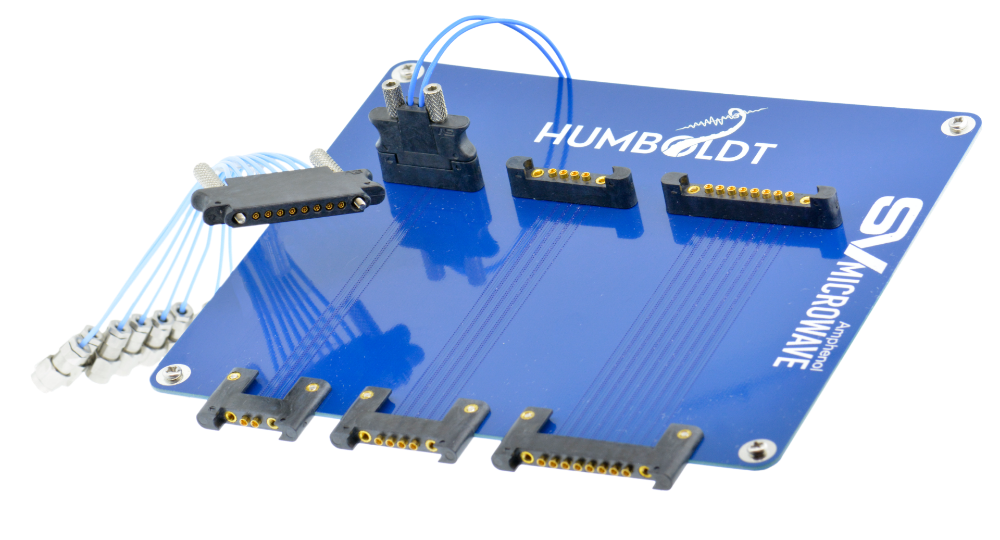

Humboldt Multiport Cable Assembly



With Humboldt, you can quickly configure a harness to your specifications, receive an instant quote, and print instantly generated datasheets. Best of all, shipping is available in just 15 business days. Whether you need a simple or complex harness, Humboldt is the perfect tool for designing your custom RF harnesses.



Rapid Response

SV Microwave’s Rapid Response builder offers a quick and convenient solution for those needing single-port custom cable assemblies. With thousands of connector and cable combinations available, the Rapid Response platform allows users to customize cable assemblies with ease. Our VITA 67.1/2 and VITA 67.3 contacts are now available in Rapid Response, along with custom configurations available for both Ø.047 & Ø.085 cable types, with cable lengths ranging from 3” to 99”.



Rapid Response Cable Assembly



Once your assembly is built, you can instantly access datasheets, pricing, and technical specifications. Plus, with 24/7 order placement and shipment within just 10 business days, Rapid Response makes it easier than ever to get the exact custom cable assembly you need.



Depend on SV Microwave for Custom RF Connectors and Cable Assemblies

SV Microwave is committed to delivering high-performance custom connectors and cable assemblies that meet the most demanding industry standards. Whether you're looking for pre-tinned connectors, multiport solutions, or custom cable assemblies, our expert team is ready to assist you with the perfect configuration for your project. Contact us today to explore how we can meet your custom connector needs!

Leave your comment
