BMMA Male PCB Edge Launch Connector, .117" PCB Thickness"
P/N: 1411-60007

There currently isn't any inventory available in distribution. Please contact us to obtain this product.
Products specifications
Attribute name Attribute value
RF Series BMMA
Gender Plug (Male)
Orientation (Body) Straight
Coupling Push-on
Termination Style Solder
Mounting Type PCB Edge Launch
Electrical
Impedance 50 ohms
Frequency 26.5 GHz
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 675 VRMS
Mechanical
Mating Cycles 5000
Insertion Force 3.0 lbs
Withdrawal Force 1.5 lbs
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 30000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:22:35 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series BMMA
Gender Plug (Male)
Orientation (Body) Straight
Coupling Push-on
Termination Style Solder
Mounting Type PCB Edge Launch
Electrical
Impedance 50 ohms
Frequency 26.5 GHz
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 675 VRMS
Mechanical
Mating Cycles 5000
Insertion Force 3.0 lbs
Withdrawal Force 1.5 lbs
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Customers Also Viewed
Part #   1411-60007

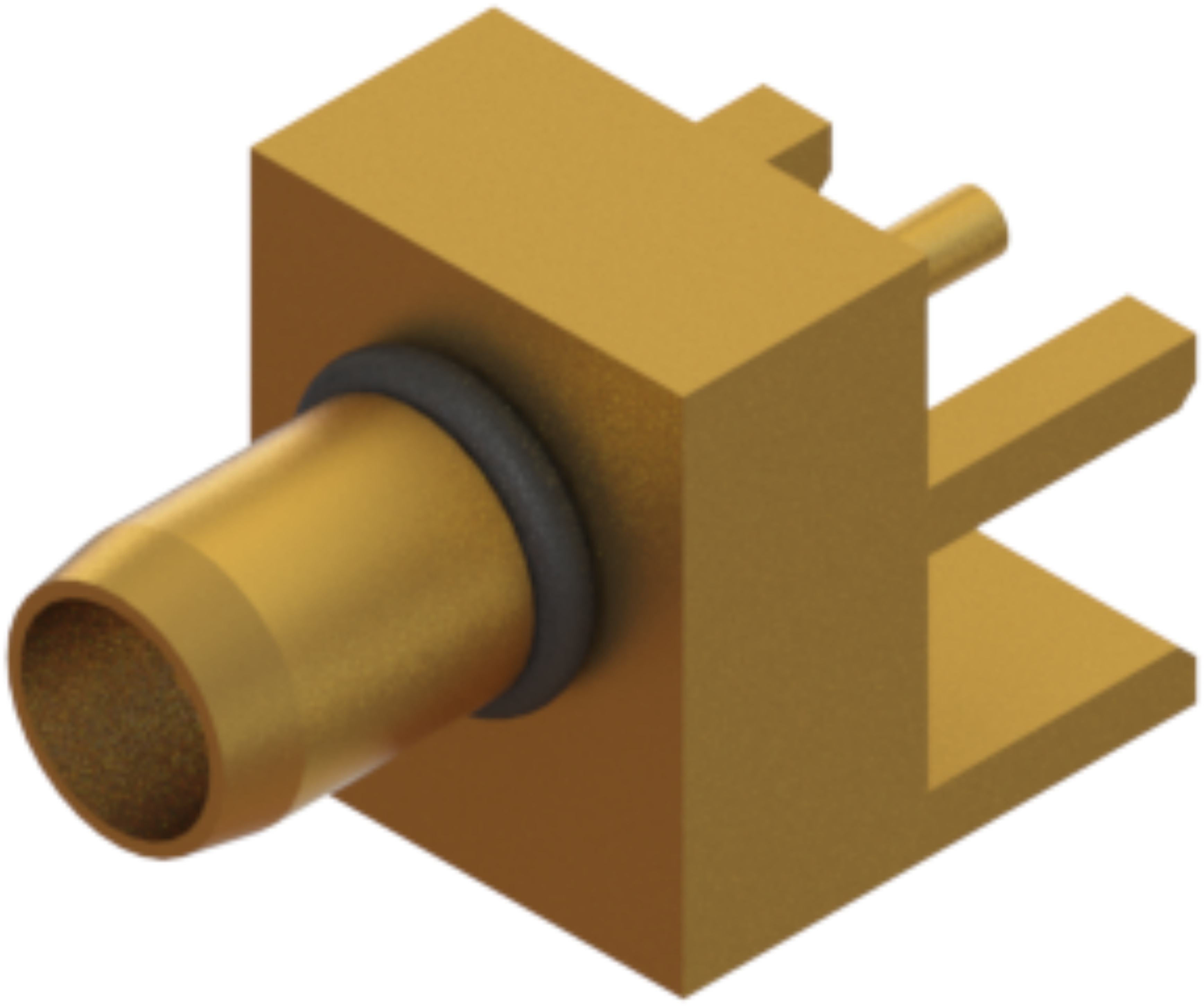

BMMA Male PCB Edge Launch Connector, .117" PCB Thickness"

Available Inventory: 0
1411-60007
BMMA Connectors 1411-60007
Datasheet
Part #   1412-60001

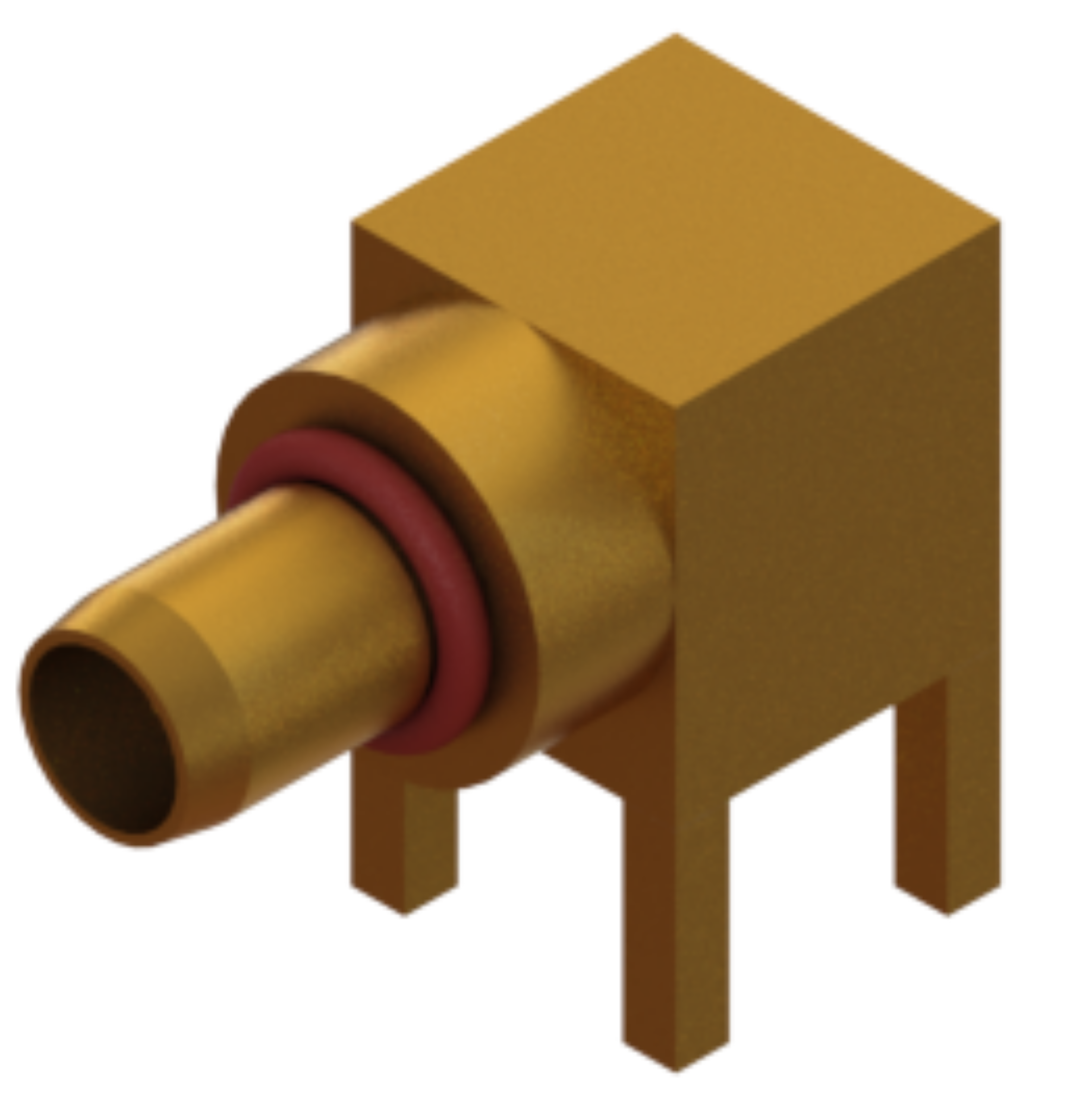

BMMA Male PCB Thru-Hole Connector, R/A

Available Inventory: 0
1412-60001
BMMA Connectors 1412-60001
Datasheet
Part #   1421-60014

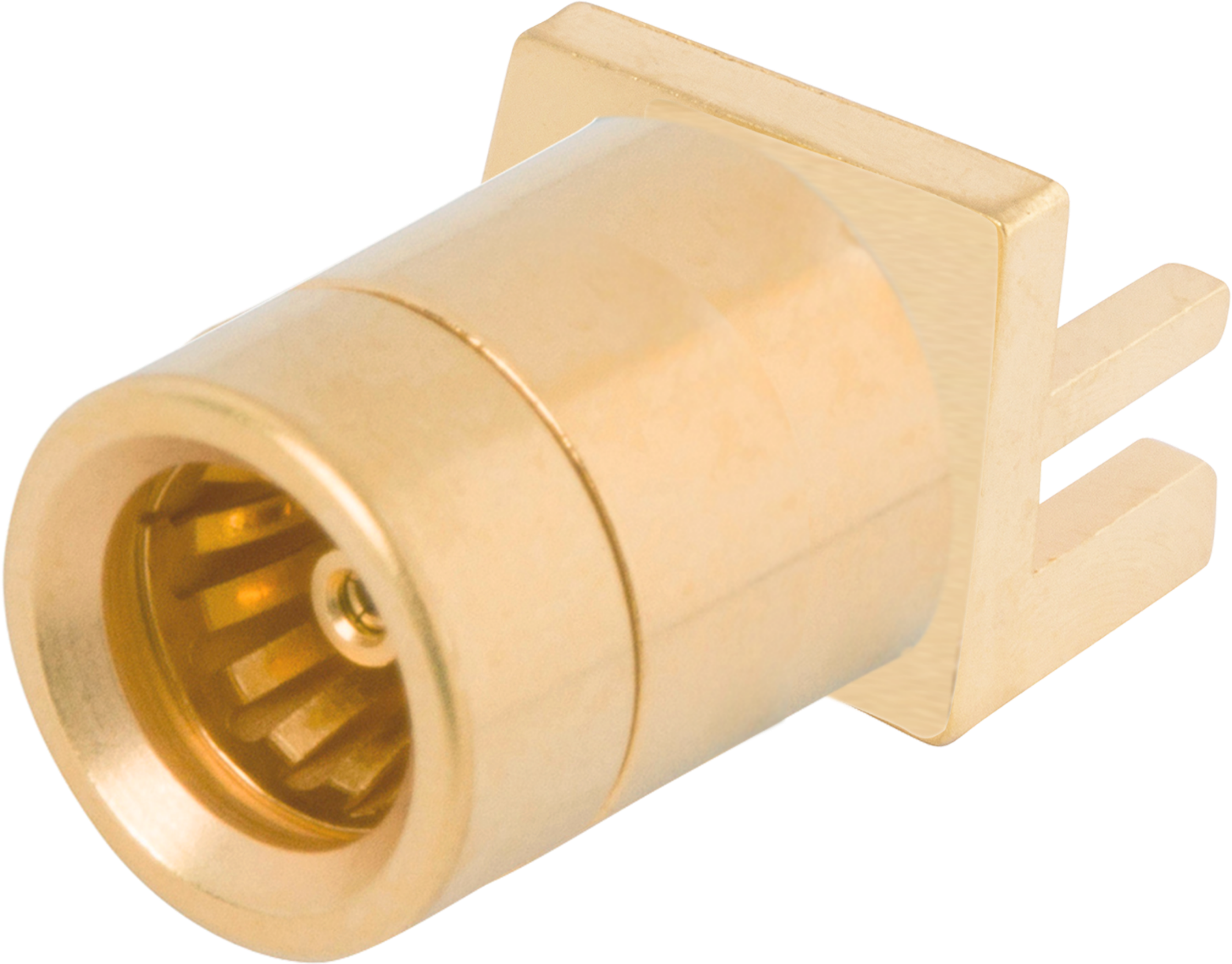

BMMA Female PCB Edge Launch Connector, .068" PCB Thickness"
