2.92mm Male to 2.92mm Male 500mm Cable Assembly for .085 Cable
P/N: 7015-2120

In stock at Qty Order
Newark 23
Farnell 23
Mouser Electronics 15
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Gender Plug (Male)
Orientation (Body) Straight
Coupling Threaded
Gender 2 Plug (Male)
RF Series 2 2.92 mm
Orientation 2 (Body) Straight
Cable Type 0.085 Flexible Coax
Cable Length 500mm
Electrical
Frequency 40 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Intermateability SMA
Environmental
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:32:50 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Gender Plug (Male)
Orientation (Body) Straight
Coupling Threaded
Gender 2 Plug (Male)
RF Series 2 2.92 mm
Orientation 2 (Body) Straight
Cable Type 0.085 Flexible Coax
Cable Length 500mm
Electrical
Frequency 40 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Intermateability SMA
Environmental
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Product tags
Customers Also Viewed
Part #   7015-0615

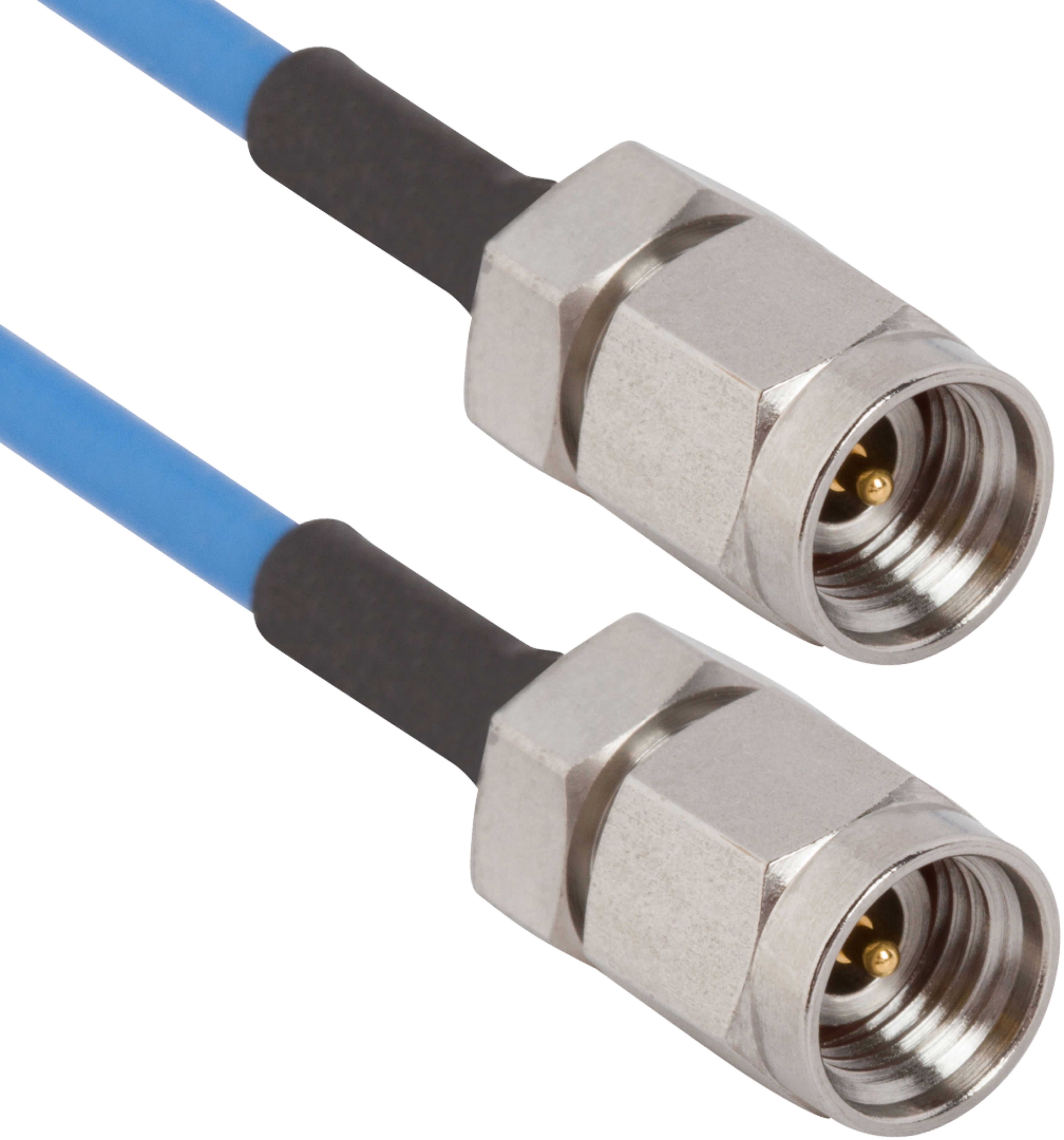

2.92mm Male to 2.92mm Male 12" Cable Assembly for .085 Cable

Available Inventory: 144
7015-0615
2.92mm Cable Assemblies 7015-0615
Datasheet
Part #   7015-0617

2.92mm Male to 2.92mm Male 36" Cable Assembly for .085 Cable

Available Inventory: 95
7015-0617
2.92mm Cable Assemblies 7015-0617
Datasheet
Part #   7015-0717

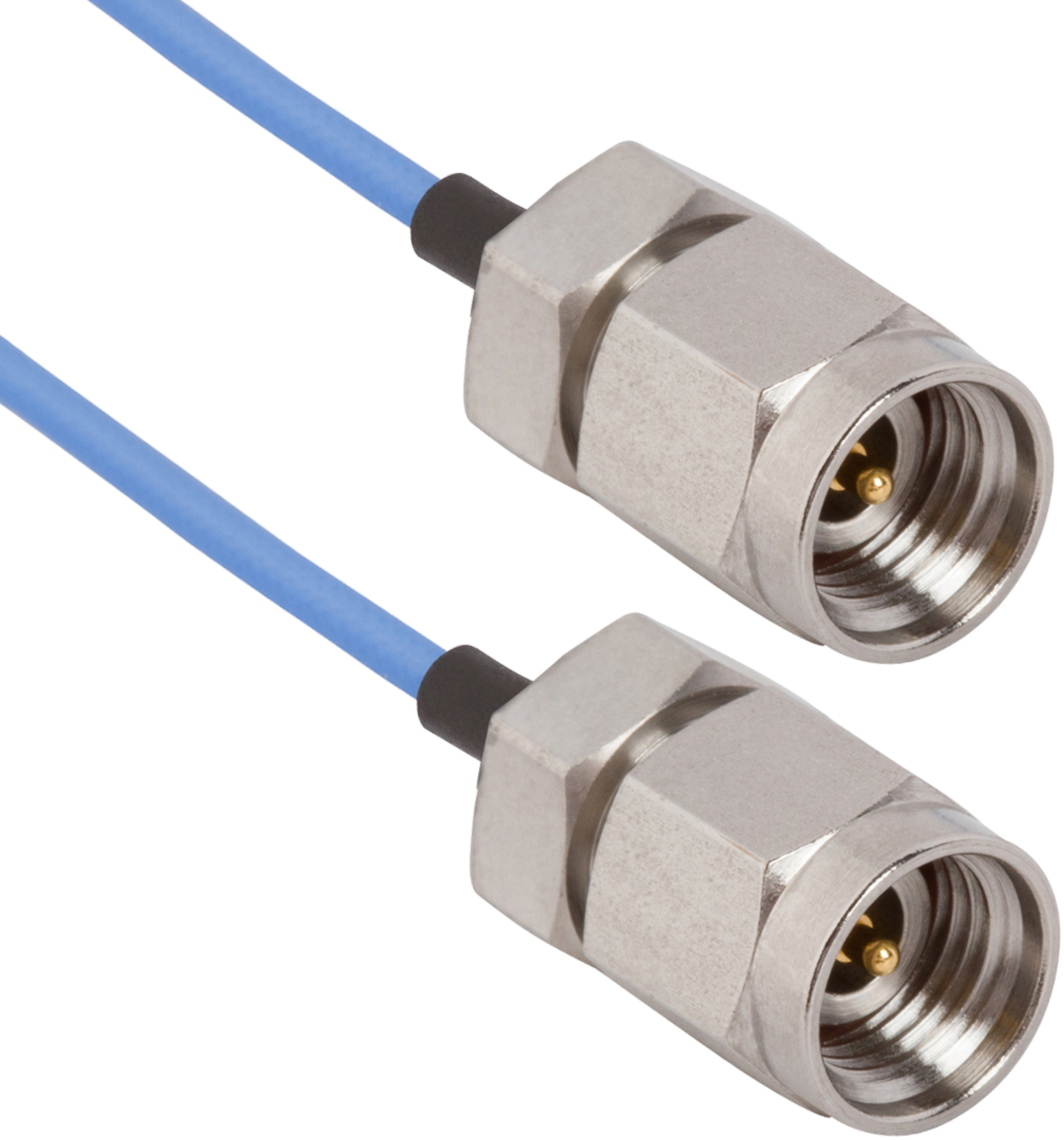

2.92mm Male to 2.92mm Male 6" Cable Assembly for .047 Cable
