1.85mm Female to 2.4mm Female Adapter
P/N: SF1133-6003

There currently isn't any inventory available in distribution. Please contact us to obtain this product.
Products specifications
Attribute name Attribute value
RF Series 1.85 mm
Orientation (Body) Straight
Gender Jack (Female)
Coupling Threaded
Finish Passivated
Gender 2 Jack (Female)
RF Series 2 2.4 mm
Orientation 2 (Body) Straight
Electrical
Frequency 50 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Cycles 500
Mating Torque 5 - 7 in - lbs
Intermateability 2.4mm
Environmental
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:05:07 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series 1.85 mm
Orientation (Body) Straight
Gender Jack (Female)
Coupling Threaded
Finish Passivated
Gender 2 Jack (Female)
RF Series 2 2.4 mm
Orientation 2 (Body) Straight
Electrical
Frequency 50 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Cycles 500
Mating Torque 5 - 7 in - lbs
Intermateability 2.4mm
Environmental
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   SF1133-6004

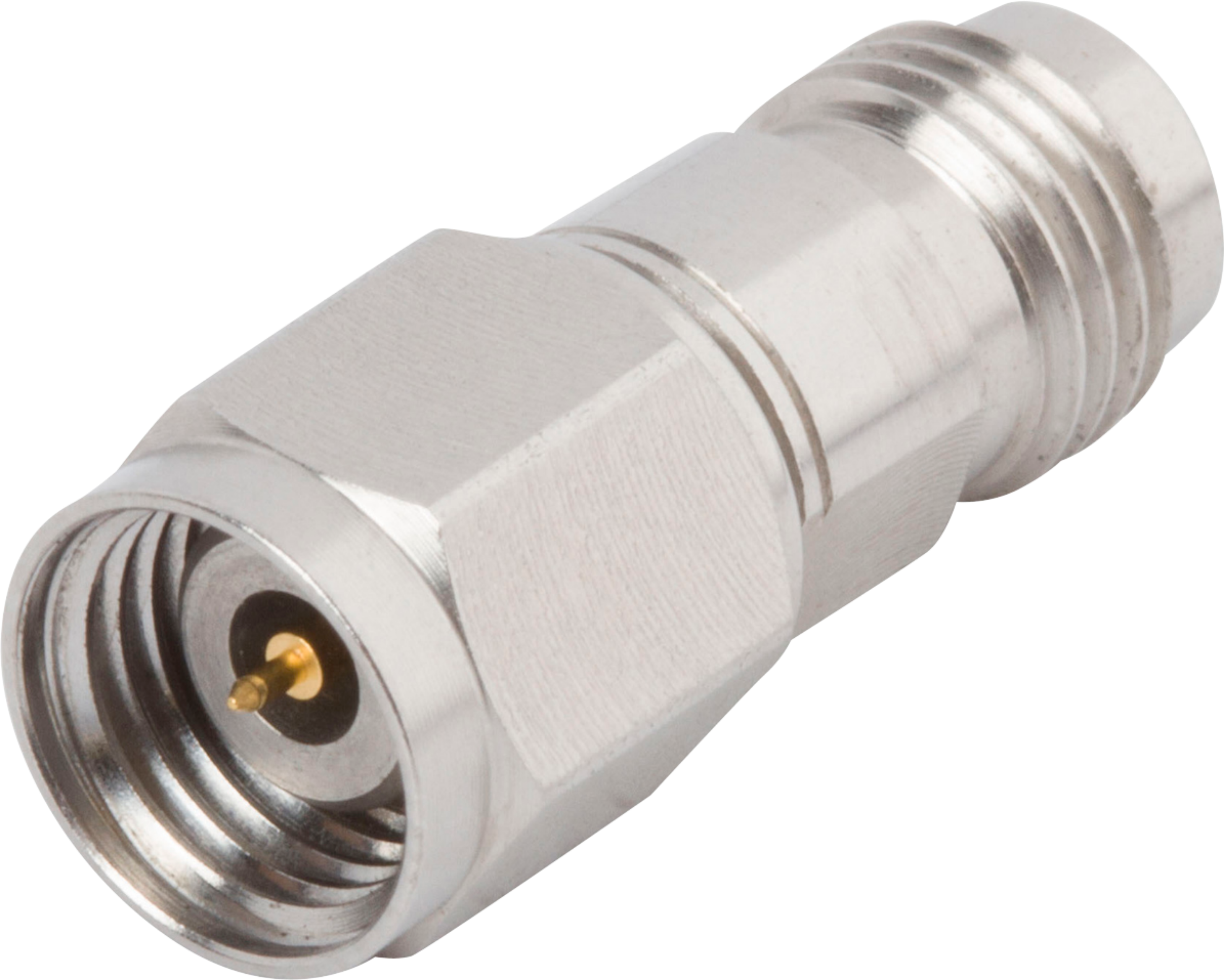

1.85mm Male to 2.4mm Female Adapter

Available Inventory: 29
SF1133-6004
1.85mm Adapters SF1133-6004
Datasheet
Part #   SF1133-6005

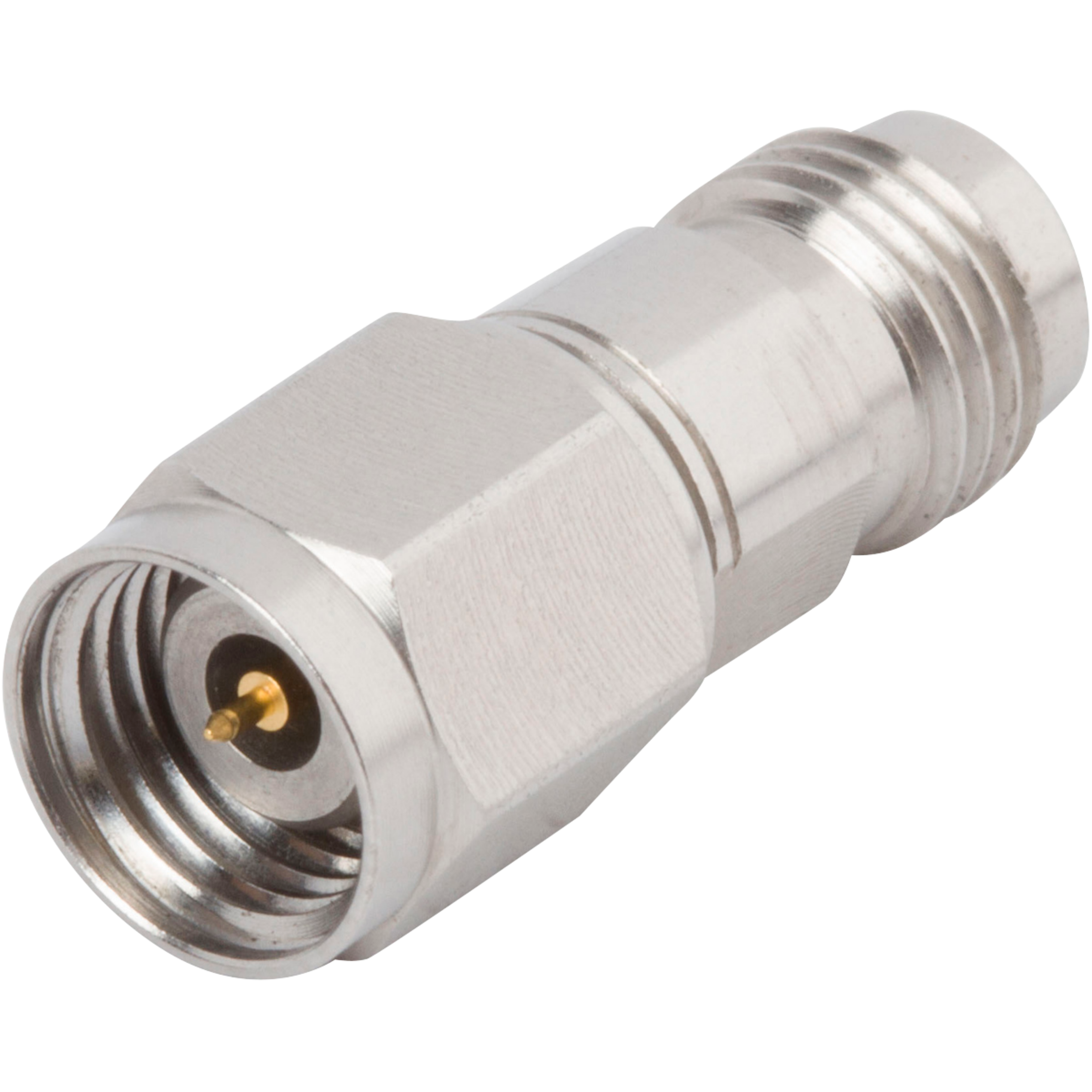

1.85mm Female to 2.4mm Male Adapter

Available Inventory: 0
SF1133-6005
1.85mm Adapters SF1133-6005
Datasheet
Part #   SF1133-6006

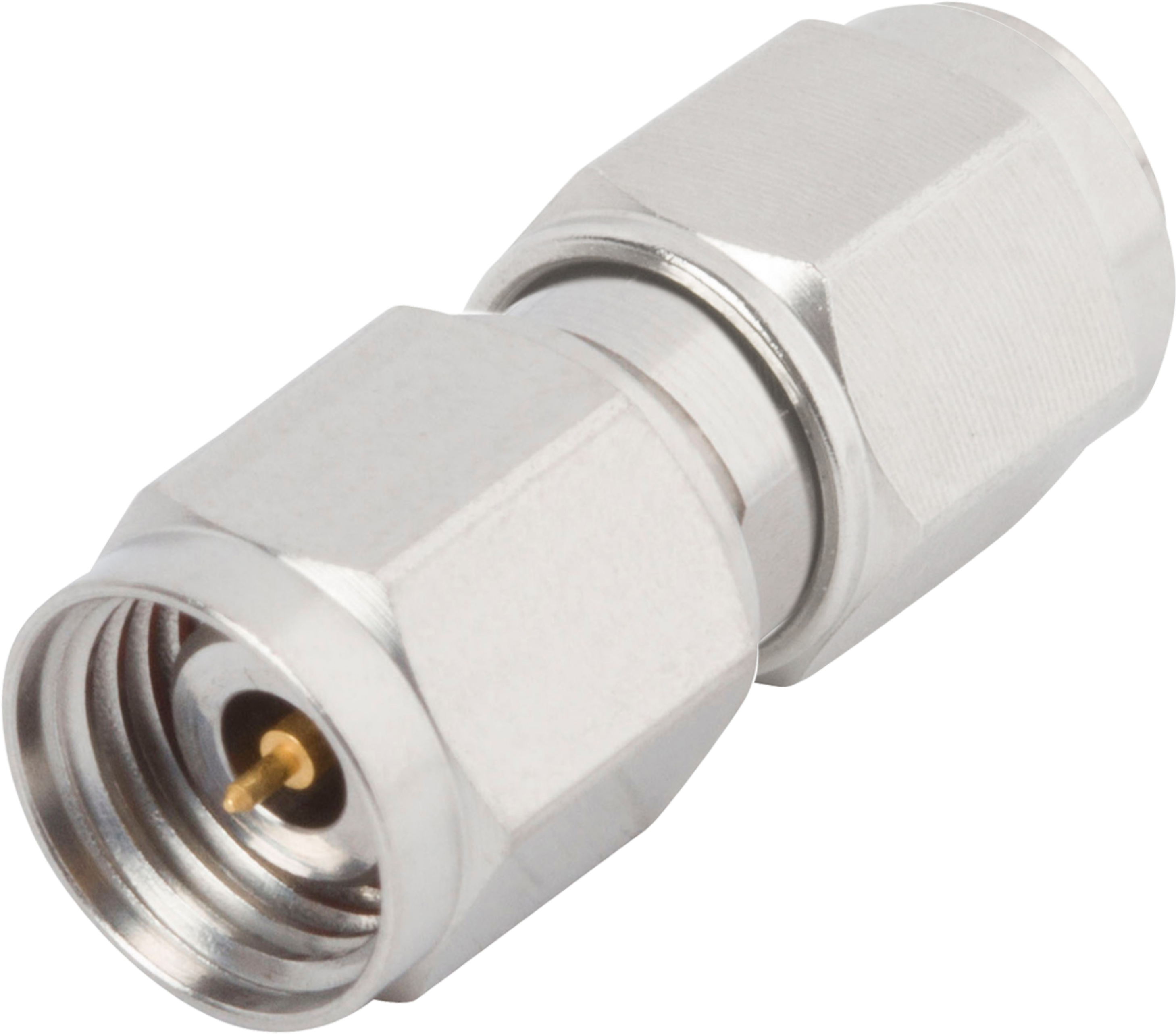

1.85mm Male to 2.4mm Male Adapter
