ZMA Female (110°|140°|110°) to SMA Female Adapter
P/N: SF1187-6626

There currently isn't any inventory available in distribution. Please contact us to obtain this product.
Products specifications
Attribute name Attribute value
RF Series ZMA
Orientation (Body) Straight
Coupling Keyed
Gender Jack (Female)
Keyed Subtype 110-140-110
Mounting Type Panel
Body Style Jamnut/Bulkhead
RF Series 2 SMA
Finish Passivated
Orientation 2 (Body) Straight
Gender 2 Jack (Female)
Electrical
Impedance 50 ohms
Frequency 11 GHz
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 2500 VRMS
Mechanical
Mating Torque 4 in - oz
Mating Cycles 500
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:03:27 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series ZMA
Orientation (Body) Straight
Coupling Keyed
Gender Jack (Female)
Keyed Subtype 110-140-110
Mounting Type Panel
Body Style Jamnut/Bulkhead
RF Series 2 SMA
Finish Passivated
Orientation 2 (Body) Straight
Gender 2 Jack (Female)
Electrical
Impedance 50 ohms
Frequency 11 GHz
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 2500 VRMS
Mechanical
Mating Torque 4 in - oz
Mating Cycles 500
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   SF1187-6623

ZMA Female (90°) to SMA Female Adapter

Available Inventory: 115
SF1187-6623
ZMA Adapters SF1187-6623
Datasheet
Part #   SF1187-6624

ZMA Female (120°) to SMA Female Adapter

Available Inventory: 1157
SF1187-6624
ZMA Adapters SF1187-6624
Datasheet
Part #   SF1187-6625

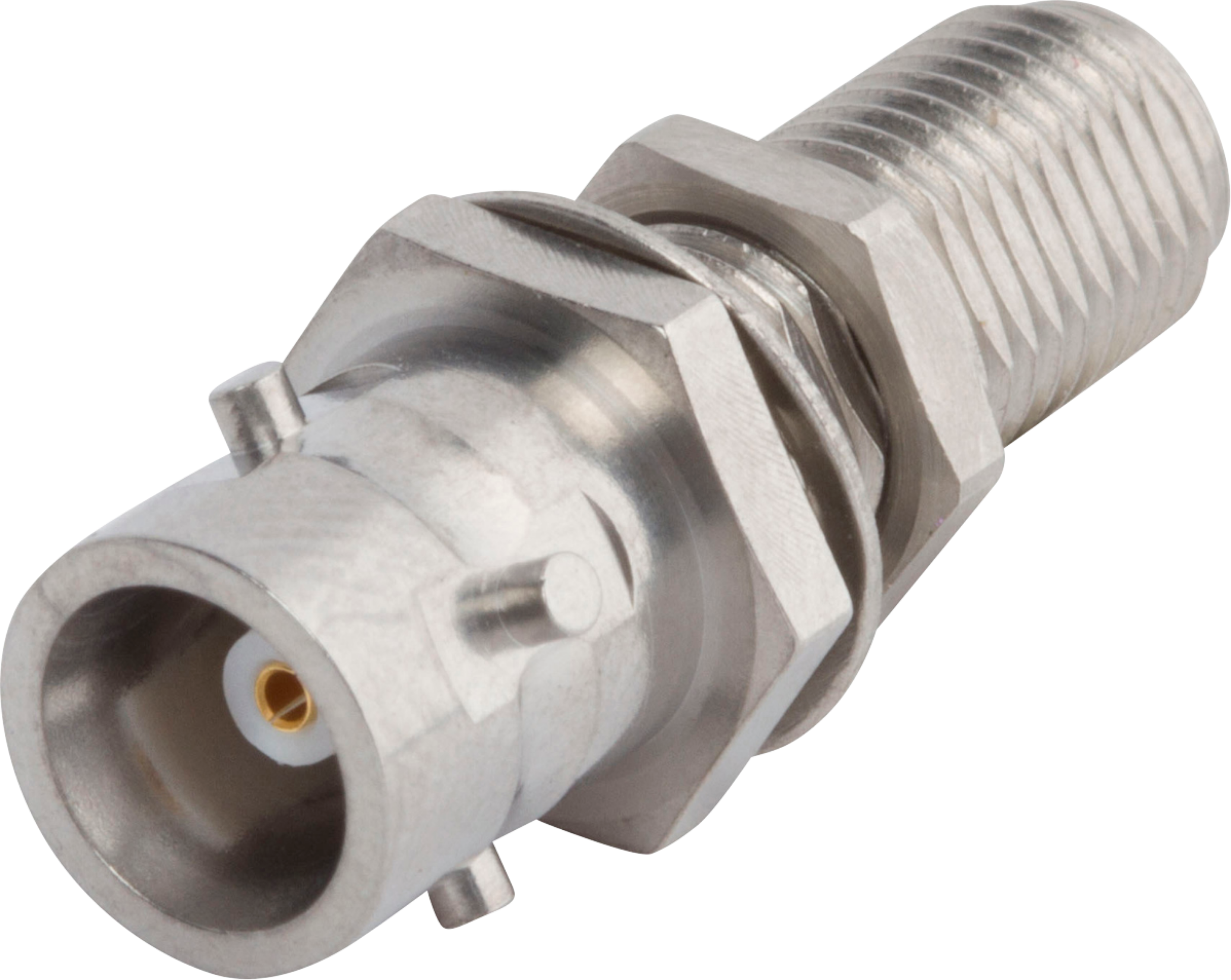

ZMA Female (130°|100°|130°) to SMA Female Adapter
