VITA Developer Kit

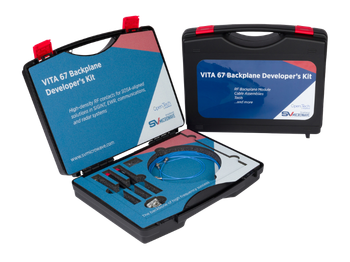

SV Microwave has developed a unique product line that allows customers to quickly and easily prototype embedded system designs for VITA 67 using ruggedized cable assemblies and backplane modules in SMPM, SMPS and NanoRF series. Ideal for prototyping and production-level testing, this ruggedized and durable kit features a backplane, multiport module, ruggedized VITA RF Cable Assemblies, Screws and Driver Tool, Contact Installation and Removal Tools and more.

Features / Benefits & Applications
Technical Specs
Additional Resources

Features / Benefits:

Supports SOSA and CMOSS architecture
All-in-one tool set
Custom test cable assembly lengths available
Flexible test configurations
Shortens time-to-market for system designs
DC-40 GHz

Applications:

Engineering Proof of Concept / Prototyping
Product Development / Testing
Production Troubleshooting
Field Testing
Embedded System Design
Mil-Aero

The specifications below are typical for the connector series, but may not apply to this particular part. Please see the datasheet for full specifications.

VITA SMPM

Impedance (Ω)	50
Frequency GHz	40 GHz
Shielding Effectiveness	≥ -100 dB, DC to 26.5 GHz
Dielectric withstanding Voltage	325 VRMS
Mating Cycles	500
Insertion Force	2.5 lbs (per contact)
Withdrawal Force	1.5 lbs
Temperature Rating	-65°C to +165°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Thermal Shock	MIL-STD-202, Method 107, Condition B
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.

VITA SMPS

Impedance (Ω)	50
Frequency GHz	65 GHz
Shielding Effectiveness	≥ -100 dB, DC to 26.5 GHz
Dielectric withstanding Voltage	250 VRMS
Mating Cycles	500
Insertion Force	1.2 lbs (per contact)
Withdrawal Force	1.0 lbs
Temperature Rating	-65°C to +165°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Thermal Shock	MIL-STD-202, Method 107, Condition B
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.

VITA NANORF

Impedance (Ω)	50
Frequency GHz	67 GHz
Shielding Effectiveness	≥ -140 dB, 3 MHz to 30 MHz ≥ -120 dB, 30 MHz to 3.0 GHz ≥ -100 dB, 3.0 GHz to 30 GHz ≥ -90 dB, 30 to 67.0 GHz
Dielectric withstanding Voltage	250 VRMS
Mating Cycles	500
Insertion Force	2.5 lbs (per contact)
Withdrawal Force	0.315 lbs
Temperature Rating	-55°C to +125°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Thermal Shock	MIL-STD-202, Method 107, Condition B
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
