Standard Gang Mating Hardware
Multiport PCB Connections with Ganged RF Cable Assemblies

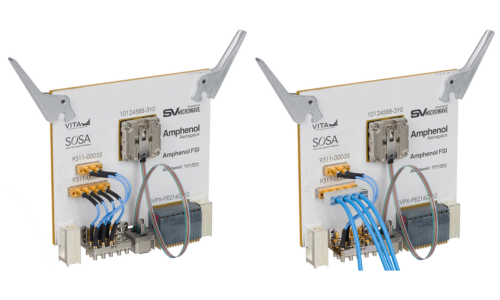

Simplify Multiport PCB Connections with Ganged RF Cable Assemblies As PCB system designs increasingly incorporate high-density SMP and SMPM multiports, installation complexity becomes a significant challenge. Mating multiple discrete cable assemblies in tight spaces can increase assembly time and increase the risk of misalignment.

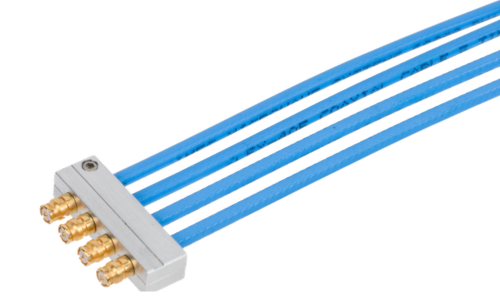

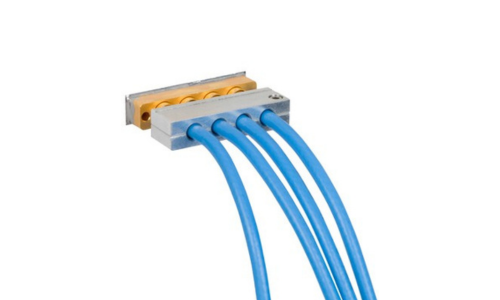

SV Microwave’s ganged RF cable assemblies are designed to mate directly with readily available COTS multiport connectors, enabling a single, push-on interface that simplifies installation without compromising RF performance.

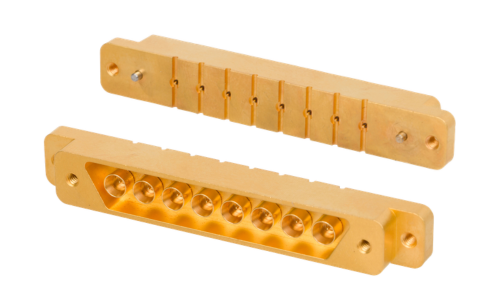

Datasheets are available for parts 9301-80021 and 9301-80029, designed to mate with SMP and SMPM 4-ports 3221-40006 and 3221-40007, but custom options can be created for any of SV’s COTS SMP and SMPM PCB multiports.
Features and Benefits
- Single-point mating reduces installation time and labor
- Push-on SMP/SMPM interface enables quick, tool-free engagement
- Designed for compatibility with COTS PCB multiport connectors
- Improves alignment consistency across all ports
- Maintains high-frequency performance in dense system layouts
- Reduces risk of damage from repeated individual mating cycles
