SMPS (Size 16) D38999 Socket Contact to MCX Male 12" 75 Ohm Cable Assembly for RG-179 Cable
P/N: 7093-0275

Loading...
Products specifications
Attribute name Attribute value
RF Series SMPS
Gender Socket
Orientation (Body) Straight
Mounting Type D38999 Series I, III and IV
Coupling Push-on
Style Size 16
RF Series 2 MCX
Gender 2 Plug (Male)
Orientation 2 (Body) Straight
Cable Type RG-179
Cable Length 12"
Electrical
Frequency 3 GHz
Impedance 75 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 250 VRMS
Mechanical
Mating Cycles - SB 500
Insertion Force - SB 1.2 lbs
Mating Cycles - FD 100
Withdrawal Force - FD 4.5 lbs
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Insertion Force - FD 2.5 lbs
Withdrawal Force - SB 1.0 lbs
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Temperature Rating -65°C to +165°C
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Products specifications
Attribute name Attribute value
RF Series SMPS
Gender Socket
Orientation (Body) Straight
Mounting Type D38999 Series I, III and IV
Coupling Push-on
Style Size 16
RF Series 2 MCX
Gender 2 Plug (Male)
Orientation 2 (Body) Straight
Cable Type RG-179
Cable Length 12"
Electrical
Frequency 3 GHz
Impedance 75 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 250 VRMS
Mechanical
Mating Cycles - SB 500
Insertion Force - SB 1.2 lbs
Mating Cycles - FD 100
Withdrawal Force - FD 4.5 lbs
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Insertion Force - FD 2.5 lbs
Withdrawal Force - SB 1.0 lbs
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Temperature Rating -65°C to +165°C
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed

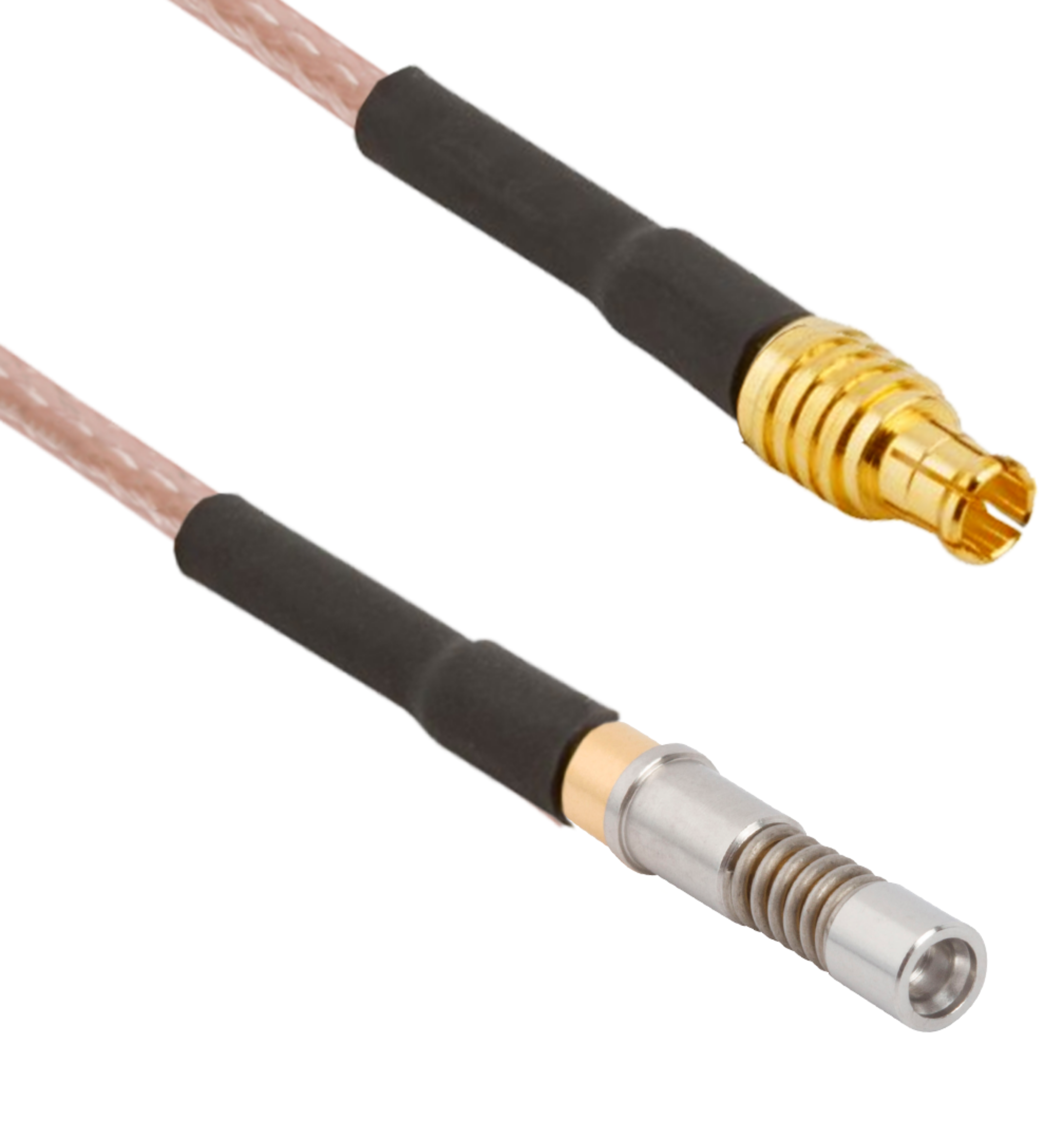

7093-0277
SMPM Cable Assemblies 7093-0277
Datasheet

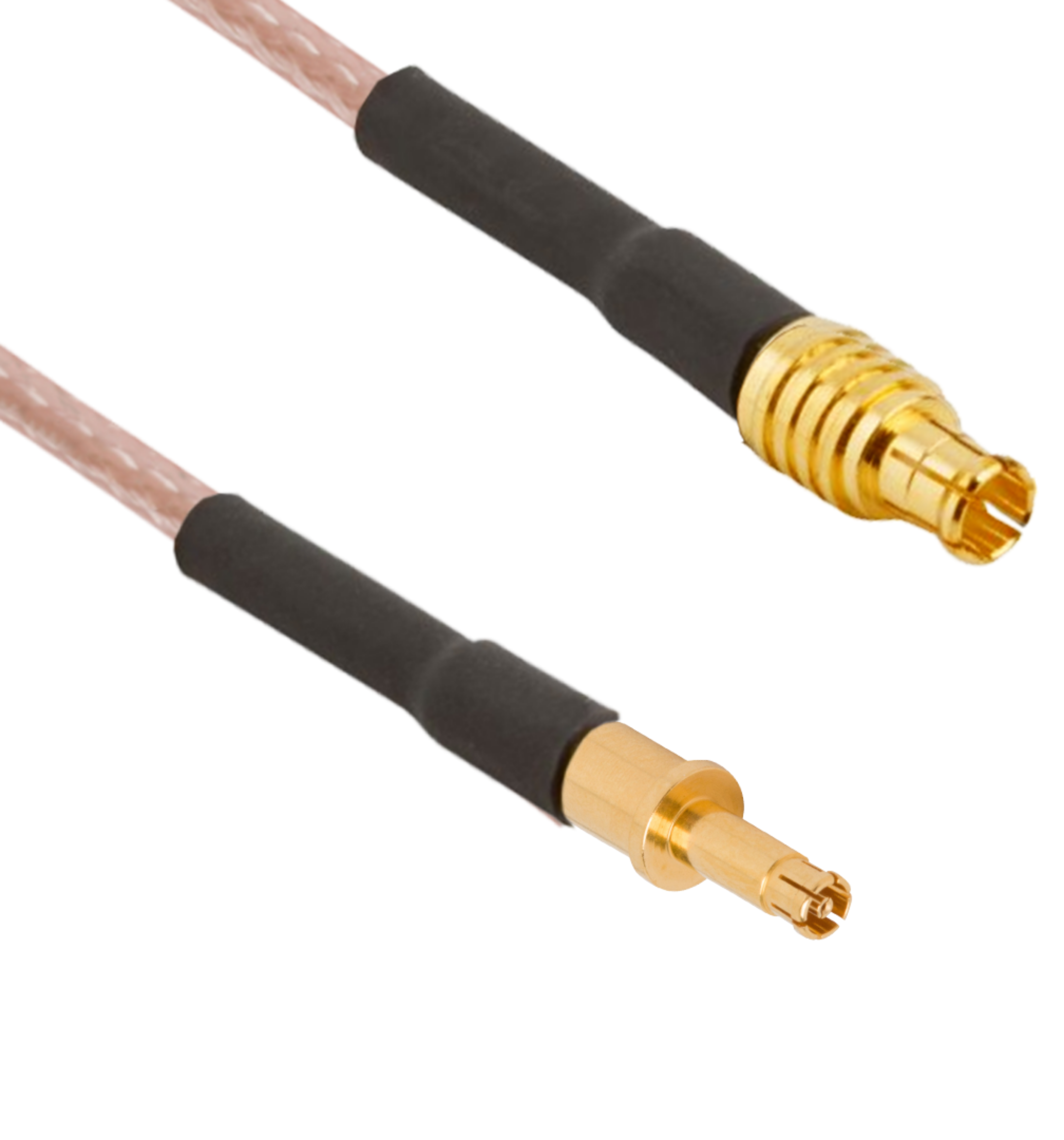

7093-0278
