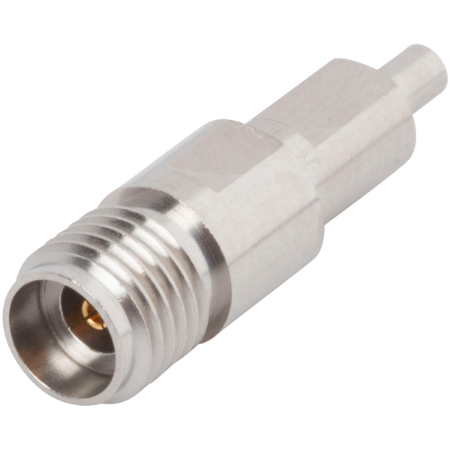

SMPS Male to 2.92mm Female Adapter, SB
P/N: SF1138-6024

There currently isn't any inventory available in distribution. Please contact us to obtain this product.
Products specifications
Attribute name Attribute value
RF Series SMPS
Detent Smooth Bore
Coupling Push-on
Finish Passivated
Orientation 2 (Body) Straight
Gender 2 Jack (Female)
Orientation (Body) Straight
Gender Plug (Male)
RF Series 2 2.92 mm
Electrical
Impedance 50 ohms
Frequency 40 GHz
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 250 VRMS
Mechanical
Mating Cycles - FD 100
Withdrawal Force - SB 1.0 lbs
Withdrawal Force - FD 4.5 lbs
Insertion Force - FD 2.5 lbs
Radial Misalignment 3° Max
Axial Misalignment .010” Max
Mating Cycles - SB 500
Insertion Force - SB 1.2 lbs
Environmental
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:03:19 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMPS
Detent Smooth Bore
Coupling Push-on
Finish Passivated
Orientation 2 (Body) Straight
Gender 2 Jack (Female)
Orientation (Body) Straight
Gender Plug (Male)
RF Series 2 2.92 mm
Electrical
Impedance 50 ohms
Frequency 40 GHz
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 250 VRMS
Mechanical
Mating Cycles - FD 100
Withdrawal Force - SB 1.0 lbs
Withdrawal Force - FD 4.5 lbs
Insertion Force - FD 2.5 lbs
Radial Misalignment 3° Max
Axial Misalignment .010” Max
Mating Cycles - SB 500
Insertion Force - SB 1.2 lbs
Environmental
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Customers Also Viewed
Part #   SF1138-6015

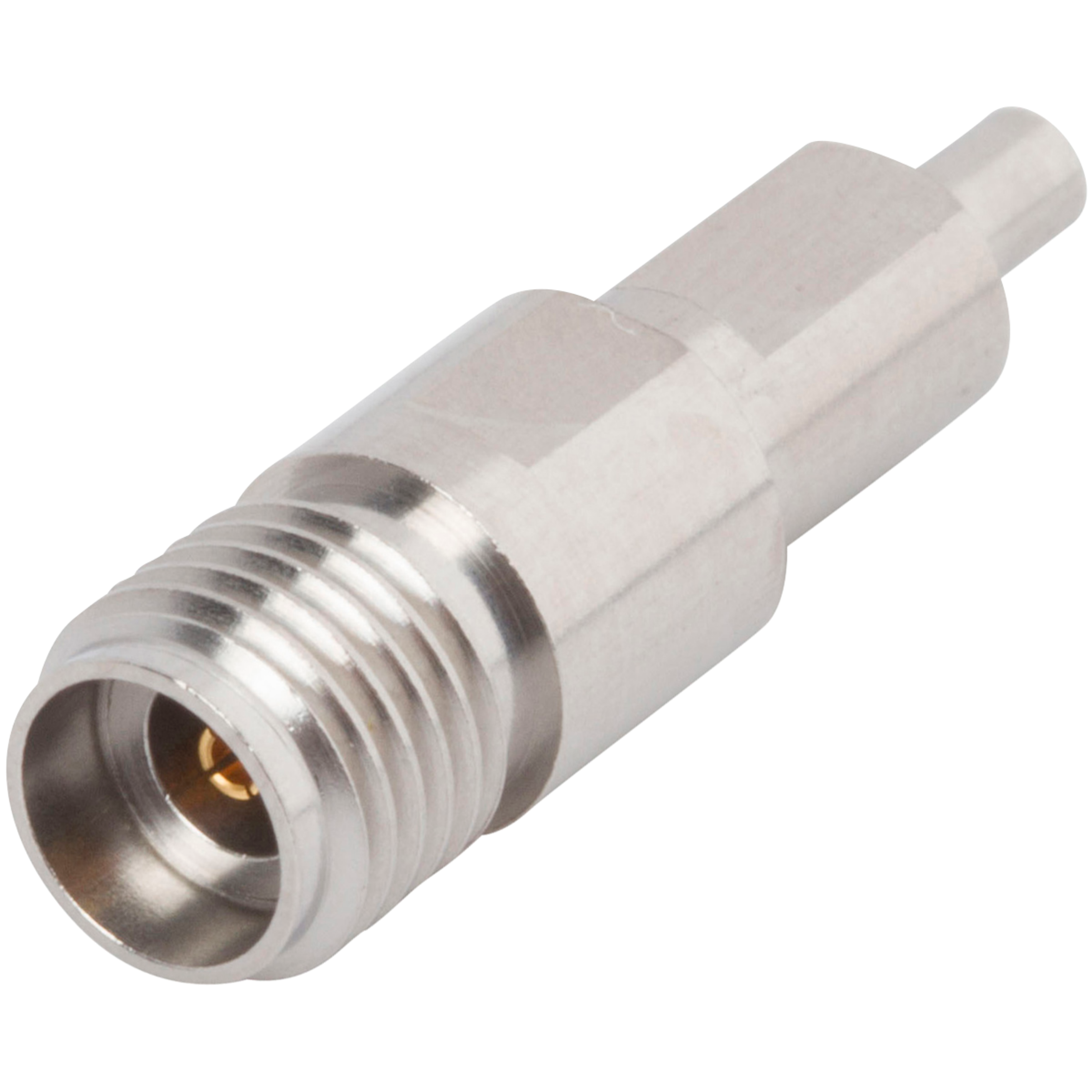

SMPS Male to 2.92mm Female Adapter, FD

Available Inventory: 96
SF1138-6015
SMPS Adapters SF1138-6015
Datasheet
Part #   SF1116-6066

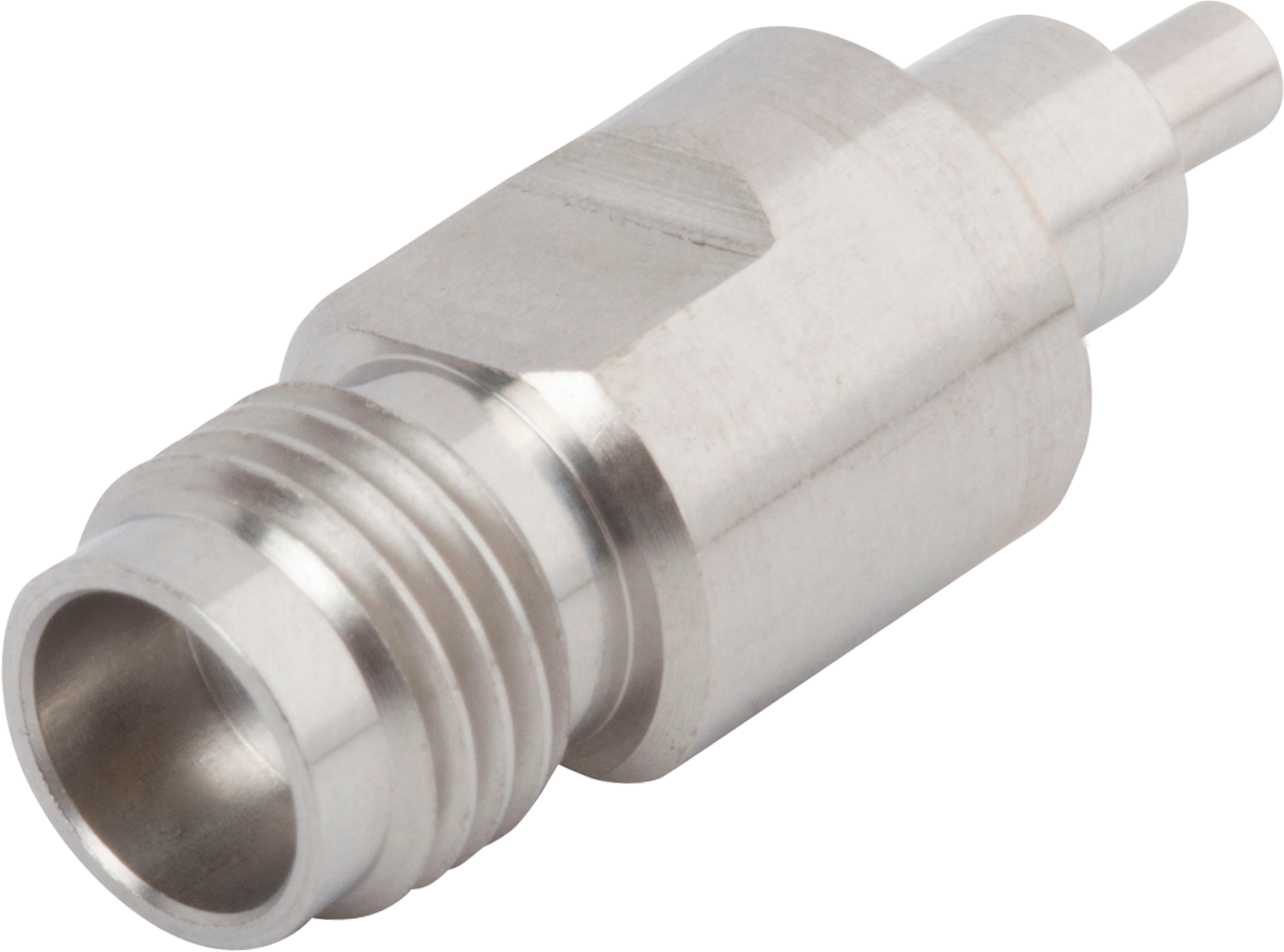

2.4mm Female to SMPS Male Adapter, SB

Available Inventory: 0
SF1116-6066
2.4mm Adapters SF1116-6066
Datasheet
Part #   SF1115-6090

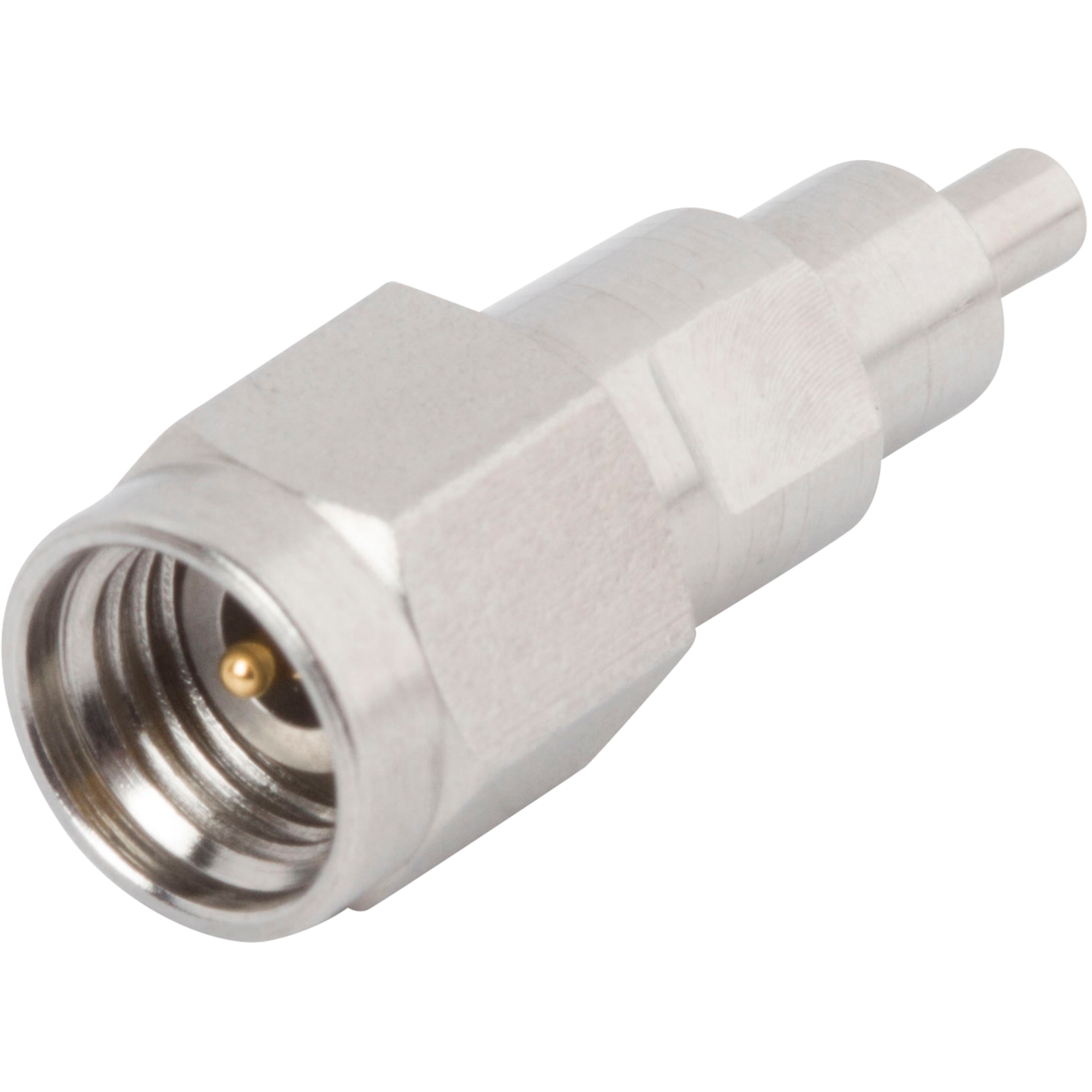

2.92mm Male to SMPS Male Adapter, SB
