SMPS Male Connector for .047 Cable, SB
P/N: 3811-40002

There currently isn't any inventory available in distribution. Please contact us to obtain this product.
Products specifications
Attribute name Attribute value
RF Series SMPS
Gender Plug (Male)
Orientation (Body) Straight
Coupling Push-on
Detent Smooth Bore
Termination Style Solder
Number of Ports Single
Finish Gold
Cable Type 0.047 Flexible Coax
Electrical
Frequency 40 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 250 VRMS
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Mechanical
Mating Cycles - SB 500
Mating Cycles - FD 100
Withdrawal Force - FD 4.5 lbs
Insertion Force - SB 1.2 lbs
Insertion Force - FD 2.5 lbs
Withdrawal Force - SB 1.0 lbs
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Thermal Shock MIL-STD-202, Method 107, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B

EU RoHS Directive 2011/65/EU

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:17:21 AM
Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMPS
Gender Plug (Male)
Orientation (Body) Straight
Coupling Push-on
Detent Smooth Bore
Termination Style Solder
Number of Ports Single
Finish Gold
Cable Type 0.047 Flexible Coax
Electrical
Frequency 40 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 250 VRMS
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Mechanical
Mating Cycles - SB 500
Mating Cycles - FD 100
Withdrawal Force - FD 4.5 lbs
Insertion Force - SB 1.2 lbs
Insertion Force - FD 2.5 lbs
Withdrawal Force - SB 1.0 lbs
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Thermal Shock MIL-STD-202, Method 107, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Customers Also Viewed
Part #   3811-40001

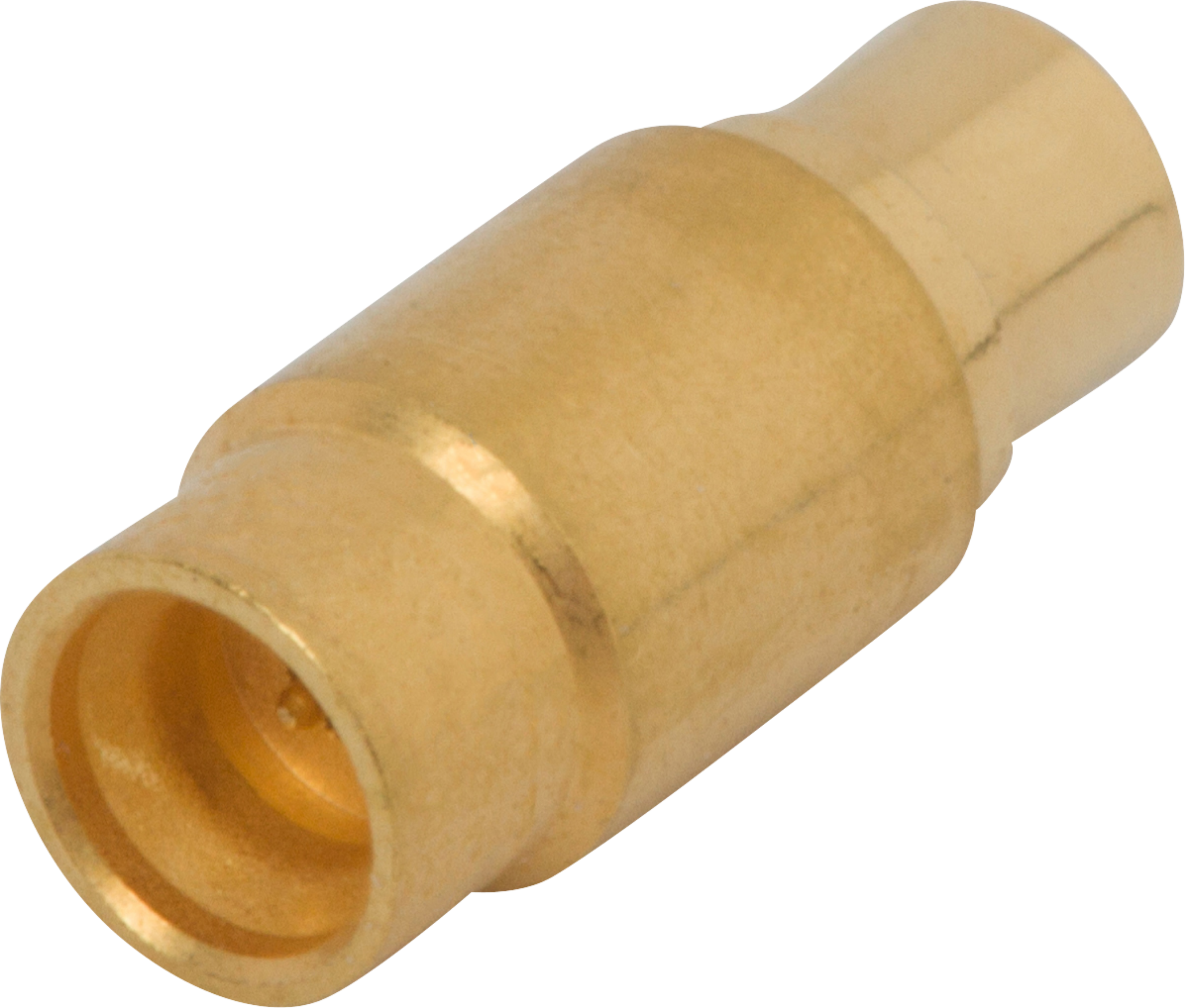

SMPS Male Connector for .047 Cable, FD

Available Inventory: 134
3811-40001
SMPS Connectors 3811-40001
Datasheet
Part #   3811-40003

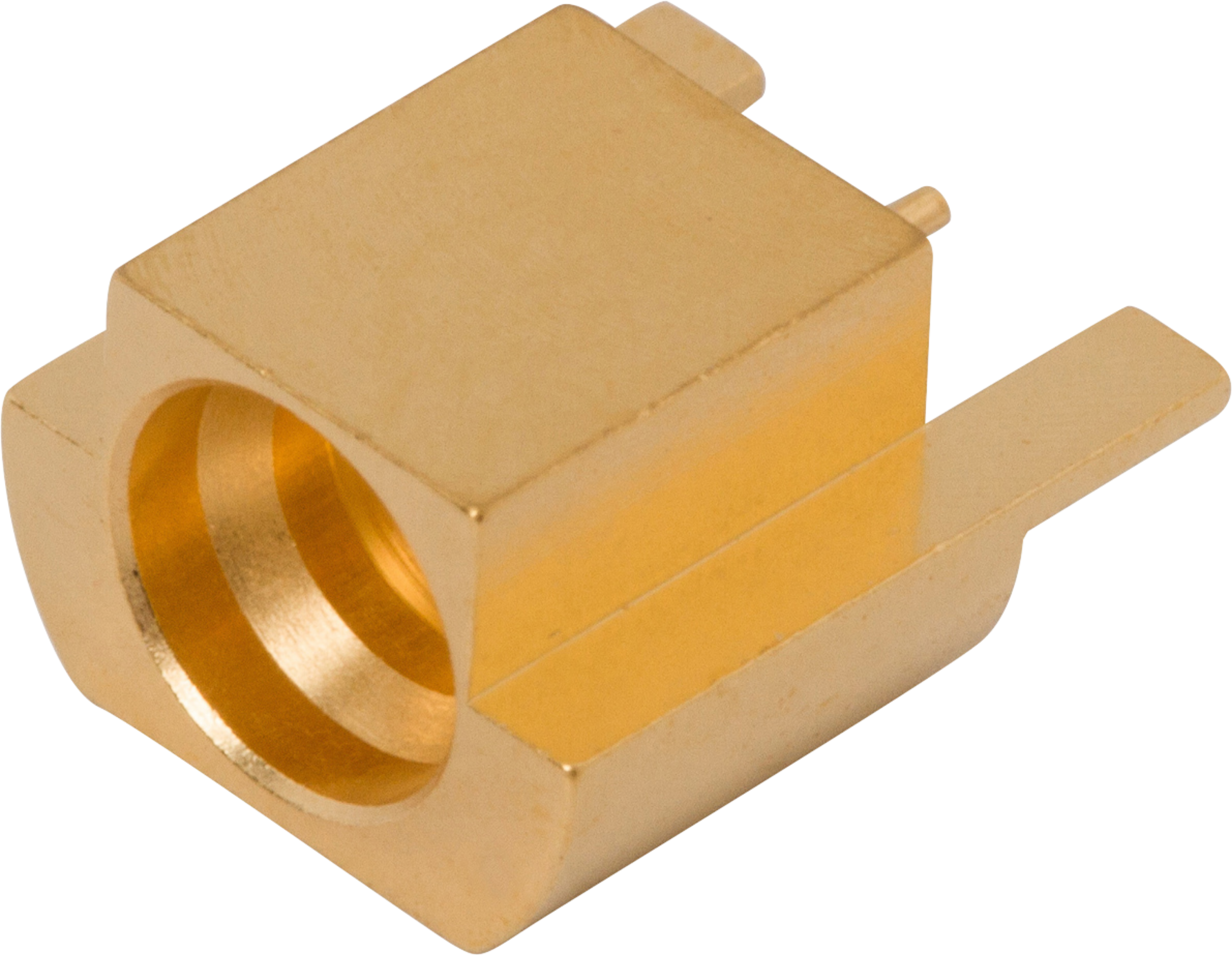

SMPS Male PCB Edge Launch Connector, FD

Available Inventory: 300
3811-40003
SMPS Connectors 3811-40003
Datasheet
Part #   3811-40003-TD

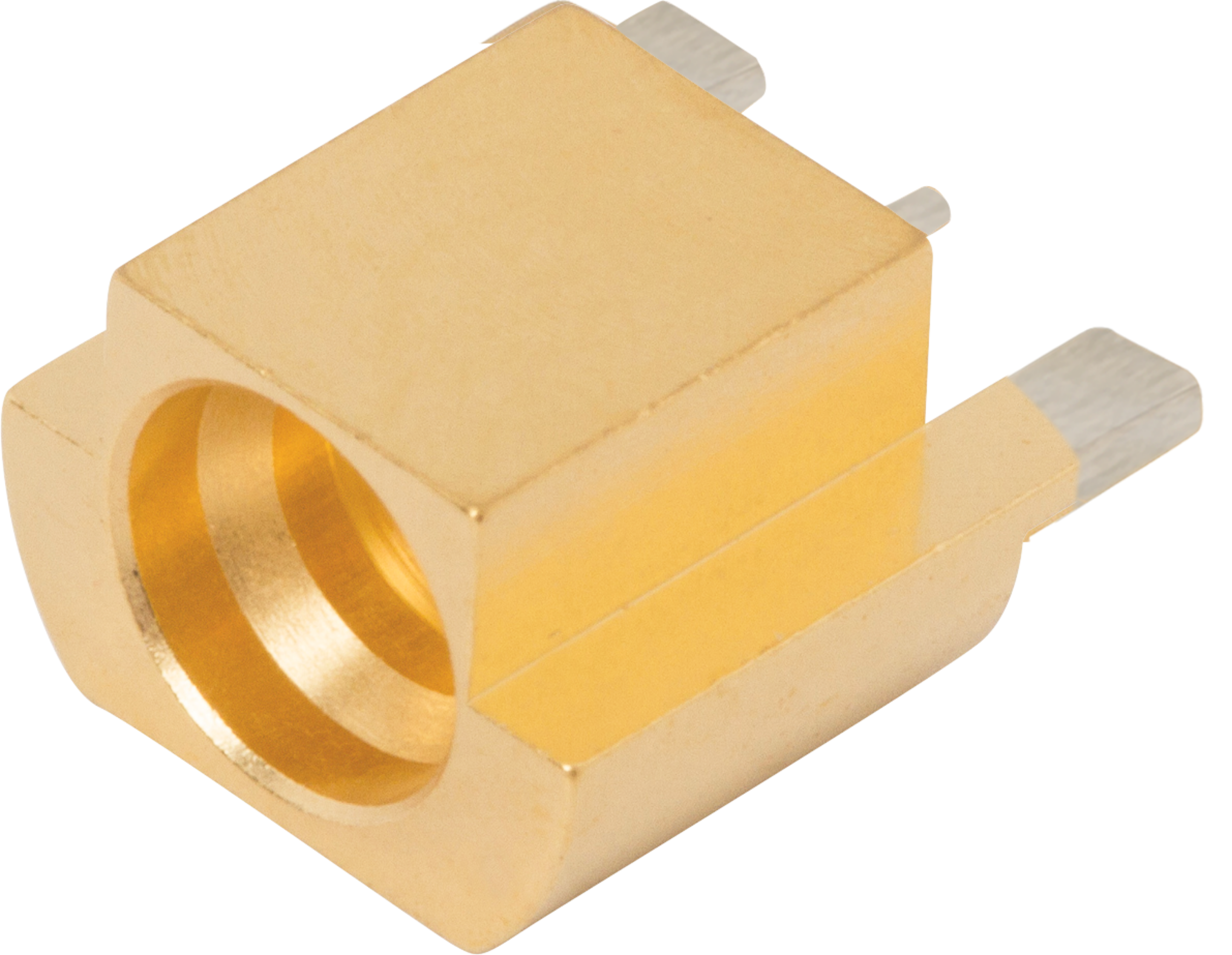

SMPS Male PCB Edge Launch Connector (Tin Dipped), FD
