SMPS Female VITA 67.3 to SMA Male 12" Cable Assembly for .047 Cable"
P/N: 7038-0371

In stock at Qty Order
Digi-Key Electronics 30
TTI Inc Global Headquarters 18
Newark 15
Farnell 15
Mouser Electronics 9
Products specifications
Attribute name Attribute value
Family VITA 67, SOSA Aligned
RF Series VITA SMPS
Gender Jack (Female)
Number of Ports Single
Orientation (Body) Straight
Termination Style Solder
Coupling Push-on
Gender 2 Plug (Male)
Orientation 2 (Body) Straight
RF Series 2 SMA
Cable Type 0.047 Flexible Coax
Cable Length 12"
Electrical
Frequency 100 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Dielectric withstanding Voltage 250 VRMS
Mechanical
Insertion Force 1.2 lbs (per contact)
Withdrawal Force 1.0 lbs
Mating Cycles 500
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Temperature Rating -65°C to +165°C
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

CE / UKCA Compliant

This products meets the requirements for CE and UKCA.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:14:17 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Access all of our VITA resources for this part number in one, easily-downloadable package.
VITA Toolkit Download Now
  • Drawings
  • Models
  • Rapid Response App Note
  • VITA 67.3 Catalog
  • VITA 67.3 SMPS Toolbox Resource Guide
Products specifications
Attribute name Attribute value
Family VITA 67, SOSA Aligned
RF Series VITA SMPS
Gender Jack (Female)
Number of Ports Single
Orientation (Body) Straight
Termination Style Solder
Coupling Push-on
Gender 2 Plug (Male)
Orientation 2 (Body) Straight
RF Series 2 SMA
Cable Type 0.047 Flexible Coax
Cable Length 12"
Electrical
Frequency 100 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Dielectric withstanding Voltage 250 VRMS
Mechanical
Insertion Force 1.2 lbs (per contact)
Withdrawal Force 1.0 lbs
Mating Cycles 500
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Temperature Rating -65°C to +165°C
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Product tags
Customers Also Viewed

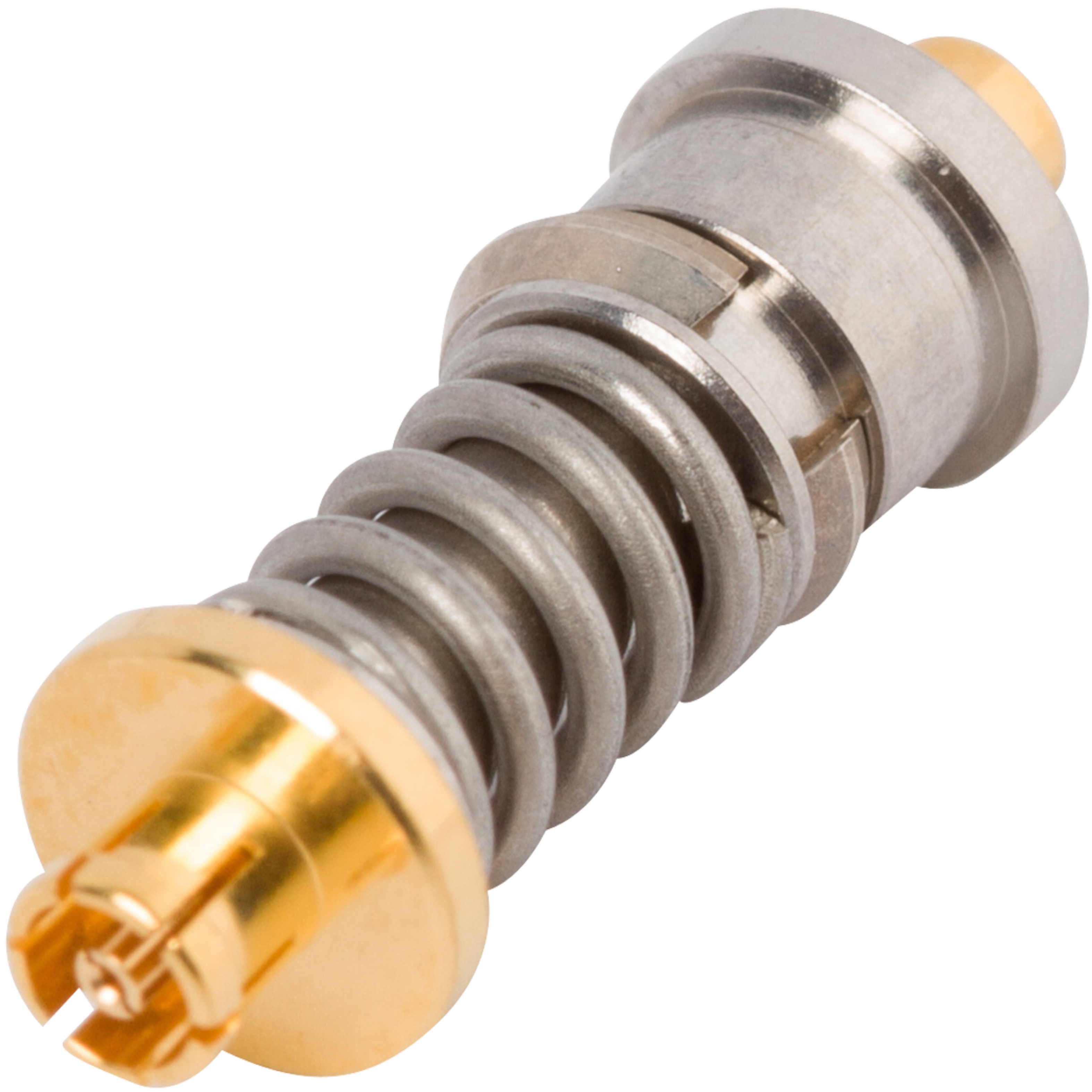

Part #   3221-40071

SMPM Female VITA 67.3 Backplane Contact for .047 Cable

Available Inventory: 201
3221-40071
VITA Connectors 3221-40071
Datasheet
Part #   3821-40023

SMPS Female VITA 67.3 Backplane Contact for .047 Cable

Available Inventory: 28
3821-40023
VITA Connectors 3821-40023
Datasheet

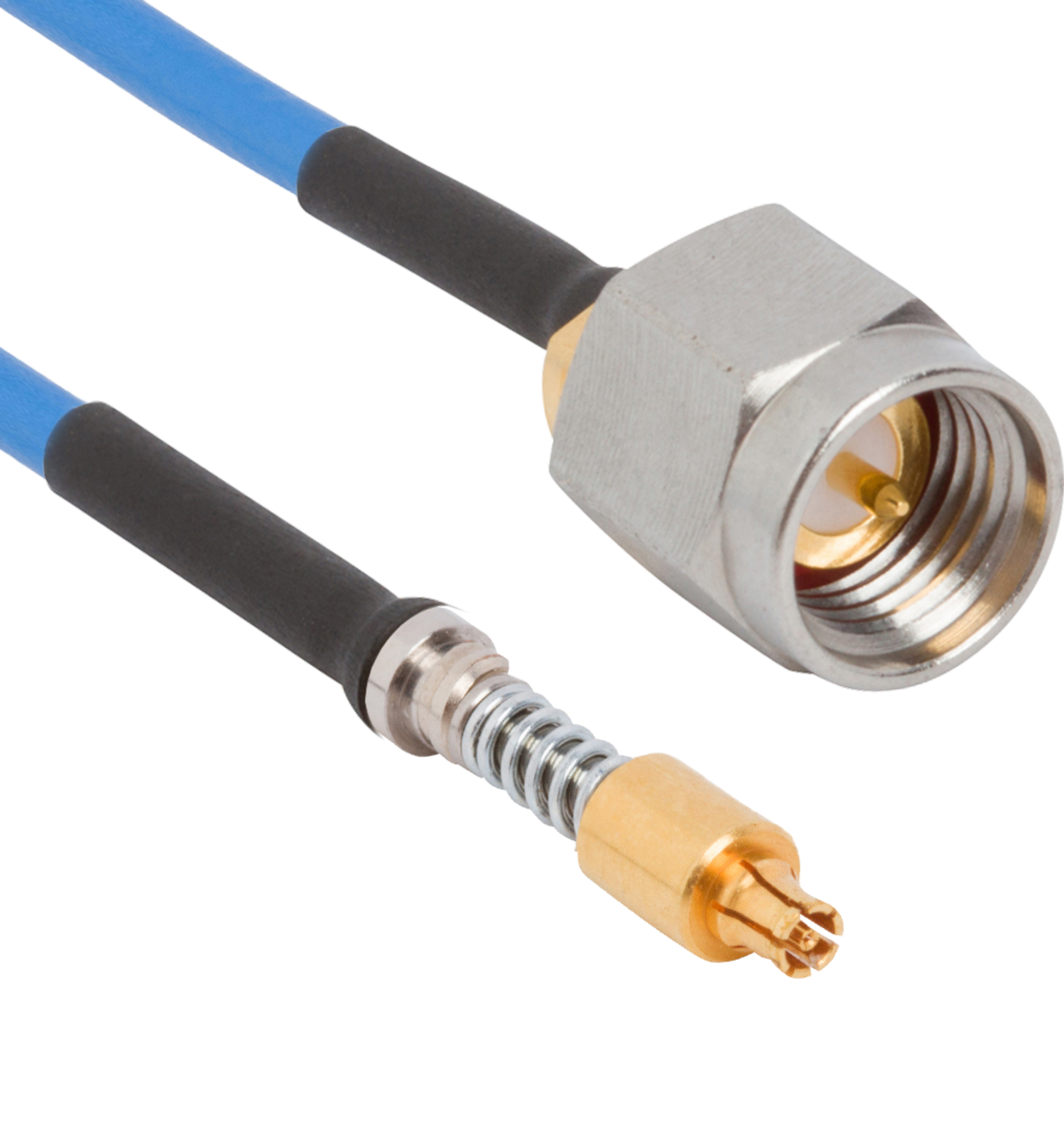

Part #   7038-0370
