SMPM Male PCB Thru-Hole Connector, R/A, FD
P/N: 3211-40139

There currently isn't any inventory available in distribution. Please contact us to obtain this product.
Products specifications
Attribute name Attribute value
RF Series SMPM
Orientation (Body) Straight
Coupling Push-on
Mounting Type PCB Vertical Launch
Number of Ports Single
Termination Style Solder
Detent Full Detent
Finish Gold
Gender Plug (Male)
Electrical
Frequency 25 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 325 VRMS
Mechanical
Mating Cycles - SB 500
Insertion Force - FD 4.5 lbs
Insertion Force - SB 2.5 lbs
Mating Cycles - FD 100
Withdrawal Force - SB 1.5 lbs
Axial Misalignment .010” Max
Withdrawal Force - FD 6.5 lbs
Radial Misalignment 3° Max
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:31:19 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMPM
Orientation (Body) Straight
Coupling Push-on
Mounting Type PCB Vertical Launch
Number of Ports Single
Termination Style Solder
Detent Full Detent
Finish Gold
Gender Plug (Male)
Electrical
Frequency 25 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 325 VRMS
Mechanical
Mating Cycles - SB 500
Insertion Force - FD 4.5 lbs
Insertion Force - SB 2.5 lbs
Mating Cycles - FD 100
Withdrawal Force - SB 1.5 lbs
Axial Misalignment .010” Max
Withdrawal Force - FD 6.5 lbs
Radial Misalignment 3° Max
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   3211-40138

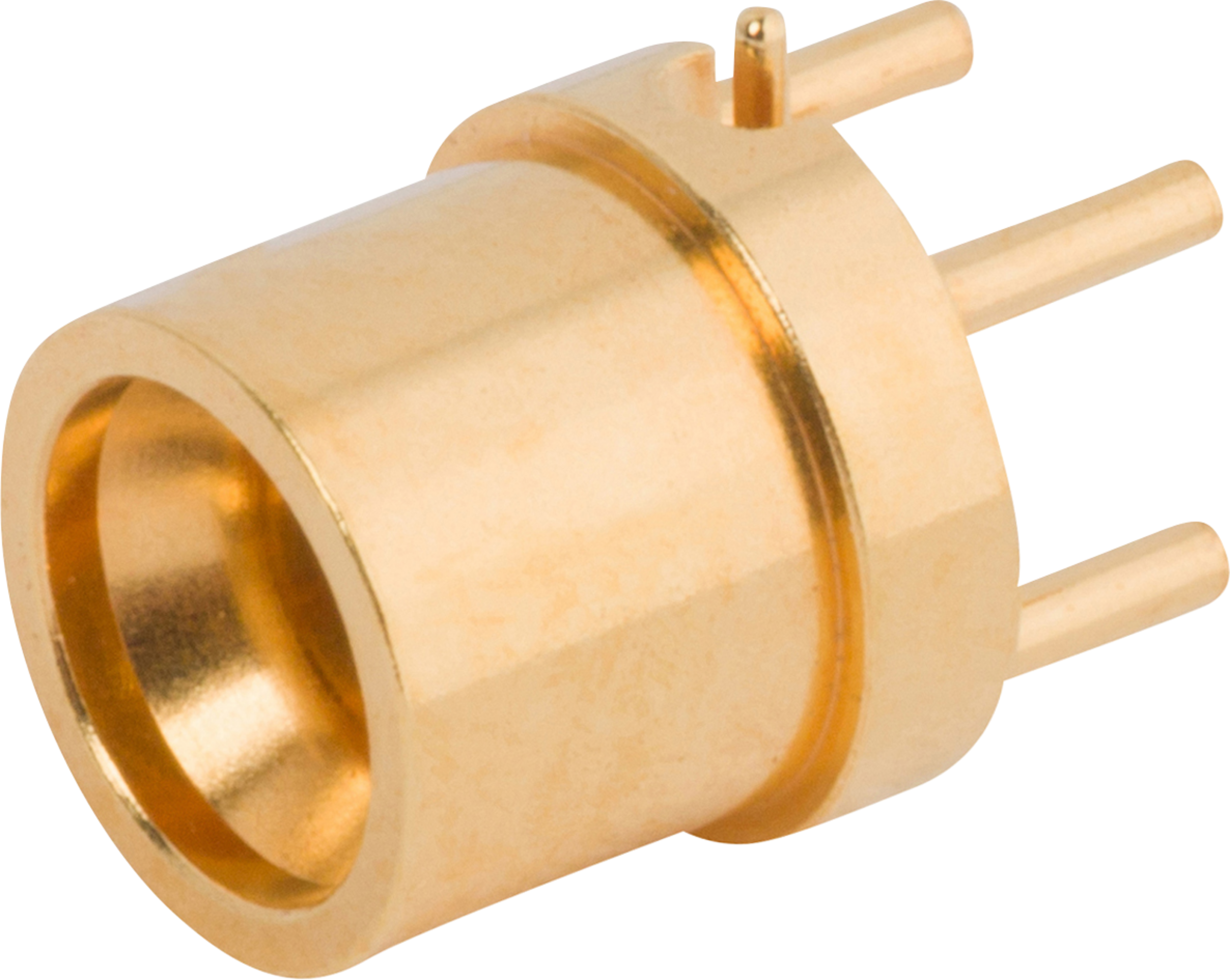

SMPM Male PCB Thru-Hole Connector, R/A, SB

Available Inventory: 212
3211-40138
SMPM Connectors 3211-40138
Datasheet
Part #   3211-40141

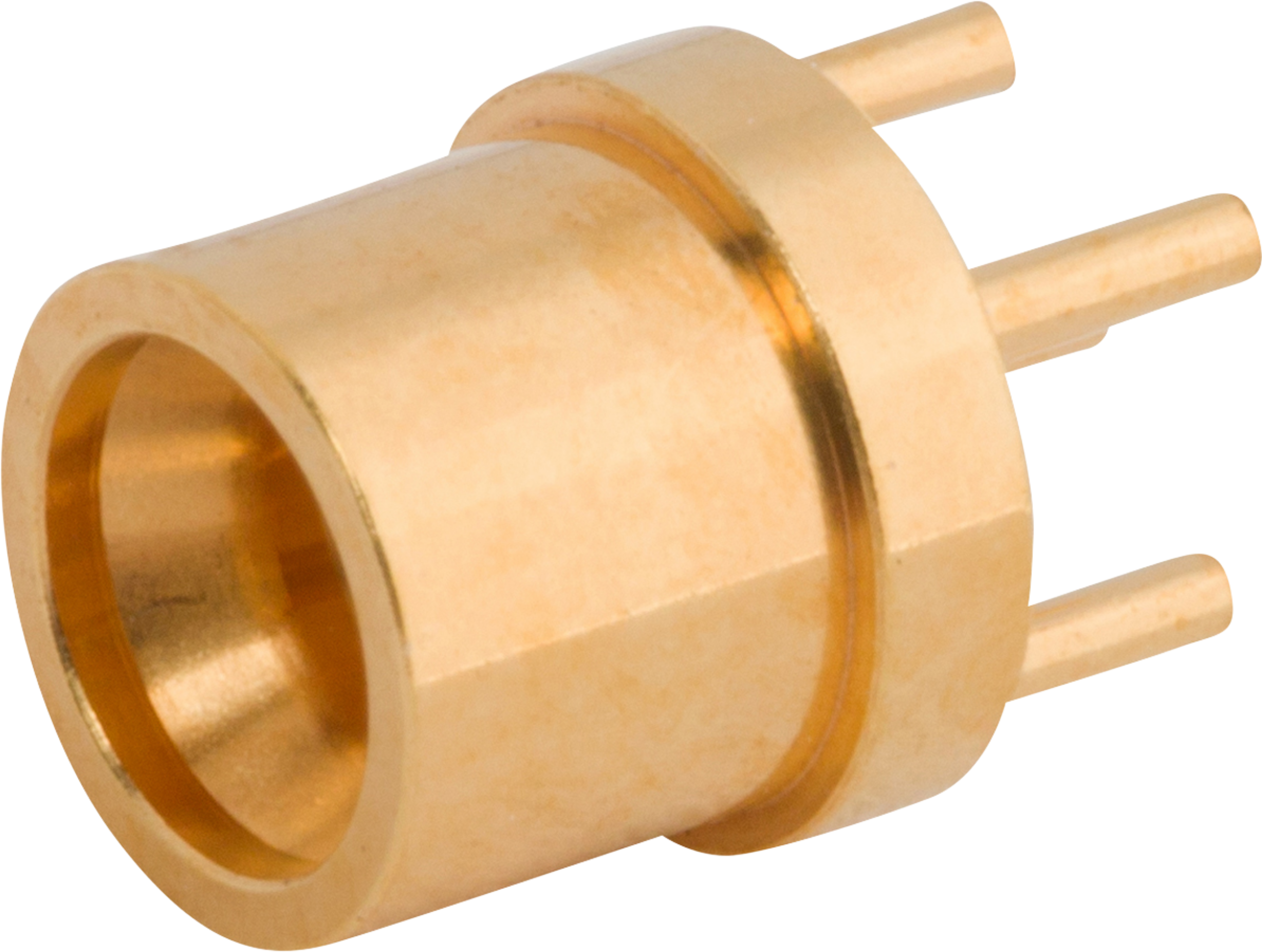

SMPM Male PCB Thru-Hole Connector, FD

Available Inventory: 336
3211-40141
SMPM Connectors 3211-40141
Datasheet
Part #   3211-40143

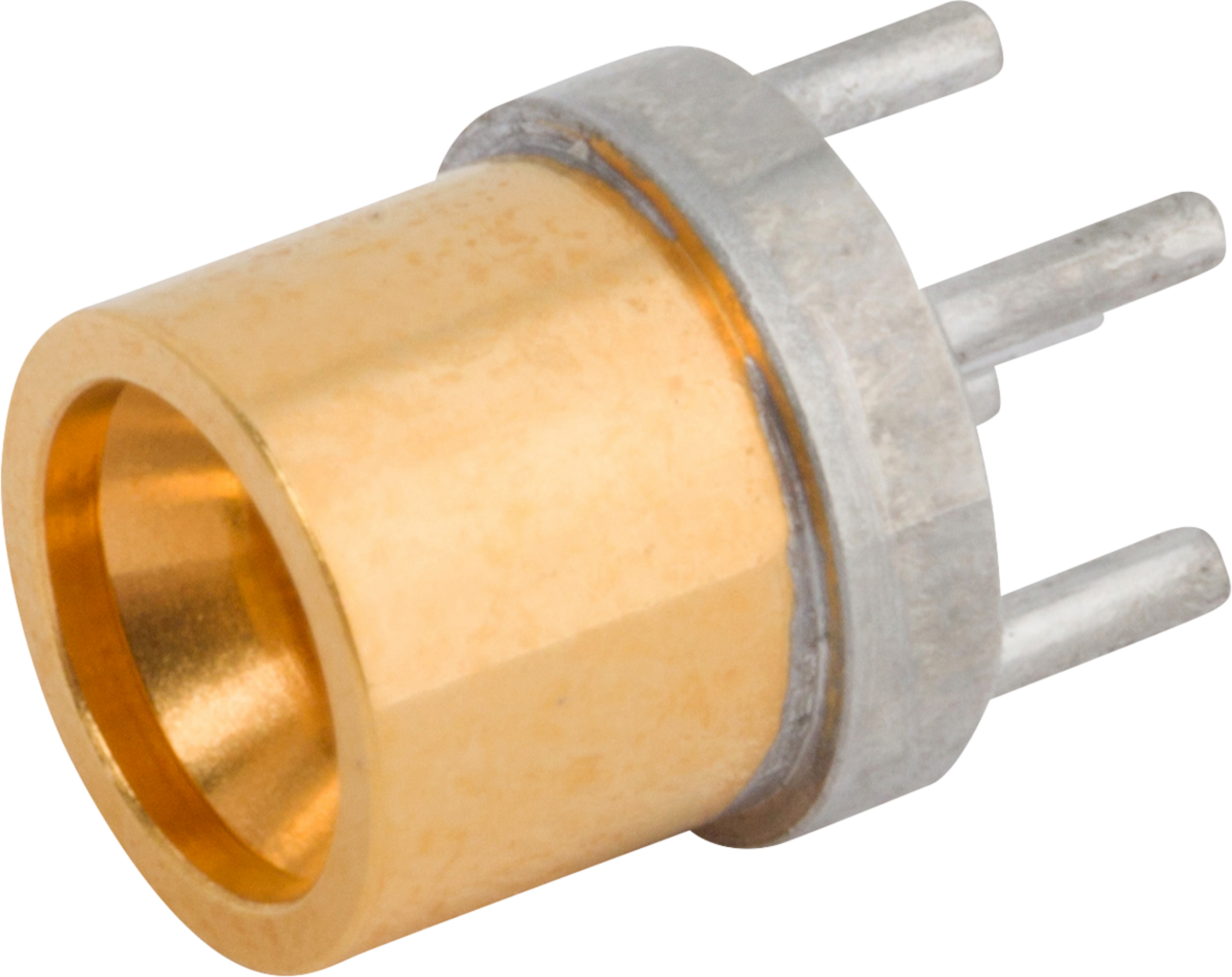

SMPM Male PCB Thru-Hole Connector (Pre-Tinned), FD
