SMPM Female to SMA Male 12" Cable Assembly for .085 Cable
P/N: 7032-7527

There currently isn't any inventory available in distribution. Please contact us to obtain this product.
Products specifications
Attribute name Attribute value
RF Series SMPM
Gender Jack (Female)
Orientation (Body) Straight
Coupling Push-on
Termination Style Solder
Number of Ports Single
RF Series 2 SMA
Gender 2 Plug (Male)
Cable Type 0.085 Flexible Coax
Orientation 2 (Body) Straight
Cable Length 12"
Electrical
Frequency 18 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 325 VRMS
Mechanical
Mating Cycles - SB 500
Mating Cycles - FD 100
Insertion Force - SB 2.5 lbs
Insertion Force - FD 4.5 lbs
Axial Misalignment .010” Max
Withdrawal Force - SB 1.5 lbs
Radial Misalignment 3° Max
Withdrawal Force - FD 6.5 lbs
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 30000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

CE / UKCA Compliant

This products meets the requirements for CE and UKCA.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:13:34 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMPM
Gender Jack (Female)
Orientation (Body) Straight
Coupling Push-on
Termination Style Solder
Number of Ports Single
RF Series 2 SMA
Gender 2 Plug (Male)
Cable Type 0.085 Flexible Coax
Orientation 2 (Body) Straight
Cable Length 12"
Electrical
Frequency 18 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 325 VRMS
Mechanical
Mating Cycles - SB 500
Mating Cycles - FD 100
Insertion Force - SB 2.5 lbs
Insertion Force - FD 4.5 lbs
Axial Misalignment .010” Max
Withdrawal Force - SB 1.5 lbs
Radial Misalignment 3° Max
Withdrawal Force - FD 6.5 lbs
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   7032-7524

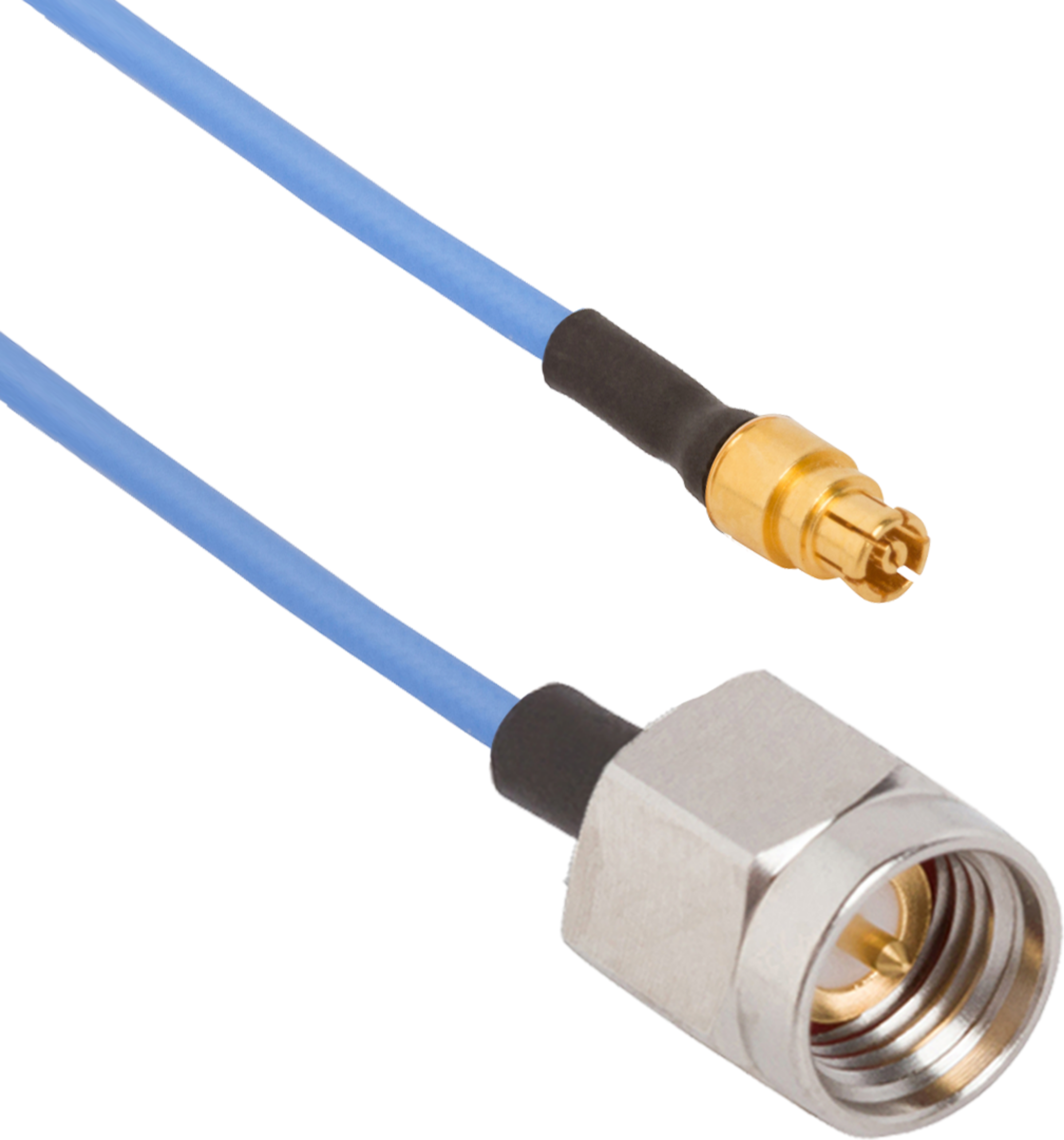

SMPM Female to SMA Male 6" Cable Assembly for .047 Cable

Available Inventory: 164
7032-7524
SMPM Cable Assemblies 7032-7524
Datasheet
Part #   7032-7525

SMPM Female to SMA Male 12" Cable Assembly for 0.047 Cable

Available Inventory: 122
7032-7525
SMPM Cable Assemblies 7032-7525
Datasheet
Part #   7032-7526

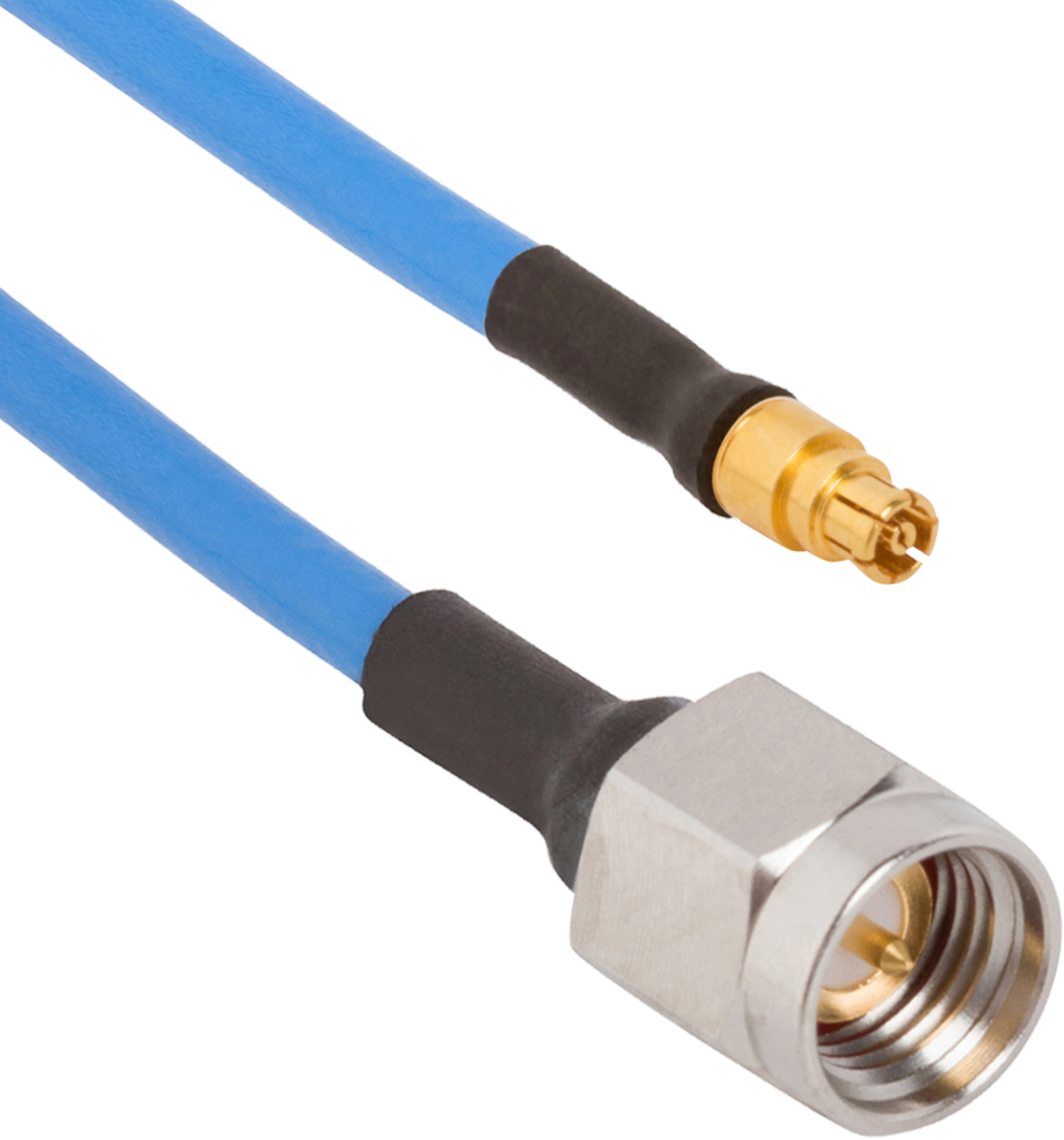

SMPM Female to SMA Male 6" Cable Assembly for .085 Cable
