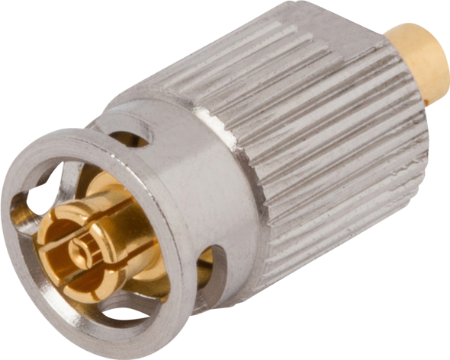

SMPM Female QB Connector for .047 Cable
P/N: 3221-60003

In stock at Qty Order
Mouser Electronics 53
Digi-Key Electronics 25
3257
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute name Attribute value
Family QuarterBack
RF Series SMPM
Gender Jack (Female)
Coupling Keyed
Orientation (Body) Straight
Keyed Subtype 180-180
Termination Style Solder
Number of Ports Single
Finish Passivated
Cable Type 0.047 Flexible Coax
Cable Builder Attributes
Mating Connector SF1132-6078
Electrical
Frequency 65 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 325 VRMS
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Mechanical
Insertion Force - FD 4.5 lbs
Withdrawal Force - SB 1.5 lbs
Mating Cycles - SB 500
Axial Misalignment .010” Max
Withdrawal Force - FD 6.5 lbs
Radial Misalignment 3° Max
Mating Cycles - FD 100
Insertion Force - SB 2.5 lbs
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Temperature Rating -65°C to +165°C
Thermal Shock MIL-STD-202, Method 107, Condition B


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 30000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:17:05 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Family QuarterBack
RF Series SMPM
Gender Jack (Female)
Coupling Keyed
Orientation (Body) Straight
Keyed Subtype 180-180
Termination Style Solder
Number of Ports Single
Finish Passivated
Cable Type 0.047 Flexible Coax
Cable Builder Attributes
Mating Connector SF1132-6078
Electrical
Frequency 65 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 325 VRMS
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Mechanical
Insertion Force - FD 4.5 lbs
Withdrawal Force - SB 1.5 lbs
Mating Cycles - SB 500
Axial Misalignment .010” Max
Withdrawal Force - FD 6.5 lbs
Radial Misalignment 3° Max
Mating Cycles - FD 100
Insertion Force - SB 2.5 lbs
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Temperature Rating -65°C to +165°C
Thermal Shock MIL-STD-202, Method 107, Condition B
