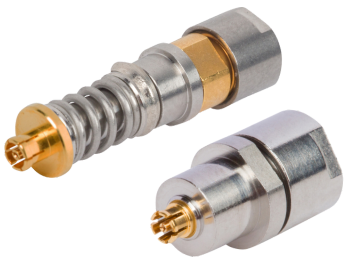

SMPM and SMPS Terminations

SV Microwave’s RF terminations can be installed at the end of a bus or transmission line to prevent signals from reflecting back. Now available in both SMPM and SMPS series with variants for our VITA SMPM and SMPS line.

Features / Benefits:

Nominal Impedance: 50 Ohms
SMPM and SMPS series available
Minimize signal reflection
Power handling: ½ watt
Ideal for high density VITA 67.3 SMPM/SMPS applications

Applications:

Mil/Aero
Robust and rugged high speed cabled solution
High-reliability, high-density for aerospace & defense applications
SIGINT, EWR, ground base station & communication systems, avionics, radar systems
Mulitport RF systems with unused ports
Test setups and instrumentation
Power dividers and combiners

SMPS

Impedance (Ω)	50
Frequency GHz	65 GHz
Shielding Effectiveness	≥ -80 dB DC - 3 GHz ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage	250 VRMS
Mating Cycles - SB	500
Mating Cycles - FD	100
Insertion Force - SB	1.2 lbs
Insertion Force - FD	2.5 lbs
Withdrawal Force - SB	1.0 lbs
Withdrawal Force - FD	4.5 lbs
Axial Misalignment	.010” Max
Radial Misalignment	3° Max
Temperature Rating	-65°C to +165°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Thermal Shock	MIL-STD-202, Method 107, Condition B
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.

SMPM

Impedance (Ω)	50
Frequency GHz	65 GHz
Shielding Effectiveness	≥ -80 dB DC - 3 GHz ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage	325 VRMS
Mating Cycles - SB	500
Mating Cycles - FD	100
Insertion Force - SB	2.5 lbs
Insertion Force - FD	4.5 lbs
Withdrawal Force - SB	1.5 lbs
Withdrawal Force - FD	6.5 lbs
Axial Misalignment	.010” Max
Radial Misalignment	3° Max
Temperature Rating	-65°C to +165°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Thermal Shock	MIL-STD-202, Method 107, Condition B
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
