SMP Female QB to SMA Male 6" Cable Assembly for .047 Cable
P/N: 7012-1301

There currently isn't any inventory available in distribution. Please contact us to obtain this product.
Products specifications
Attribute name Attribute value
Family QuarterBack
Orientation (Body) Straight
Gender Jack (Female)
RF Series SMA
Coupling Threaded
RF Series 2 SMA
Gender 2 Plug (Male)
Orientation 2 (Body) Straight
Cable Type 0.047 Flexible Coax
Cable Length 6"
Electrical
Impedance 50 ohms
Frequency 18 GHz
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Intermateability 2.92mm
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

CE / UKCA Compliant

This products meets the requirements for CE and UKCA.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:07:40 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Family QuarterBack
Orientation (Body) Straight
Gender Jack (Female)
RF Series SMA
Coupling Threaded
RF Series 2 SMA
Gender 2 Plug (Male)
Orientation 2 (Body) Straight
Cable Type 0.047 Flexible Coax
Cable Length 6"
Electrical
Impedance 50 ohms
Frequency 18 GHz
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Intermateability 2.92mm
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Product tags
Customers Also Viewed
Part #   7012-1084

SMP Female QB to SMA Male 12" Cable Assembly for .085 Cable

Available Inventory: 30
7012-1084
SMP Cable Assemblies 7012-1084
Datasheet
Part #   7012-1085

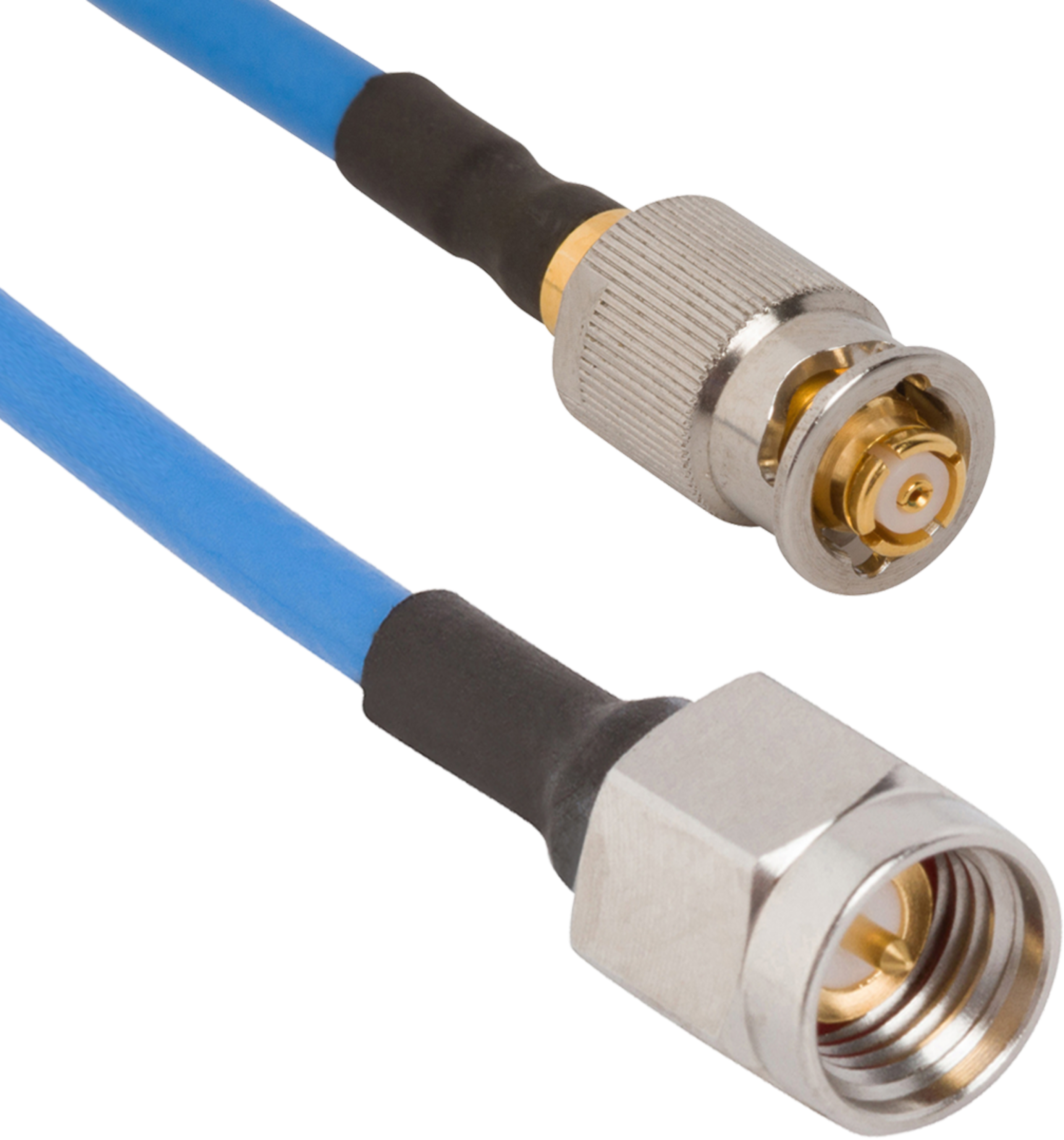

SMP Female QB to SMA Male 6" Cable Assembly for .085 Cable

Available Inventory: 121
7012-1085
SMP Cable Assemblies 7012-1085
Datasheet
Part #   7012-1086

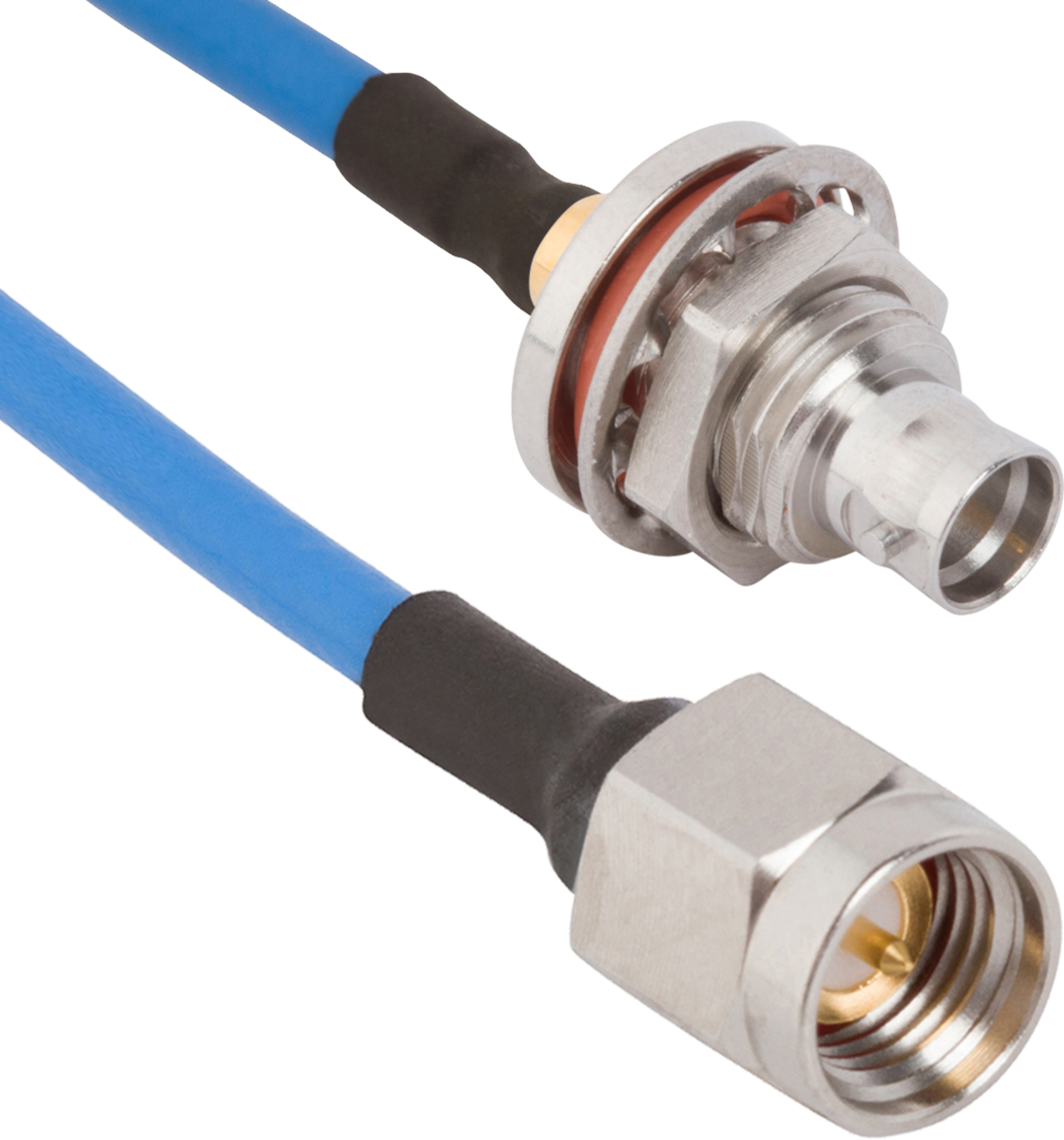

SMP Male QB Bulkhead to SMA Male 6" Cable Asssembly for .085 Cable"
