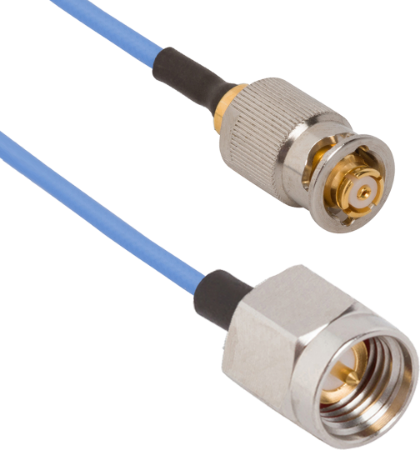

SMP Female QB to SMA Male 12" Cable Assembly for .047 Cable
P/N: 7012-1302

There currently isn't any inventory available in distribution. Please contact us to obtain this product.
Products specifications
Attribute name Attribute value
Family QuarterBack
RF Series SMP
Gender Jack (Female)
Orientation (Body) Straight
Coupling Push-on
RF Series 2 SMA
Orientation 2 (Body) Straight
Gender 2 Plug (Male)
Cable Type 0.047 Flexible Coax
Cable Length 12"
Electrical
Impedance 50 ohms
Frequency 18 GHz
Dielectric withstanding Voltage 500 VRMS
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Mechanical
Mating Cycles - SB 1000
Mating Cycles - LD 500
Insertion Force - SB 3.0 lbs
Mating Cycles - FD 100
Withdrawal Force - SB 0.5 lbs
Insertion Force - LD 5.0 lbs
Insertion Force - FD 7.0 lbs
Withdrawal Force - FD 9.0 lbs
Axial Misalignment .010” Max
Withdrawal Force - LD 7.0 lbs
Radial Misalignment 3° Max
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Temperature Rating -65°C to +165°C
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

CE / UKCA Compliant

This products meets the requirements for CE and UKCA.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:07:42 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Family QuarterBack
RF Series SMP
Gender Jack (Female)
Orientation (Body) Straight
Coupling Push-on
RF Series 2 SMA
Orientation 2 (Body) Straight
Gender 2 Plug (Male)
Cable Type 0.047 Flexible Coax
Cable Length 12"
Electrical
Impedance 50 ohms
Frequency 18 GHz
Dielectric withstanding Voltage 500 VRMS
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Mechanical
Mating Cycles - SB 1000
Mating Cycles - LD 500
Insertion Force - SB 3.0 lbs
Mating Cycles - FD 100
Withdrawal Force - SB 0.5 lbs
Insertion Force - LD 5.0 lbs
Insertion Force - FD 7.0 lbs
Withdrawal Force - FD 9.0 lbs
Axial Misalignment .010” Max
Withdrawal Force - LD 7.0 lbs
Radial Misalignment 3° Max
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Temperature Rating -65°C to +165°C
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Product tags
Customers Also Viewed
Part #   7012-1084

SMP Female QB to SMA Male 12" Cable Assembly for .085 Cable

Available Inventory: 30
7012-1084
SMP Cable Assemblies 7012-1084
Datasheet
Part #   7012-1085

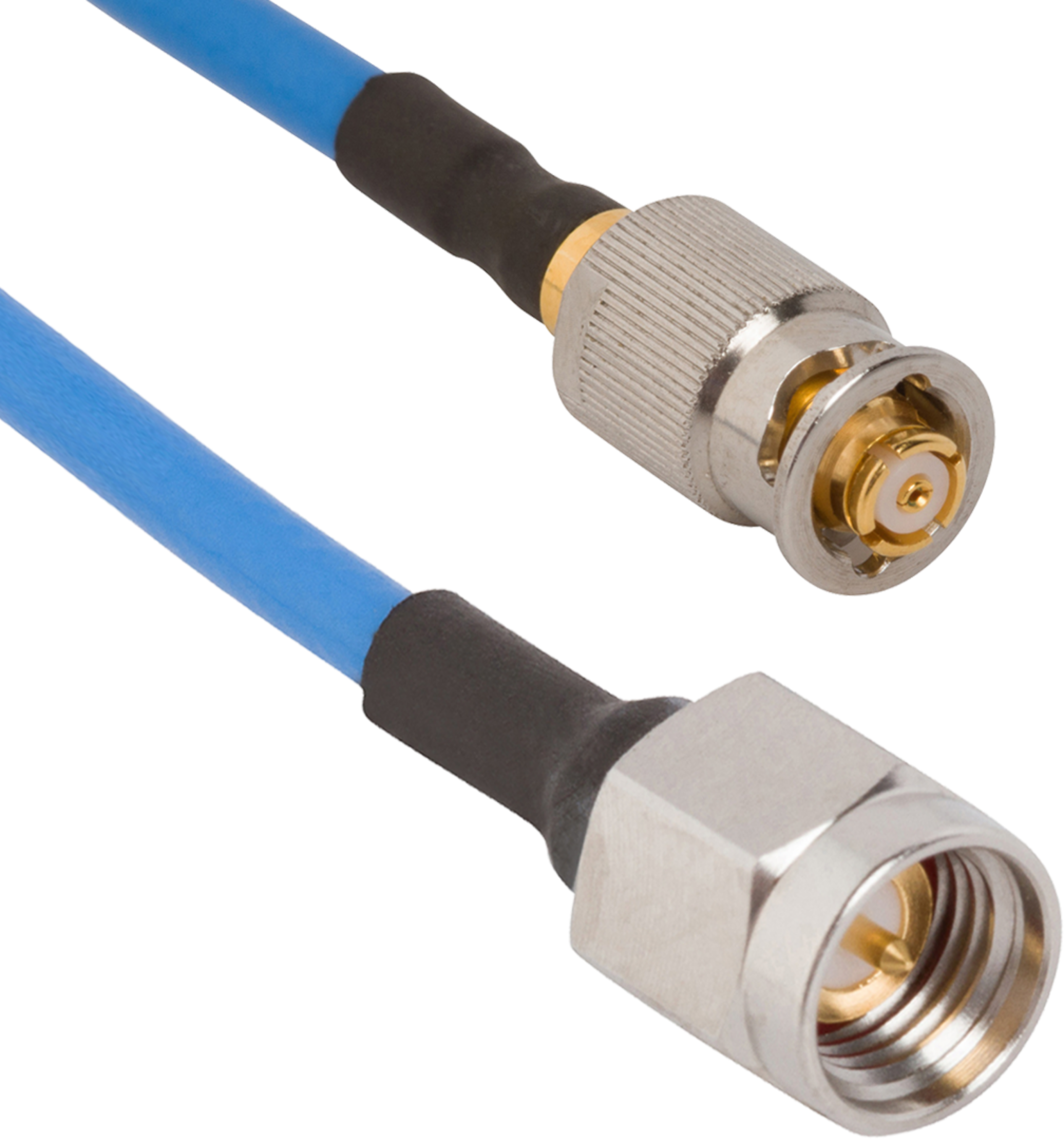

SMP Female QB to SMA Male 6" Cable Assembly for .085 Cable

Available Inventory: 5
7012-1085
SMP Cable Assemblies 7012-1085
Datasheet
Part #   7012-1086

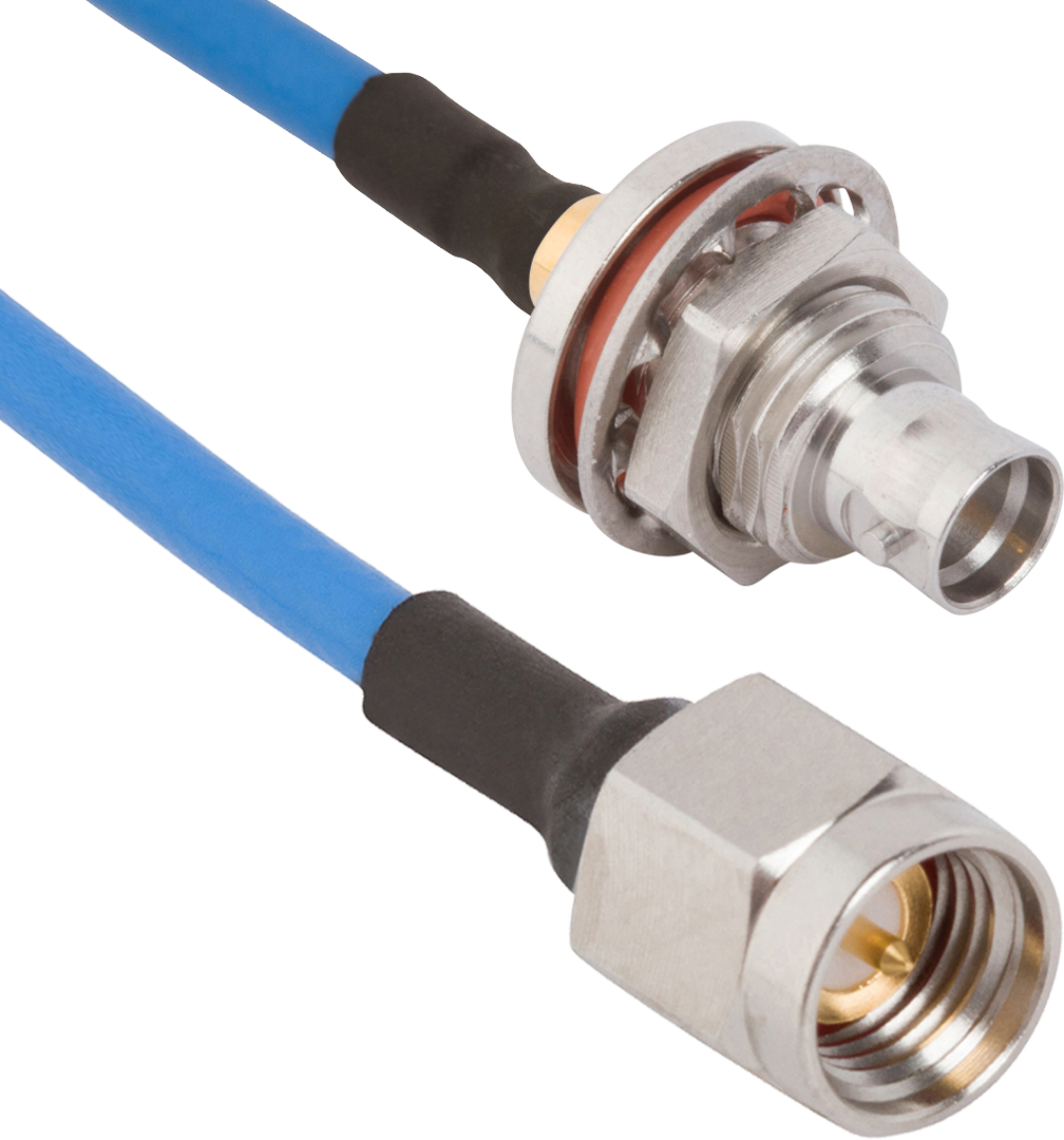

SMP Male QB Bulkhead to SMA Male 6" Cable Assembly for .085 Cable
