Products specifications
| Attribute name | Attribute value |
|---|---|
| RF Series | SMP |
| Electrical | |
| Dielectric withstanding Voltage | 500 VRMS |
| Shielding Effectiveness | ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz |
| Mechanical | |
| Mating Cycles - LD | 500 |
| Mating Cycles - SB | 1000 |
| Mating Cycles - FD | 100 |
| Insertion Force - SB | 3.0 lbs |
| Withdrawal Force - SB | 0.5 lbs |
| Insertion Force - LD | 5.0 lbs |
| Insertion Force - FD | 7.0 lbs |
| Withdrawal Force - LD | 7.0 lbs |
| Withdrawal Force - FD | 9.0 lbs |
| Axial Misalignment | .010” Max |
| Radial Misalignment | 3° Max |
| Environmental | |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Temperature Rating | -65°C to +165°C |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
Related products
SF1575-6007
2.92mm Connectors SF1575-6007
SF1675-6004
2.4mm Connectors SF1675-6004
2975-6200
SMA Connectors 2975-6200
Customers Also Viewed
500-12-000

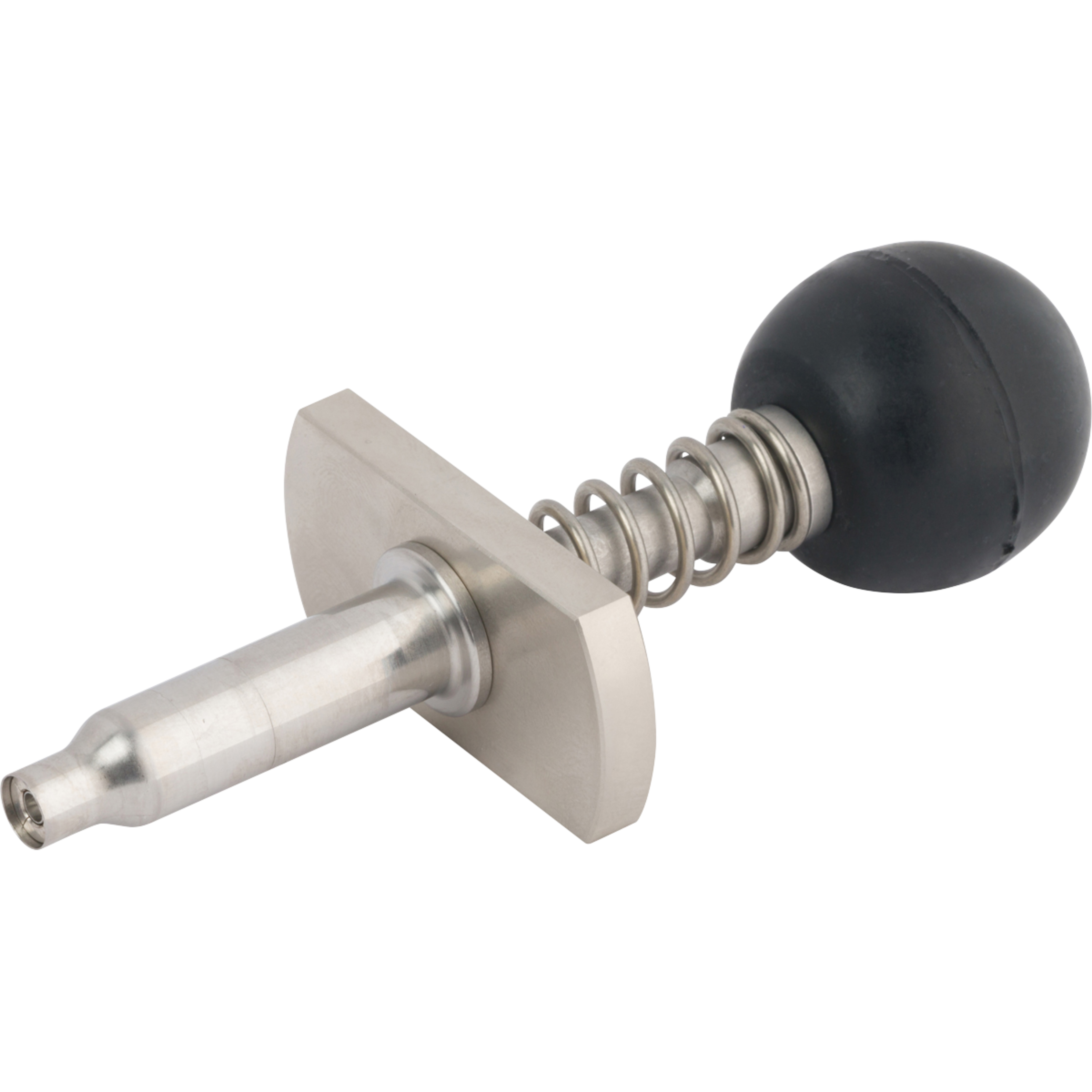

SMP Tool 500-12-000
500-32-010

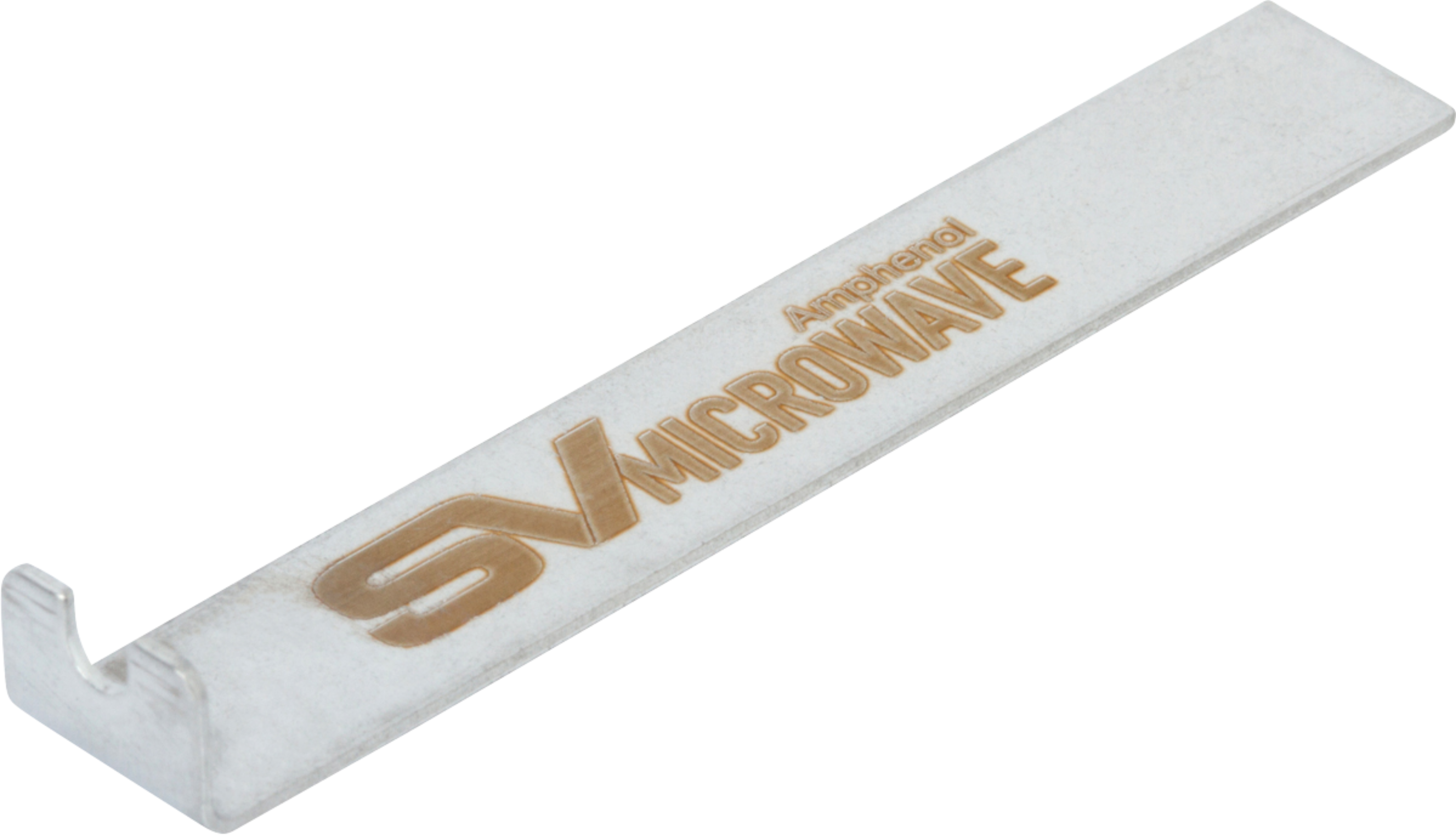

SMPM Tool 500-32-010
500-38-002

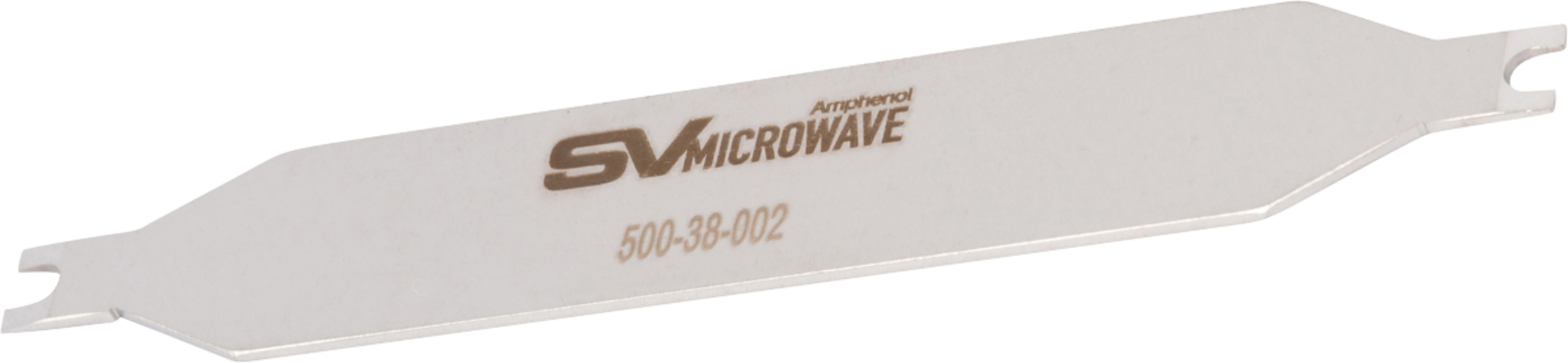

SMPS Tool 500-38-002
