SMA Male to Male Adapter
P/N: SF2993-6001

Products specifications
Attribute name Attribute value
RF Series SMA
Orientation (Body) Straight
Coupling Threaded
Gender Plug (Male)
RF Series 2 SMA
Gender 2 Plug (Male)
Electrical
Frequency 18 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 1000 VRMS
Shielding Effectiveness ≥ -90 dB
Mechanical
Mating Cycles 500
Intermateability 2.92mm
Mating Torque 7 - 10 in - lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:05:45 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMA
Orientation (Body) Straight
Coupling Threaded
Gender Plug (Male)
RF Series 2 SMA
Gender 2 Plug (Male)
Electrical
Frequency 18 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 1000 VRMS
Shielding Effectiveness ≥ -90 dB
Mechanical
Mating Cycles 500
Intermateability 2.92mm
Mating Torque 7 - 10 in - lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Customers Also Viewed

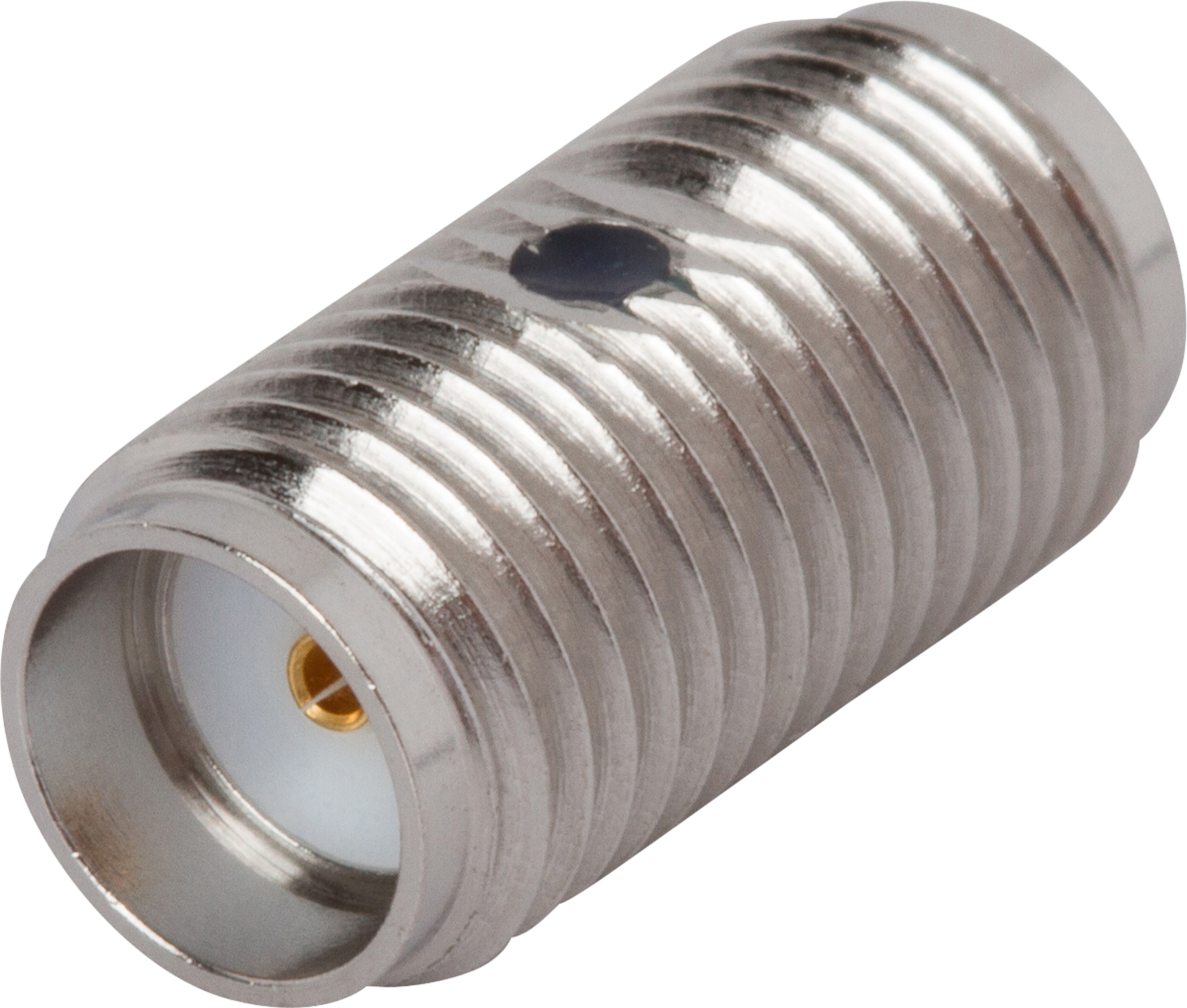

Part #   SF2992-6001

SMA Female to Female Adapter

Available Inventory: 1603
SF2992-6001
SMA Adapters SF2992-6001
Datasheet

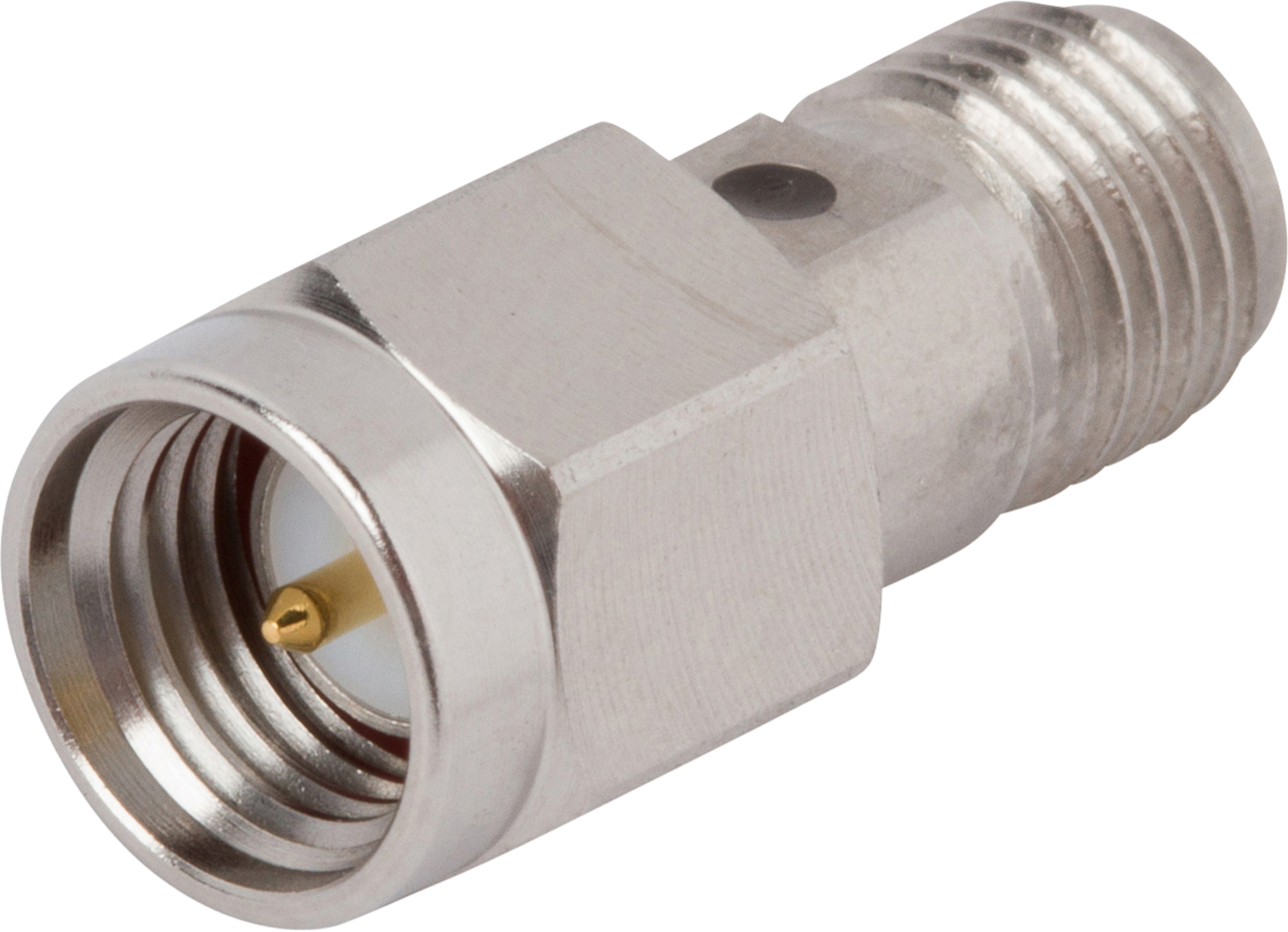

Part #   SF2997-6003

SMA Female to Male Adapter

Available Inventory: 2449
SF2997-6003
SMA Adapters SF2997-6003
Datasheet

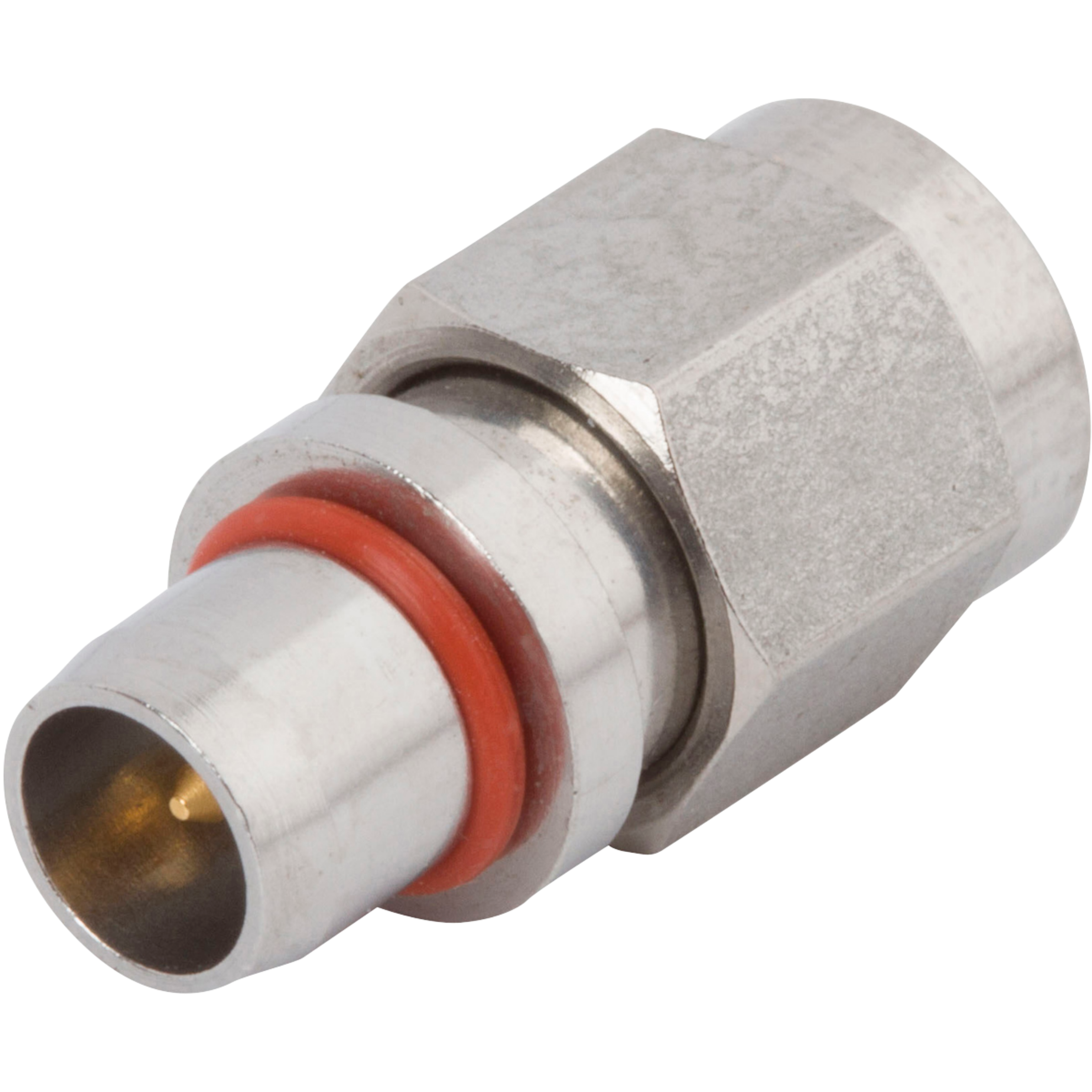

Part #   SF1117-6018
