SMA Female PCB Edge Lock Connector, 2 Leg, .062" PCB Thickness
P/N: 2921-00037

There currently isn't any inventory available in distribution. Please contact us to obtain this product.
Products specifications
Attribute name Attribute value
Family Edge Lock
RF Series SMA
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Mounting Type PCB Edge Launch
Termination Style Solder
Finish Gold
Electrical
Frequency 40 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 1000 VRMS
Shielding Effectiveness ≥ -90 dB
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Intermateability 2.92mm
Environmental
Thermal Shock MIL-STD-202, Method 107, Condition B
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Temperature Rating -65°C to +165°C
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 30000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:22:56 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Family Edge Lock
RF Series SMA
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Mounting Type PCB Edge Launch
Termination Style Solder
Finish Gold
Electrical
Frequency 40 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 1000 VRMS
Shielding Effectiveness ≥ -90 dB
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Intermateability 2.92mm
Environmental
Thermal Shock MIL-STD-202, Method 107, Condition B
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Temperature Rating -65°C to +165°C
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Customers Also Viewed
Part #   2985-6035

SMA Female PCB Edge Launch Connector, .063" PCB Thickness

Available Inventory: 872
2985-6035
SMA Connectors 2985-6035
Datasheet
Part #   2921-61493

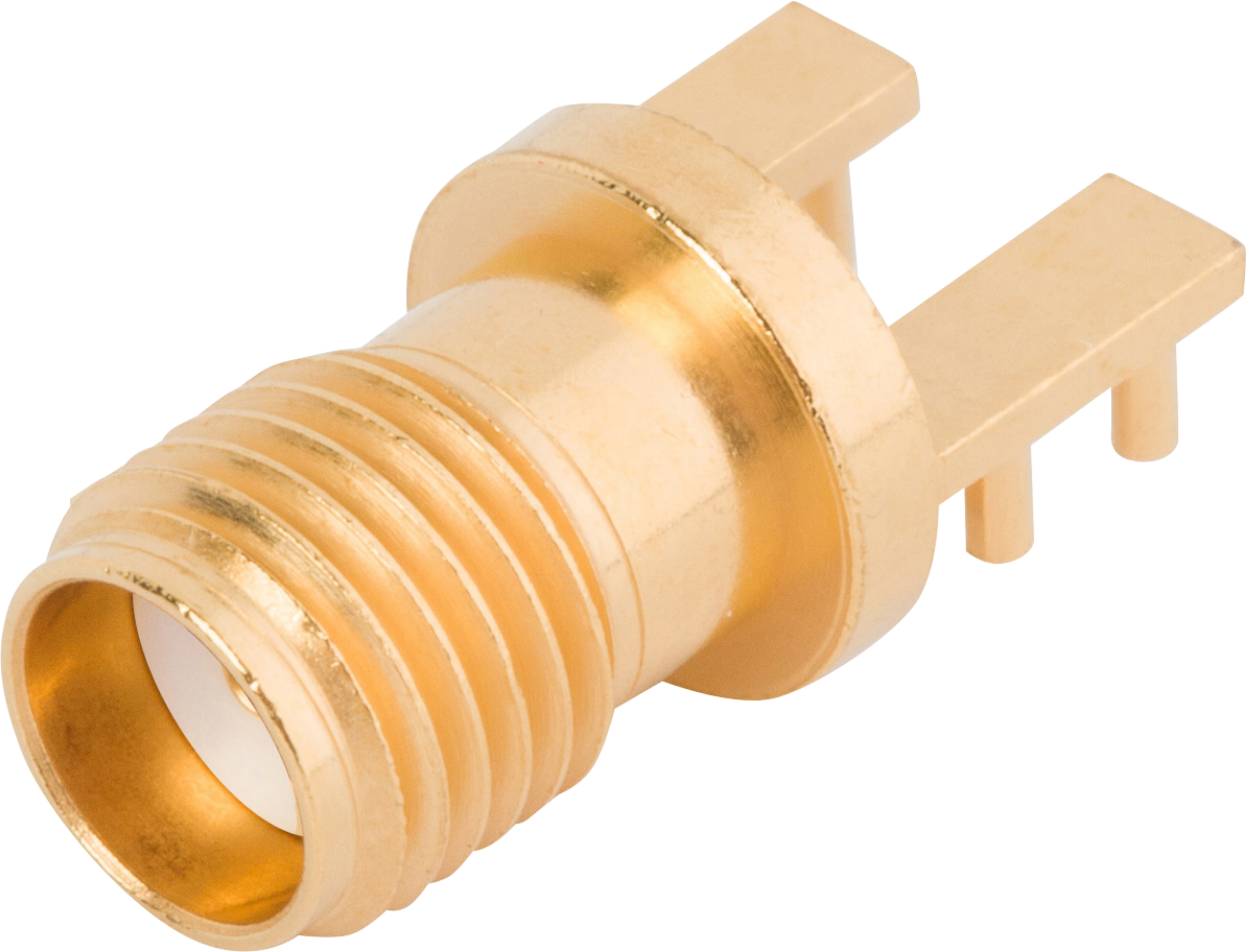

SMA Female PCB Edge Launch Connector, 4 Legs

Available Inventory: 1415
2921-61493
SMA Connectors 2921-61493
Datasheet
Part #   1521-00005

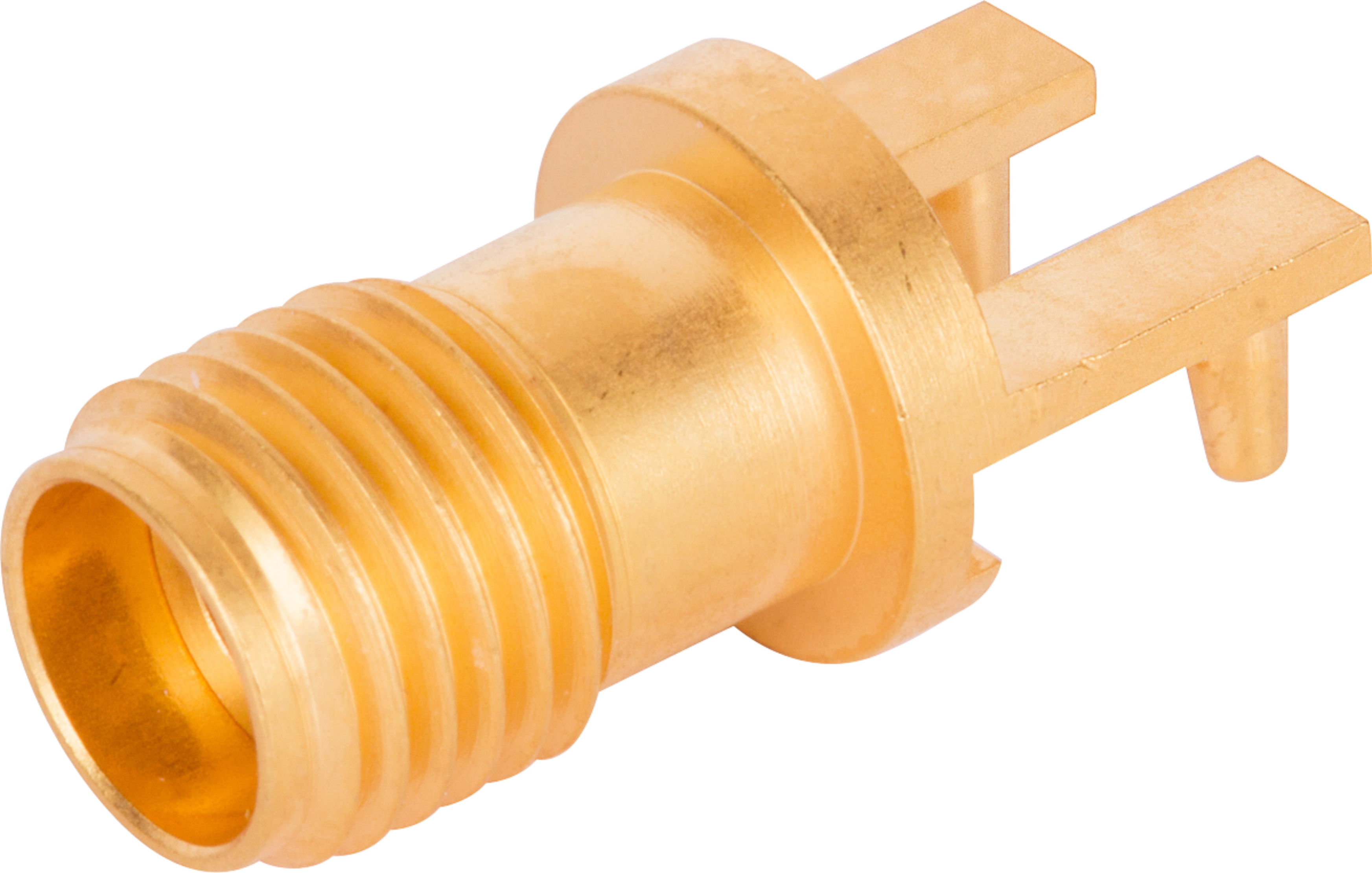

2.92mm Female PCB Edge Lock Connector, 2 Leg, .062" PCB Thickness
