SMA Female Keyed (150°) Bulkhead to SMA Male 6" Cable Assembly for .085 Cable
P/N: 7029-3409

There currently isn't any inventory available in distribution. Please contact us to obtain this product.
Products specifications
Attribute name Attribute value
Gender Jack (Female)
Coupling Keyed
Orientation (Body) Straight
RF Series SMA
Keyed Subtype 150-150
Mounting Type Panel
Body Style Jamnut/Bulkhead
Termination Style Solder
RF Series 2 SMA
Gender 2 Plug (Male)
Orientation 2 (Body) Straight
Cable Type 0.085 Flexible Coax
Cable Length 6"
Electrical
Frequency 18 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 1000 VRMS
Shielding Effectiveness ≥ -90 dB
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Intermateability 2.92mm
Environmental
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


EU RoHS Directive 2011/65/EU Not Compliant

These products DO NOT comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). Products indicated as ‘Not Compliant’ contain one or more restricted substances above the prohibition thresholds. Consequently, these products should NOT be used in any application requiring RoHS2 compliance.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 370000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:11:05 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Gender Jack (Female)
Coupling Keyed
Orientation (Body) Straight
RF Series SMA
Keyed Subtype 150-150
Mounting Type Panel
Body Style Jamnut/Bulkhead
Termination Style Solder
RF Series 2 SMA
Gender 2 Plug (Male)
Orientation 2 (Body) Straight
Cable Type 0.085 Flexible Coax
Cable Length 6"
Electrical
Frequency 18 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 1000 VRMS
Shielding Effectiveness ≥ -90 dB
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Intermateability 2.92mm
Environmental
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Product tags
Customers Also Viewed
7029-3410

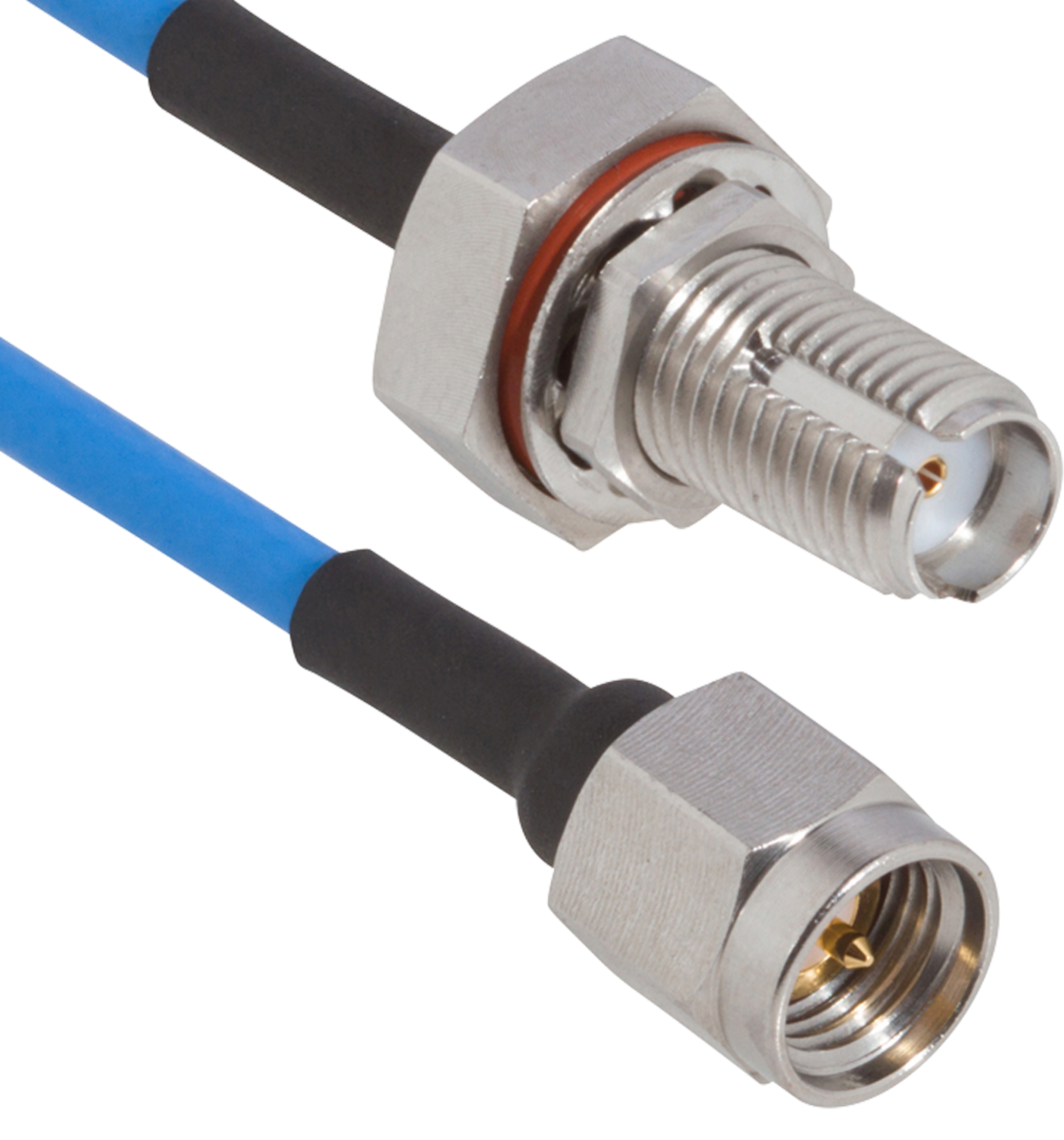

SMA Cable Assemblies 7029-3410
Datasheet
7029-3411

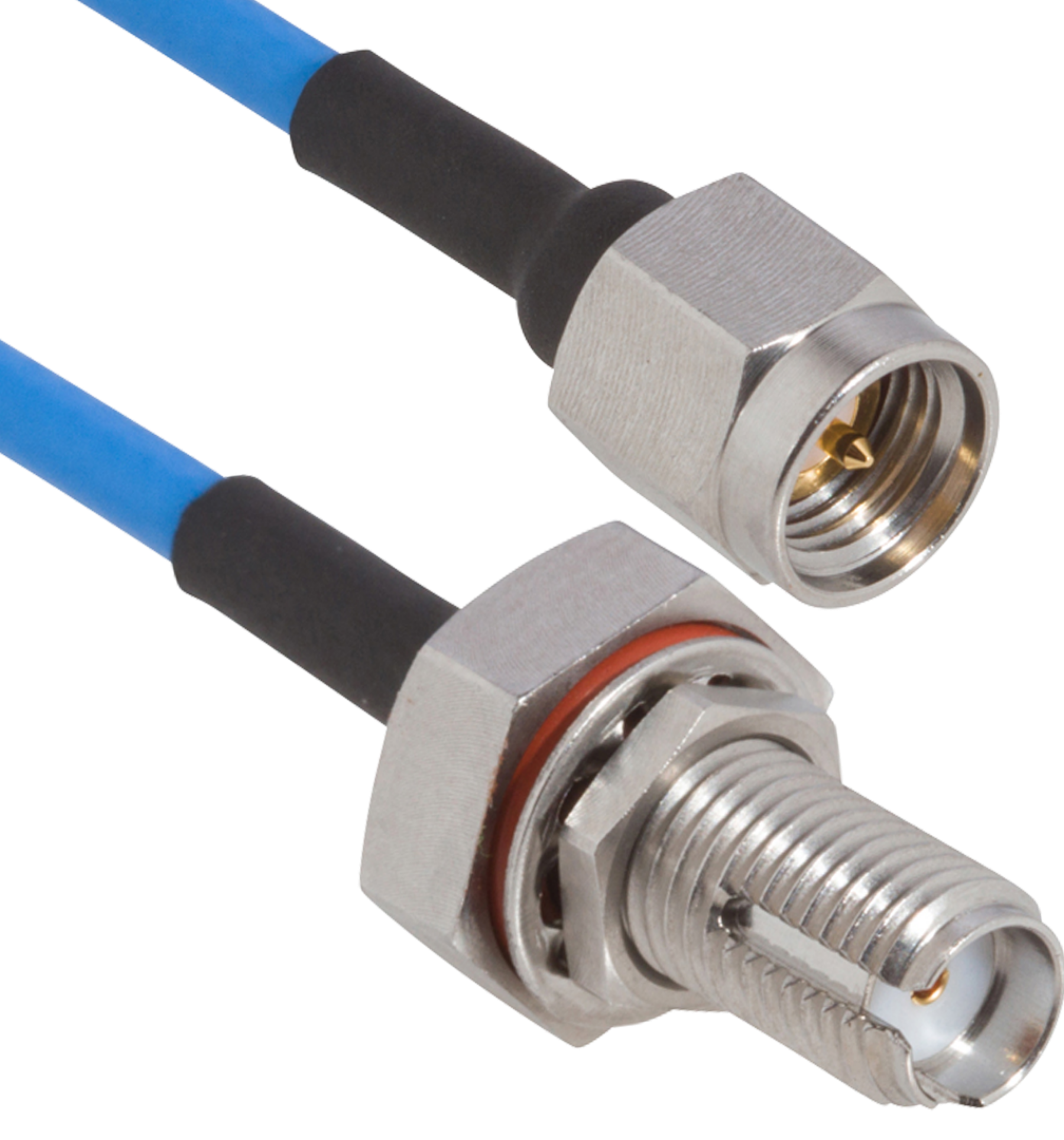

SMA Cable Assemblies 7029-3411
Datasheet
Part #   7029-3412

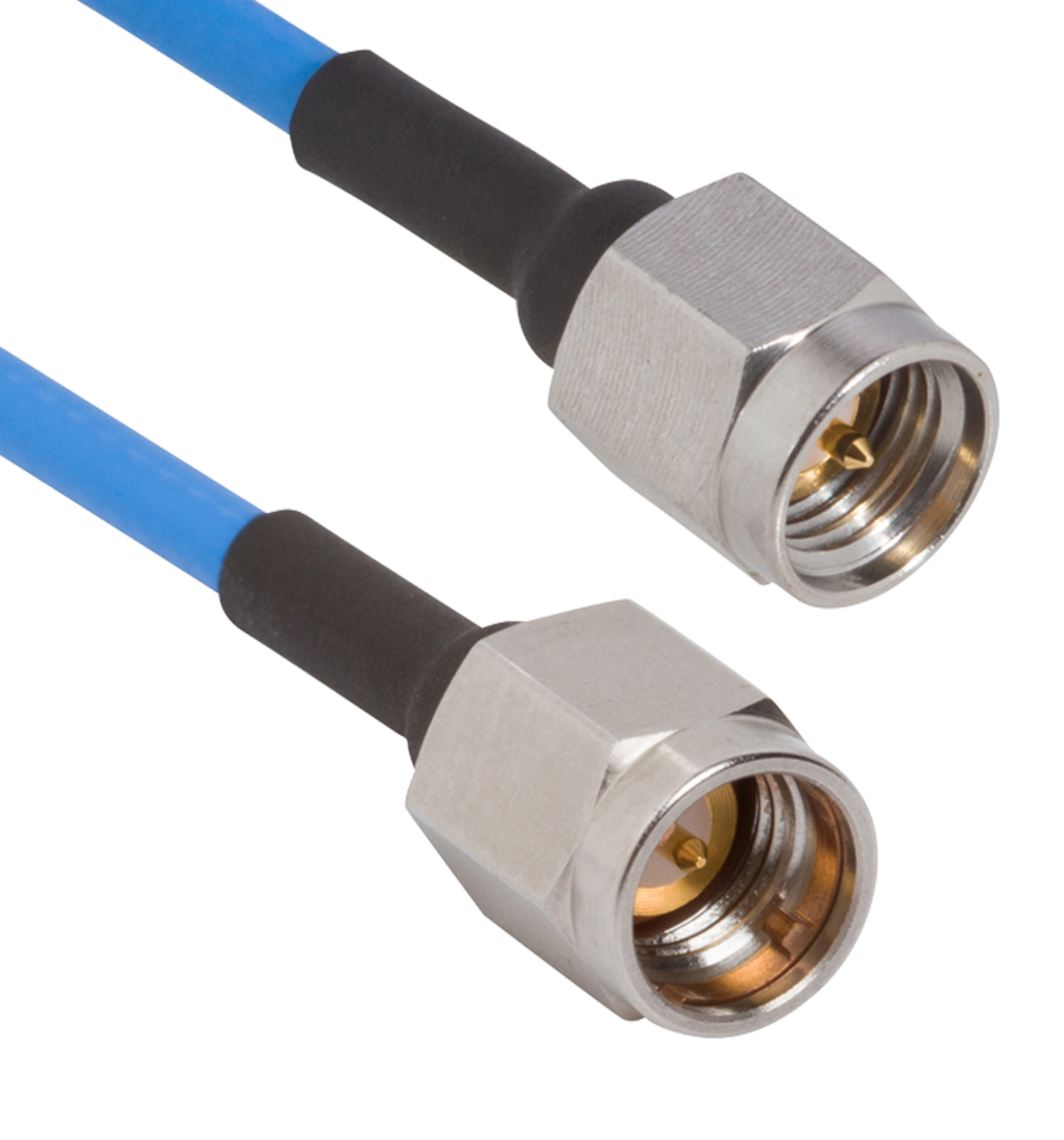

SMA Male Keyed (180°) to SMA Male 6" Cable Assembly for .085 Cable
